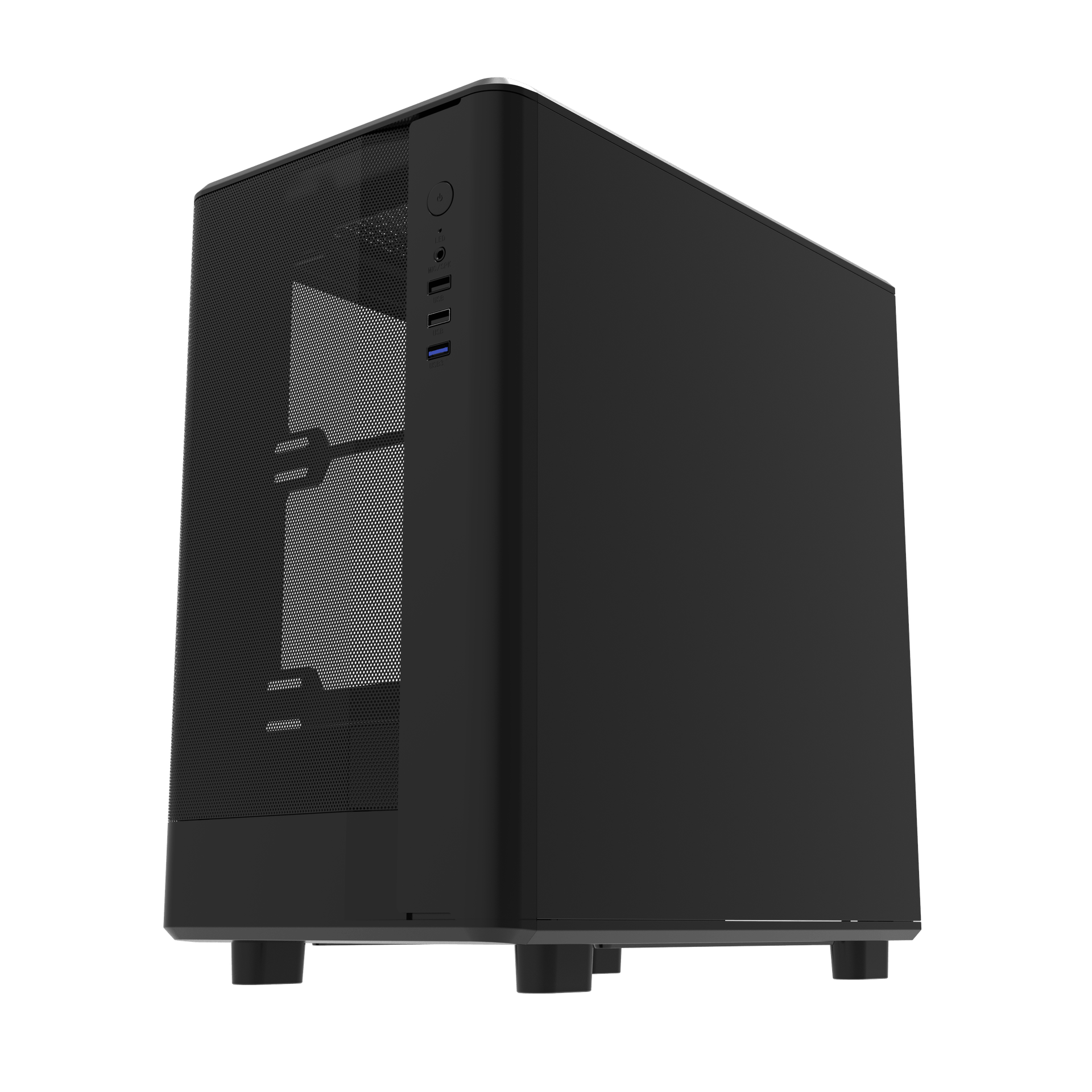

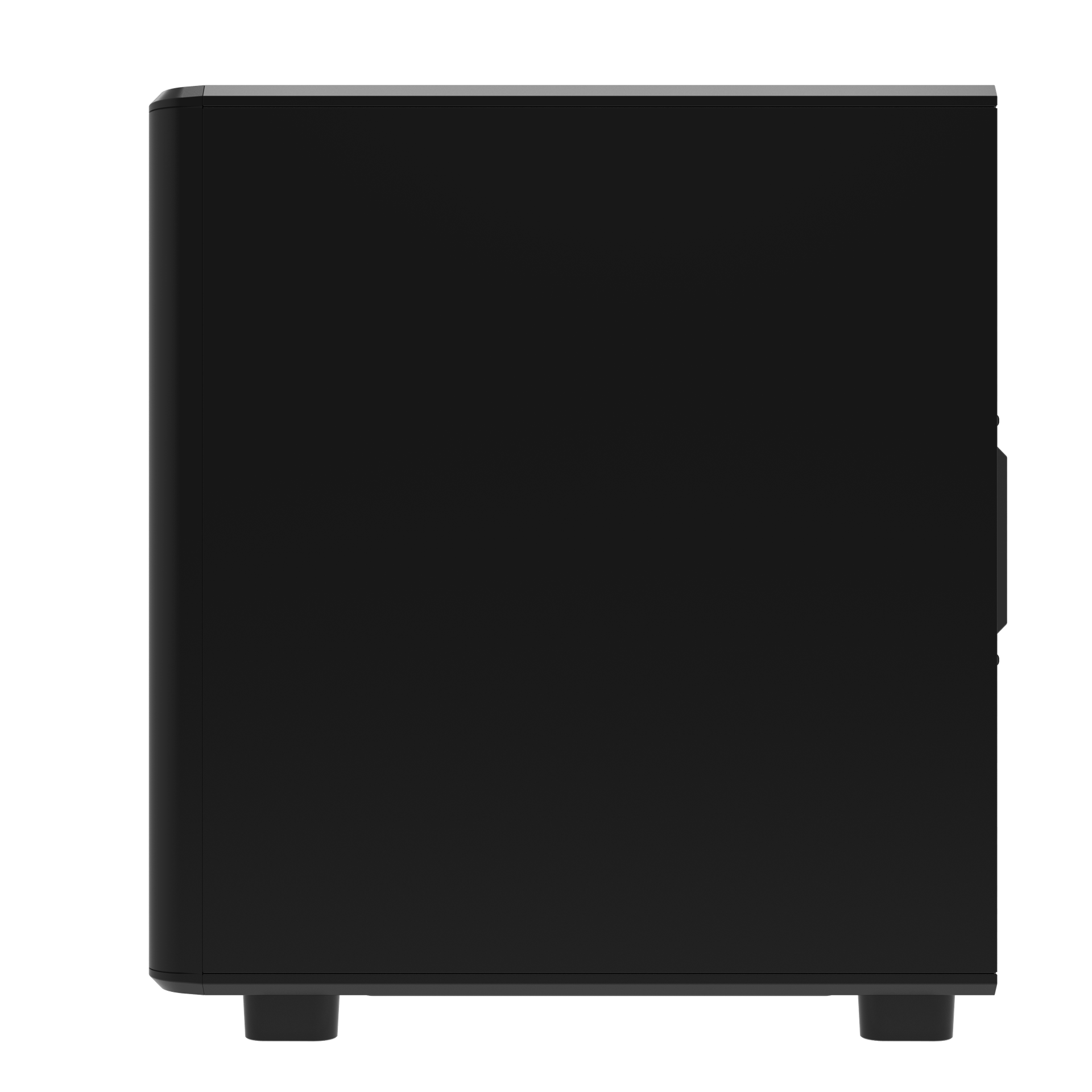

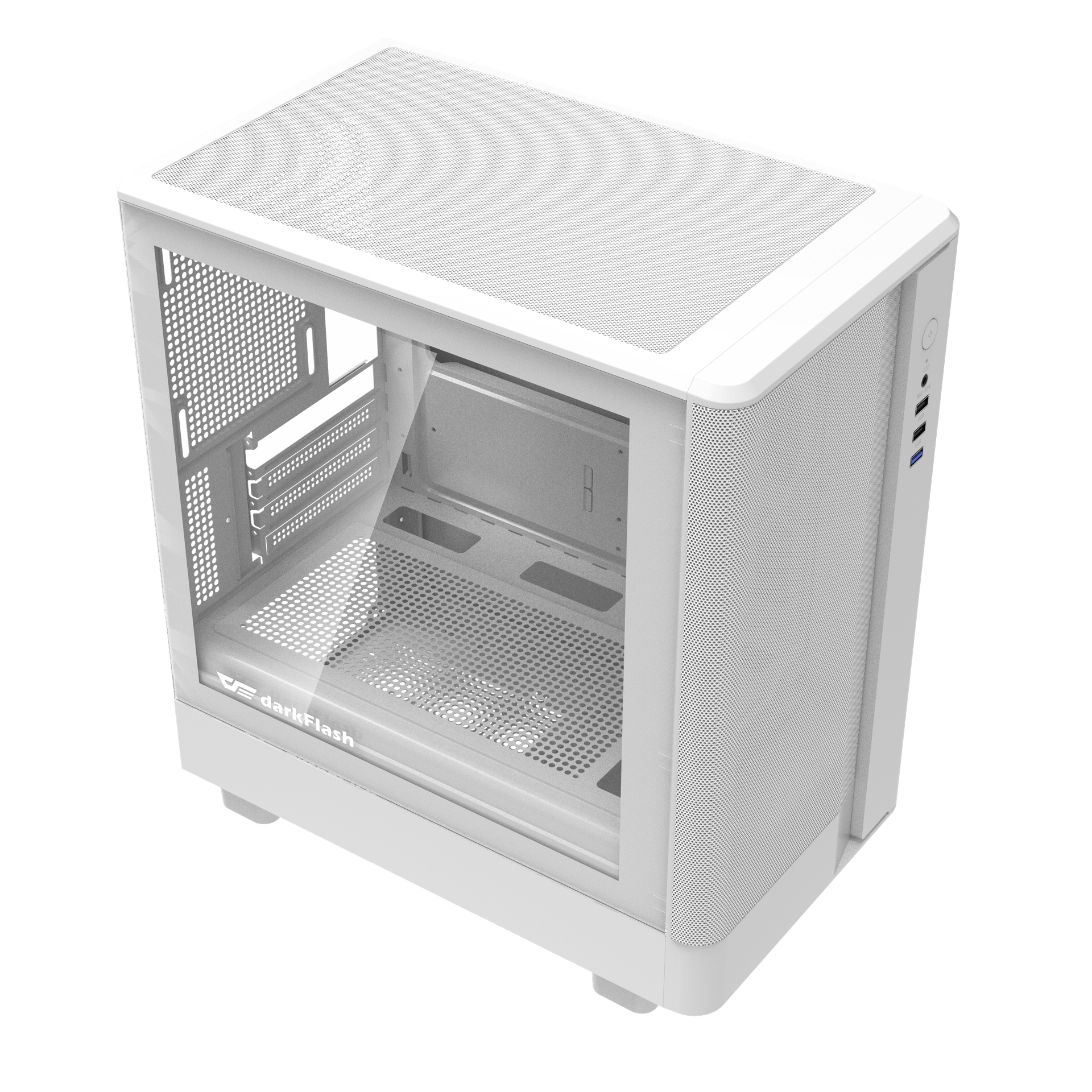

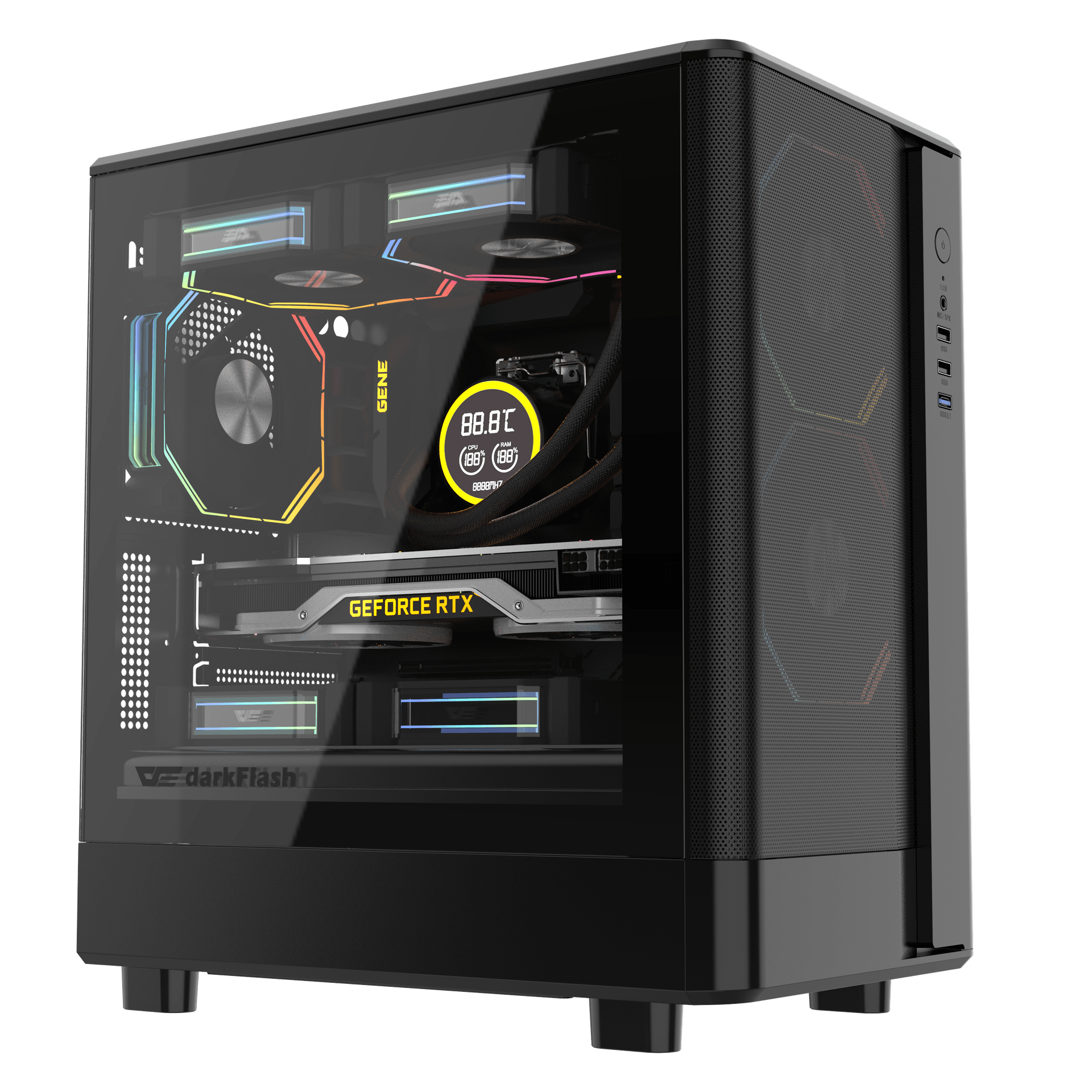

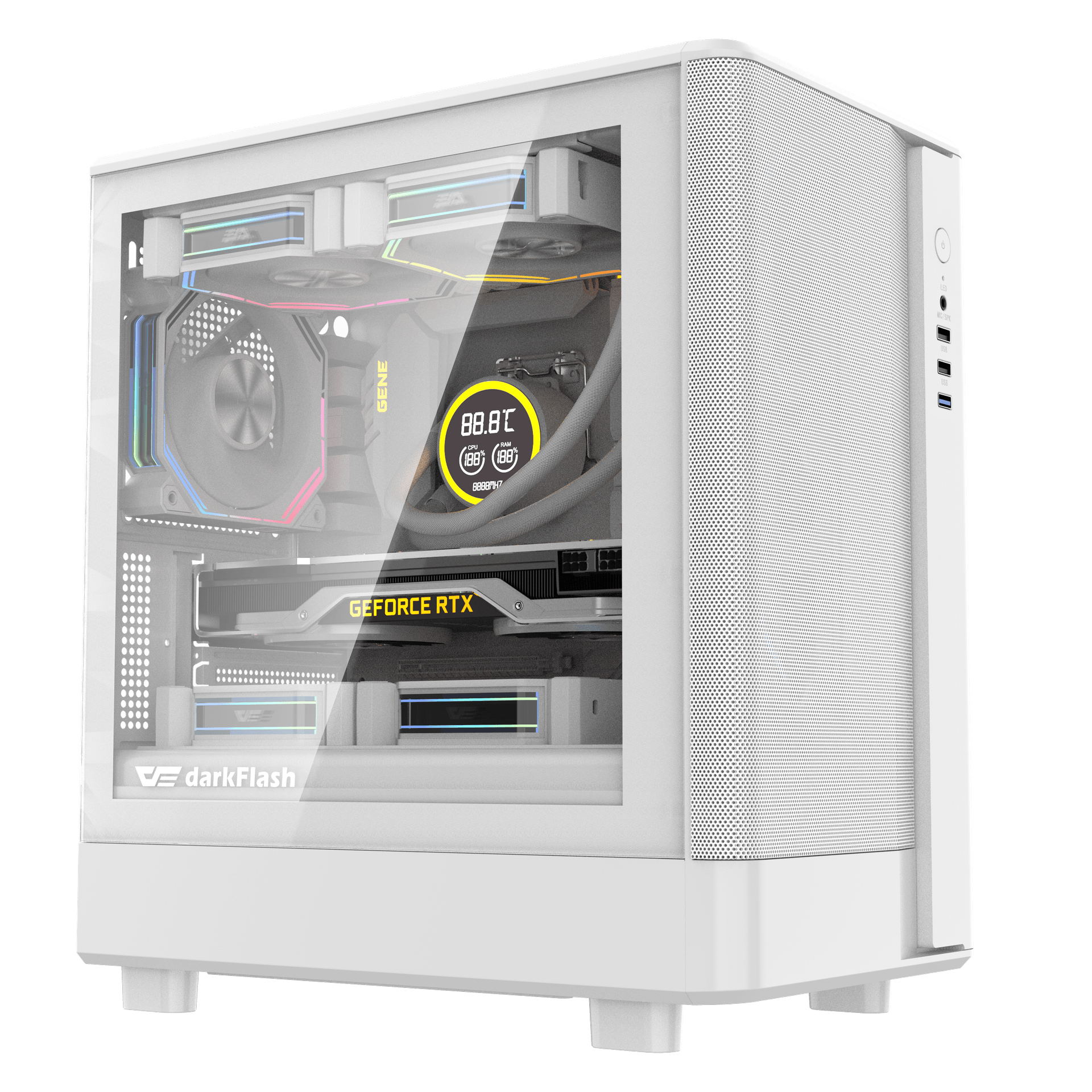

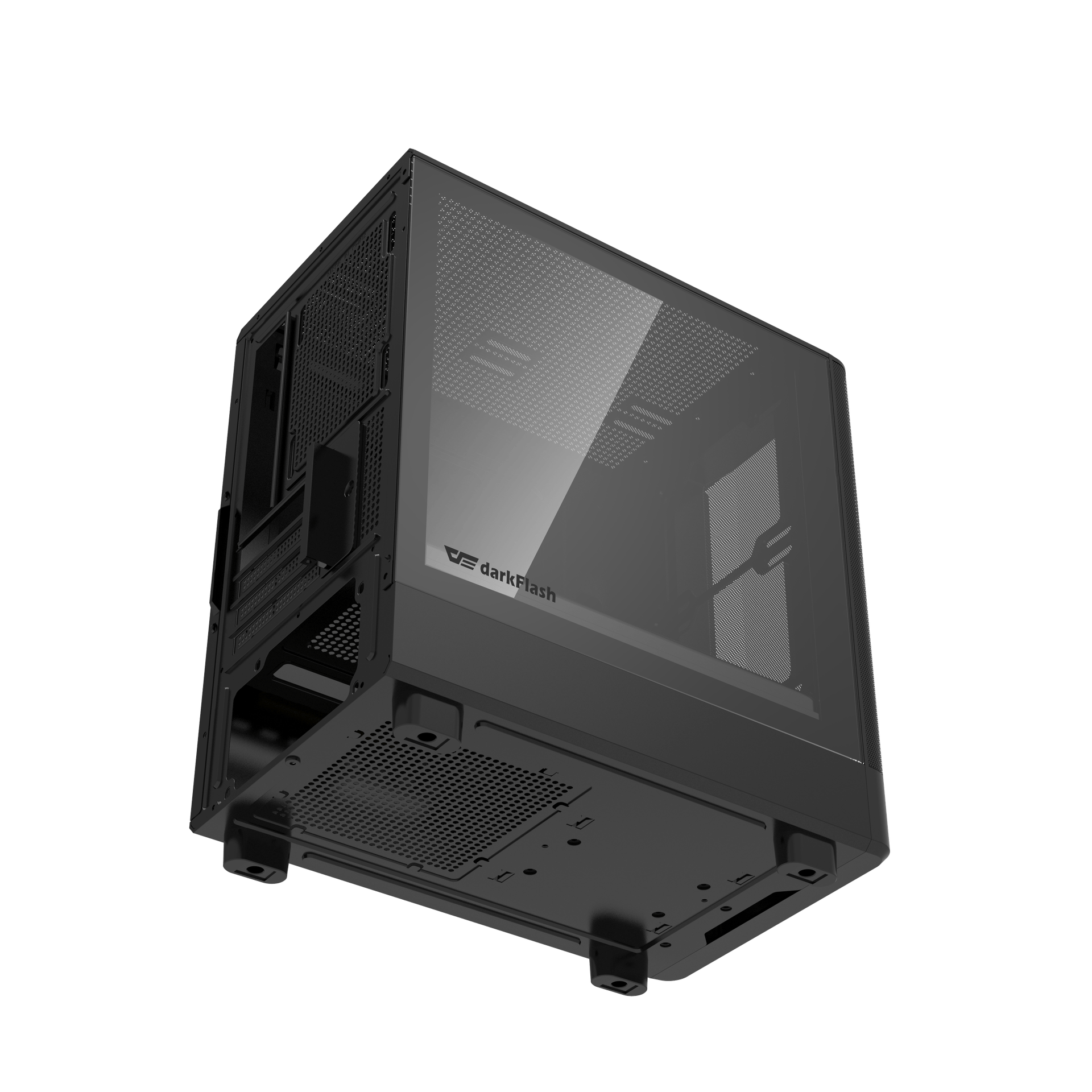

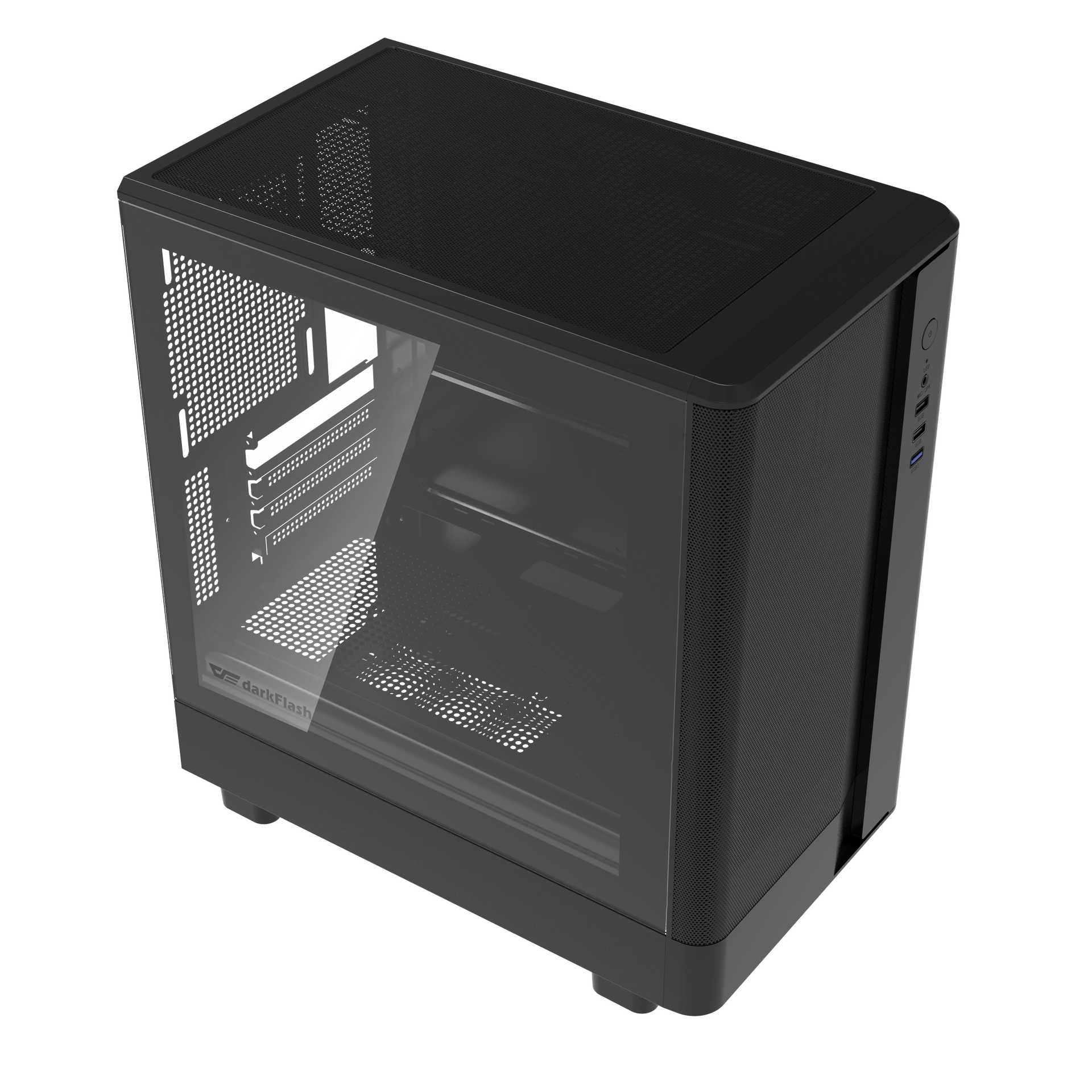

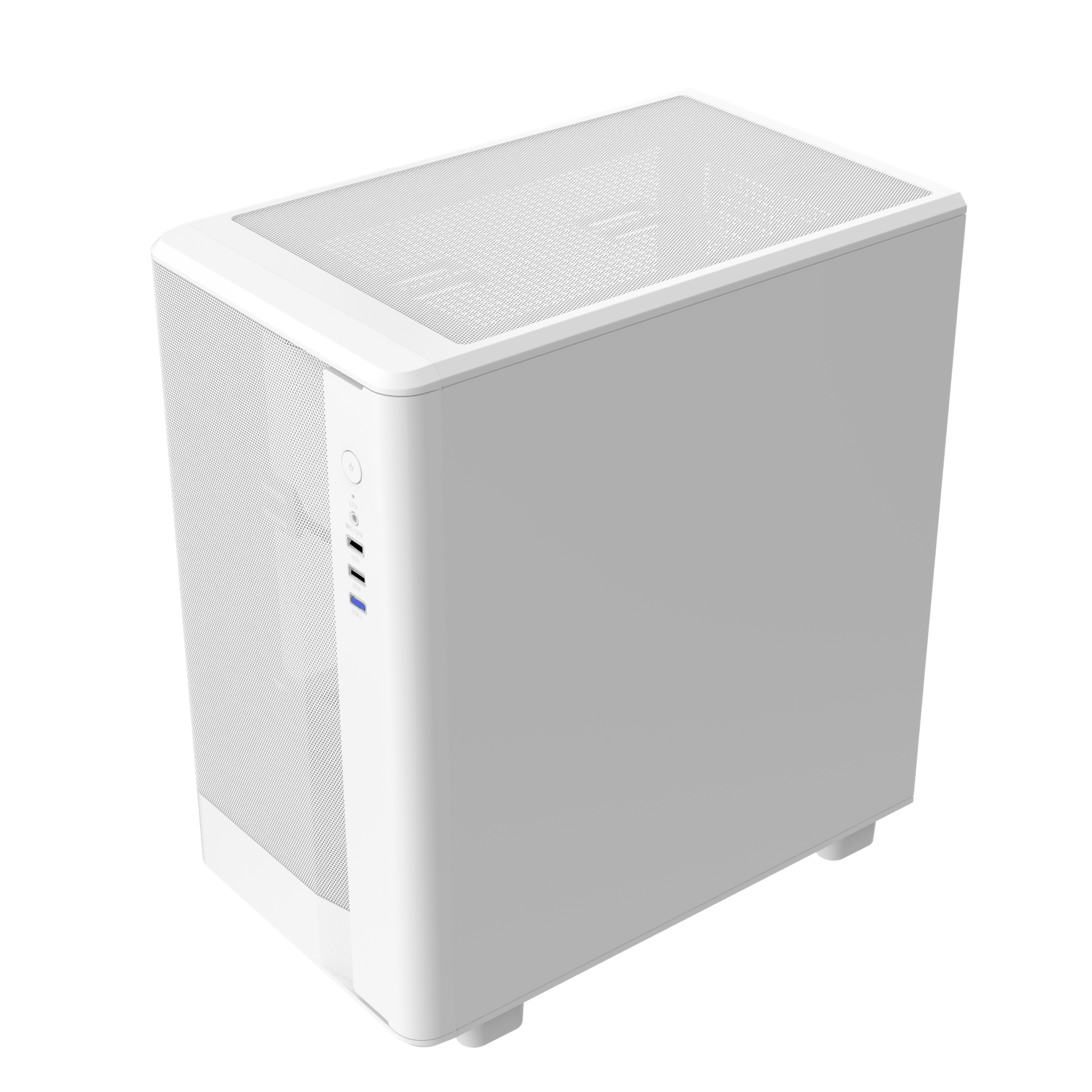

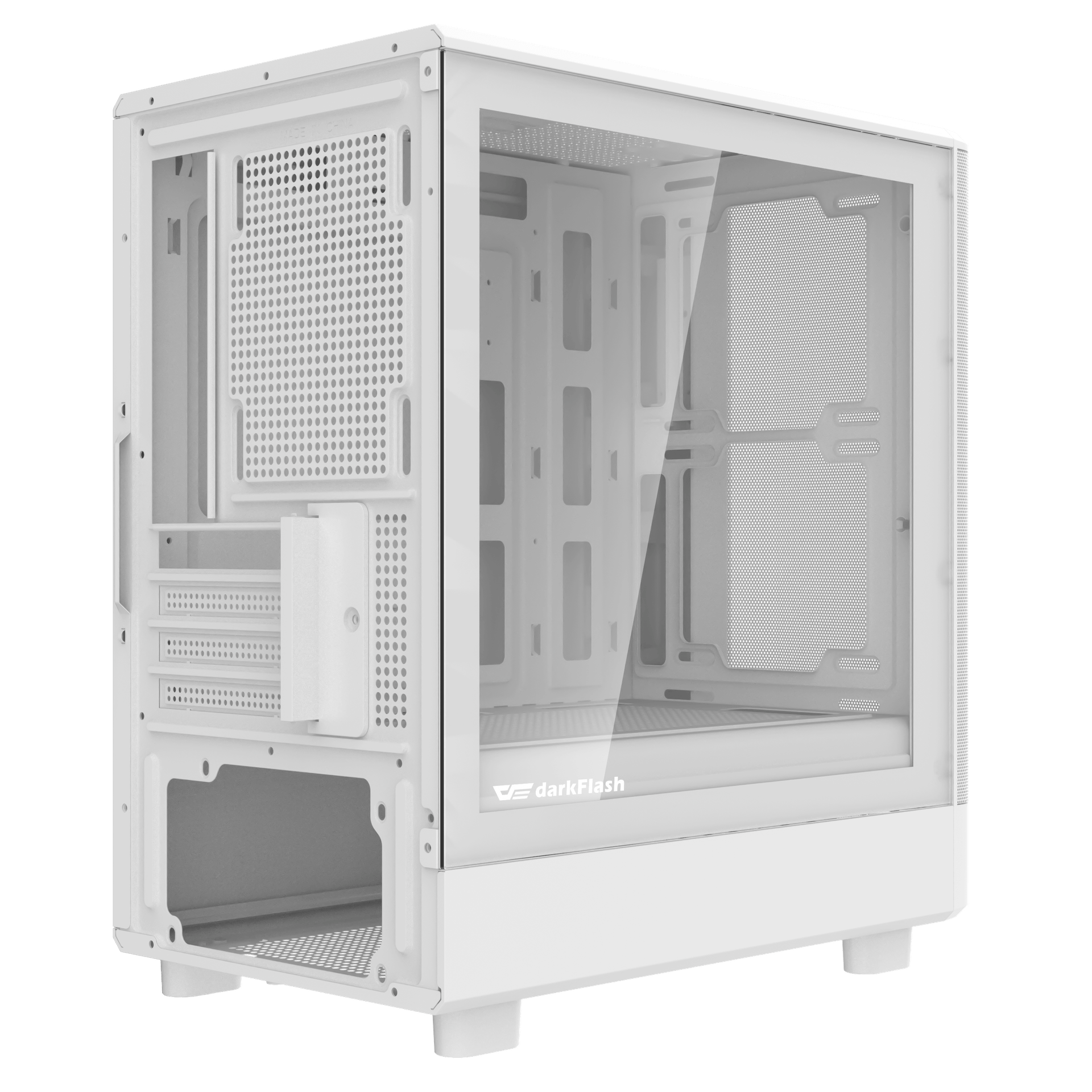

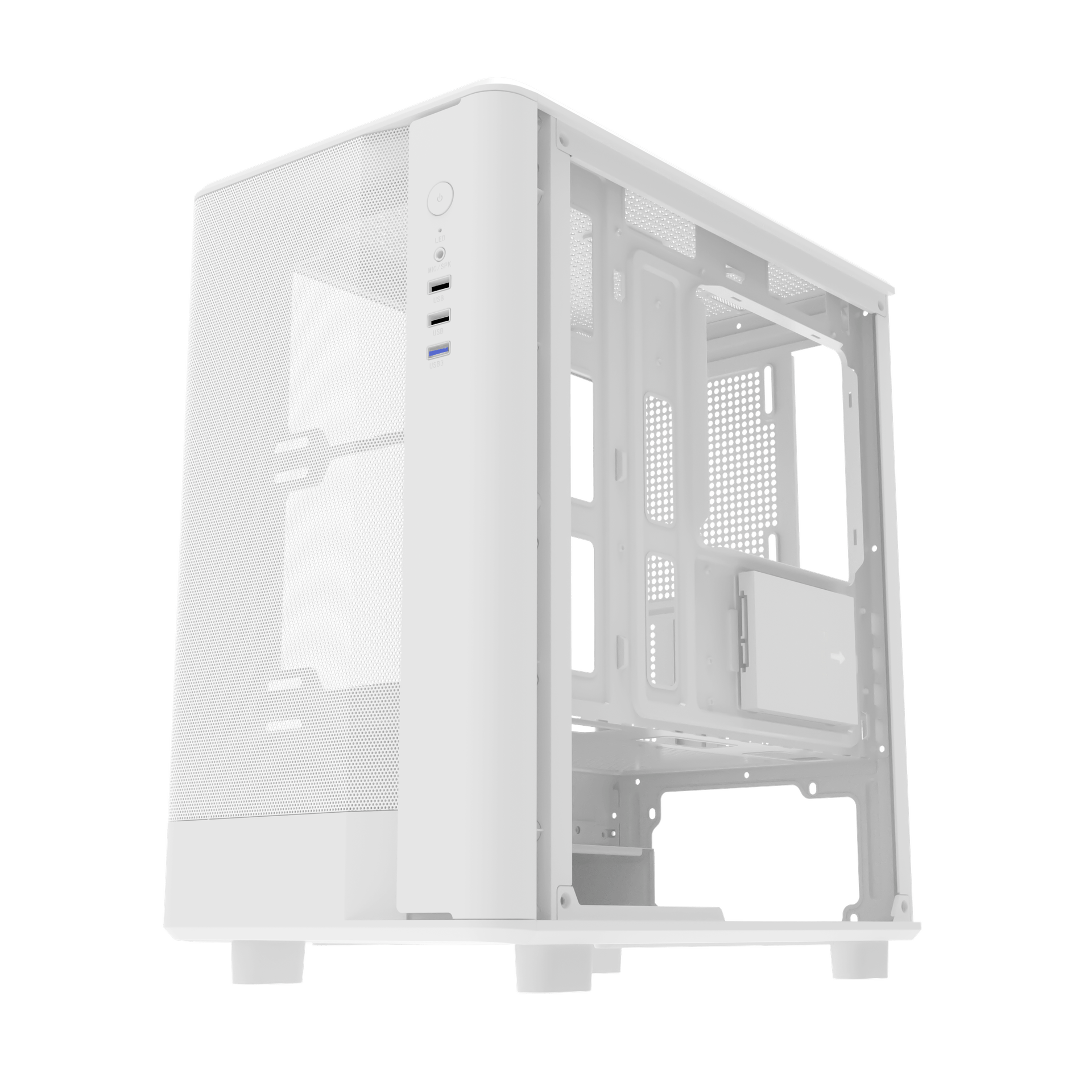

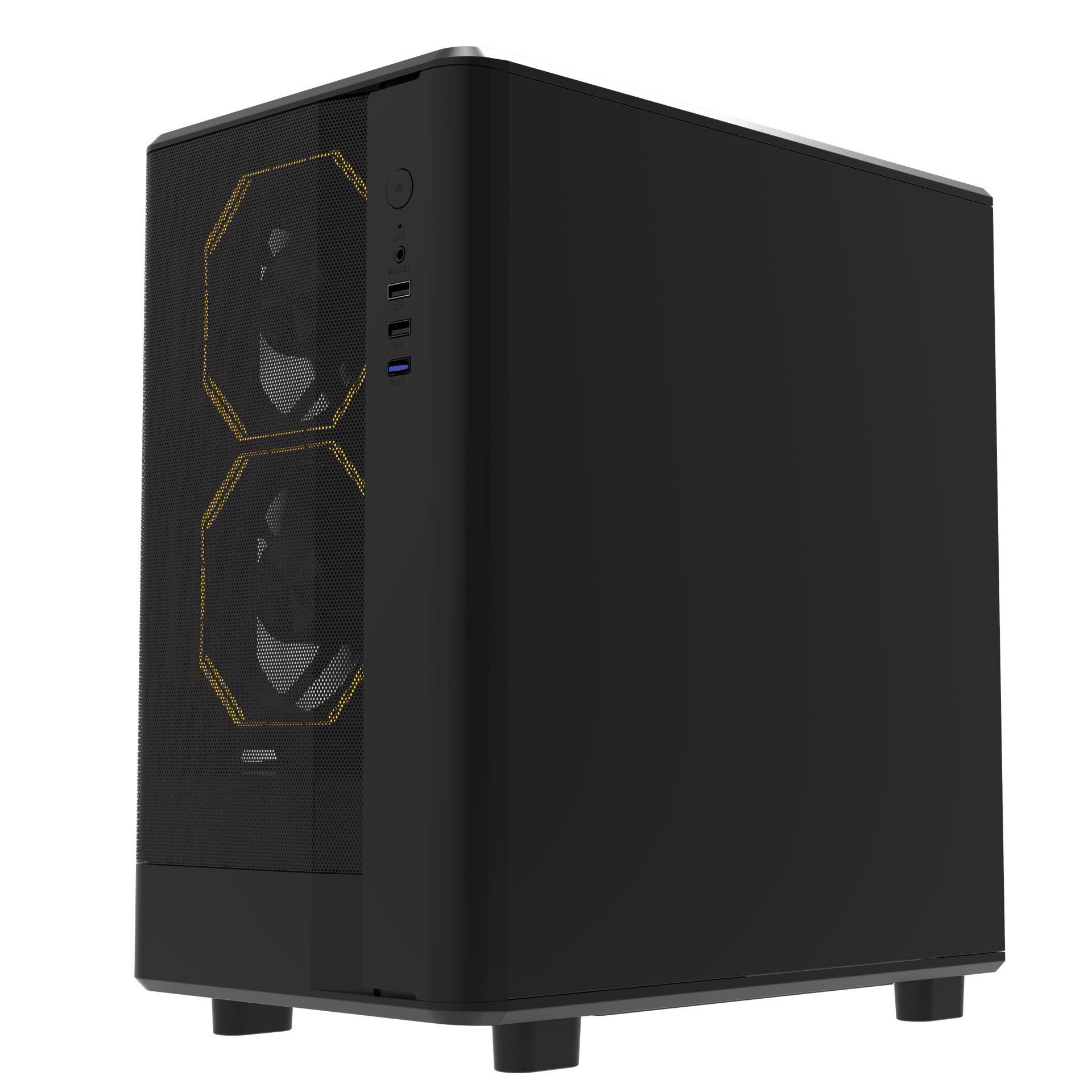

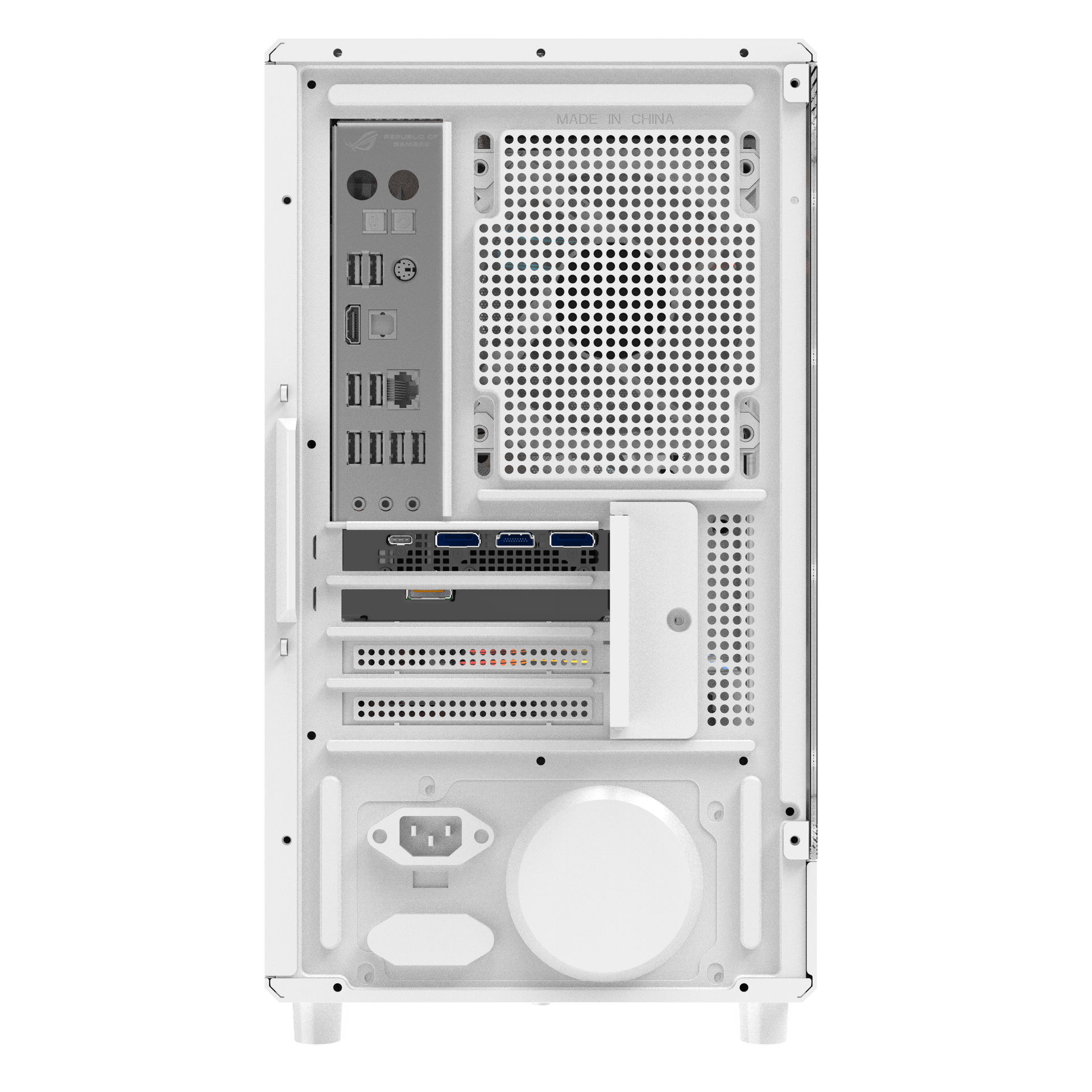

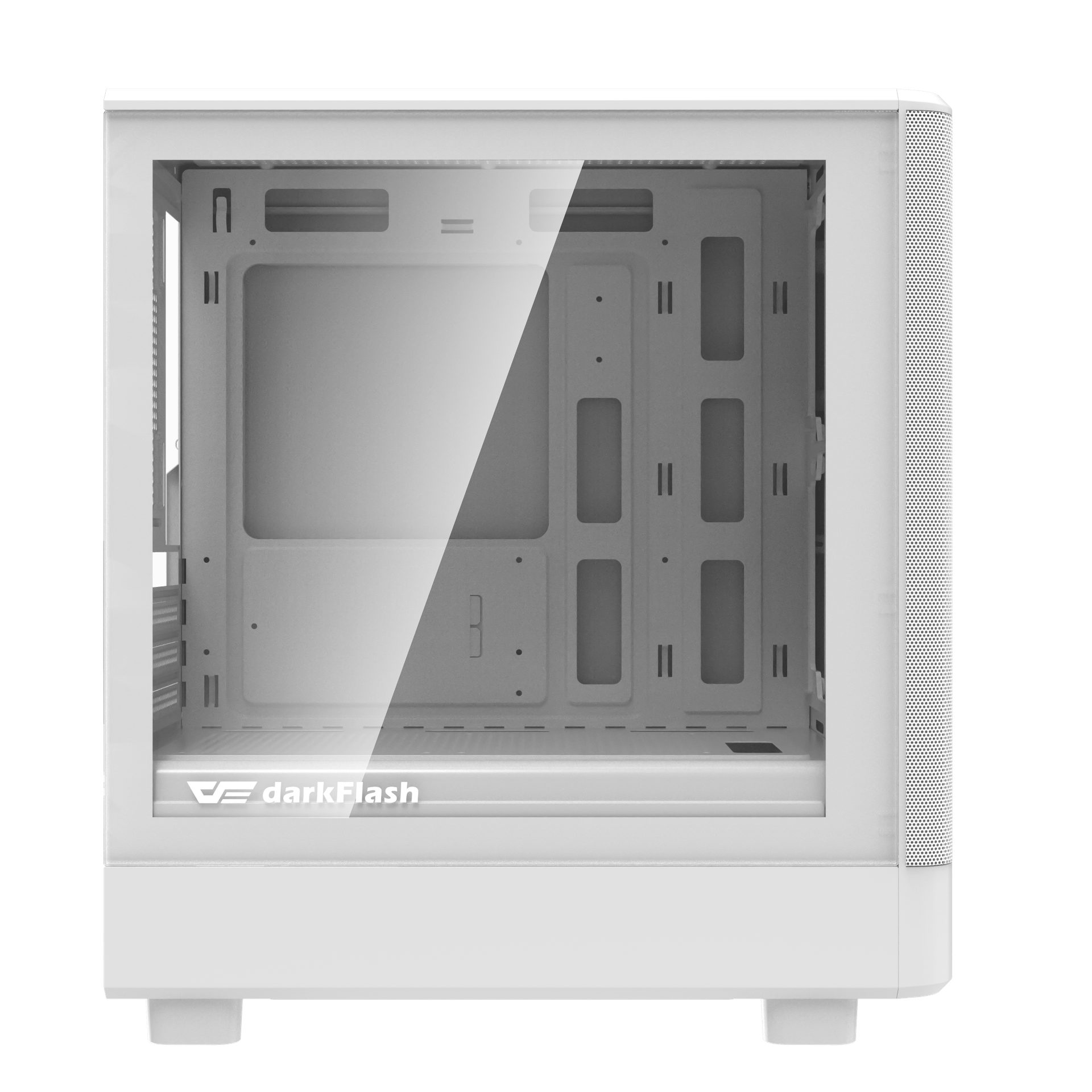

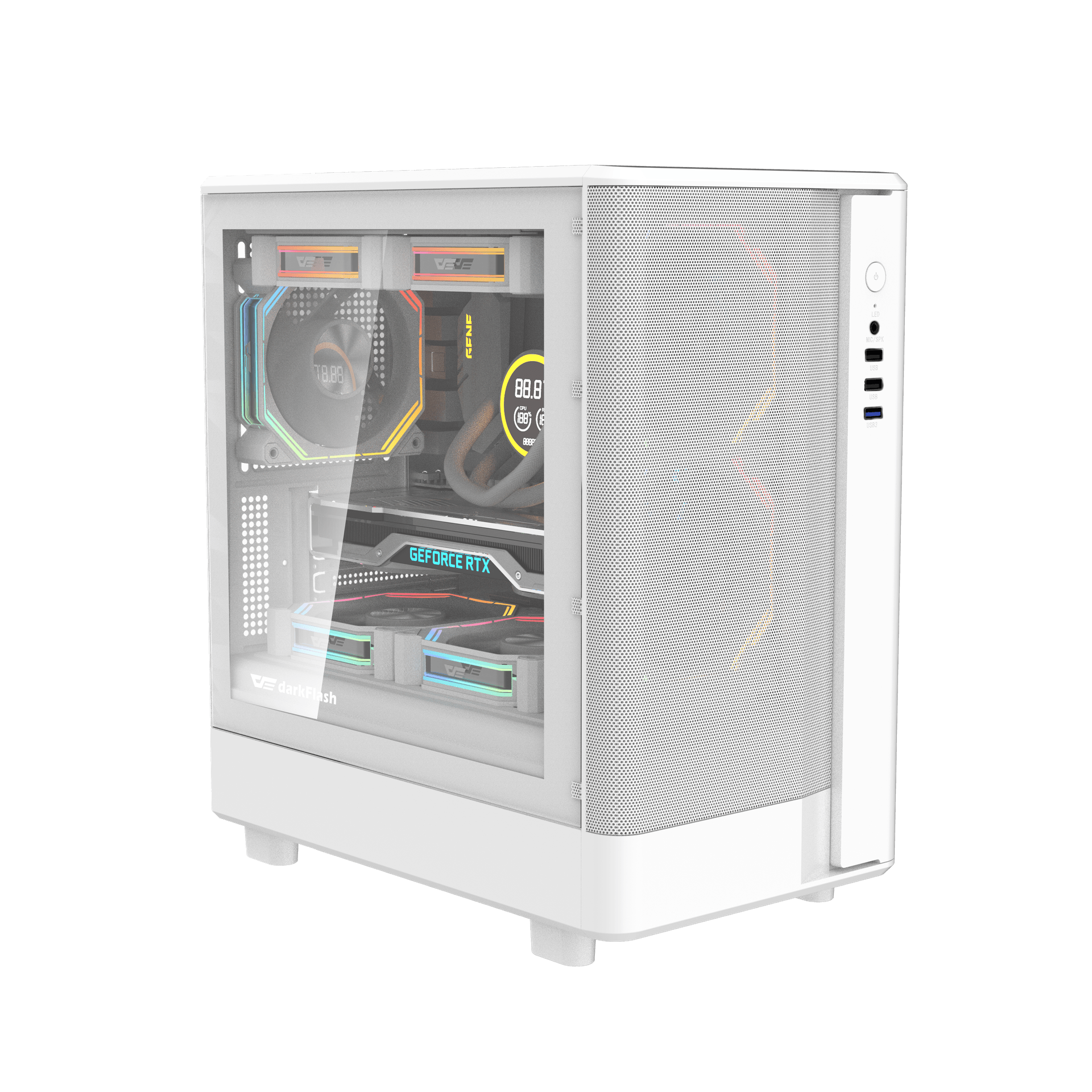

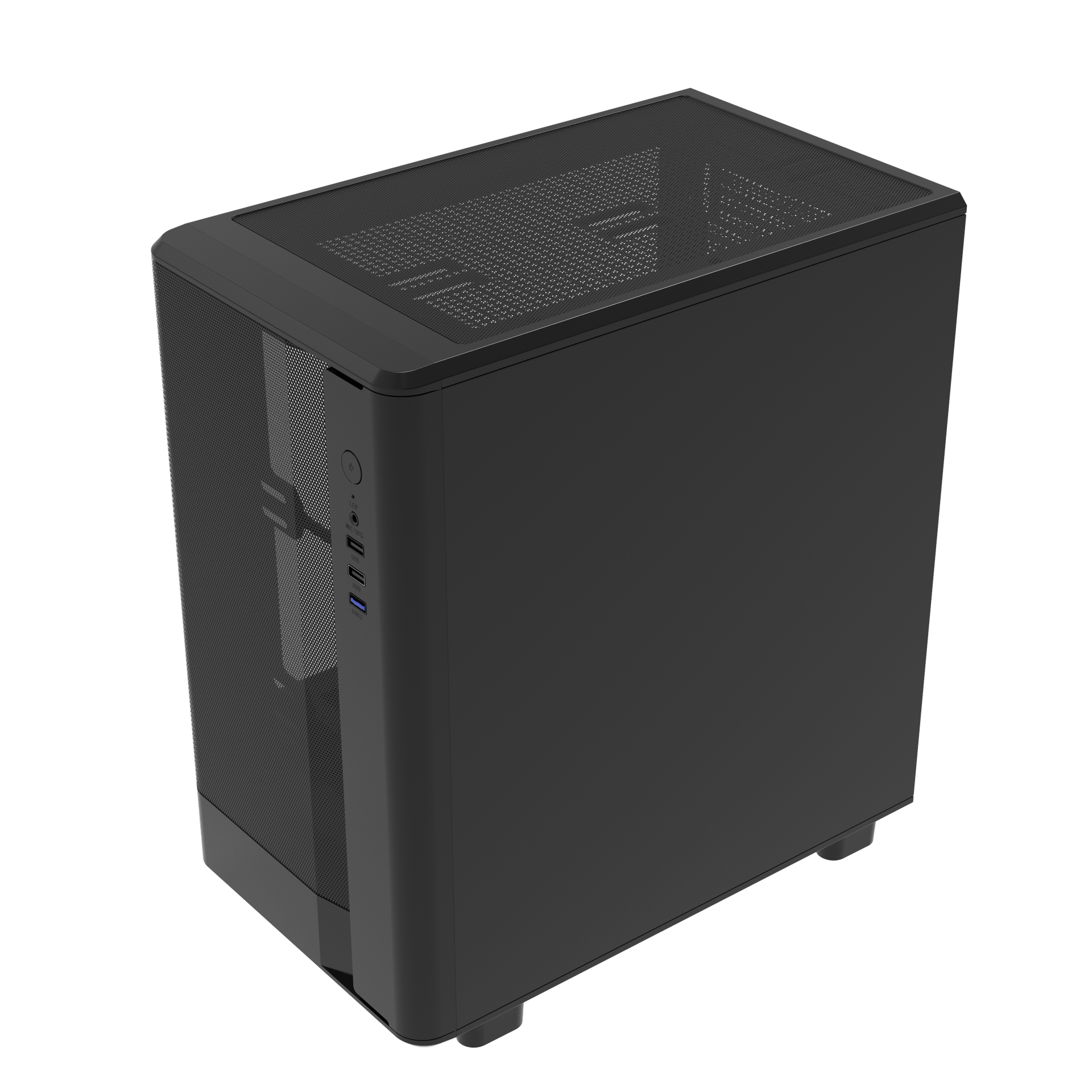

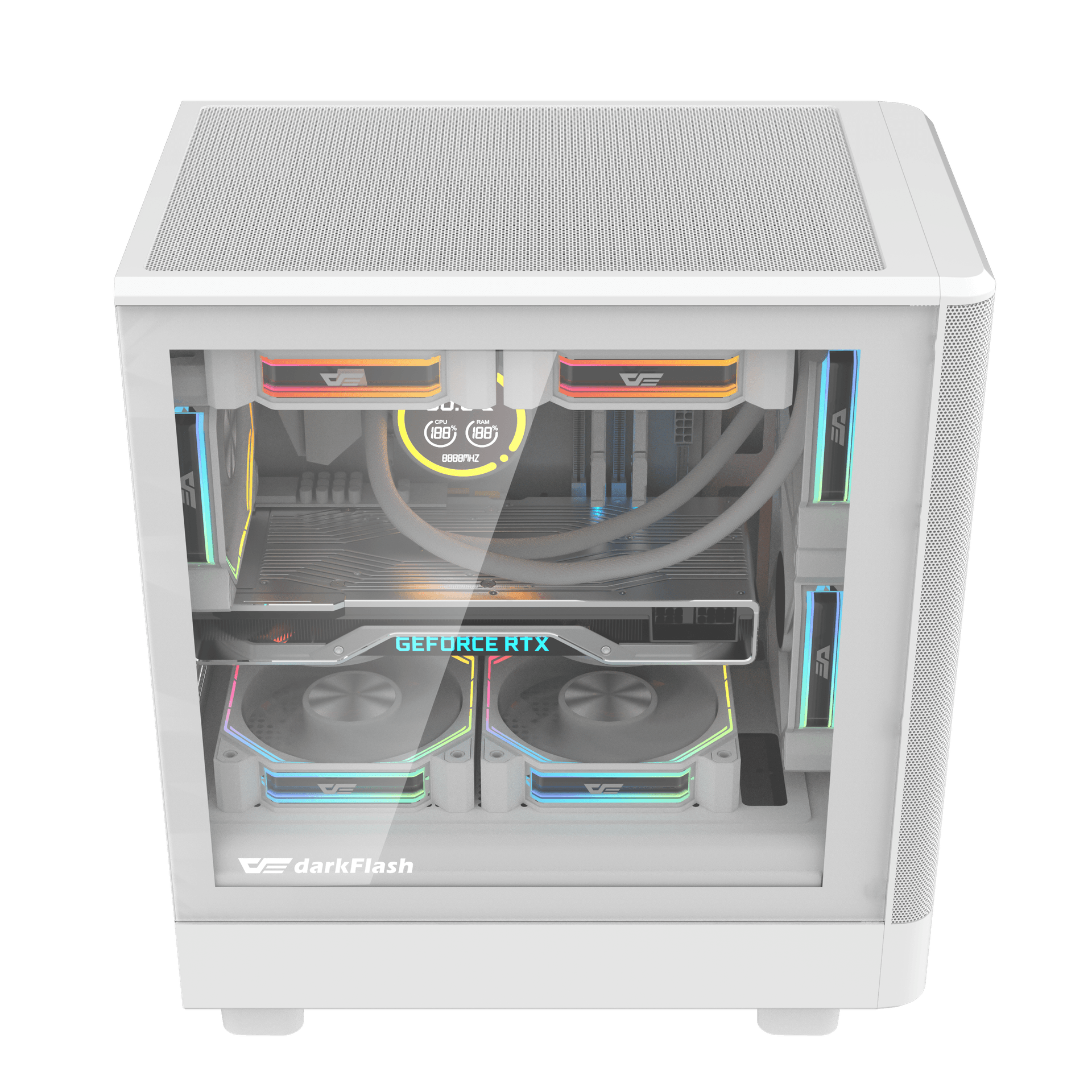

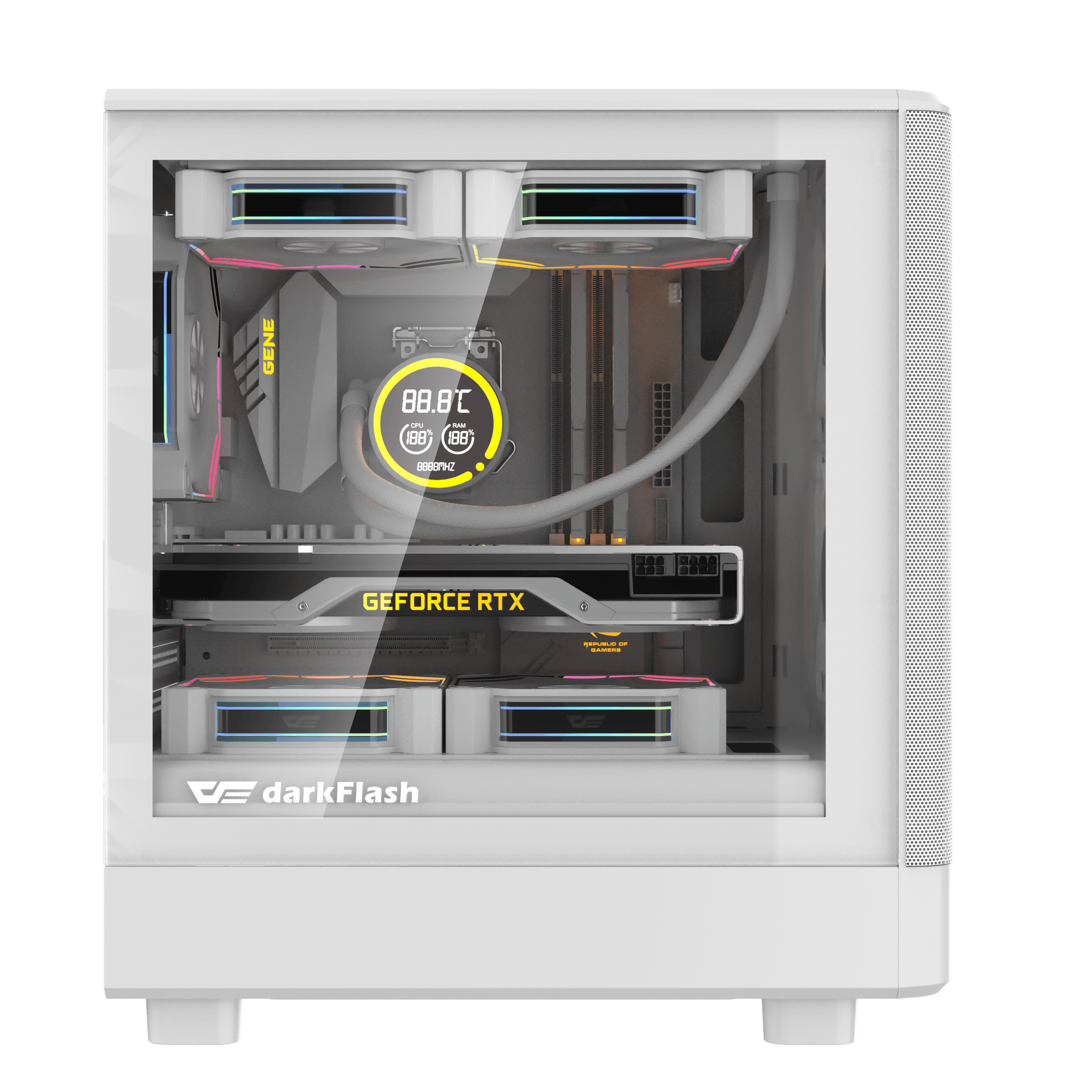

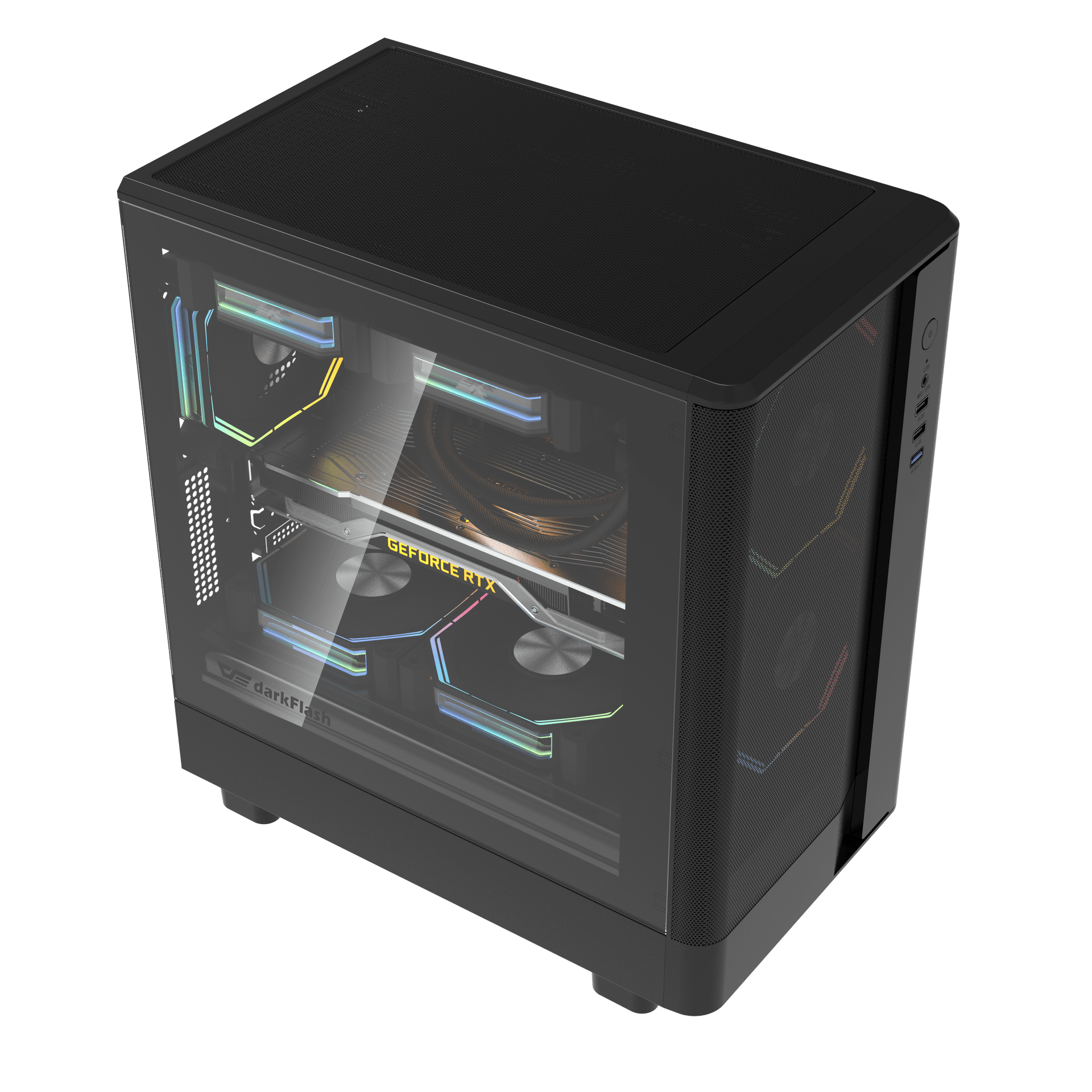

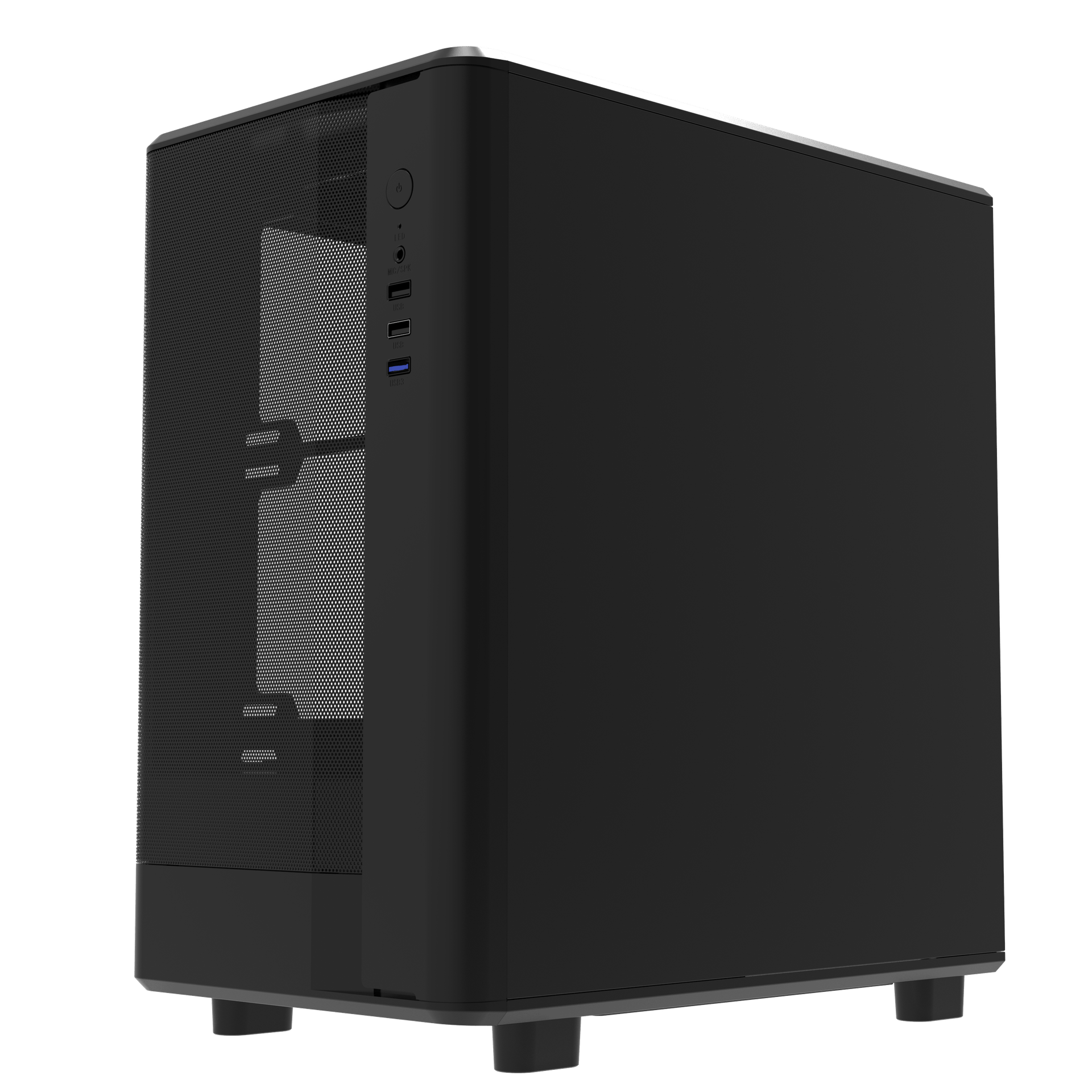

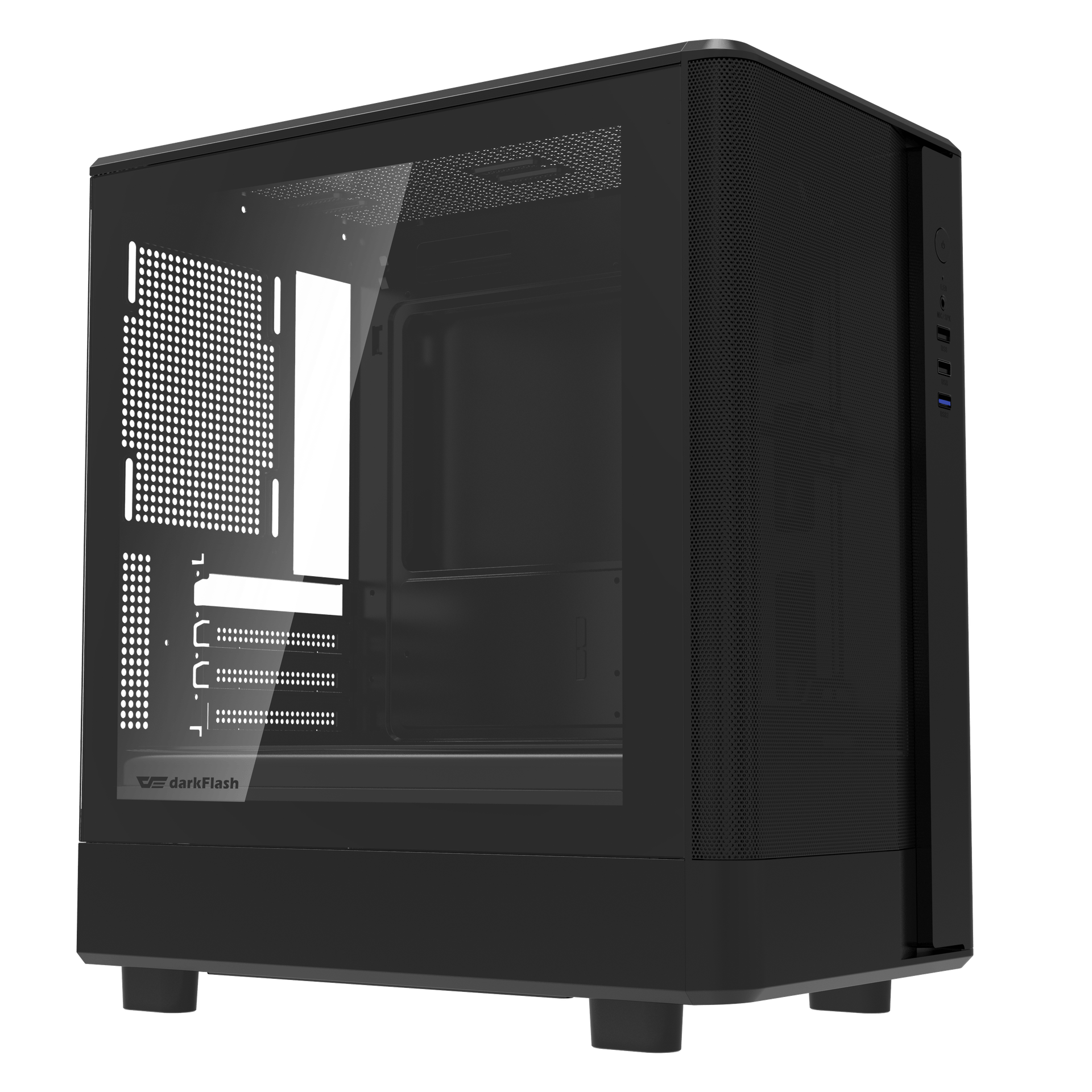

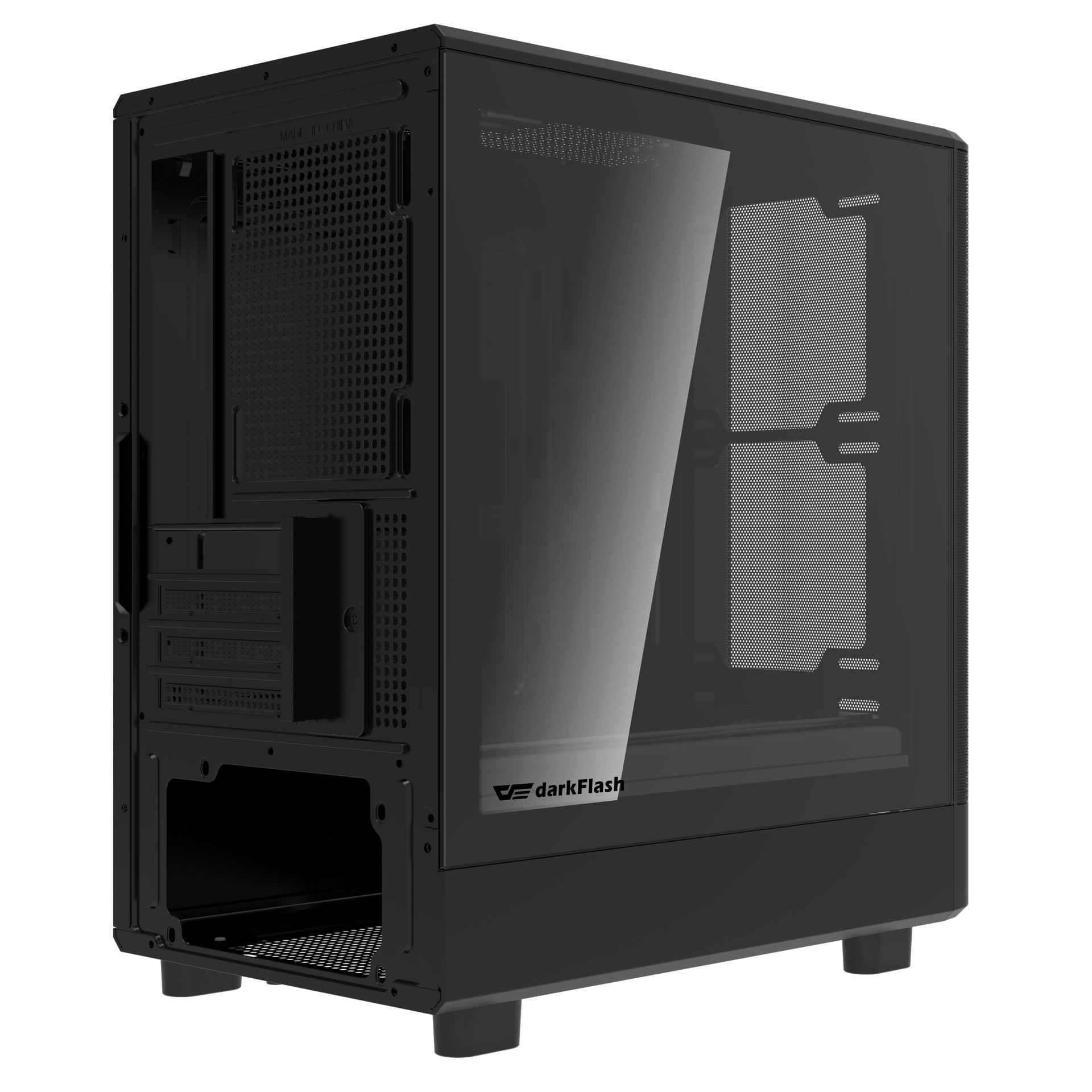

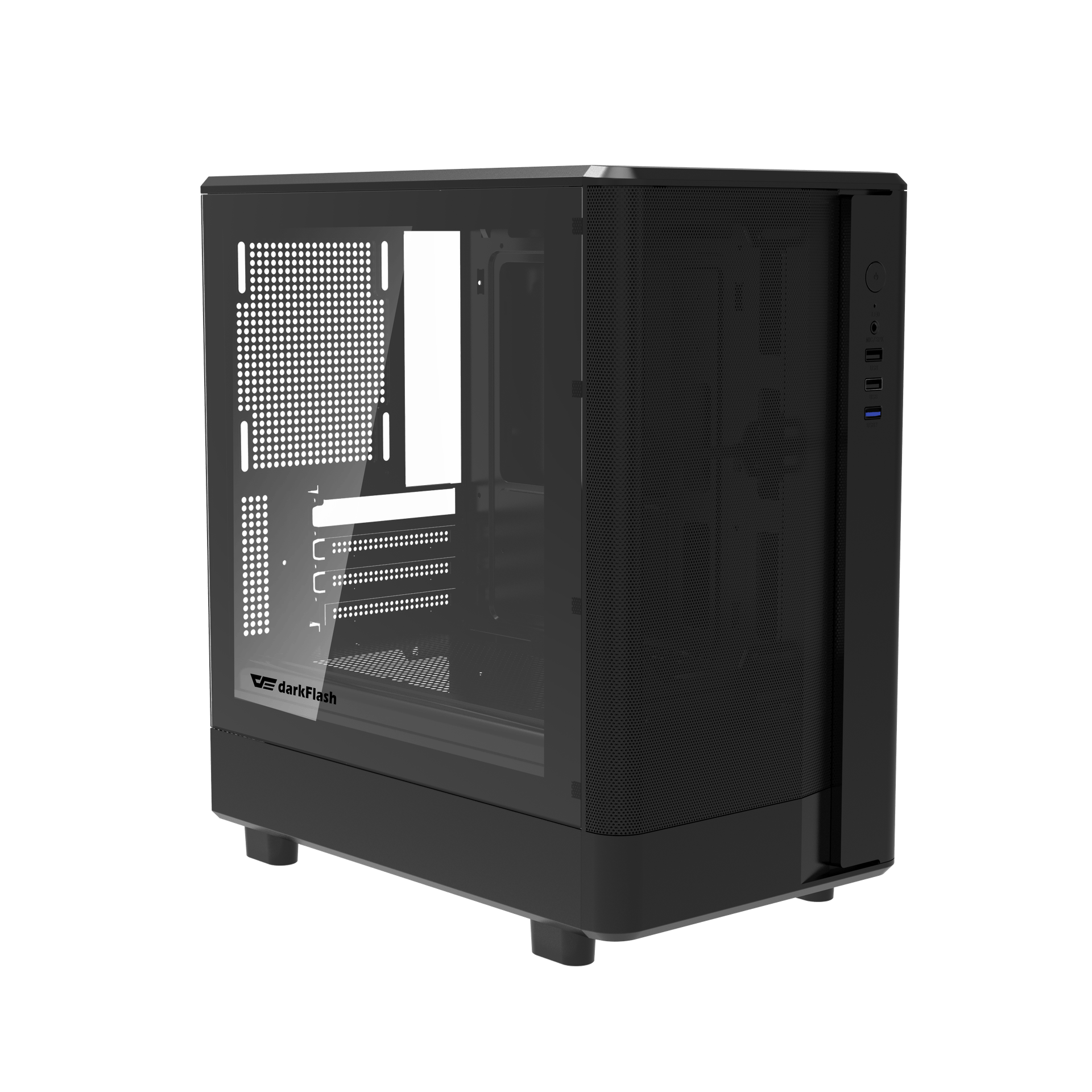

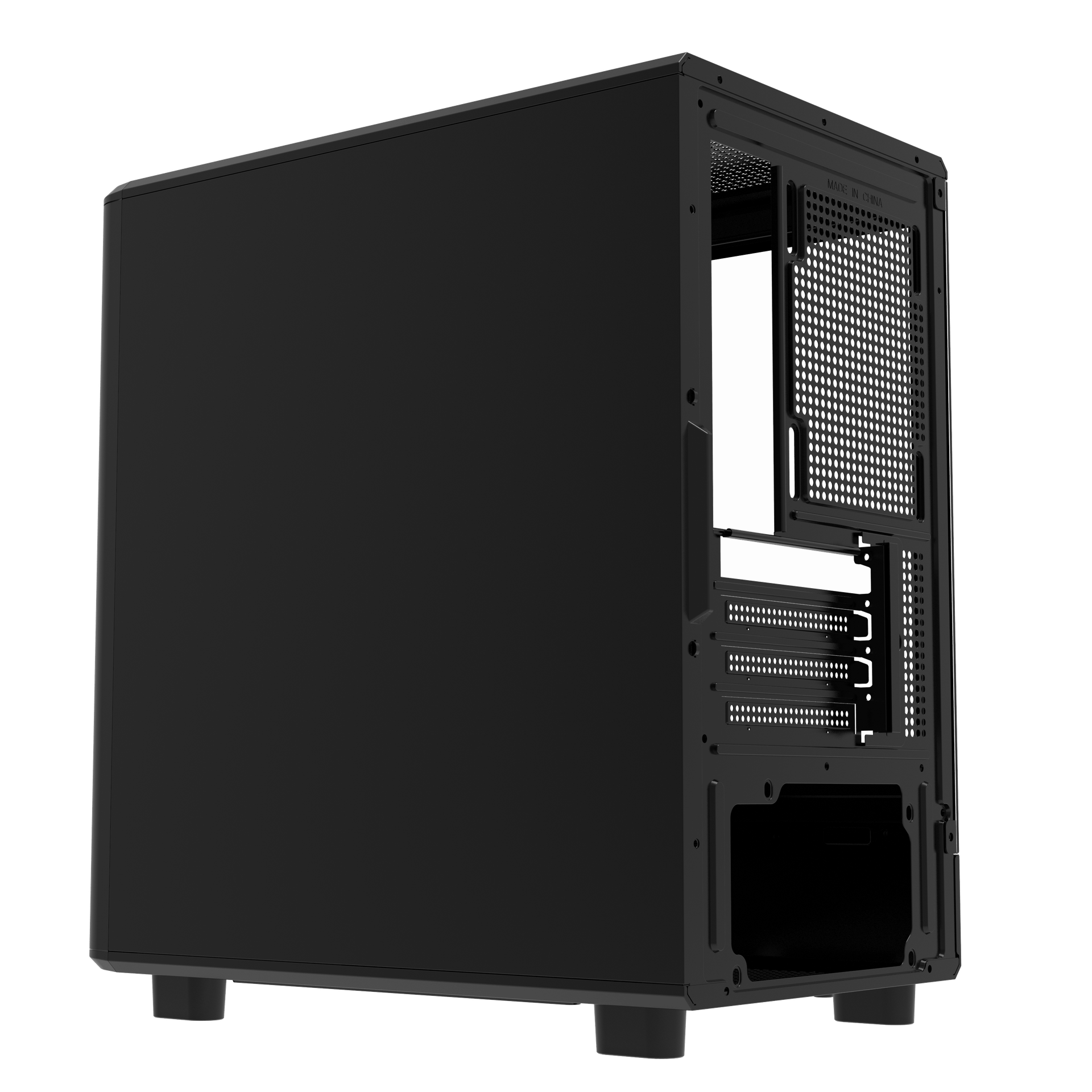

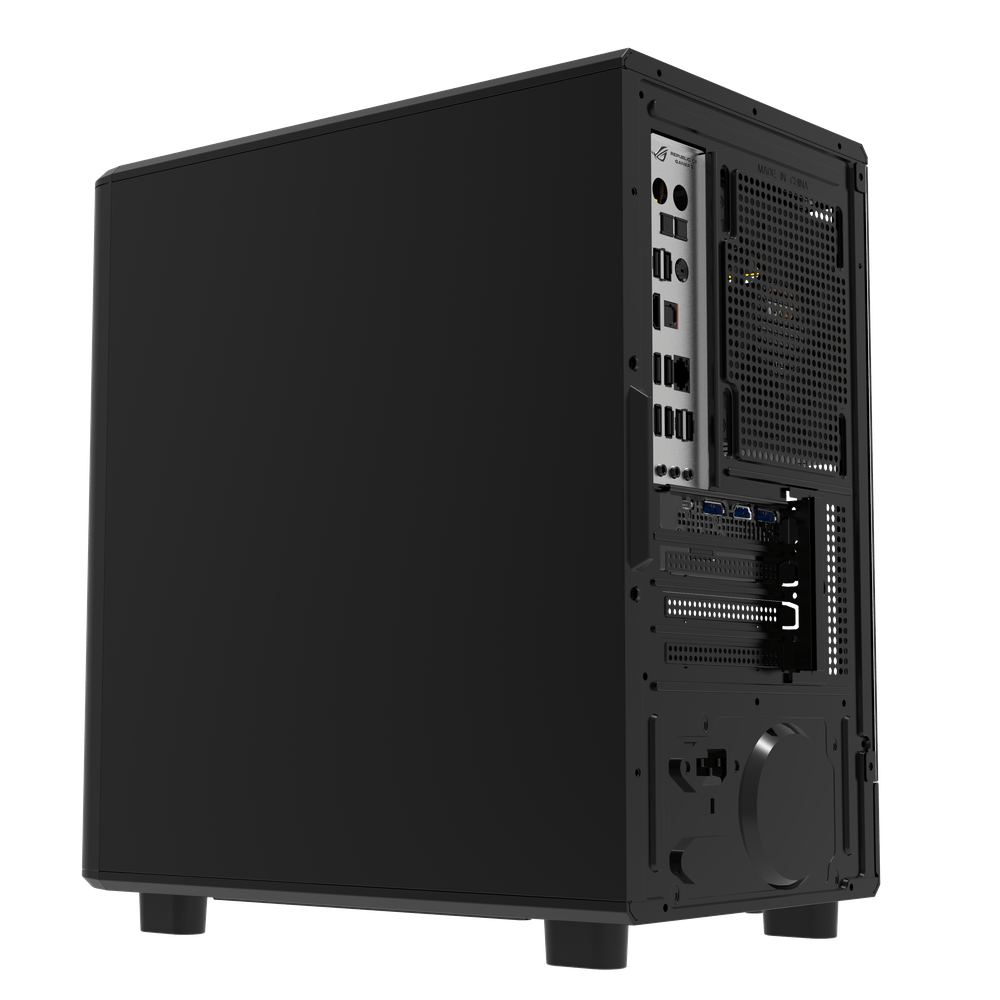

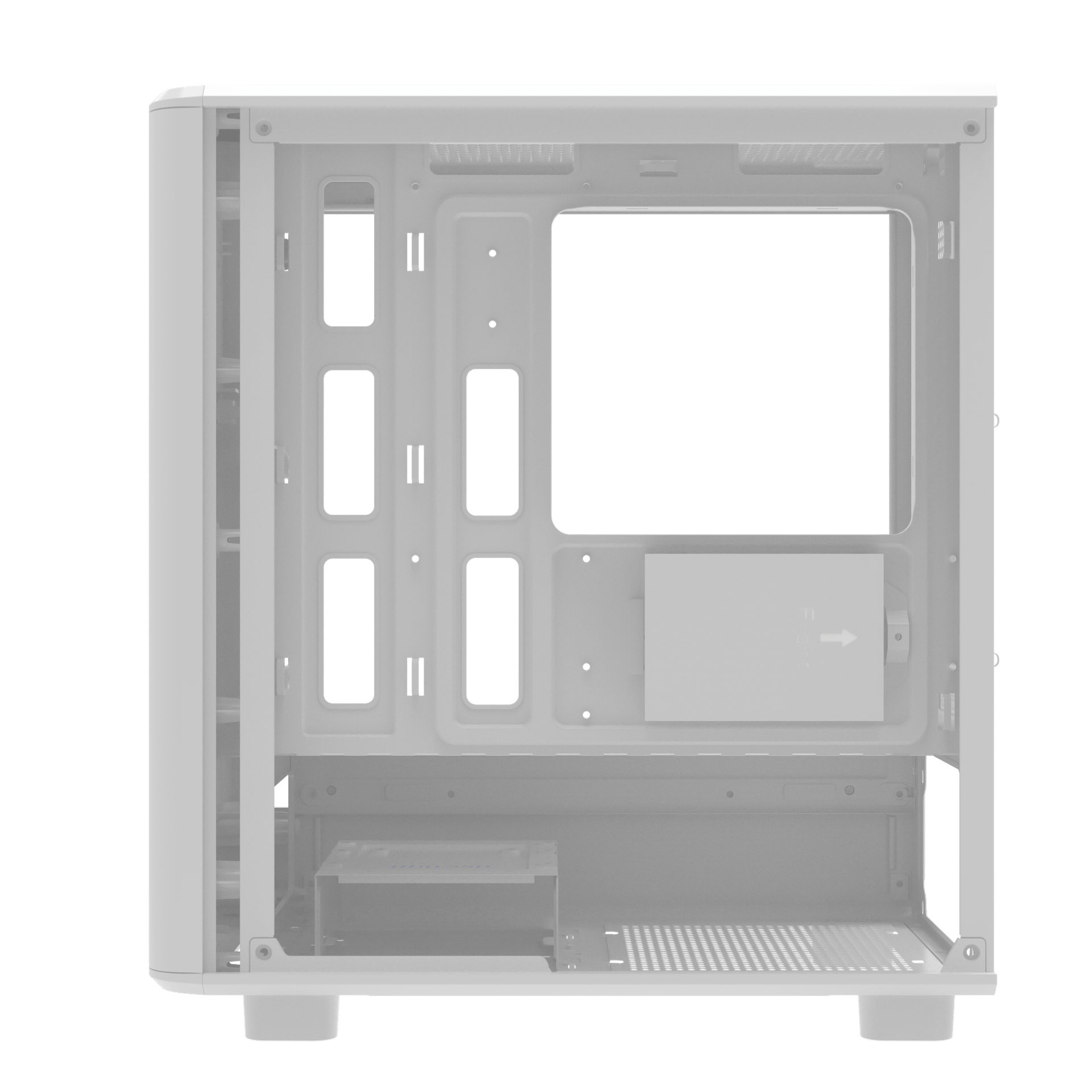

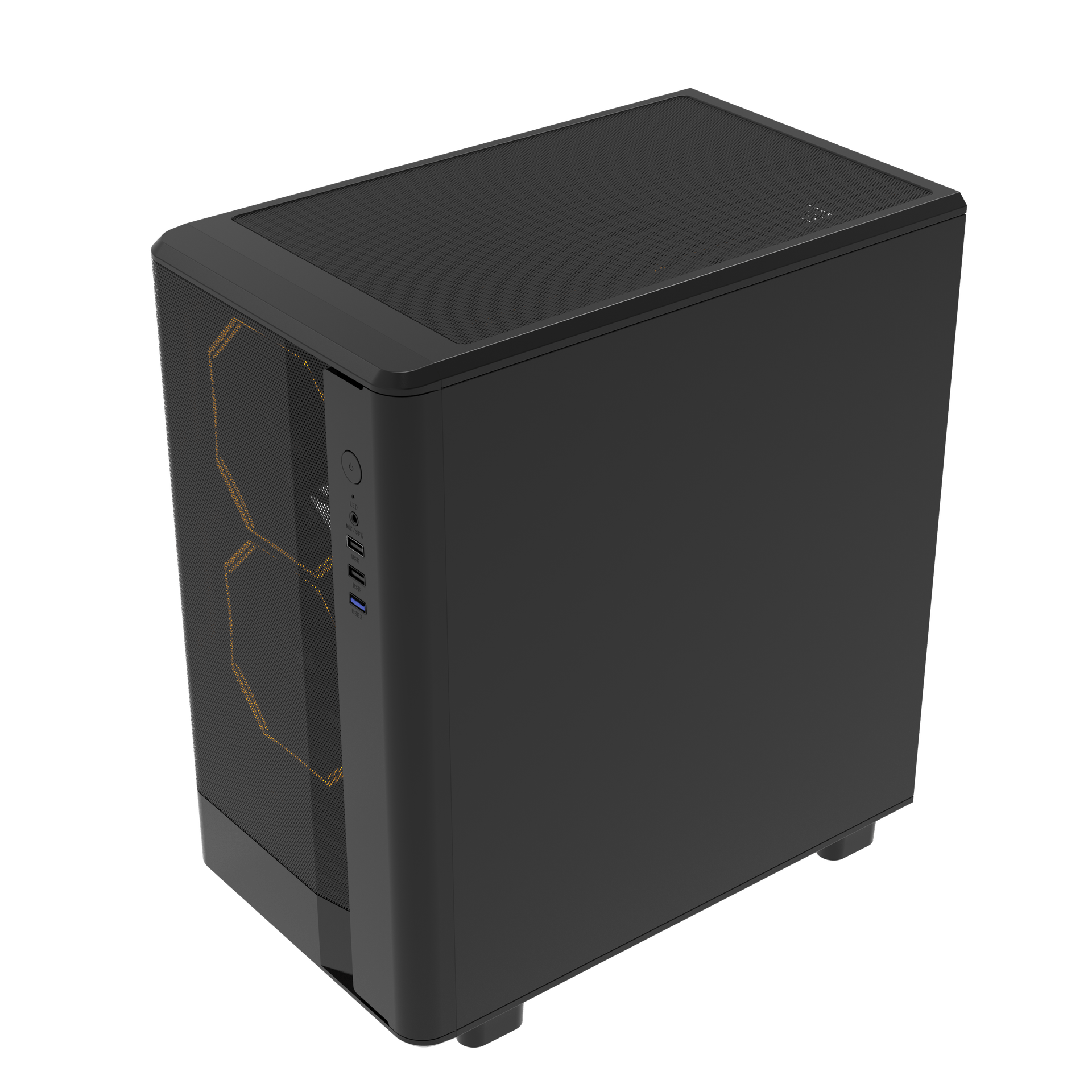

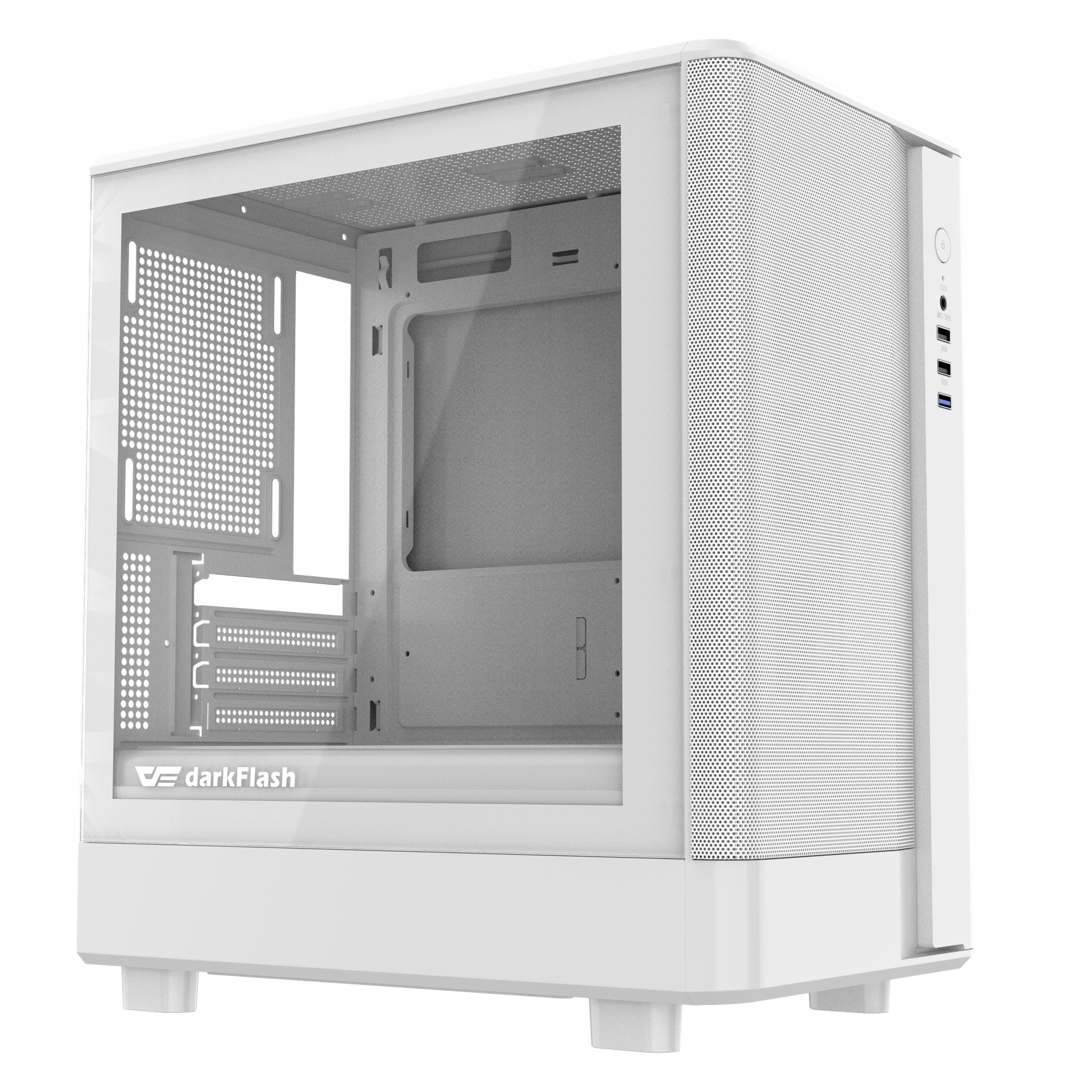

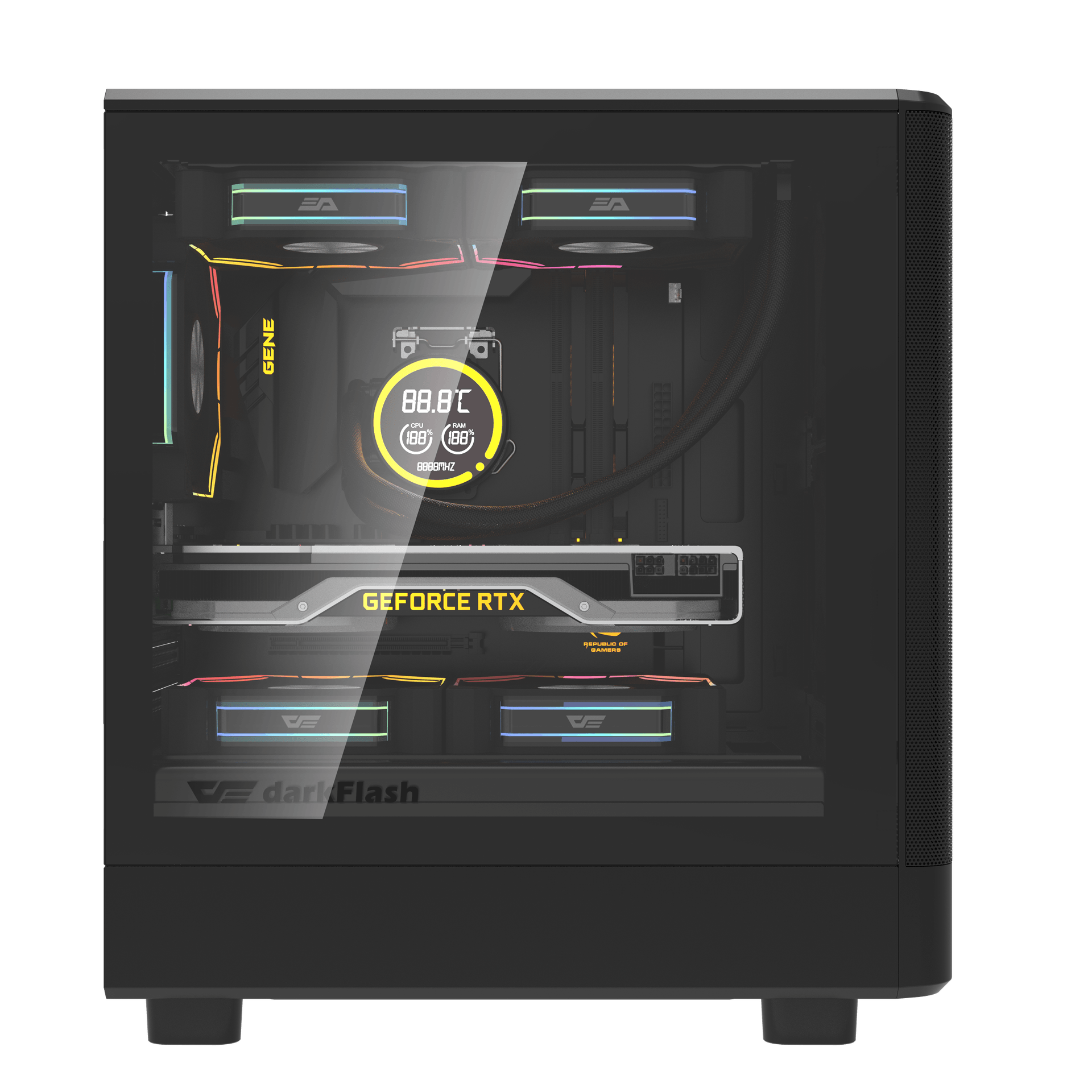

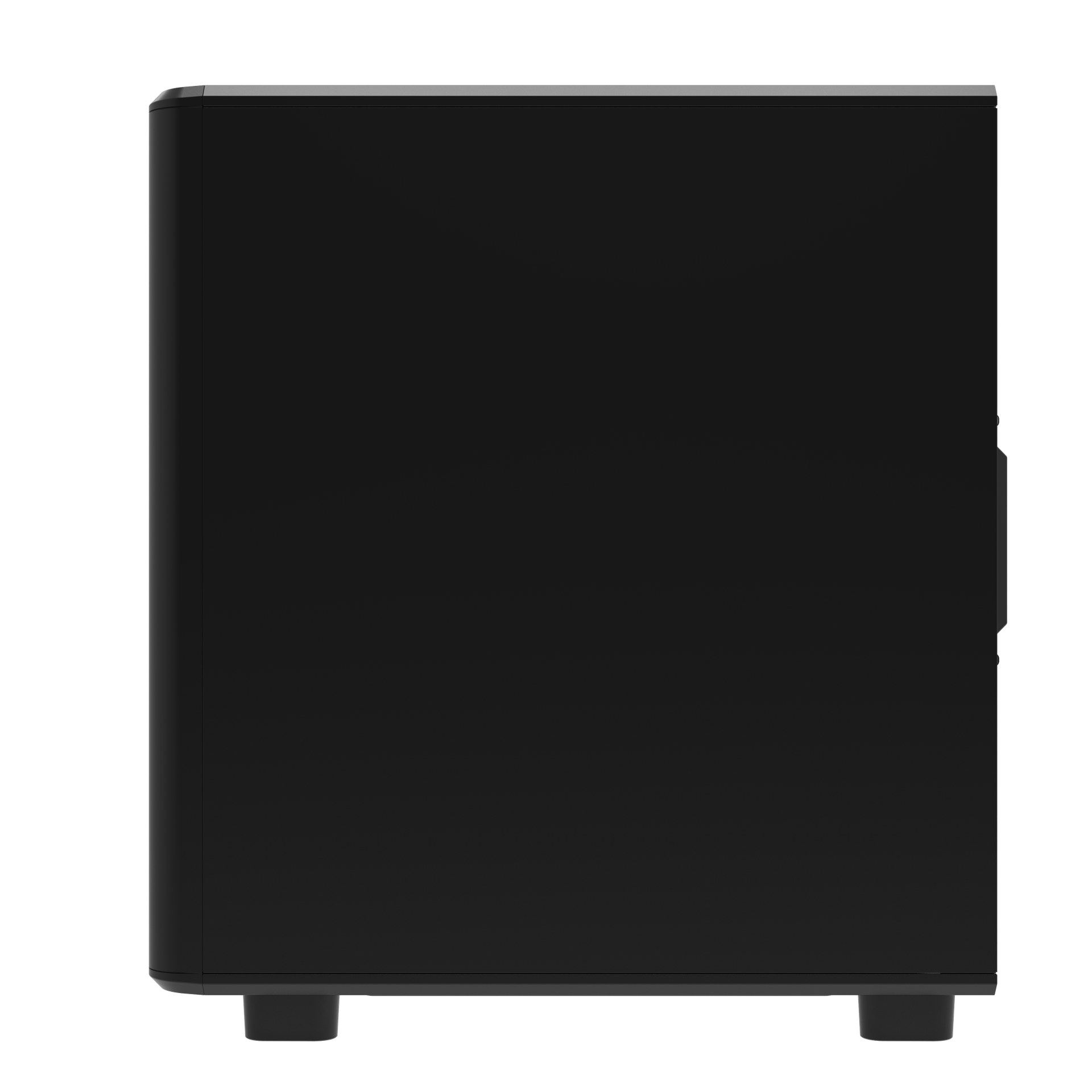

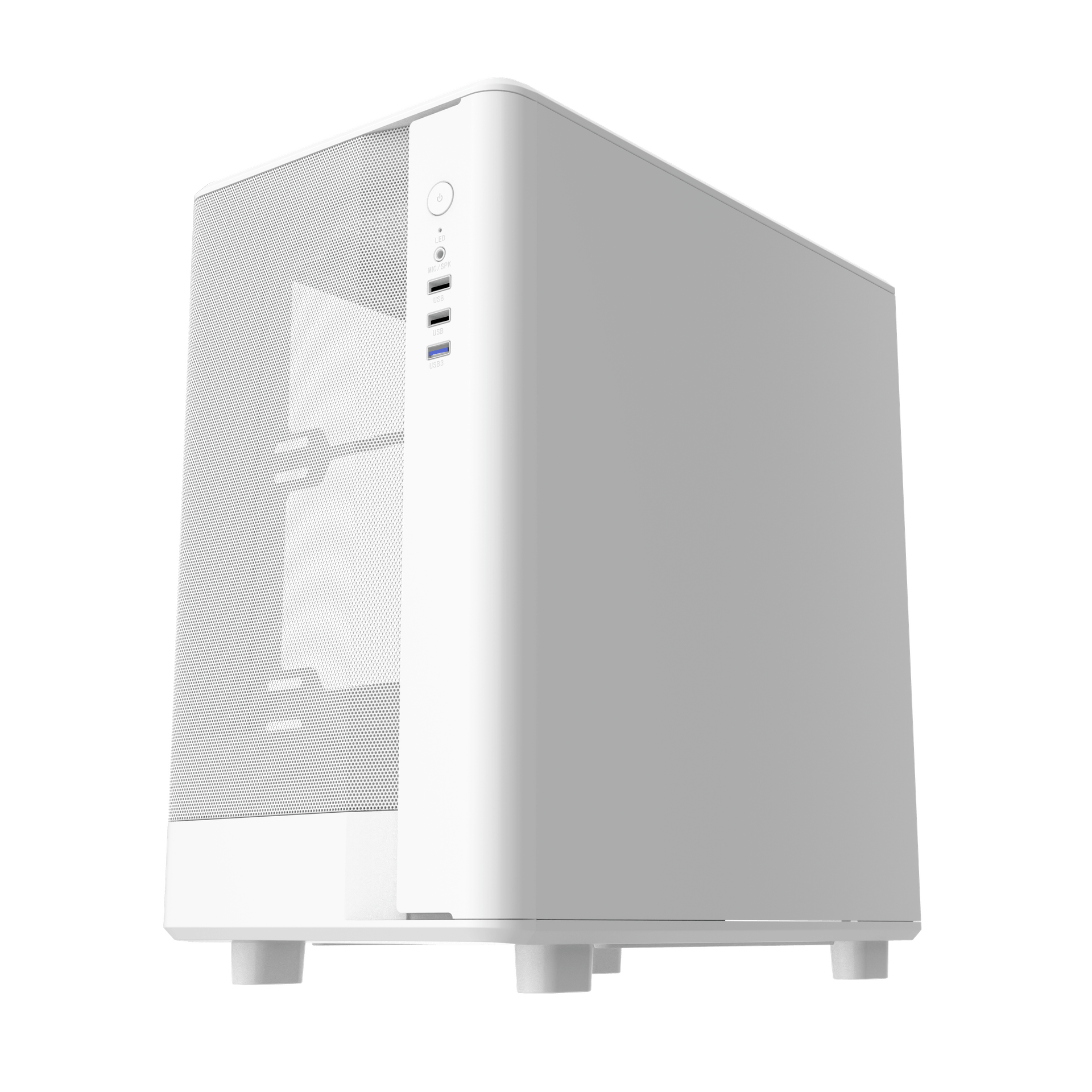

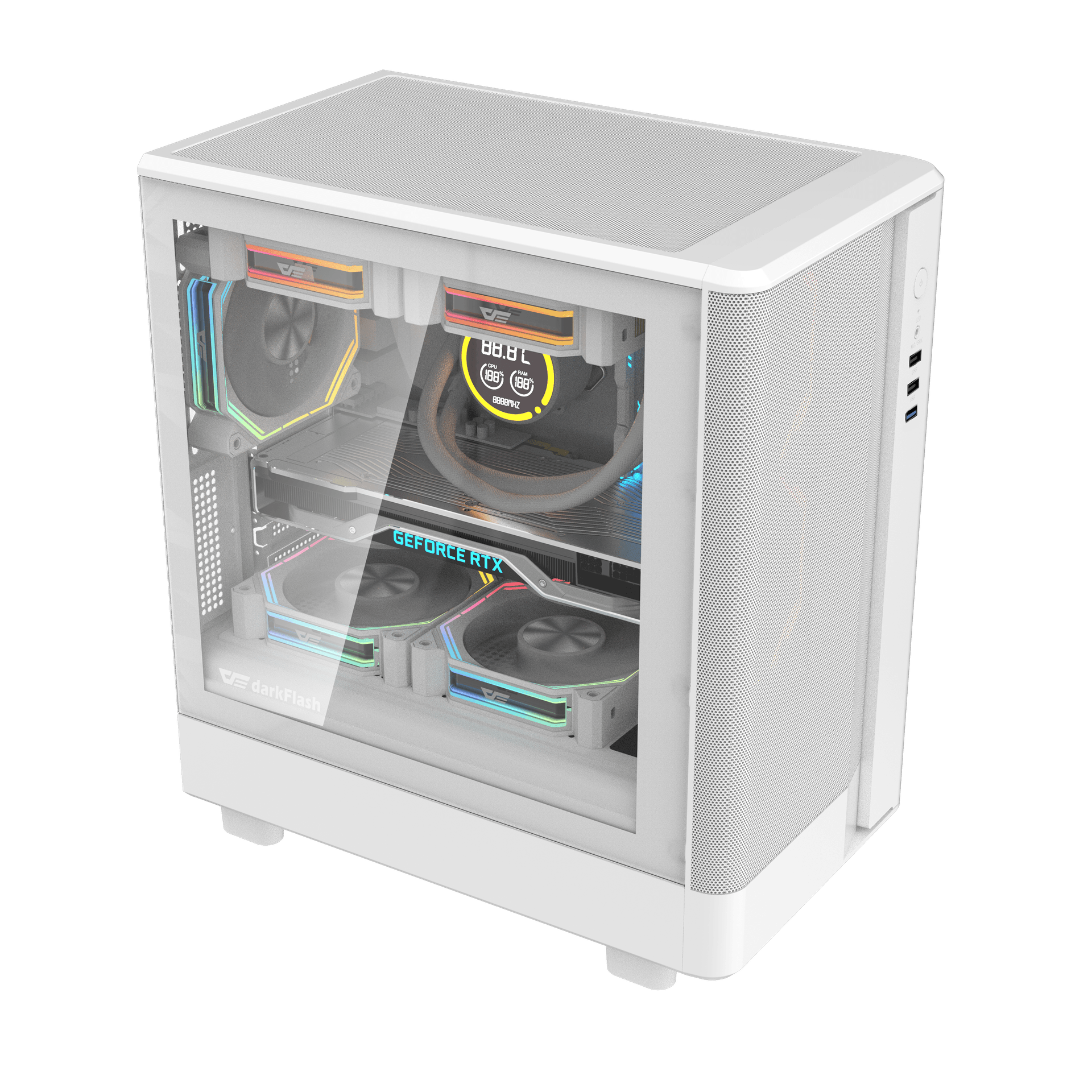

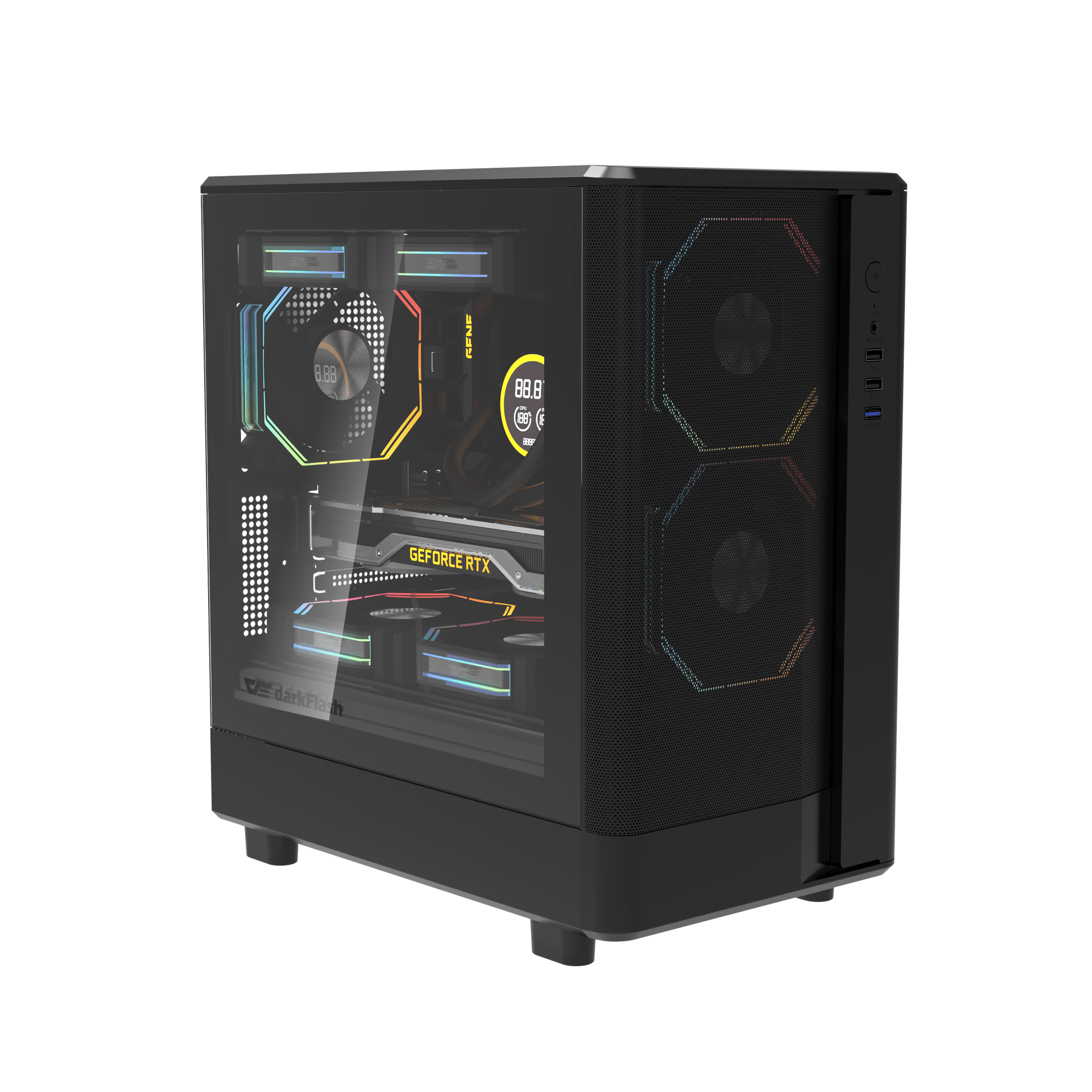

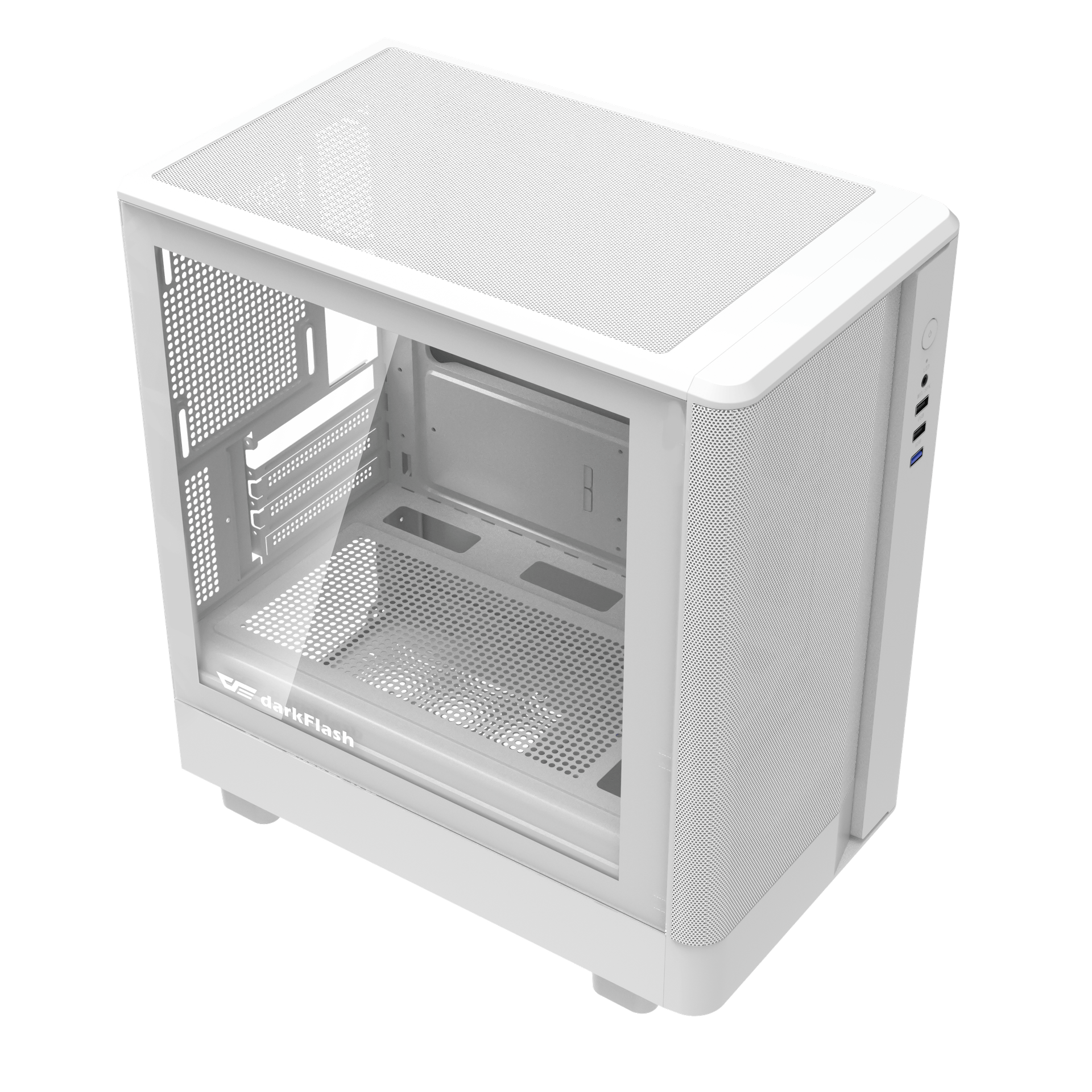

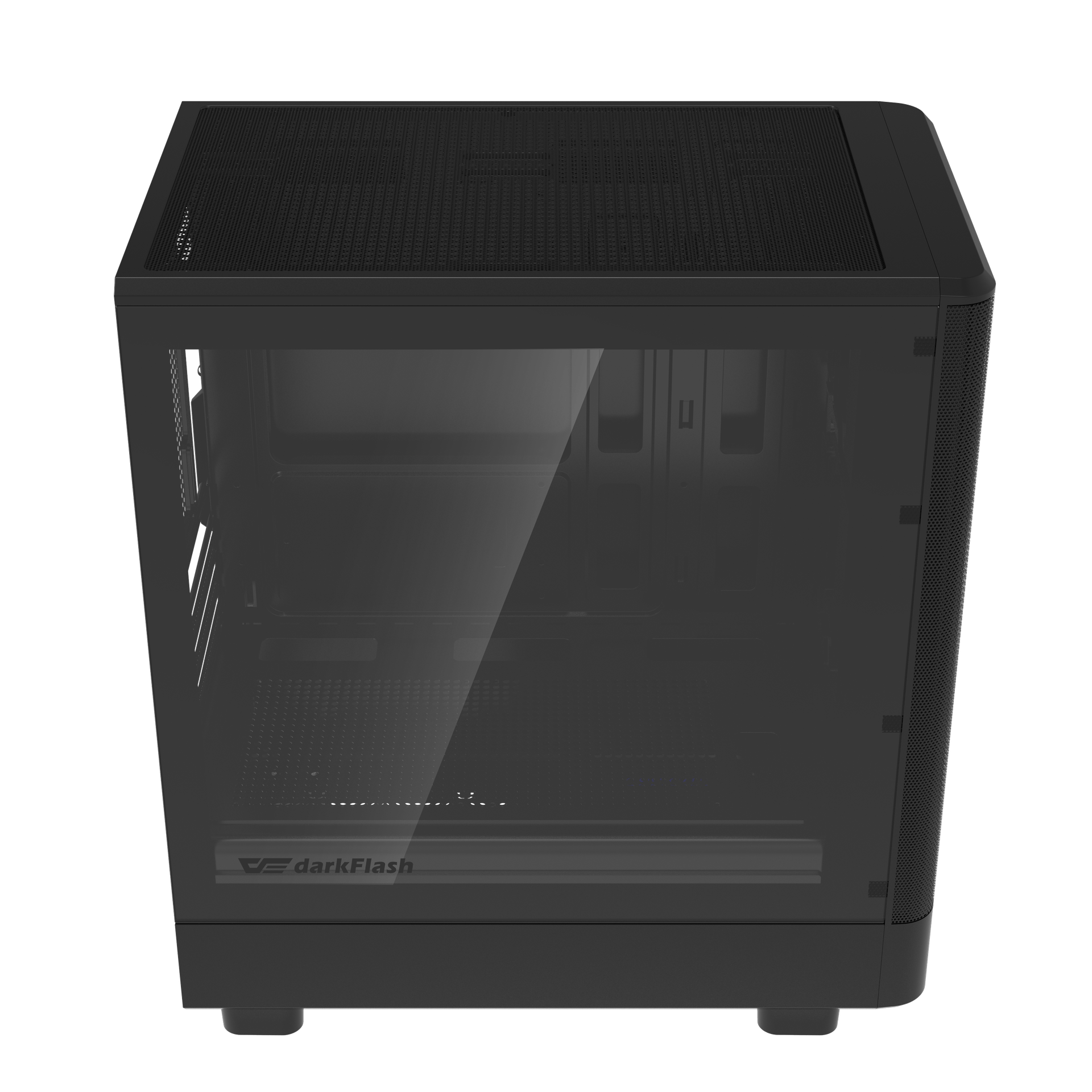

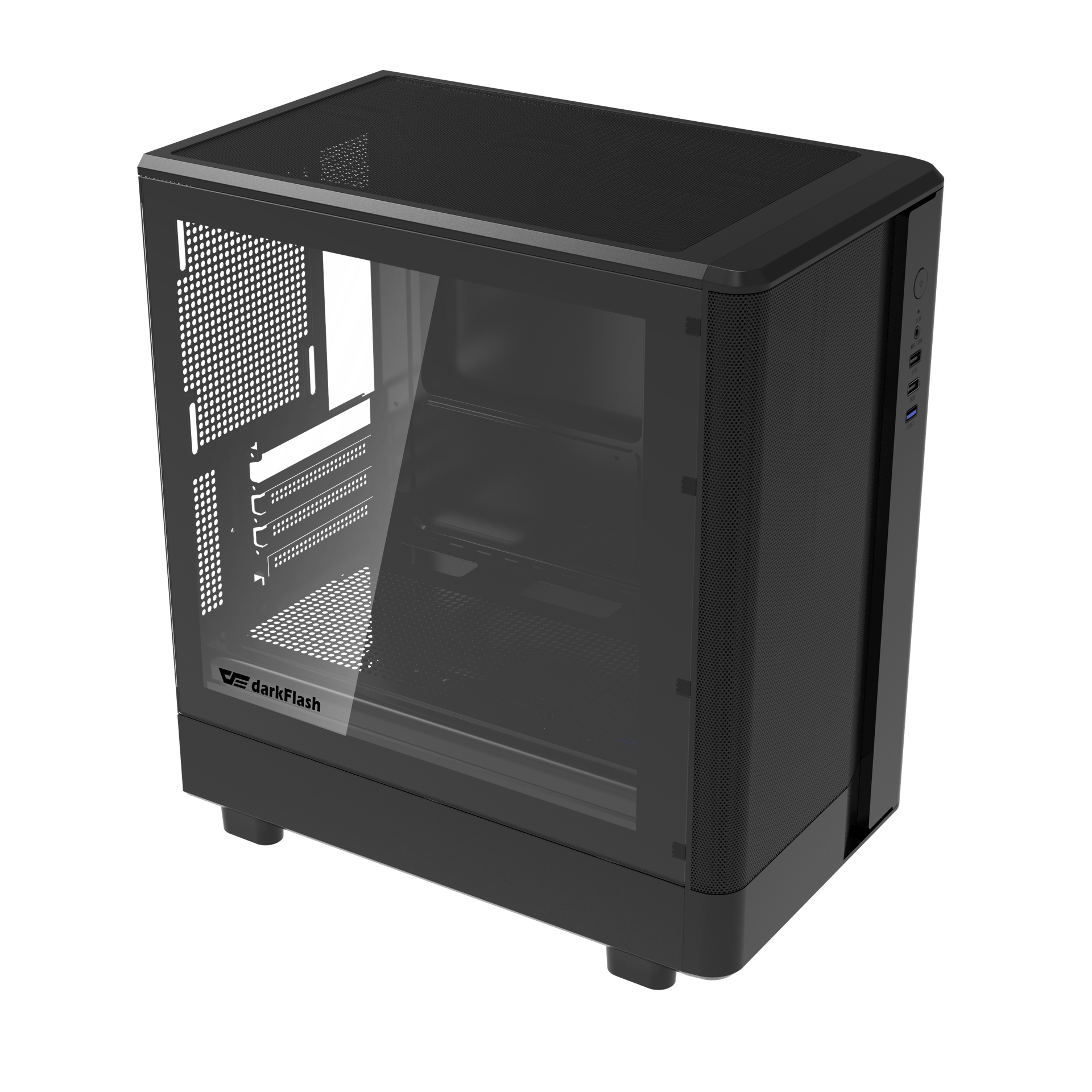

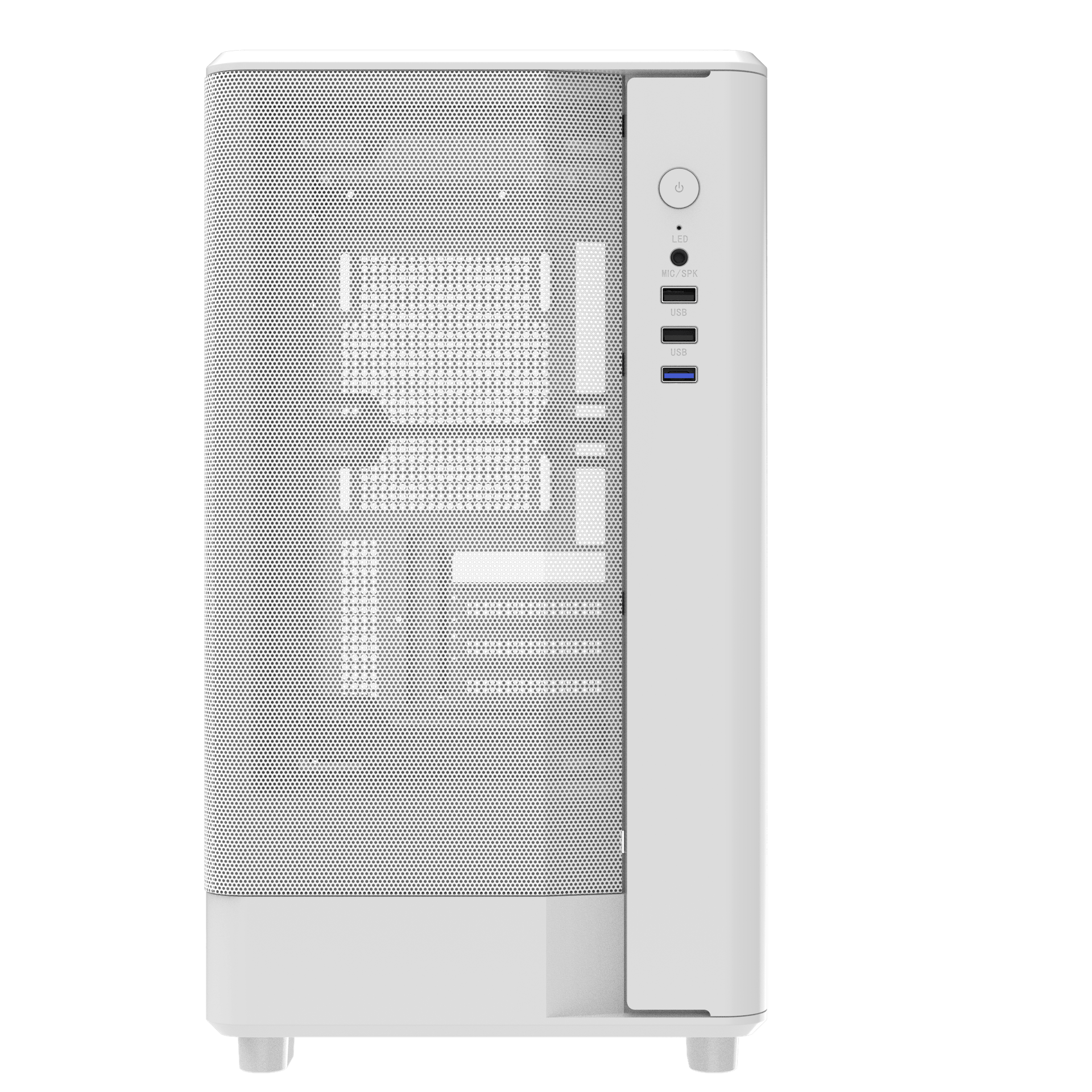

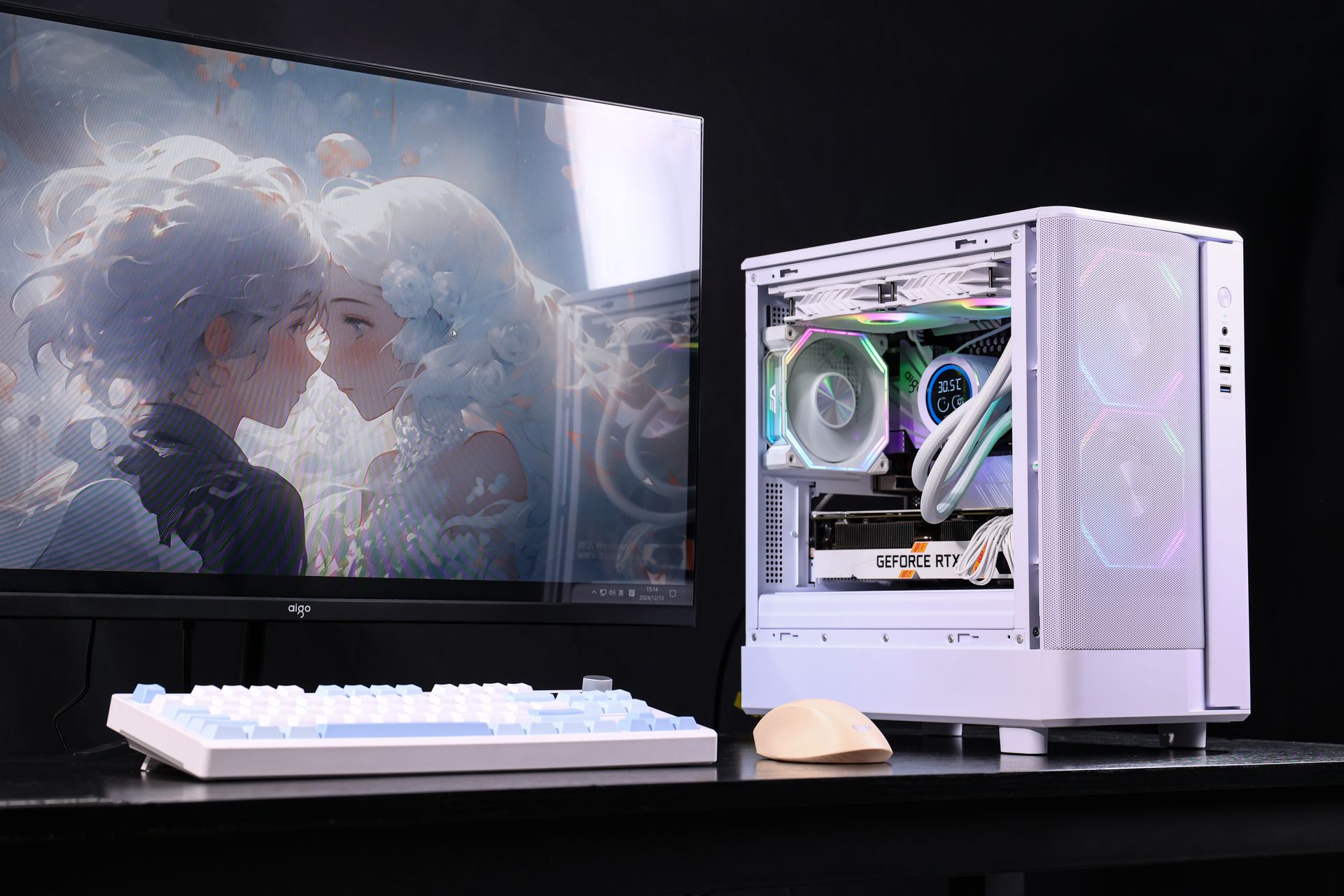

DB330M Mesh M-ATX PC Case
- Mesh Panel design maximizes the airflow
- Natural vertical air dust for efficient heat dissipation

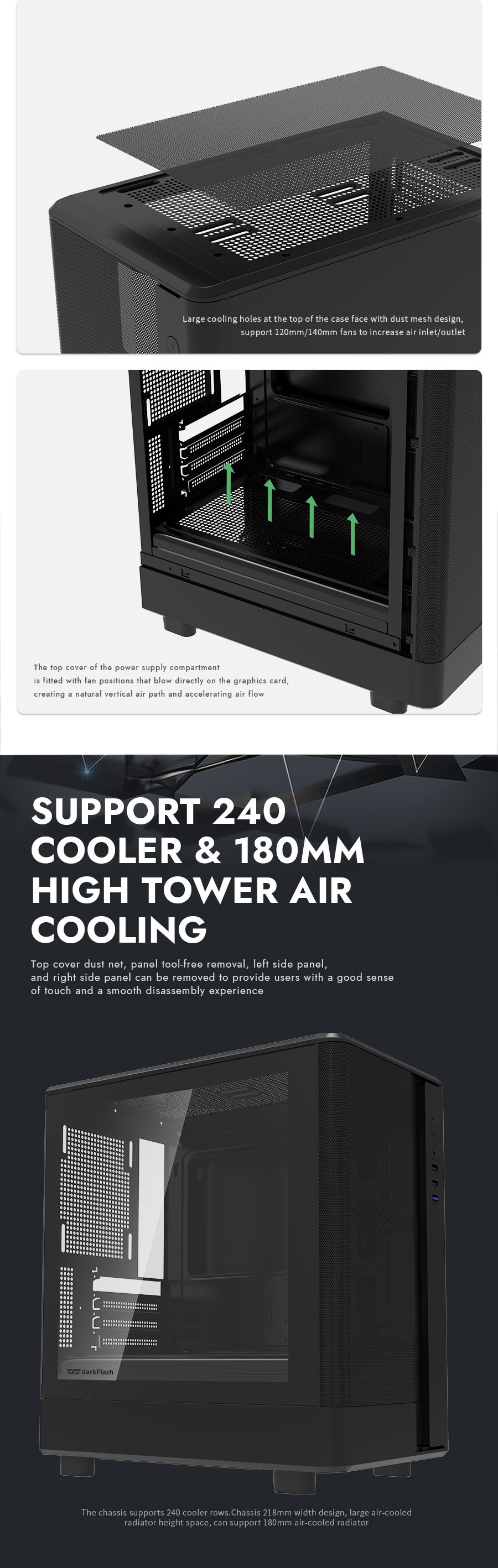

- Support up to 240mm radiator

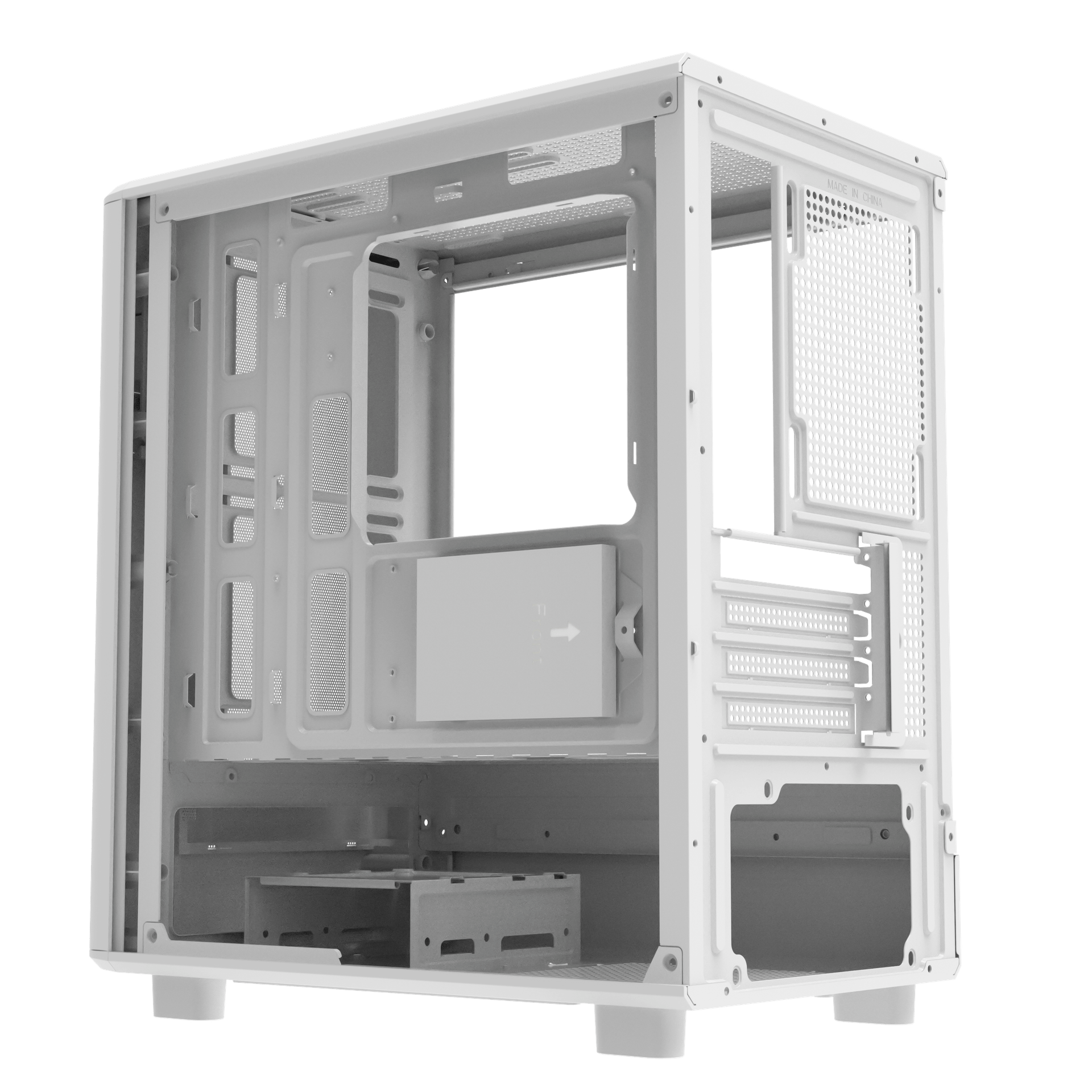

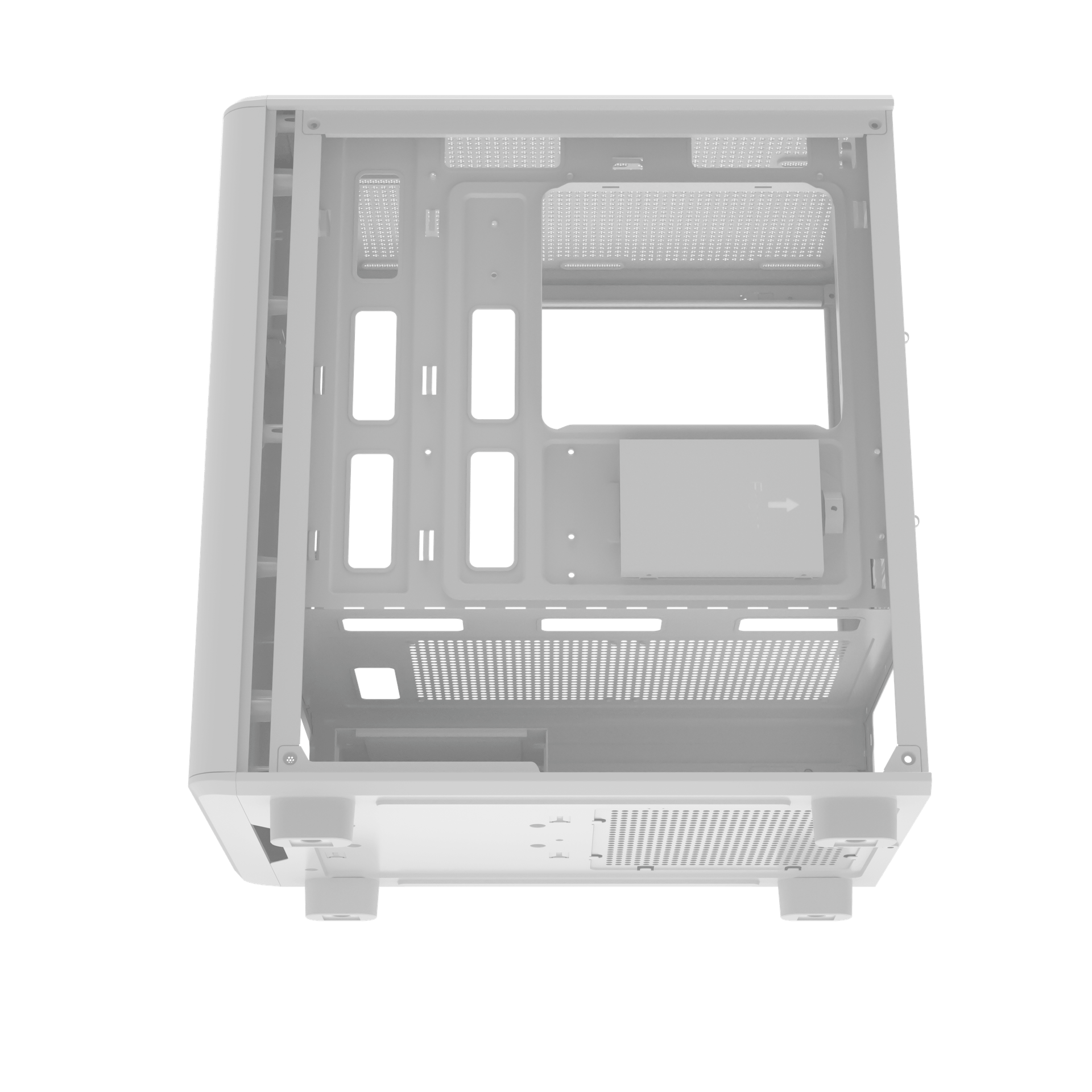

- Optimized back space for cable routing
- USB3.0 Ready
Colors - Black
Spec
- Key Specs

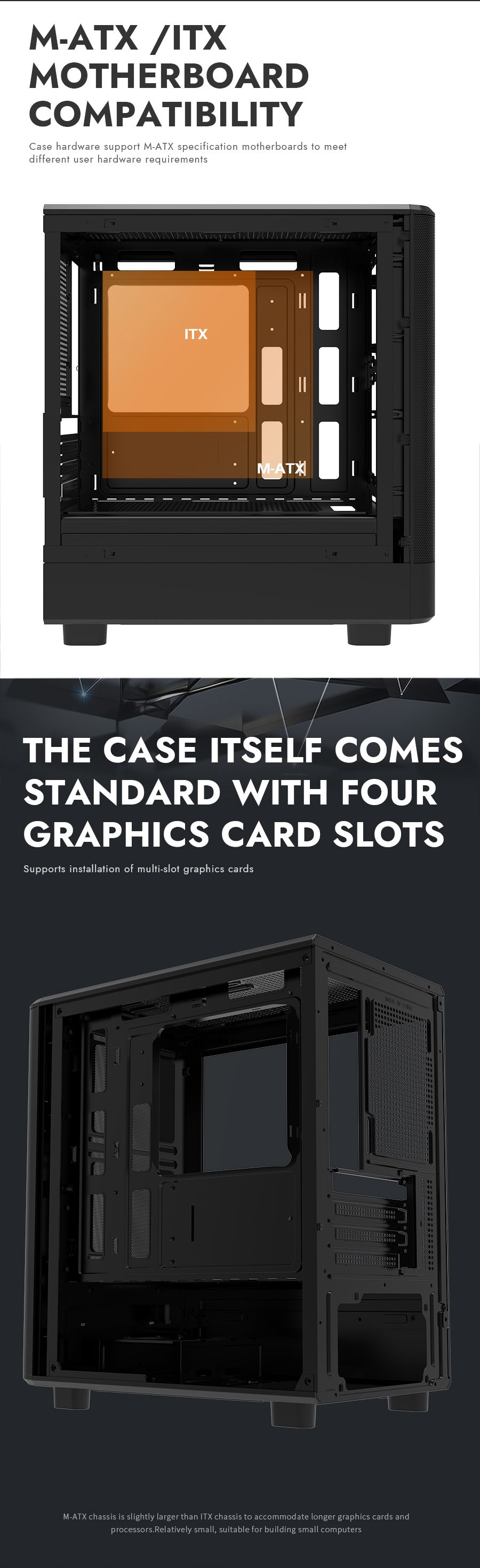

- Motherboard Support：M-ATXITX
- Case Material：0.5mm SPCC
- Dimensions

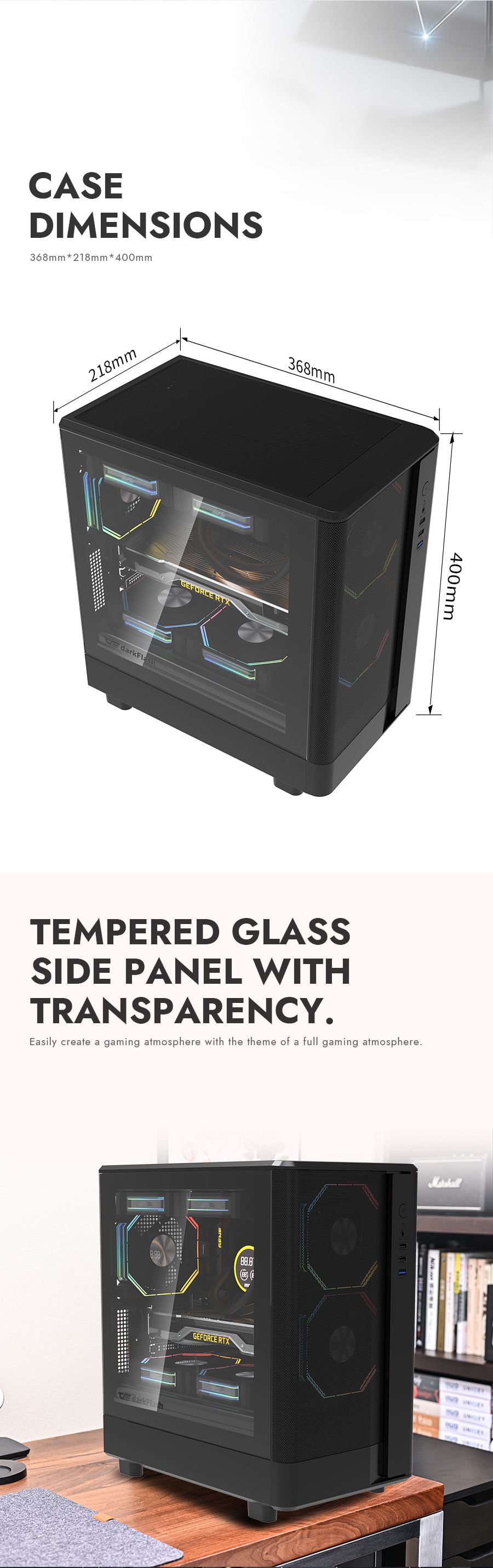

- Case Size：368*218*400mm
- Compatibility & Clearance
- Max GPU Clearance：305mm
- PCIE Slot：4
- Max CPU Cooler Clearance：180mm

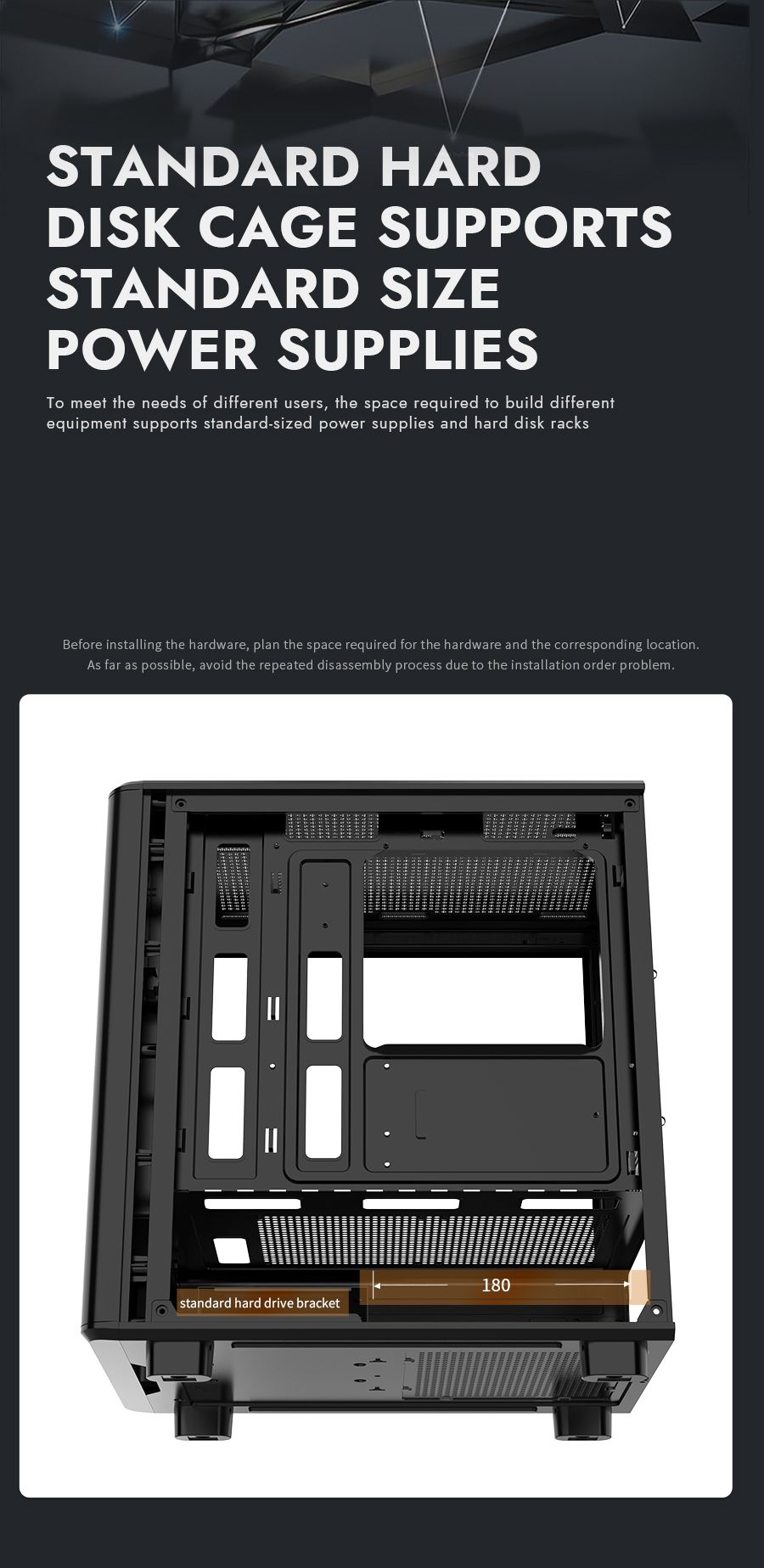

- Drive Bays
- SSD / HDD：1 / 2

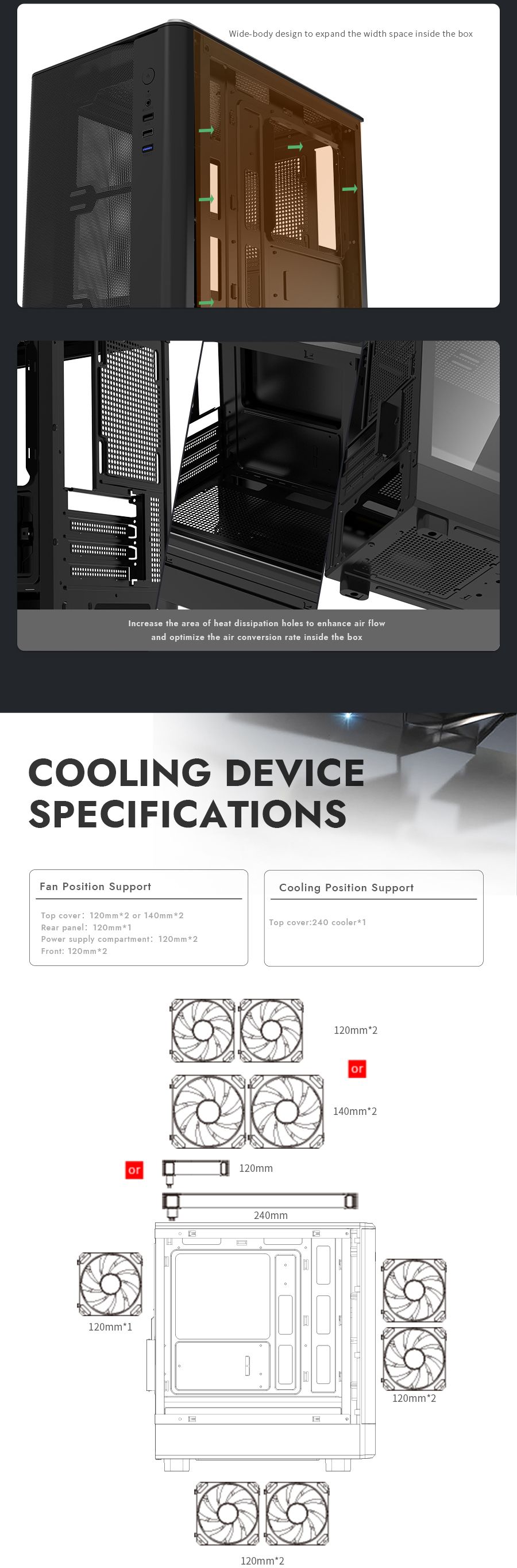

- Fan Support
- Top：120mm*2140mm*2

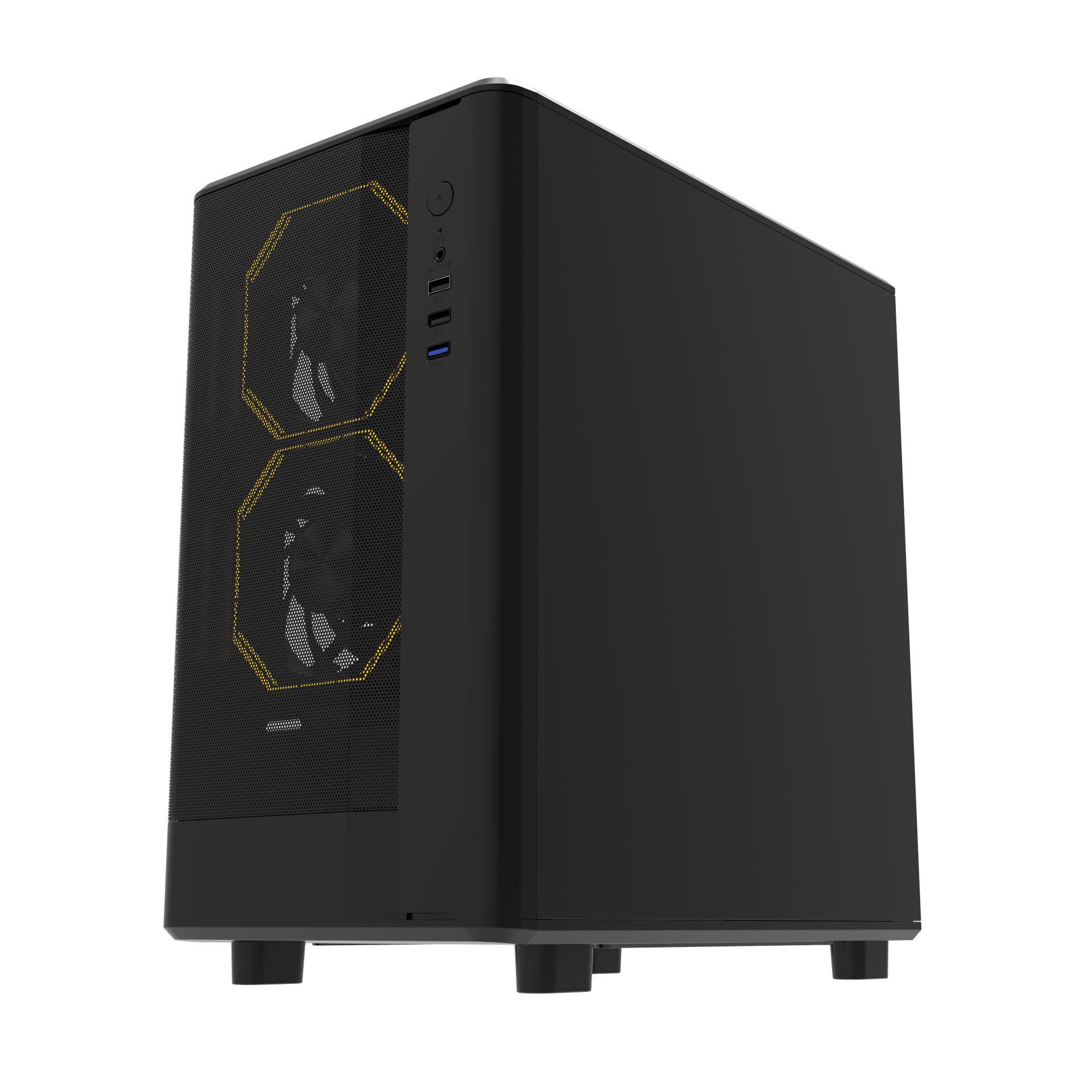

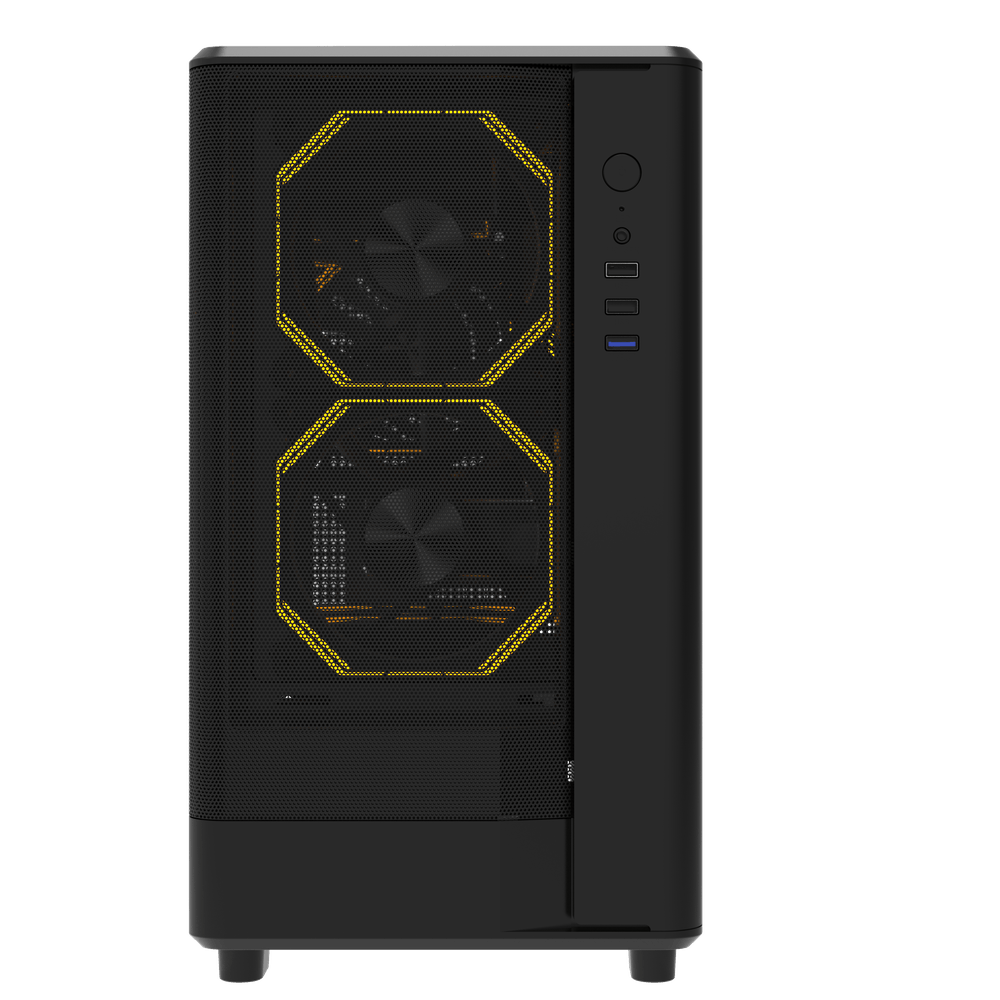

- Front：120mm*2

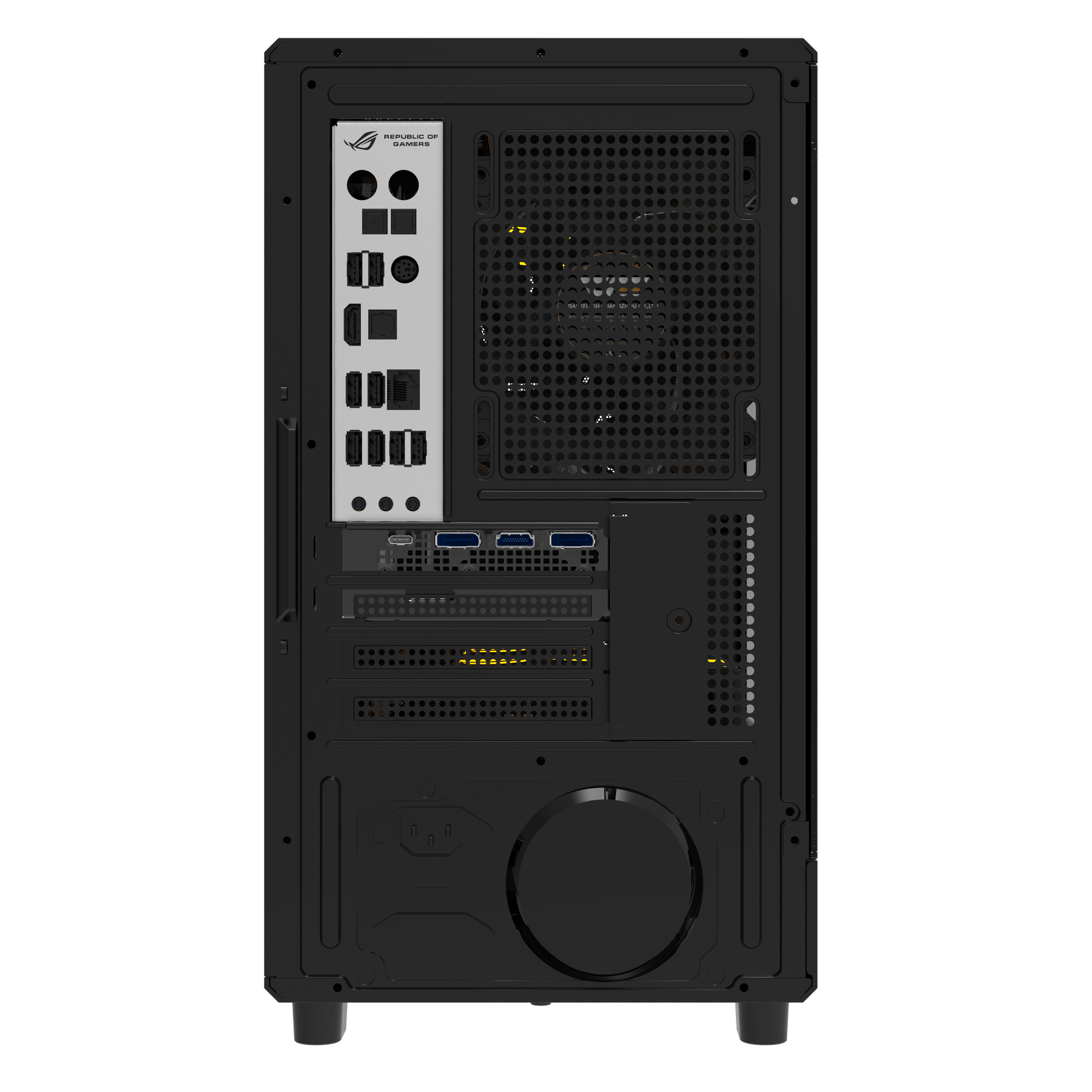

- Rear：120mm*1
- Bottom：120mm*2
- Radiator Support
- Top：240mm
- Front I/O

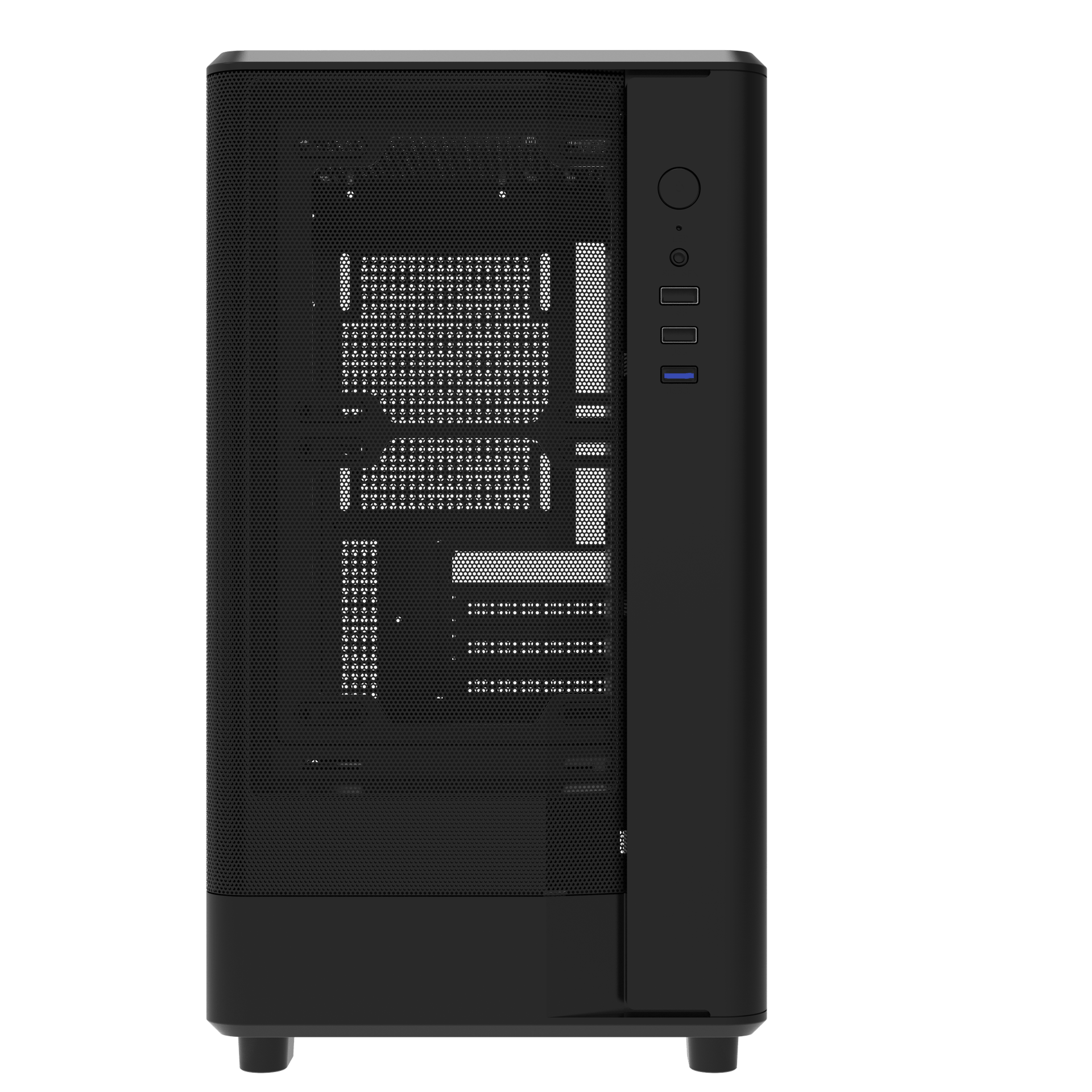

- I/O：USB3.0*1USB2.0*2HD AudioPower
- General

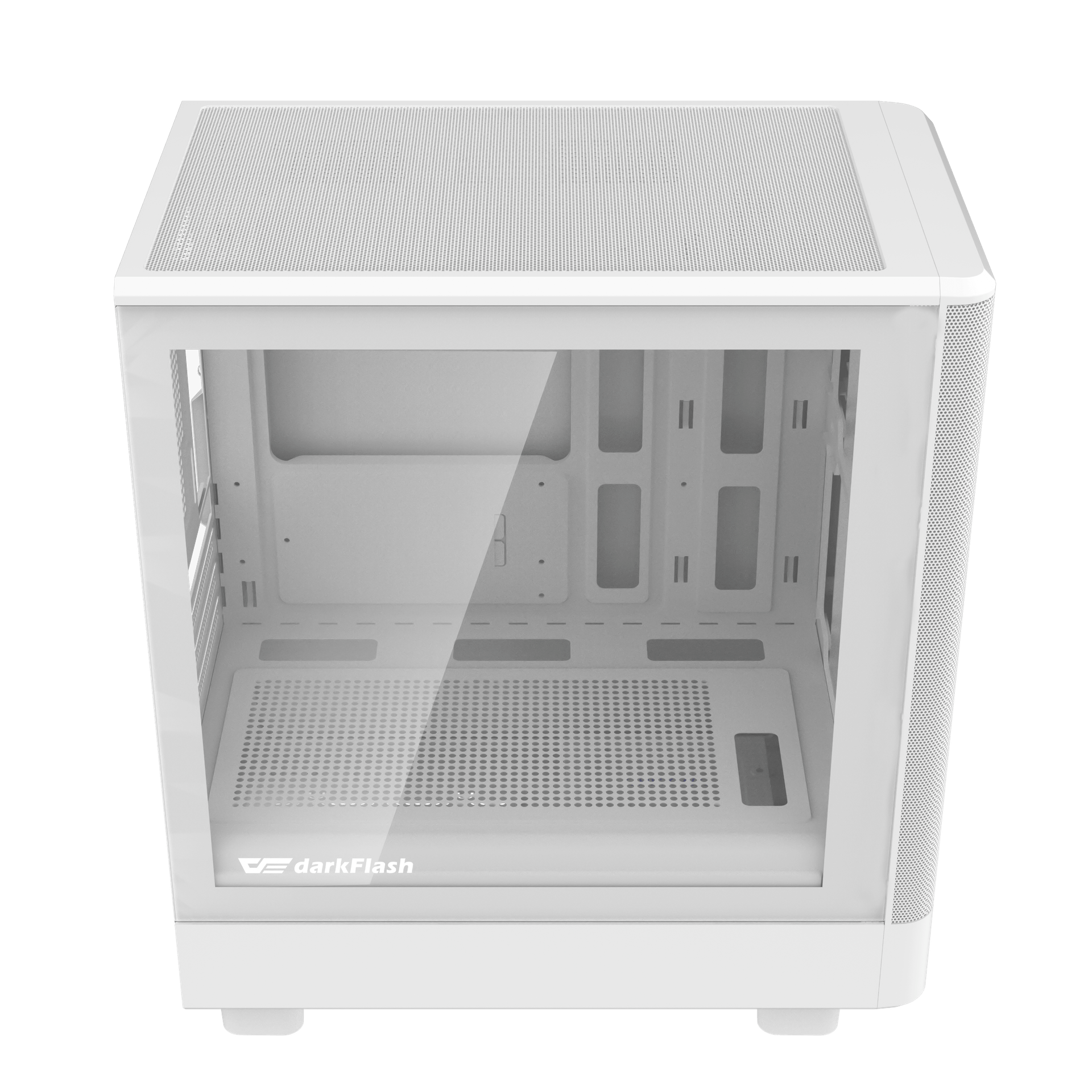

- EAN：4711527002427(Black)4711527002434(White)

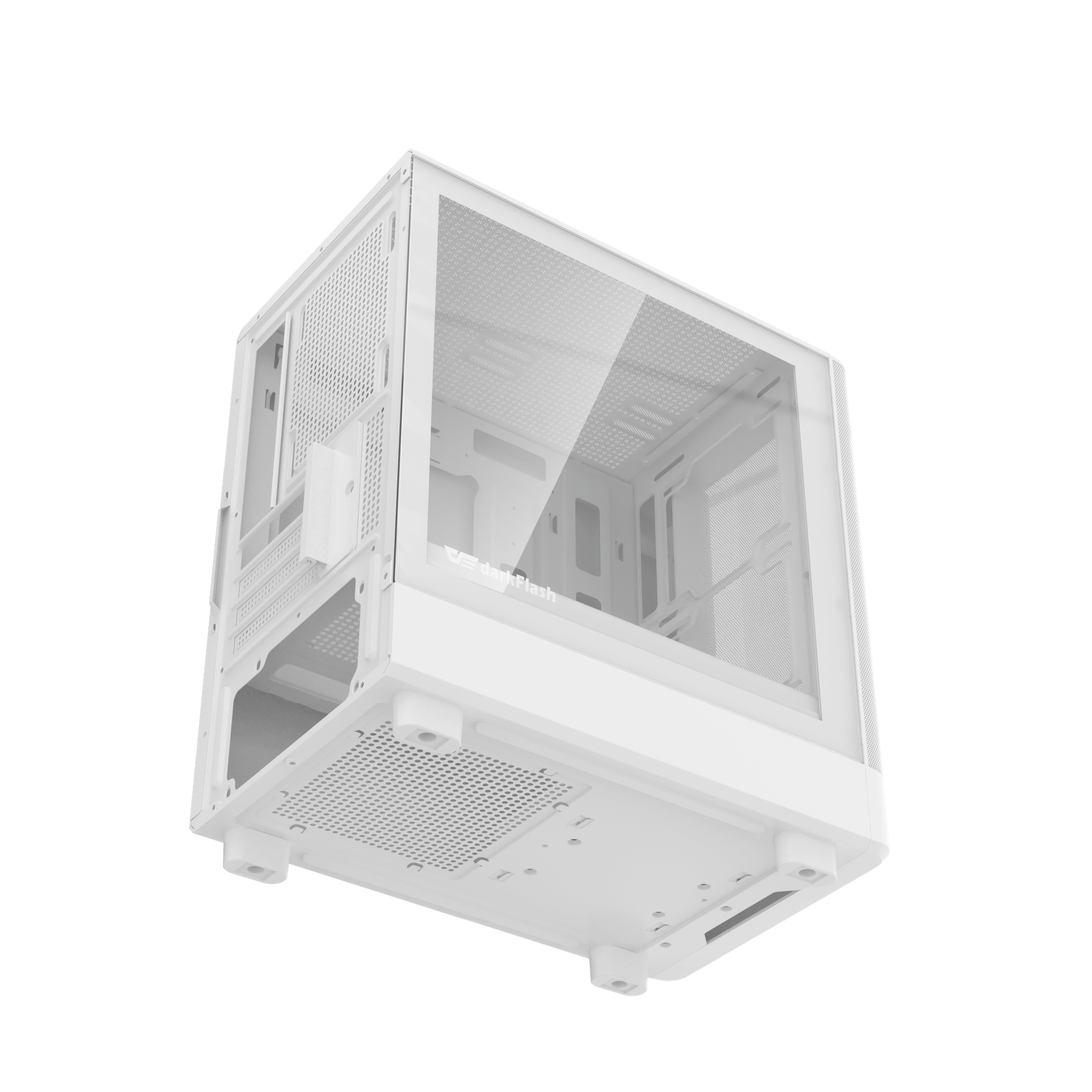

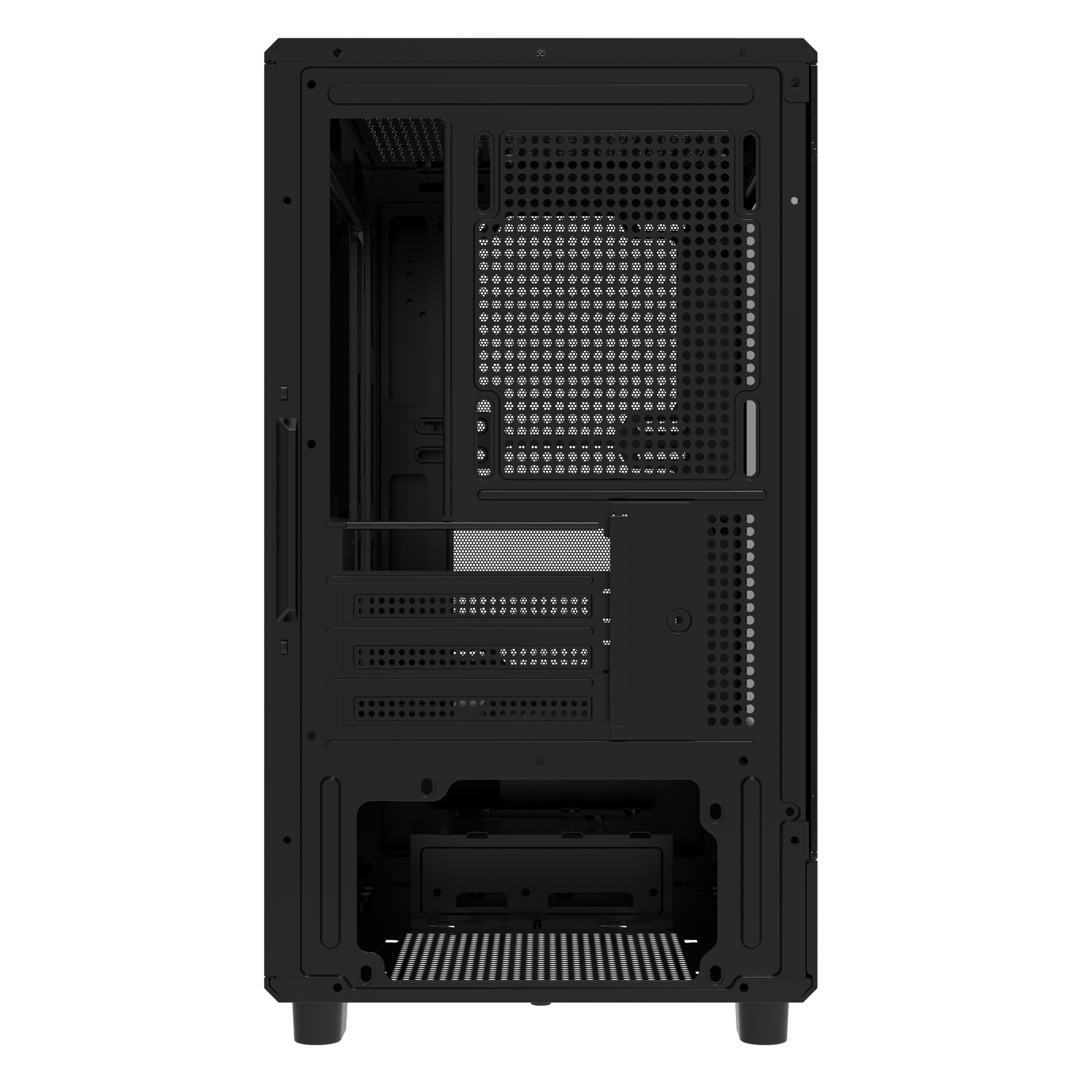

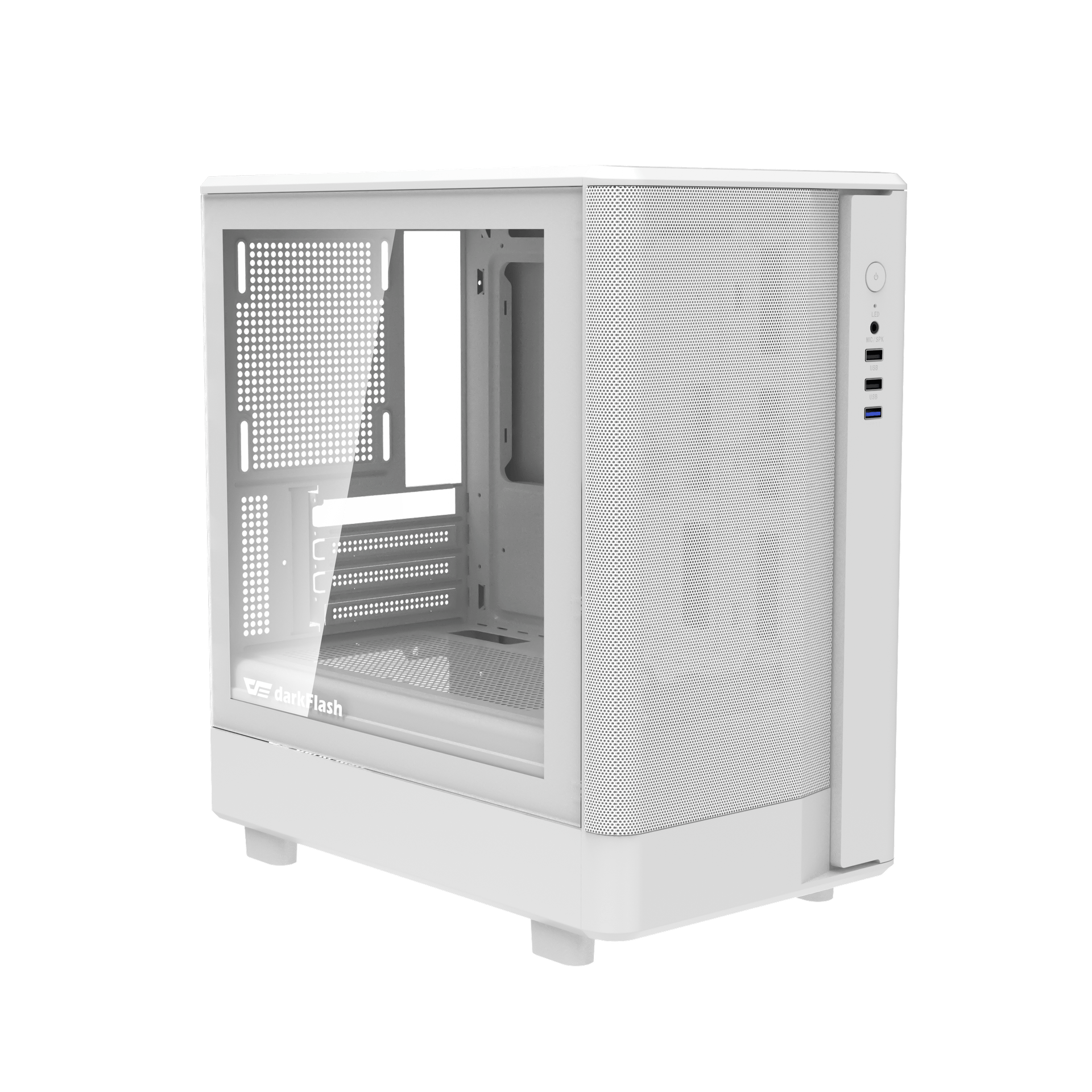

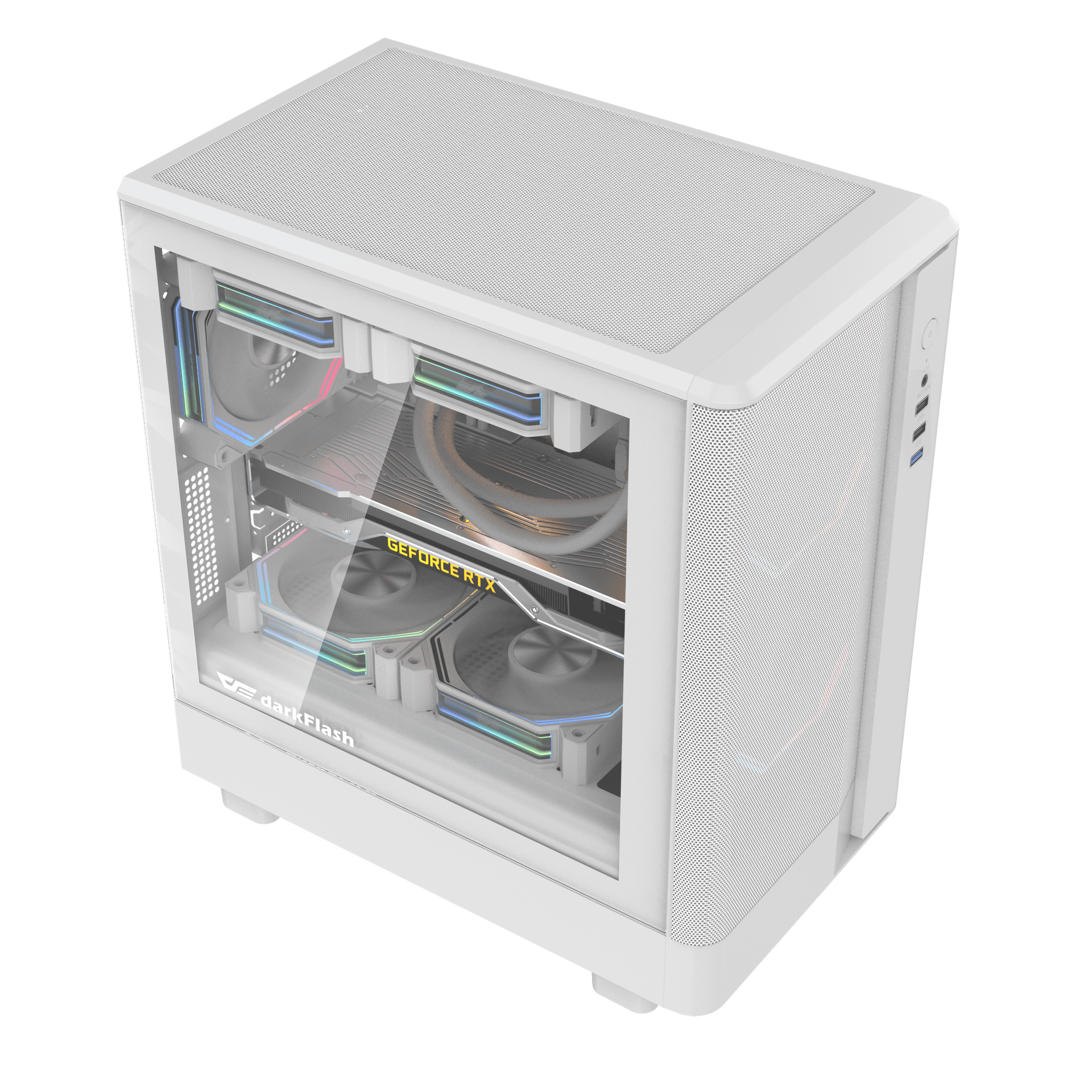

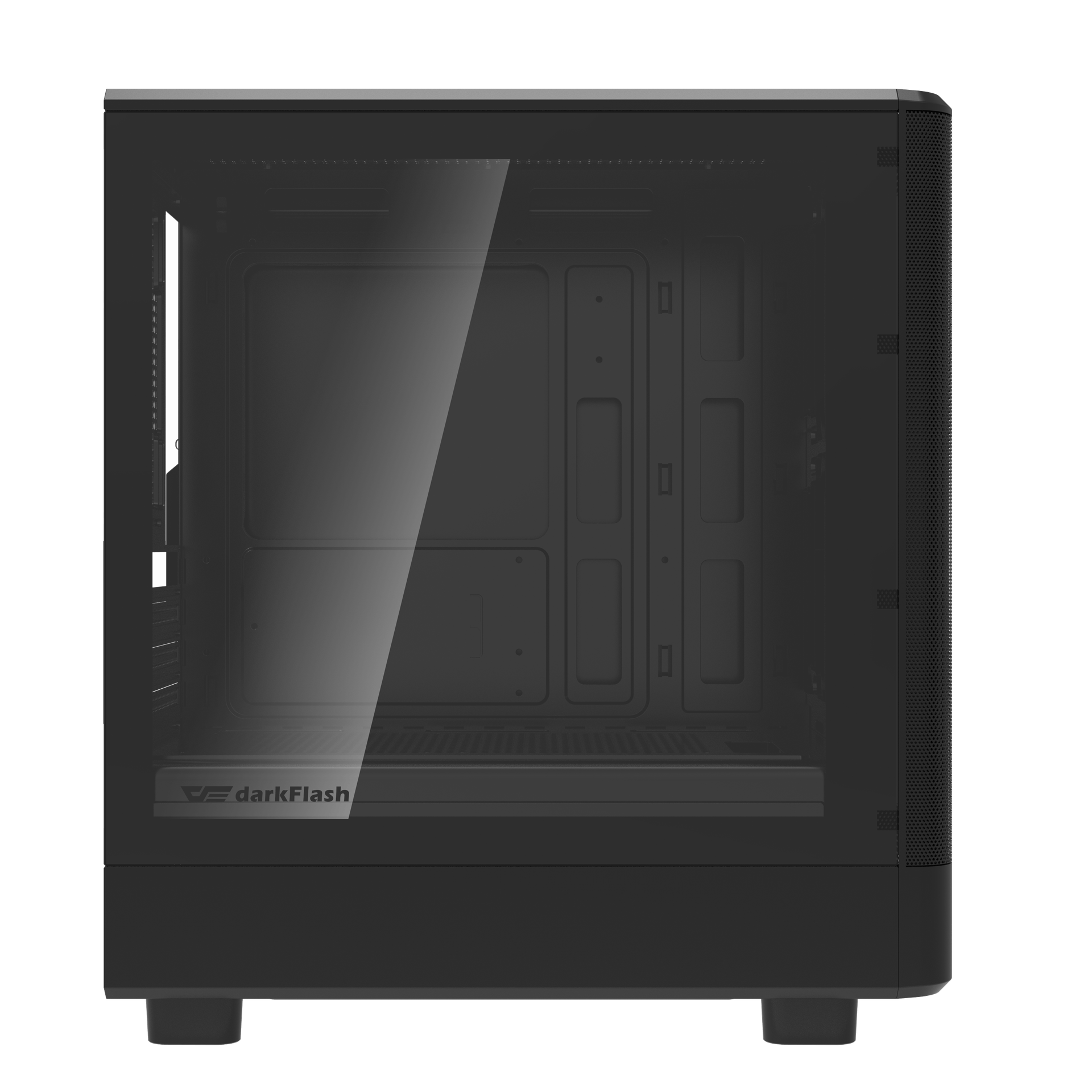

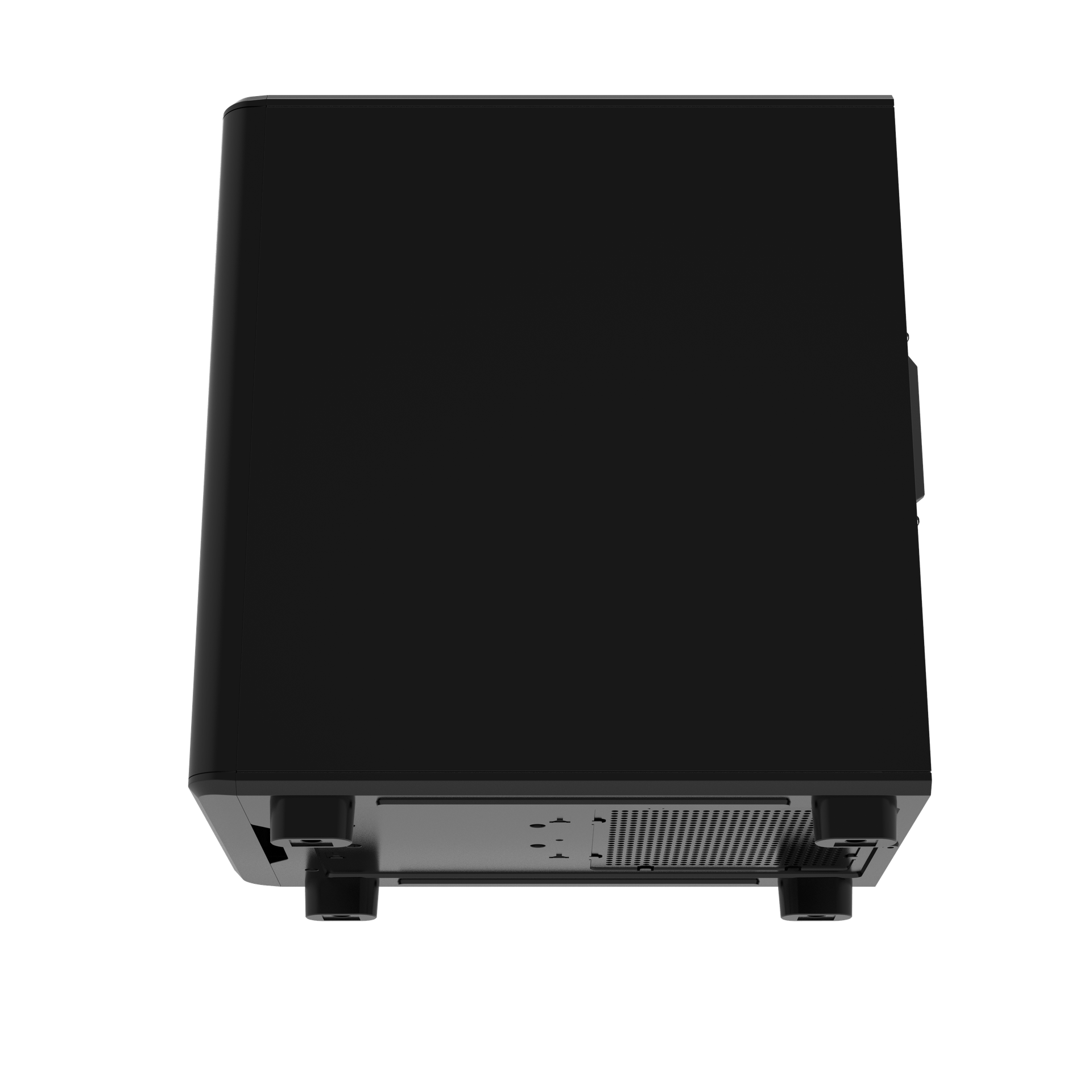

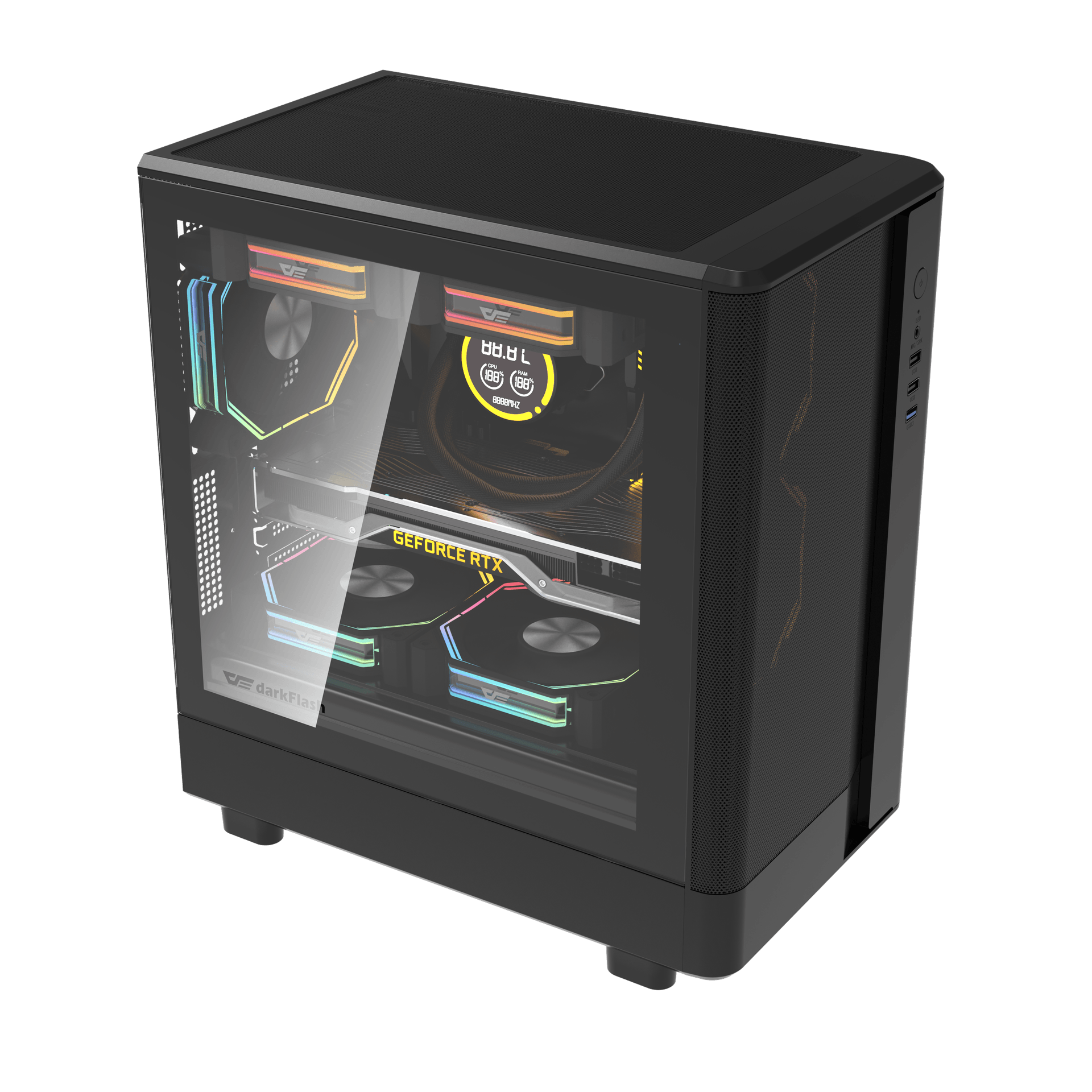

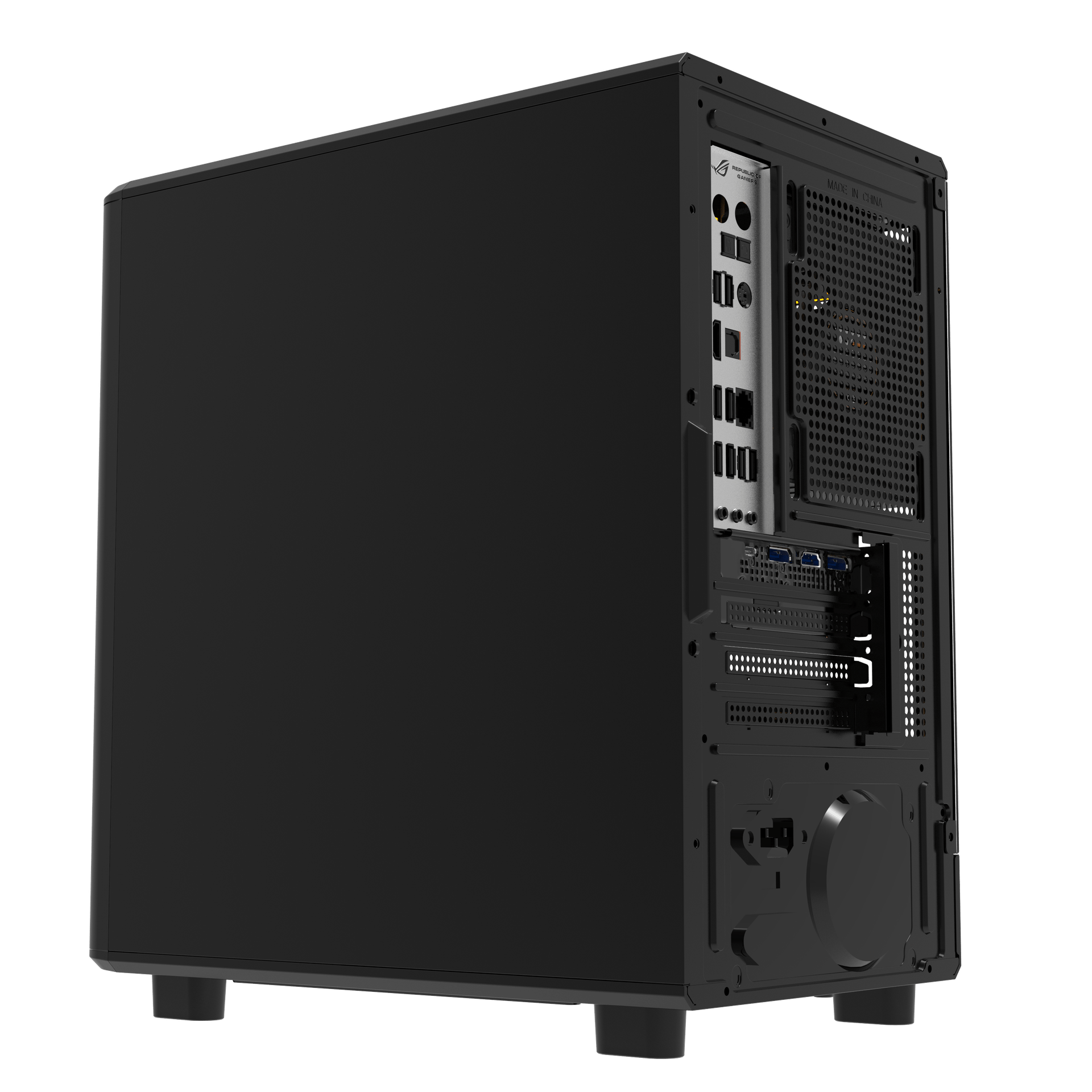

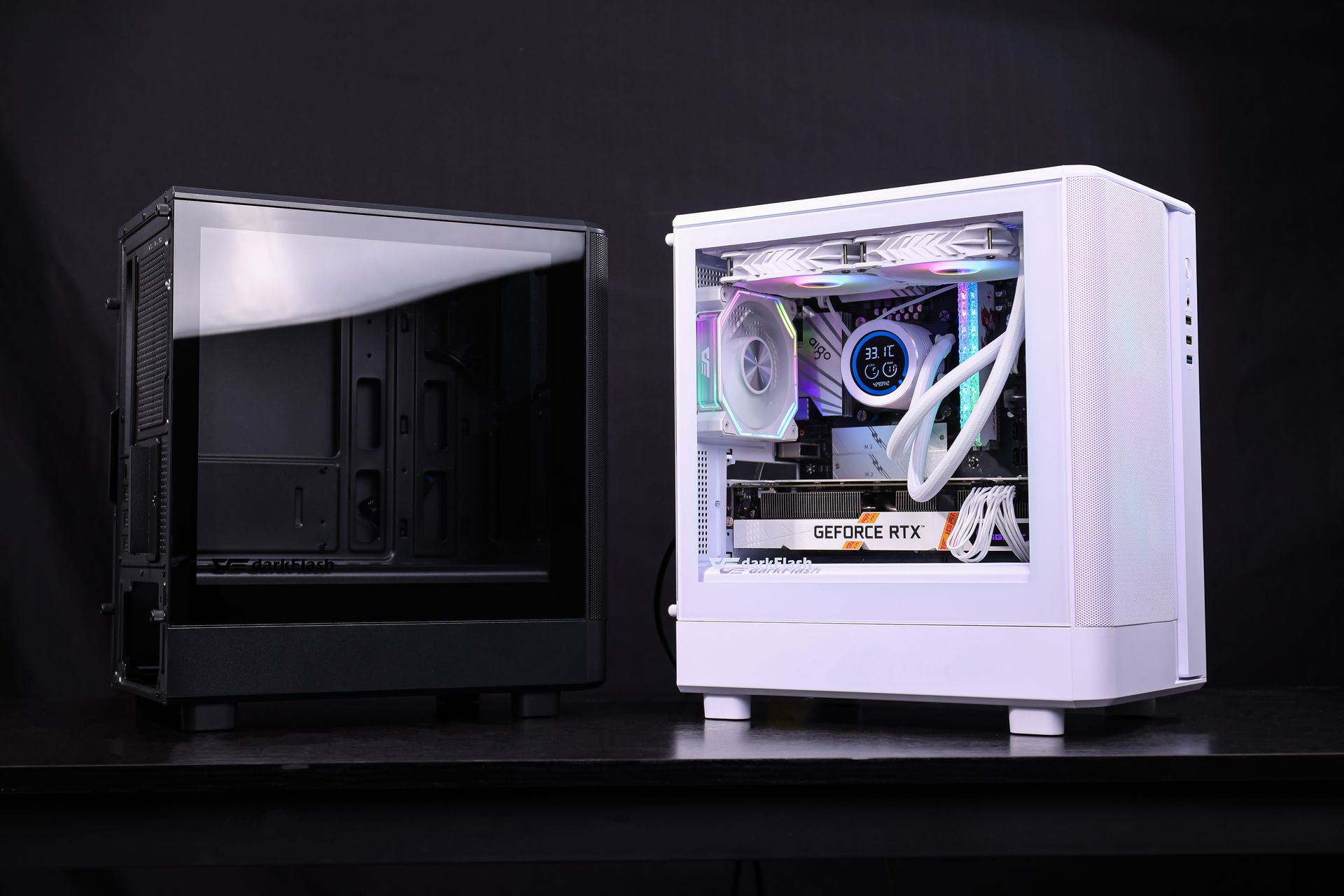

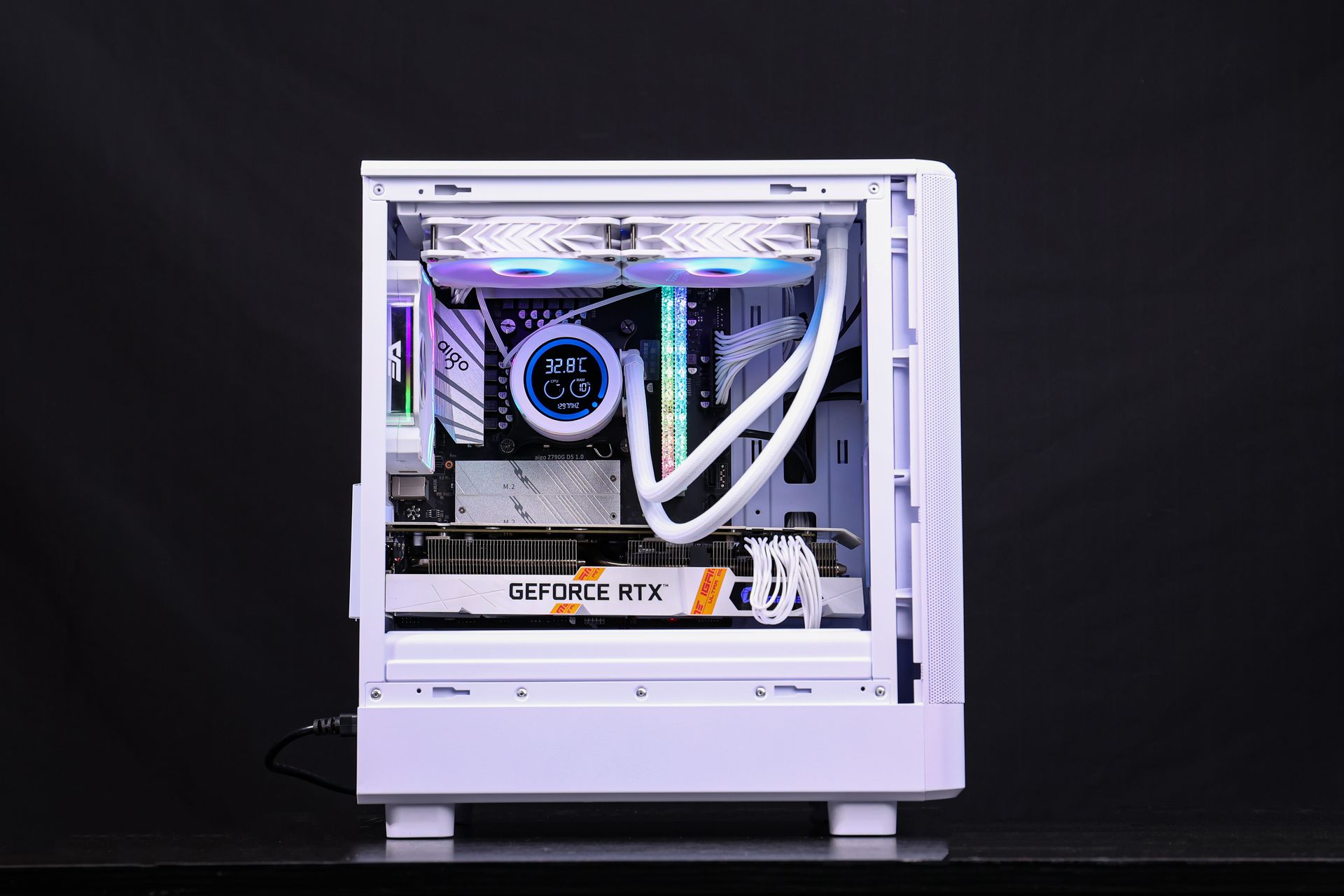

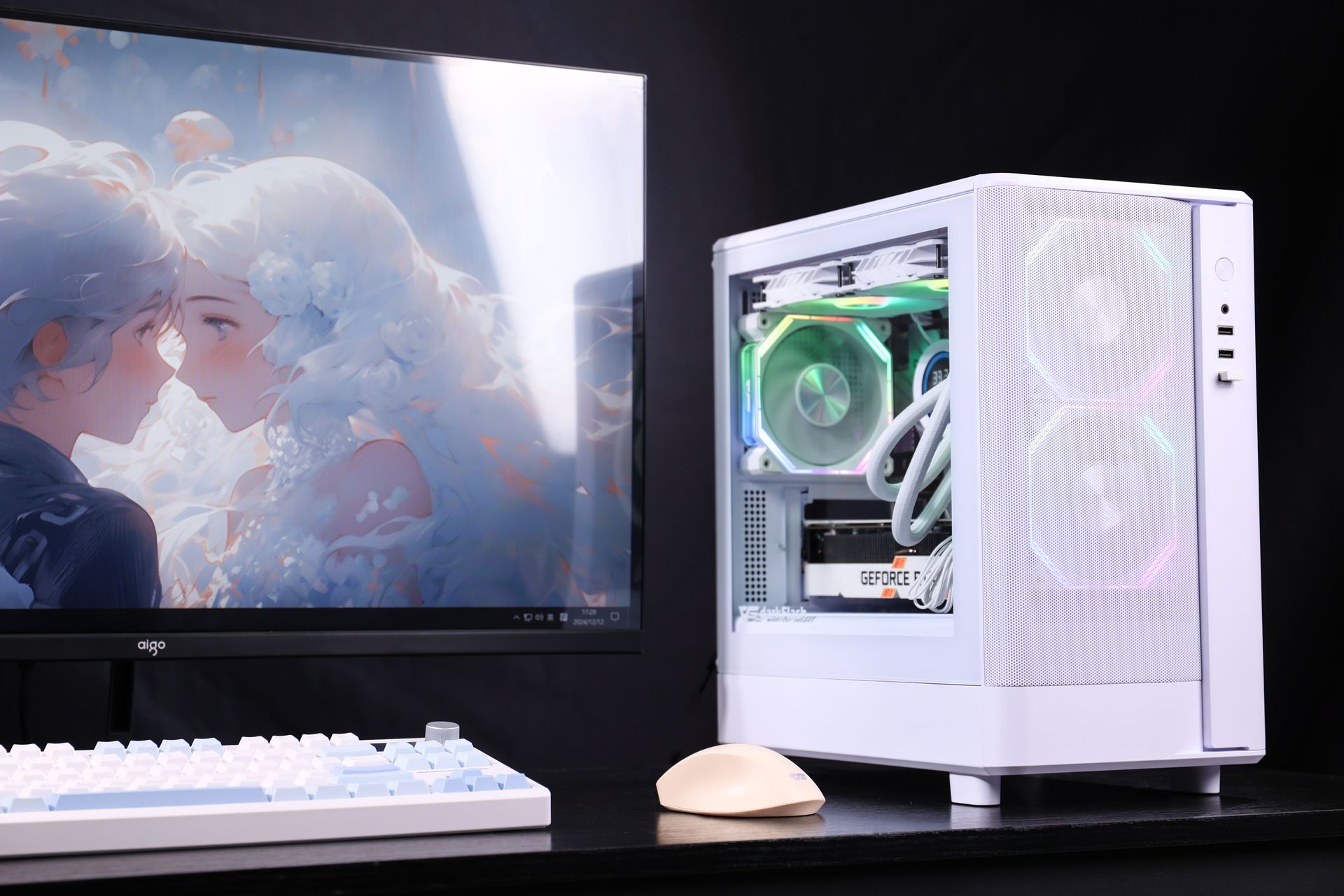

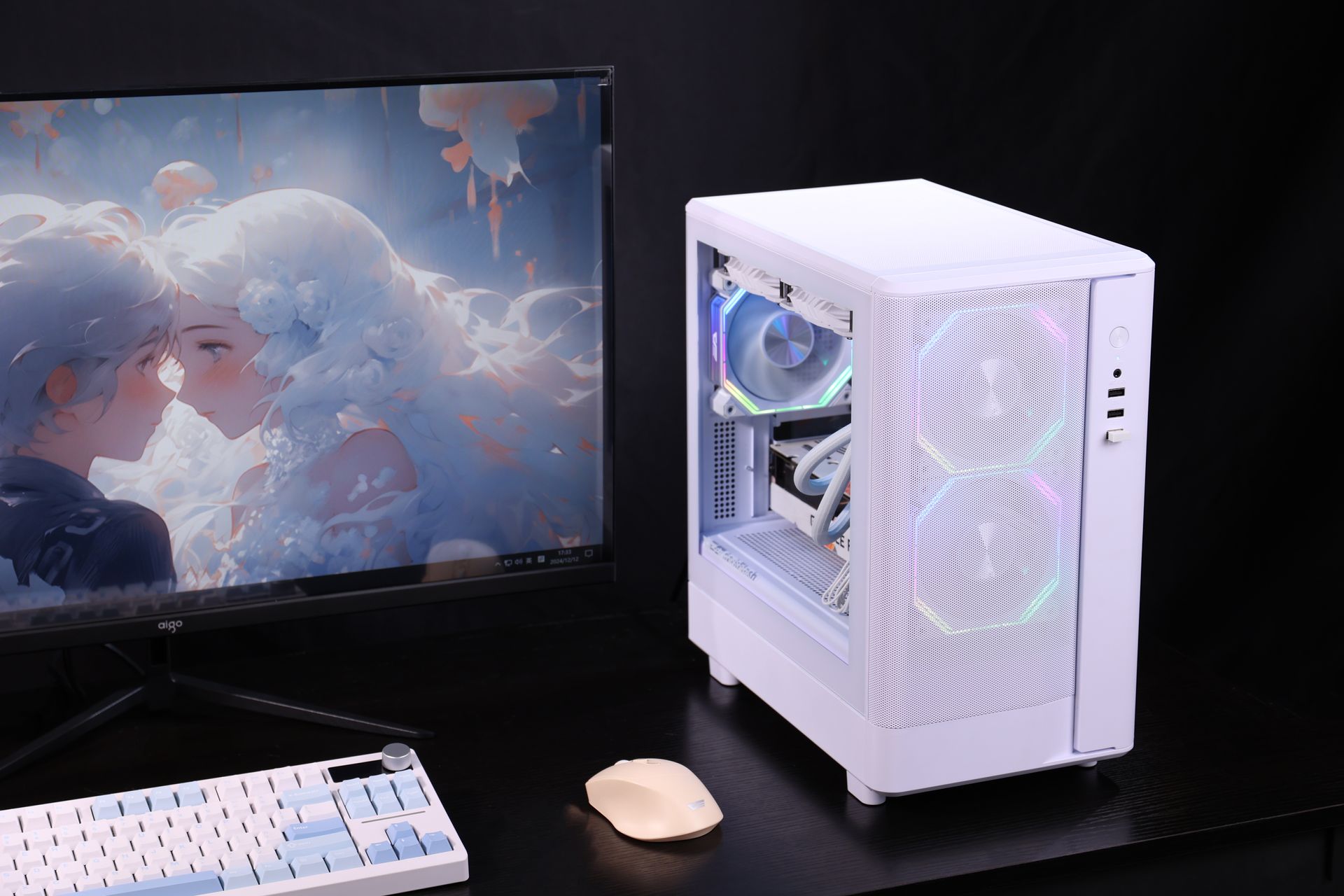

DB330M Mesh M-ATX PC Case Brochure Product Galleries
