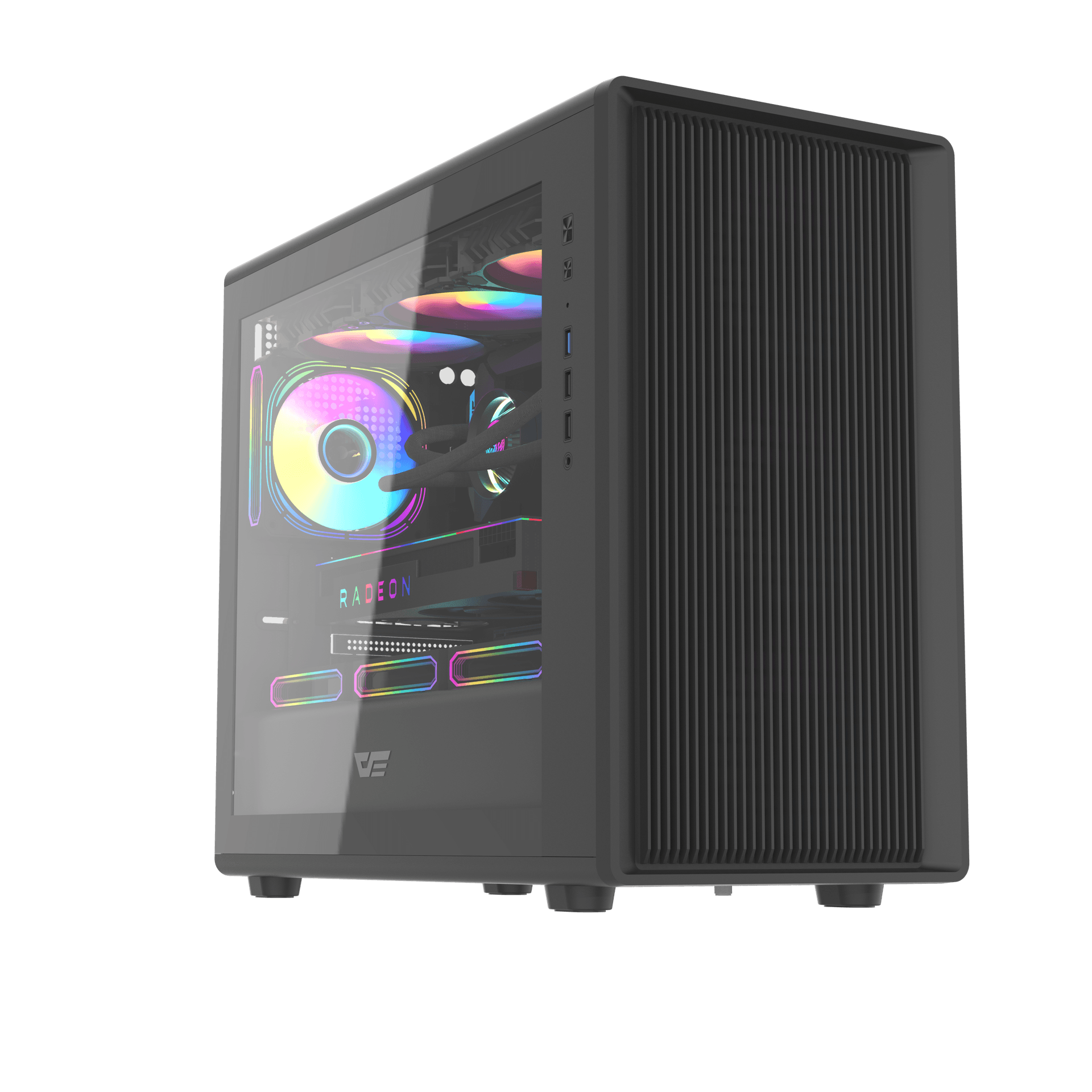

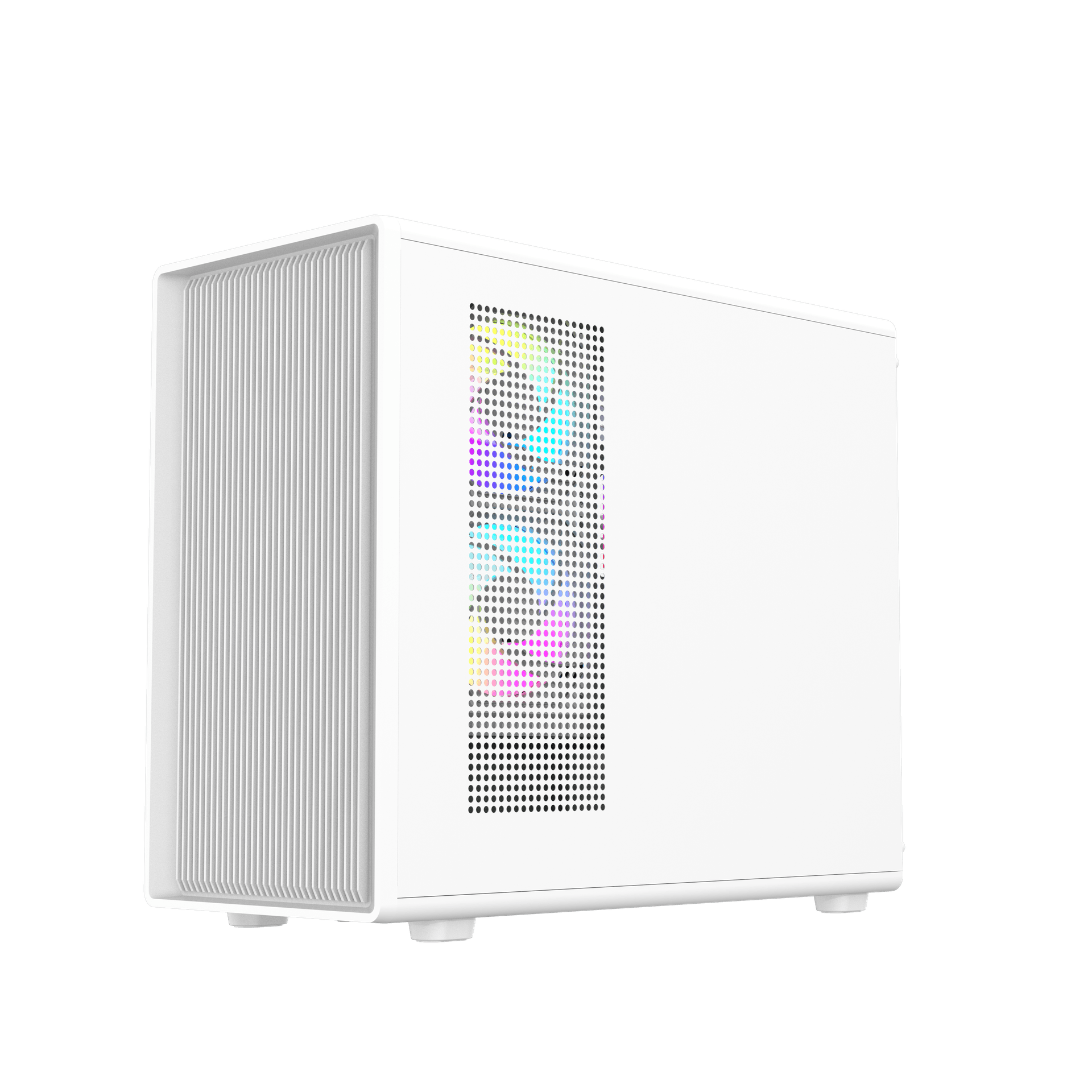

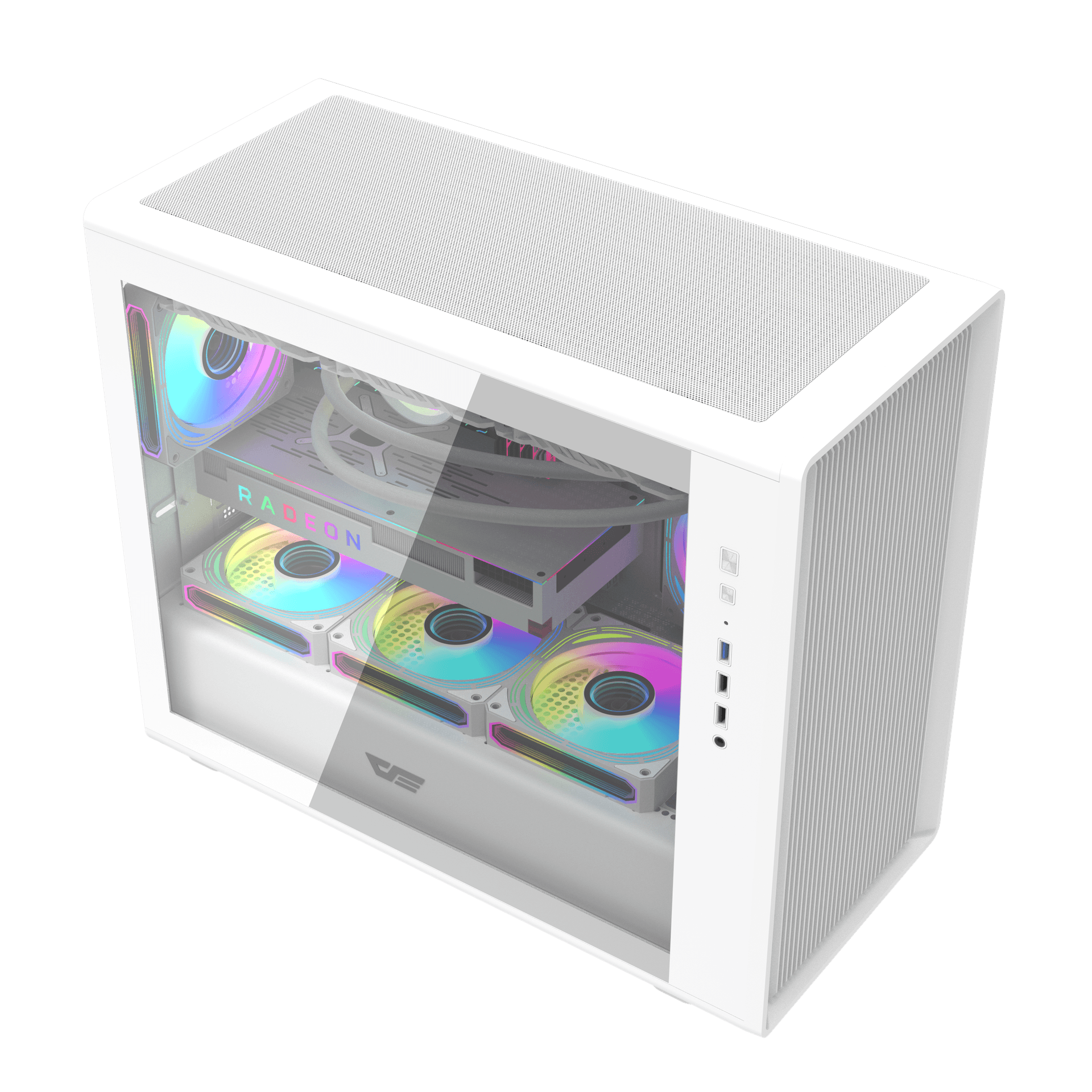

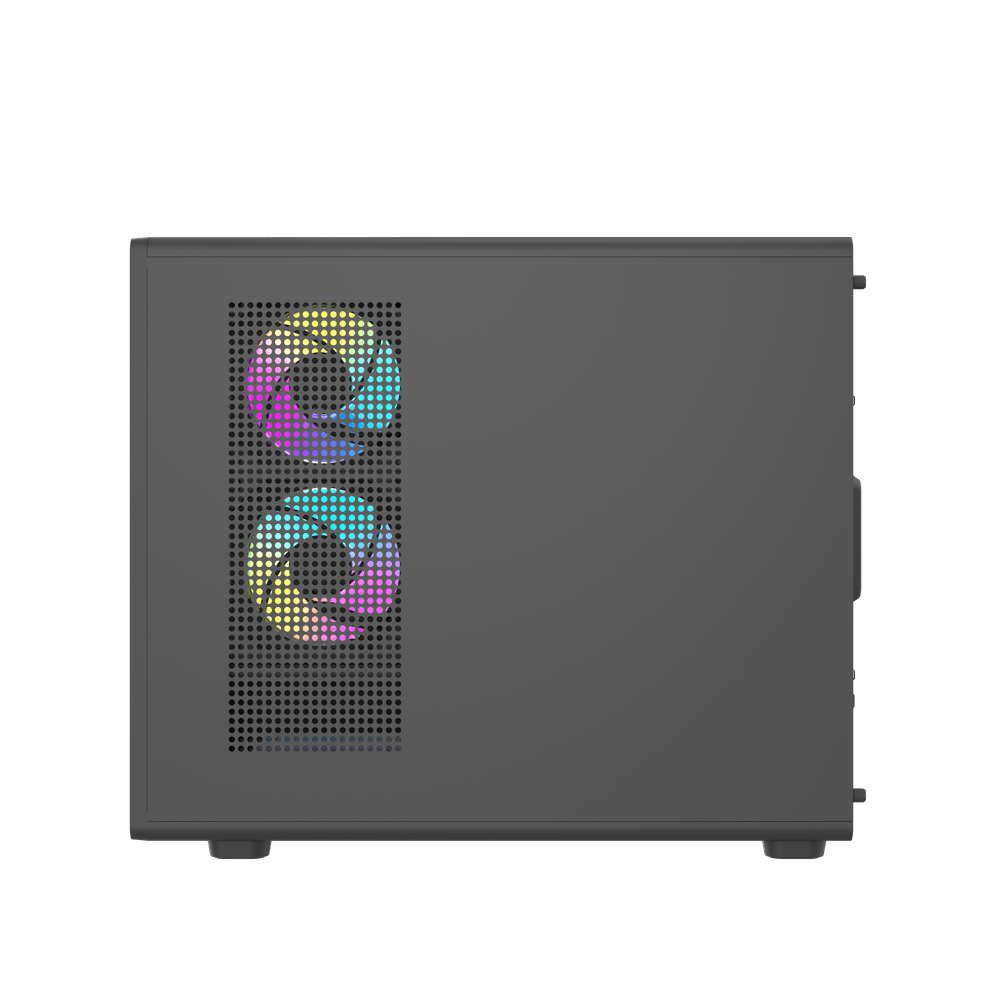

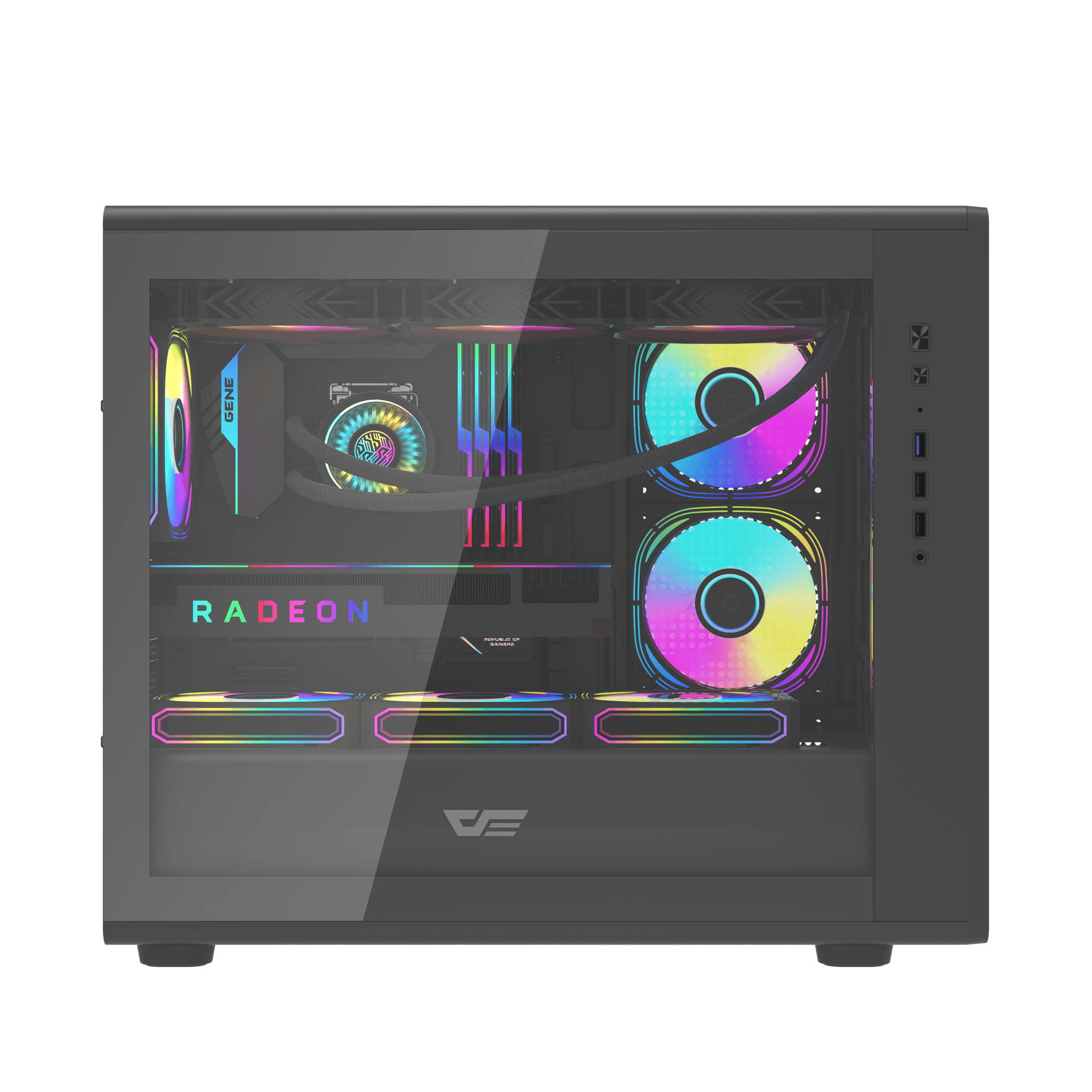

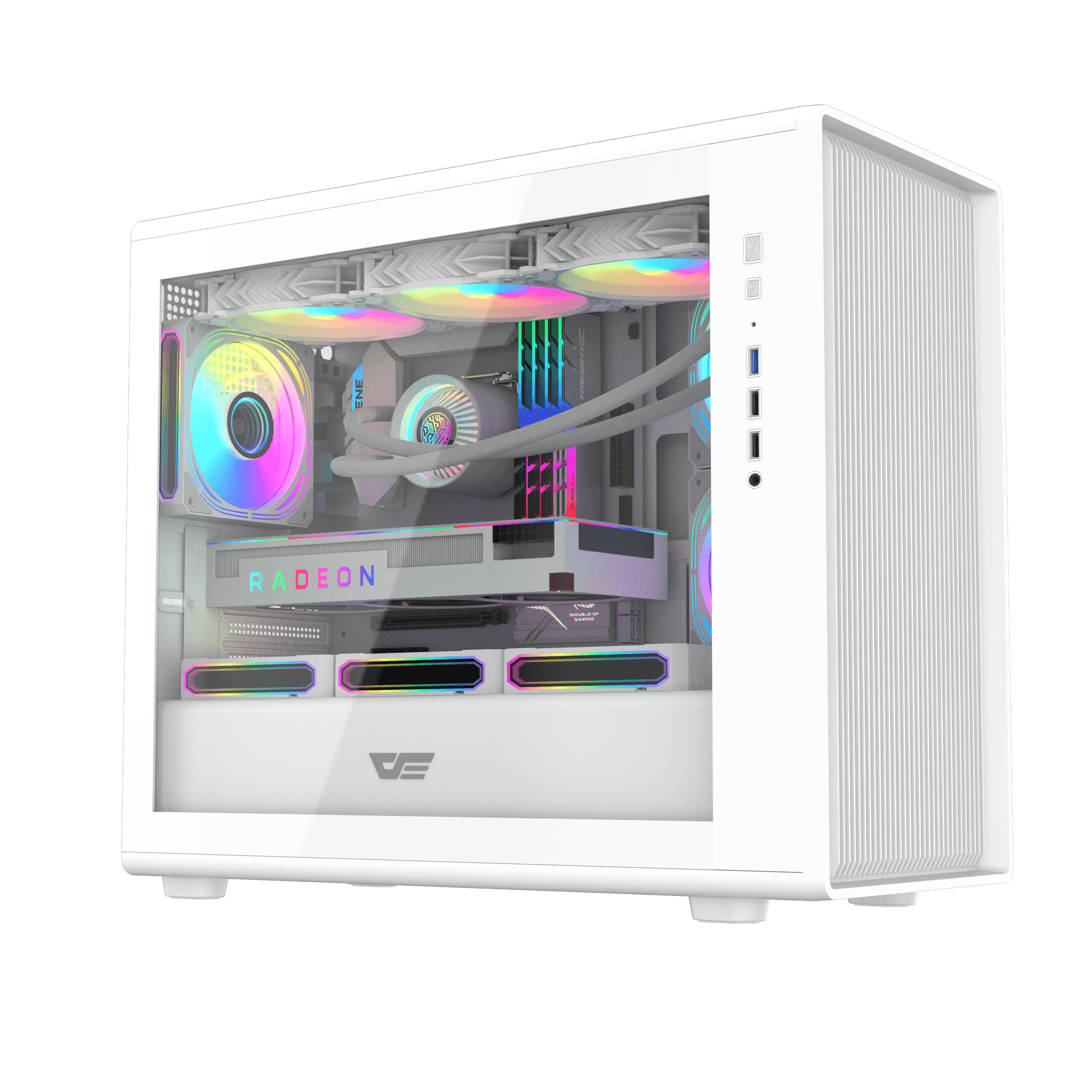

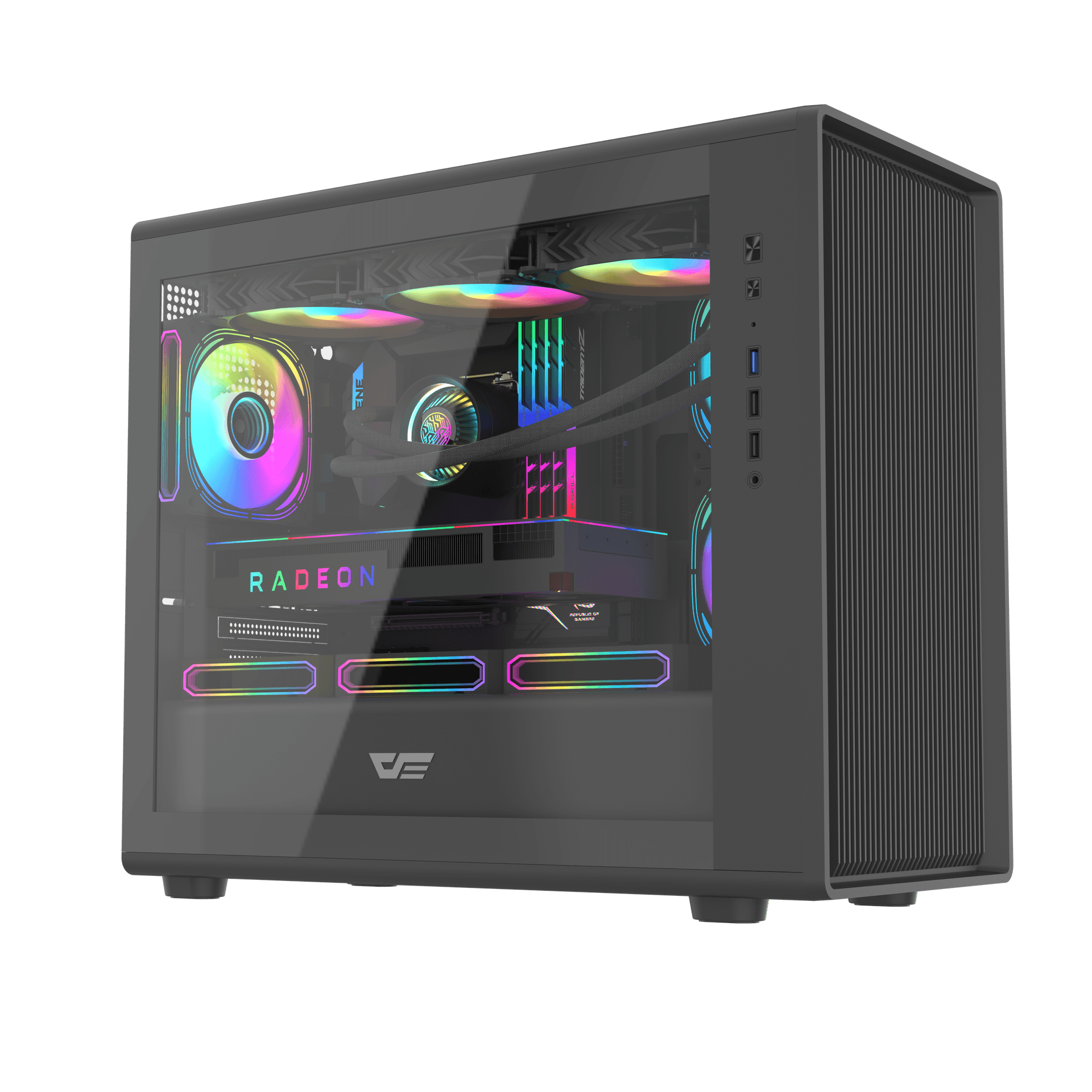

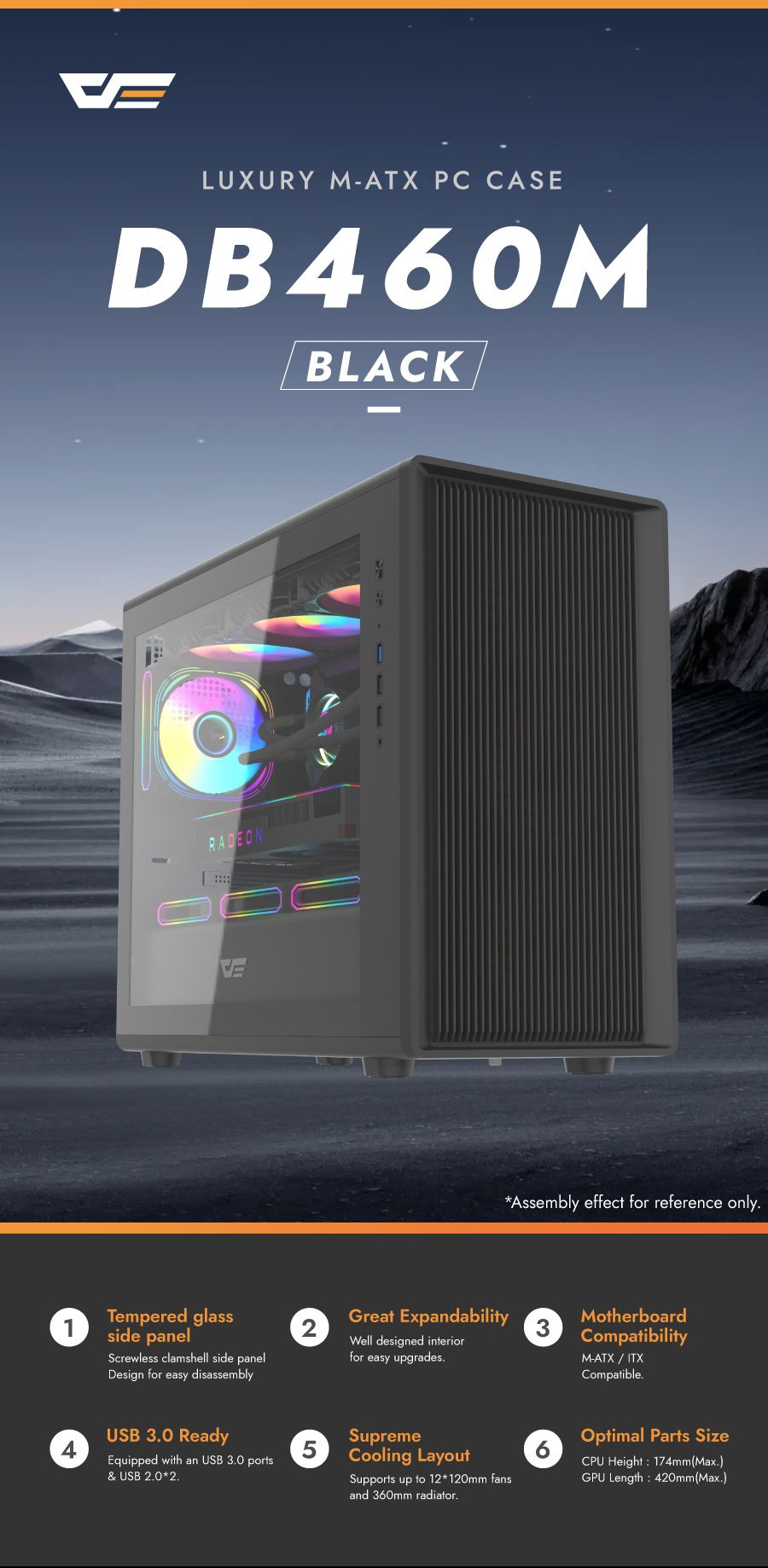

DB460M M-ATX PC Case

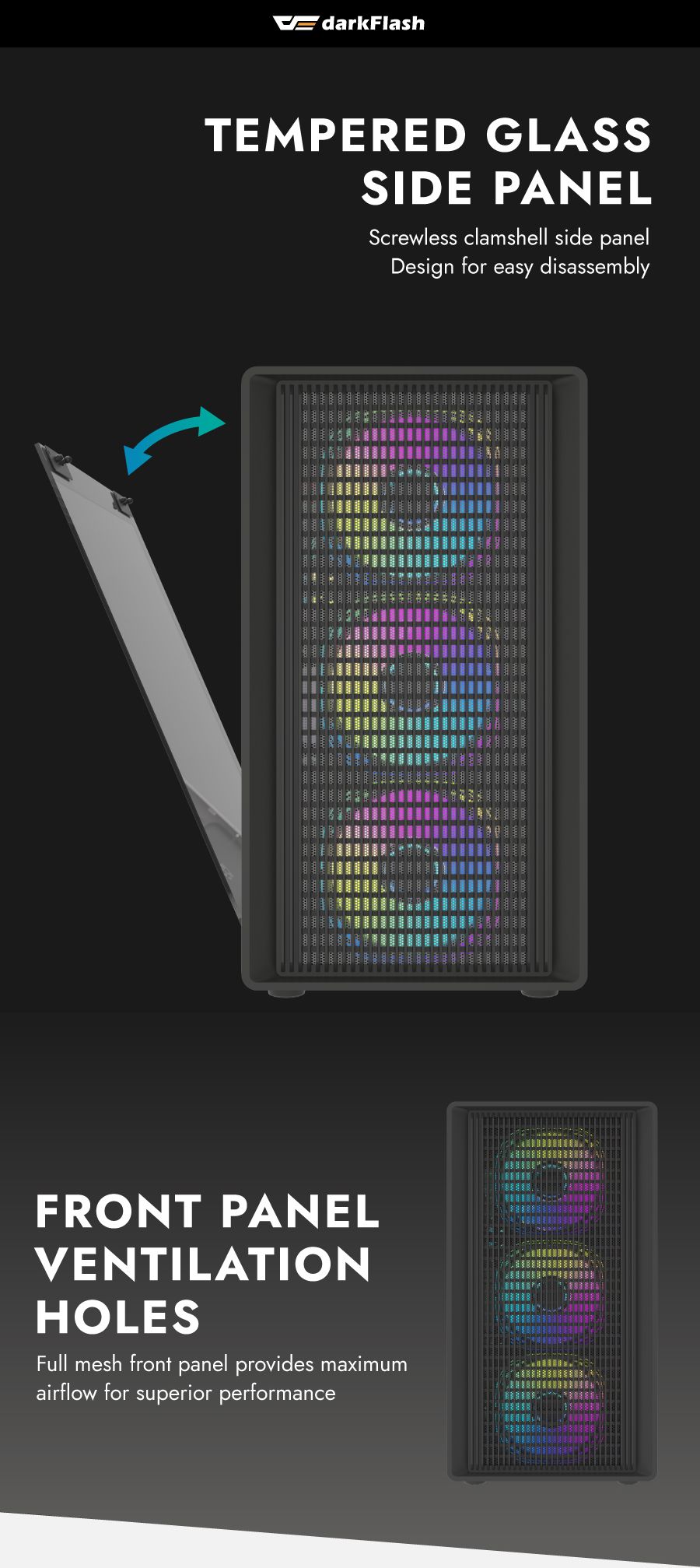

- Screwless clamshell side panel design for install
- Support up to 420mm GPU
- Spacious and clean interior design allows users to upgrade easily

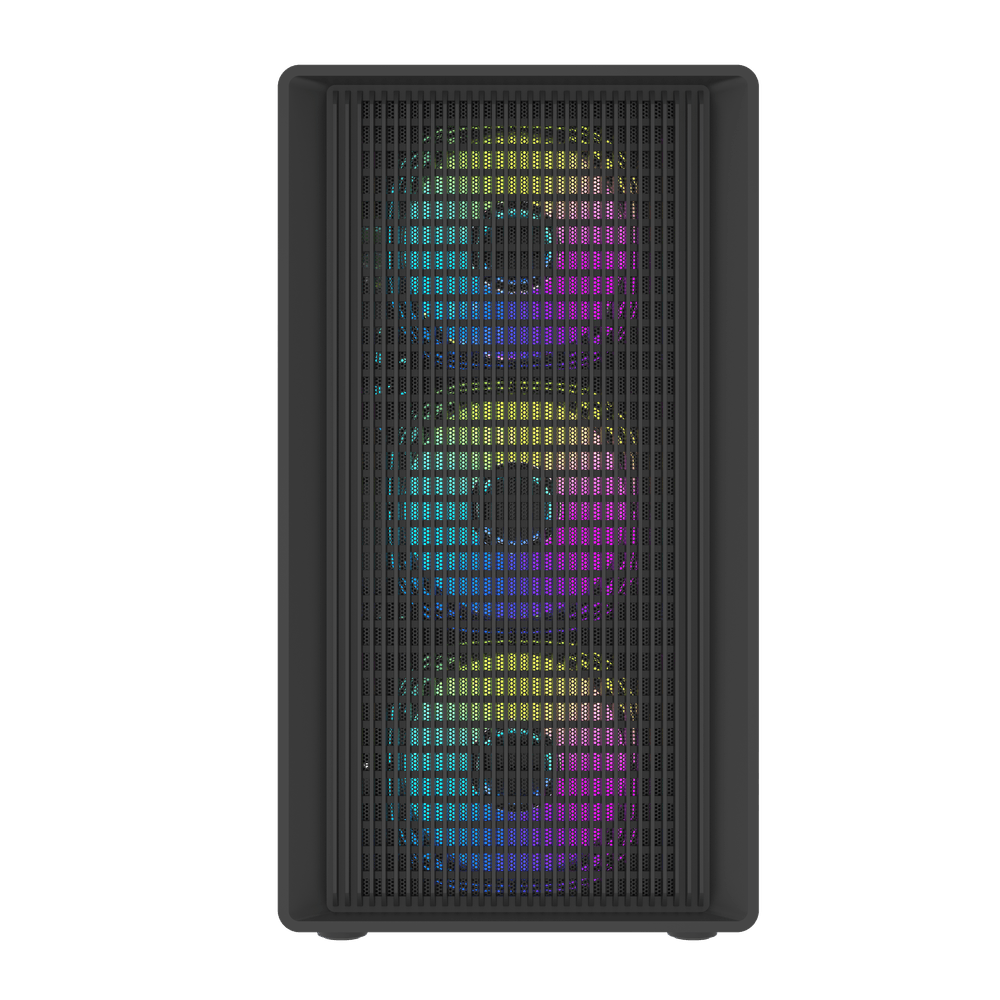

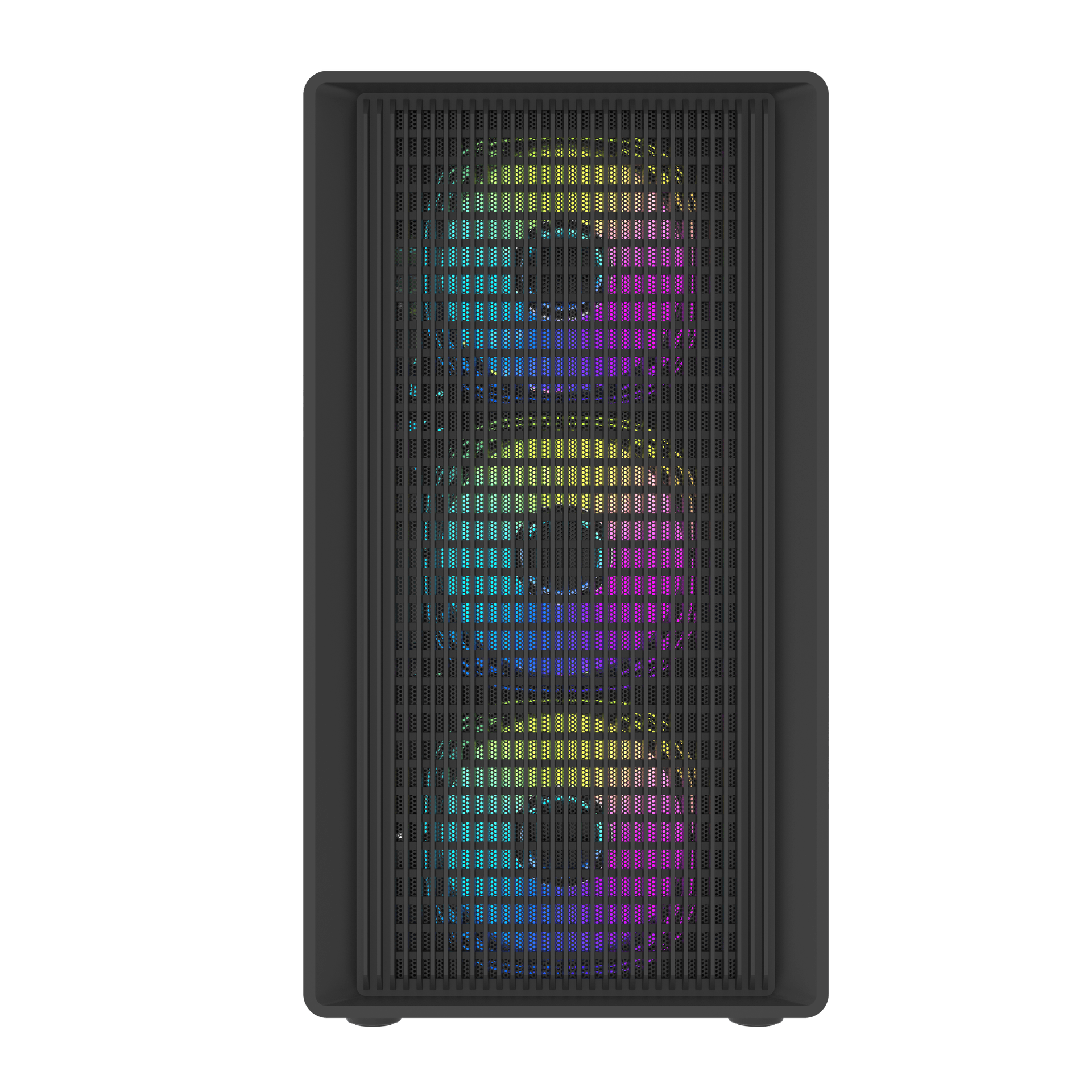

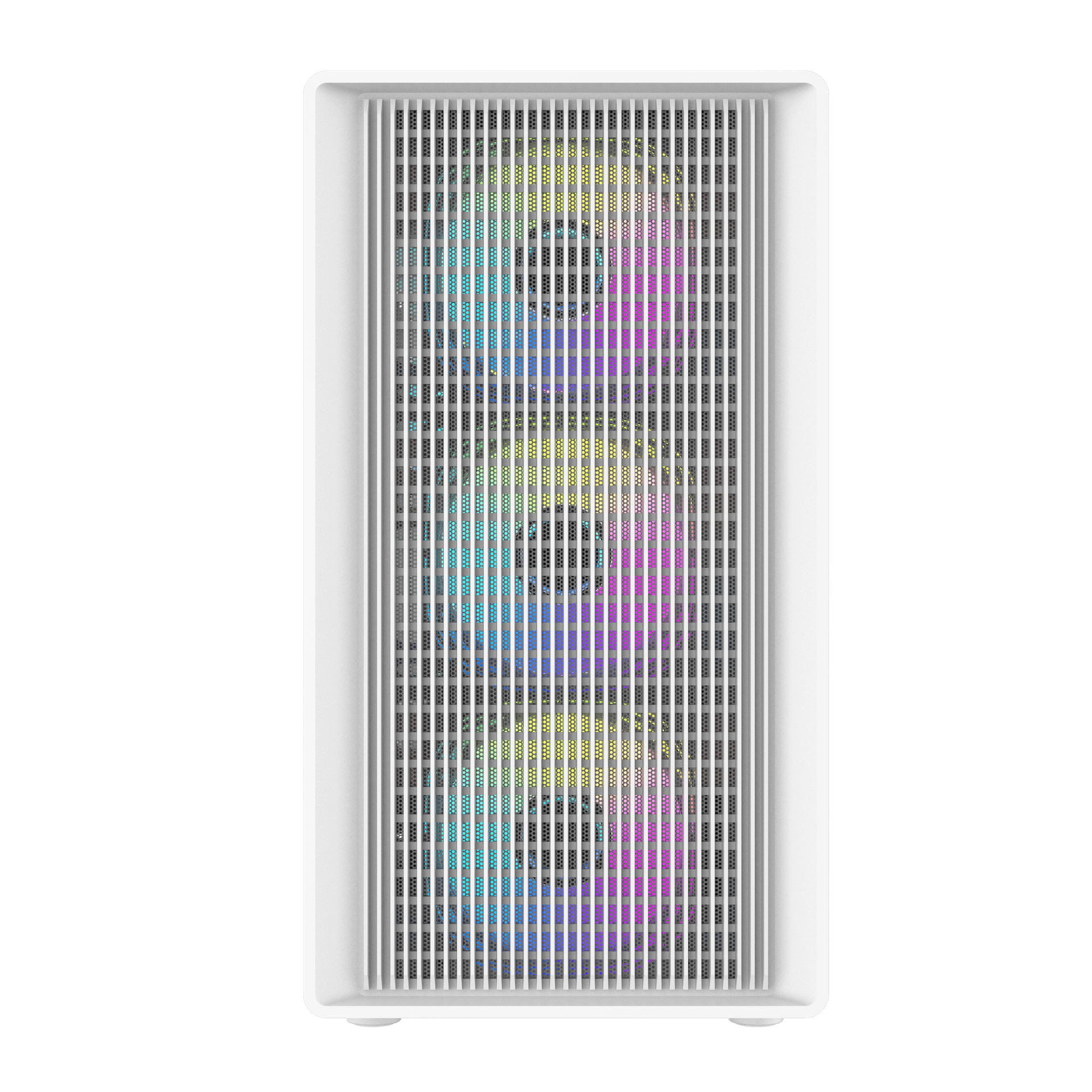

- Full mesh front panel provides maximum airflow for superior performance
- USB3.0 Ready
Colors - Black

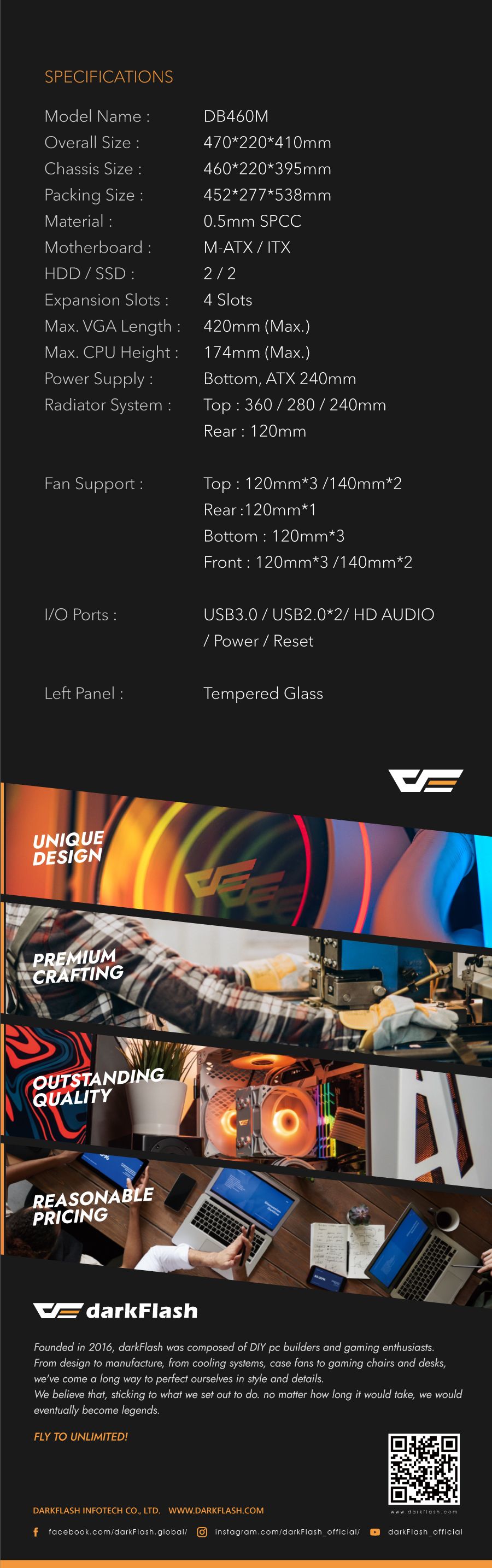

Spec
- Key Specs
- Motherboard Support：M-ATXITX
- Case Material：0.5mm SPCC

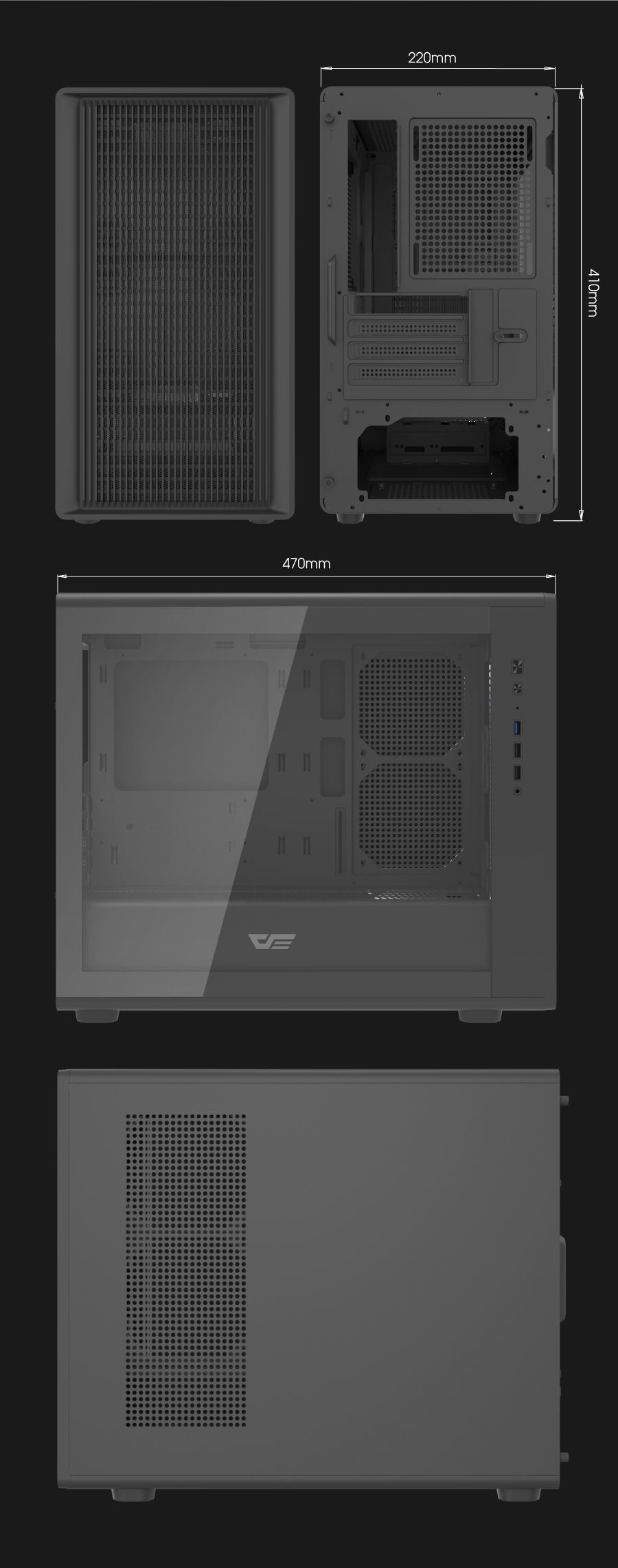

- Dimensions
- Case Size：460*220*395mm
- Overall Size：470*220*410mm
- Carton Size：452*277*538mm
- Compatibility & Clearance

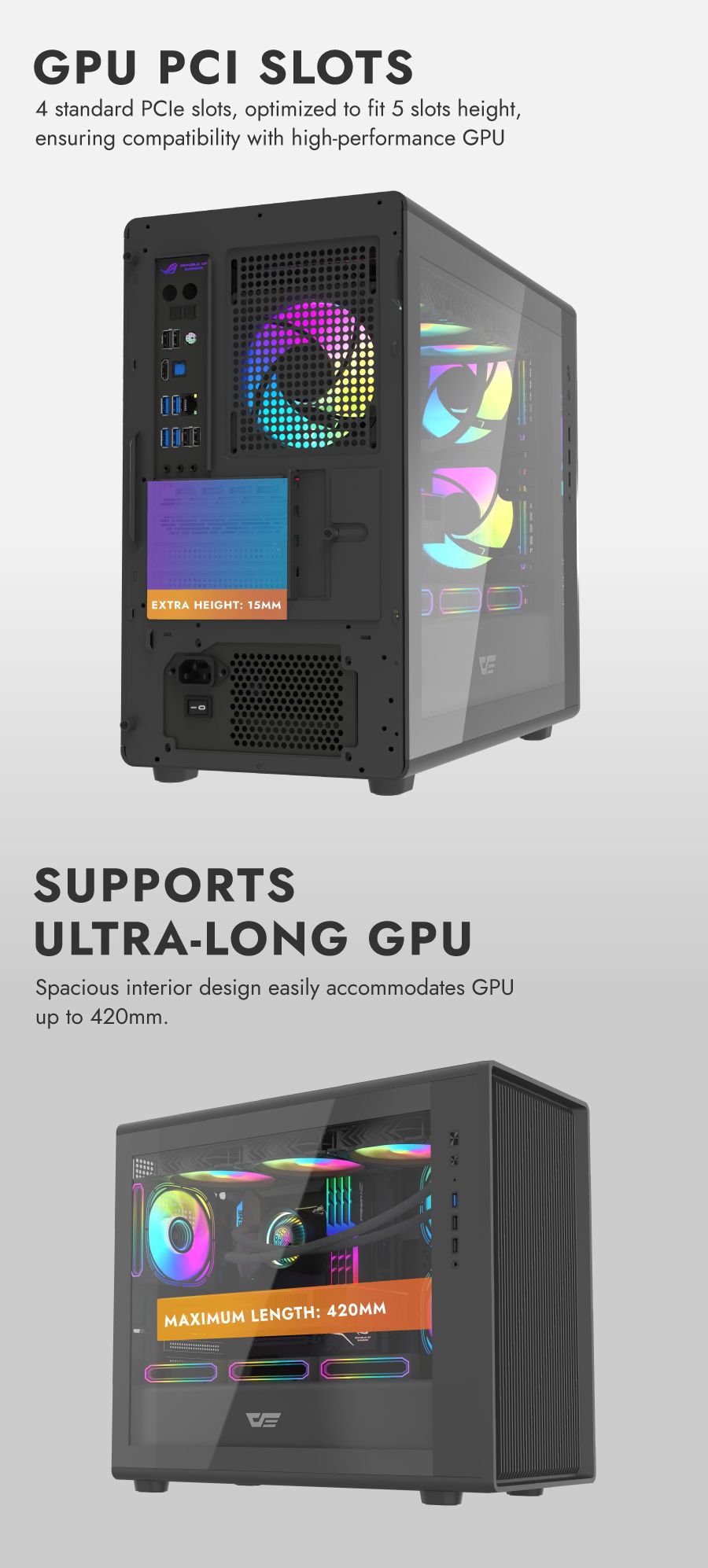

- Max GPU Clearance：420mm
- PCIE Slot：4
- Max CPU Cooler Clearance：174mm
- Drive Bays
- SSD / HDD：2 / 2
- Fan Support
- Top：120mm*3140mm*2
- Front：120mm*3140mm*2
- Rear：120mm*1
- Bottom：120mm*3

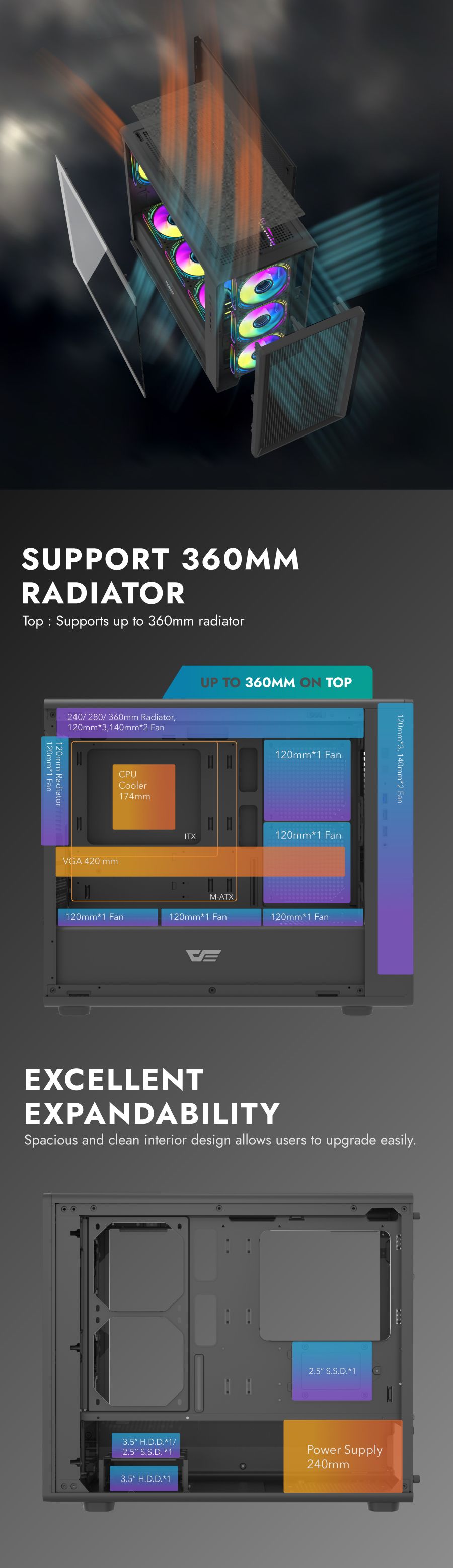

- Radiator Support
- Top：240mm280mm360mm
- Rear：120mm
- Front I/O
- I/O：USB3.0*1USB2.0*2PowerResetHD Audio
