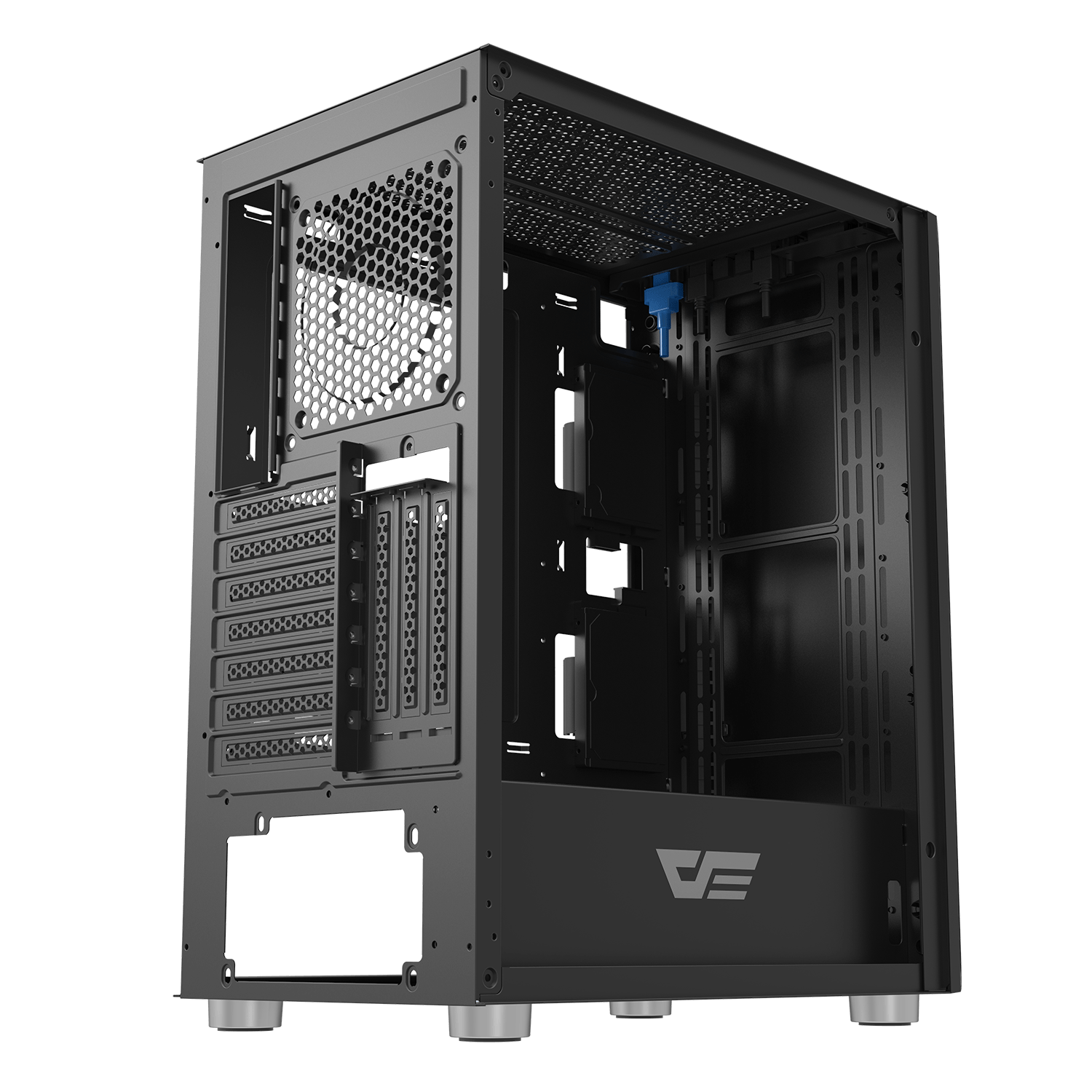

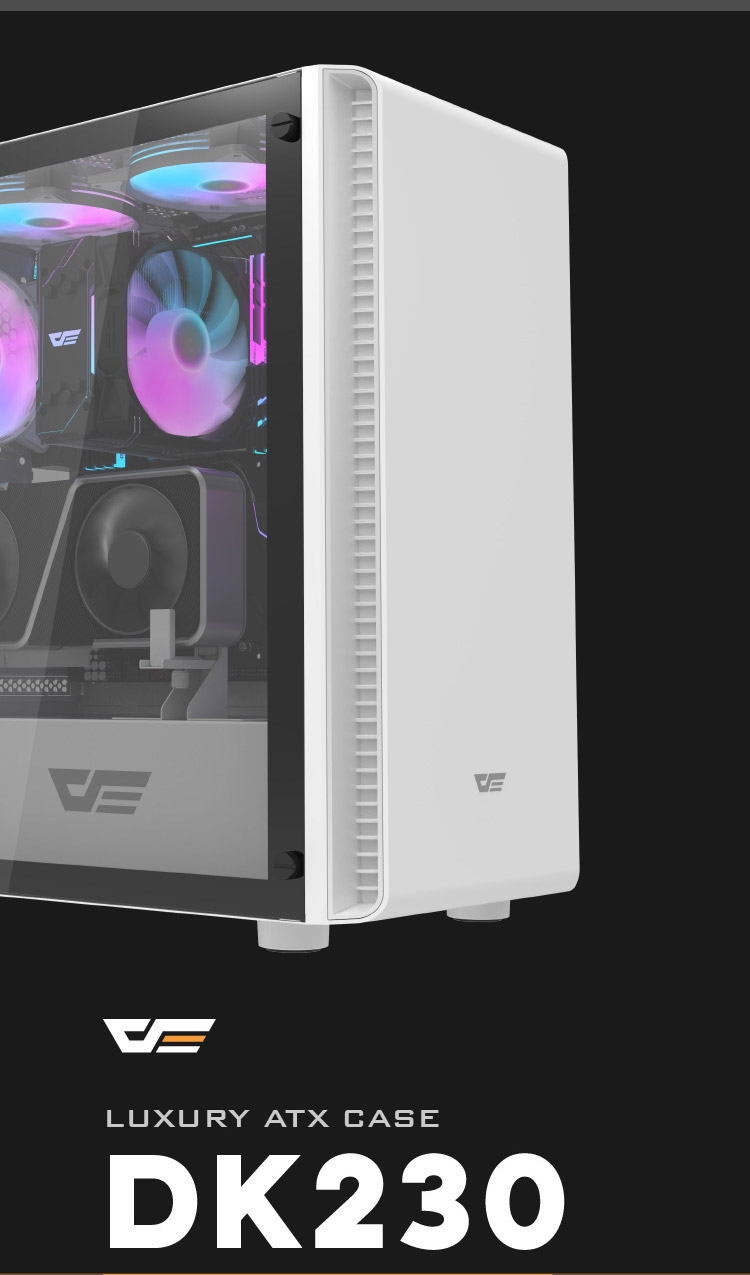

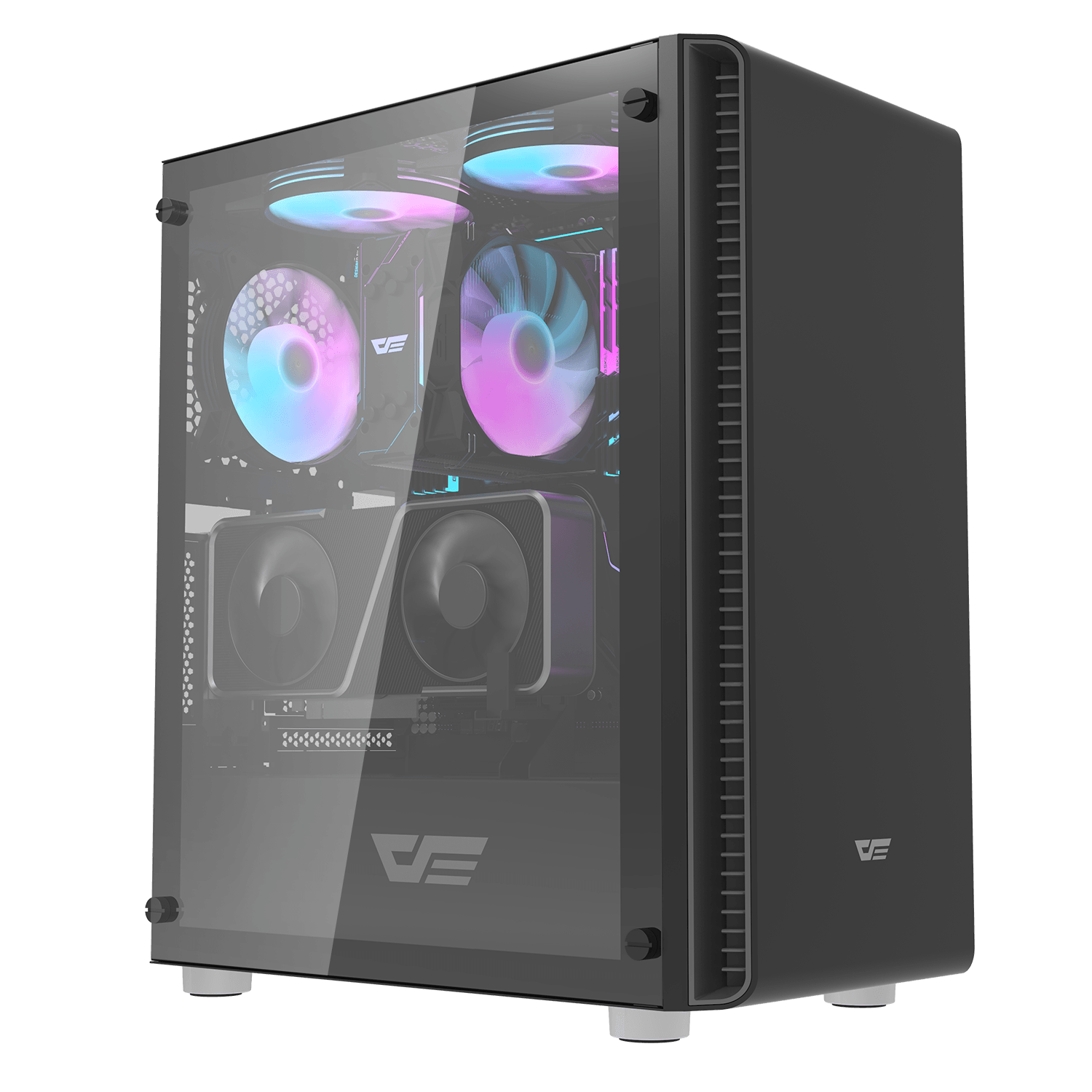

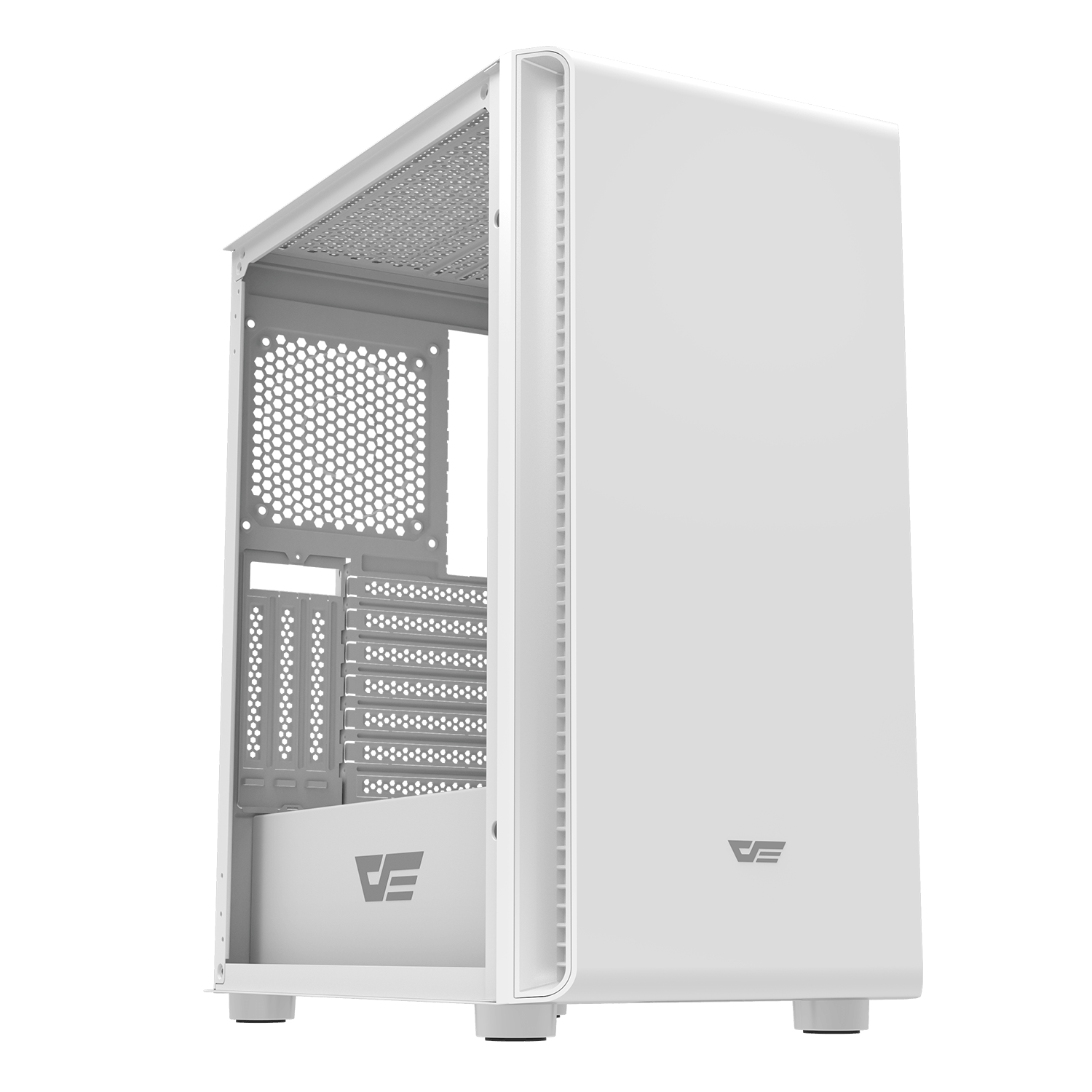

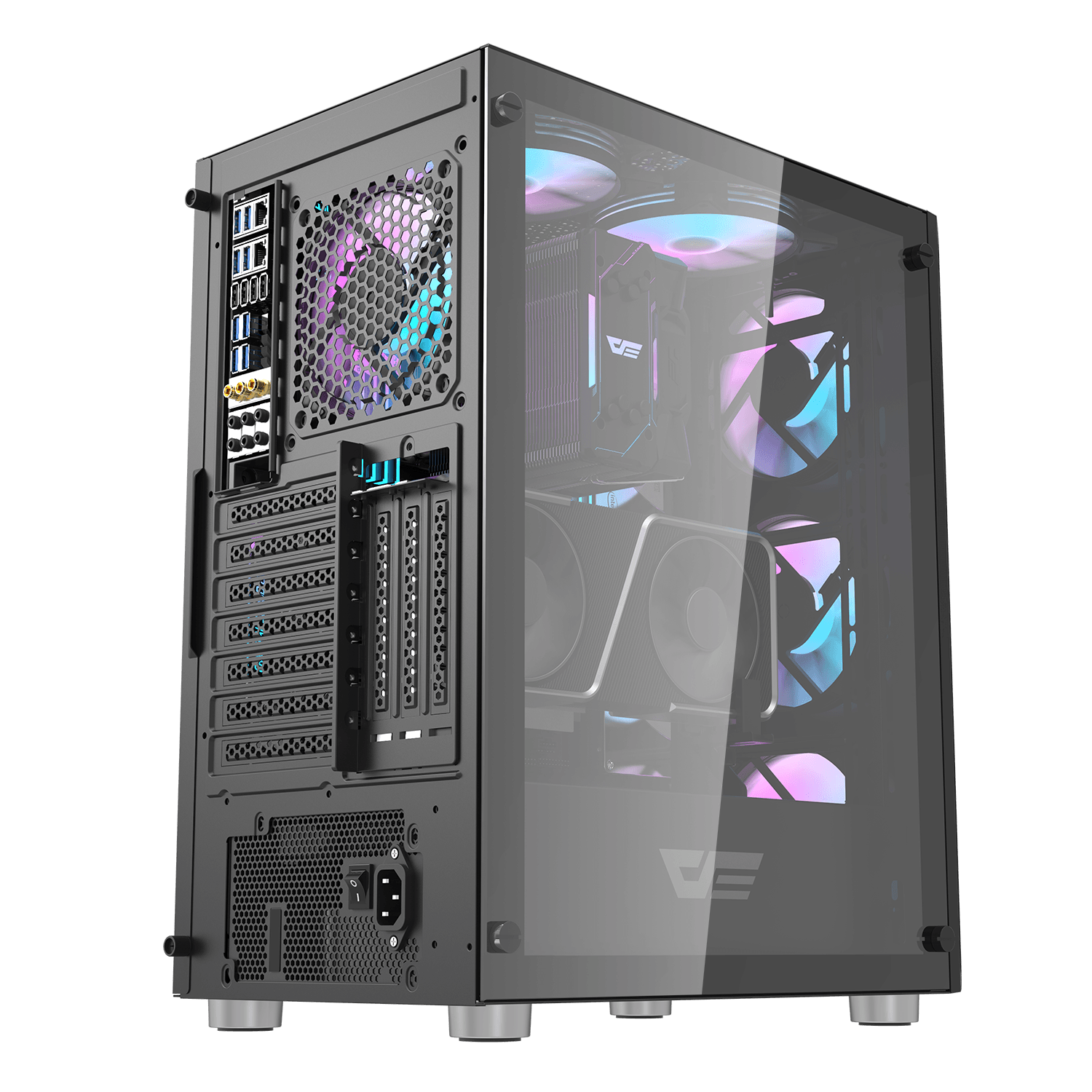

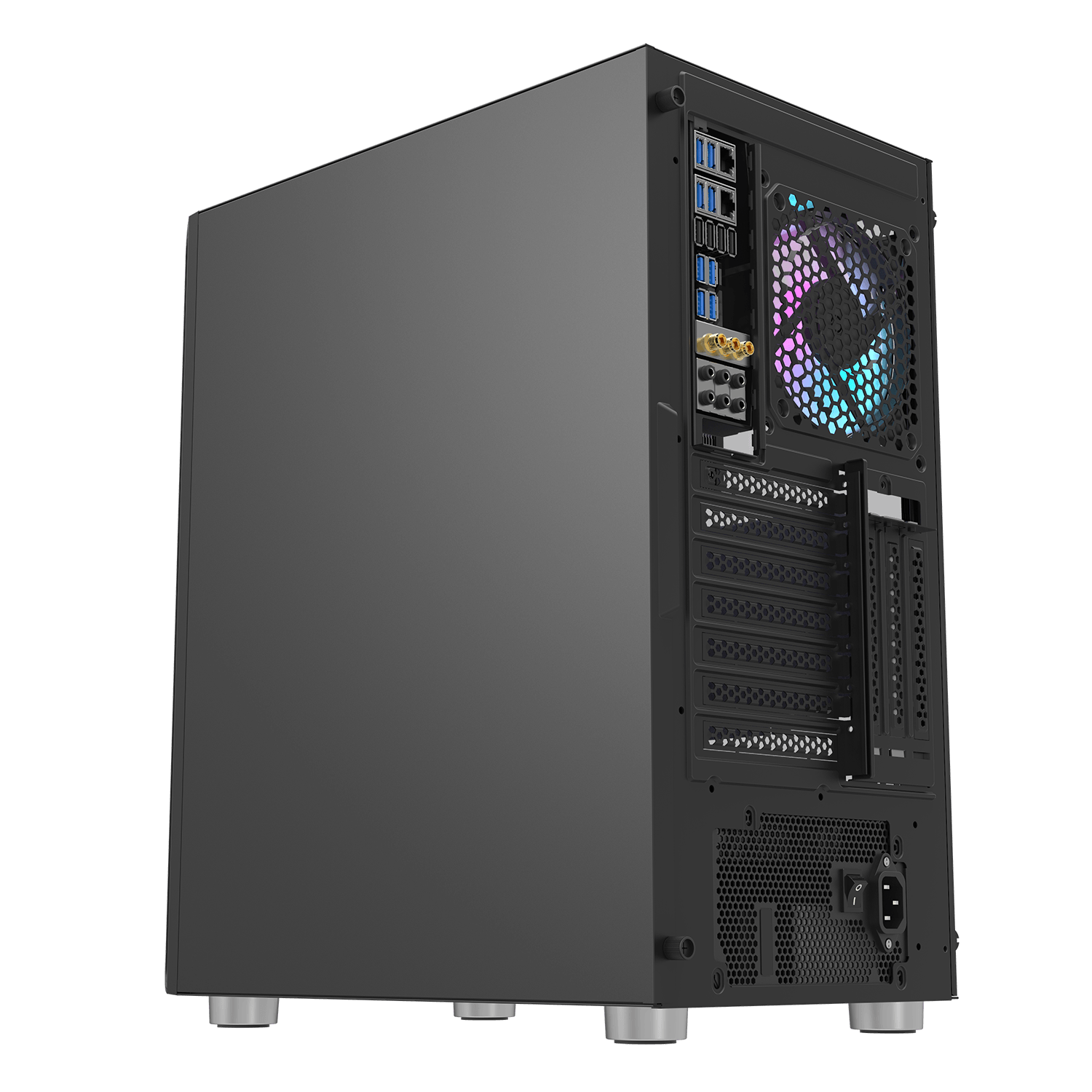

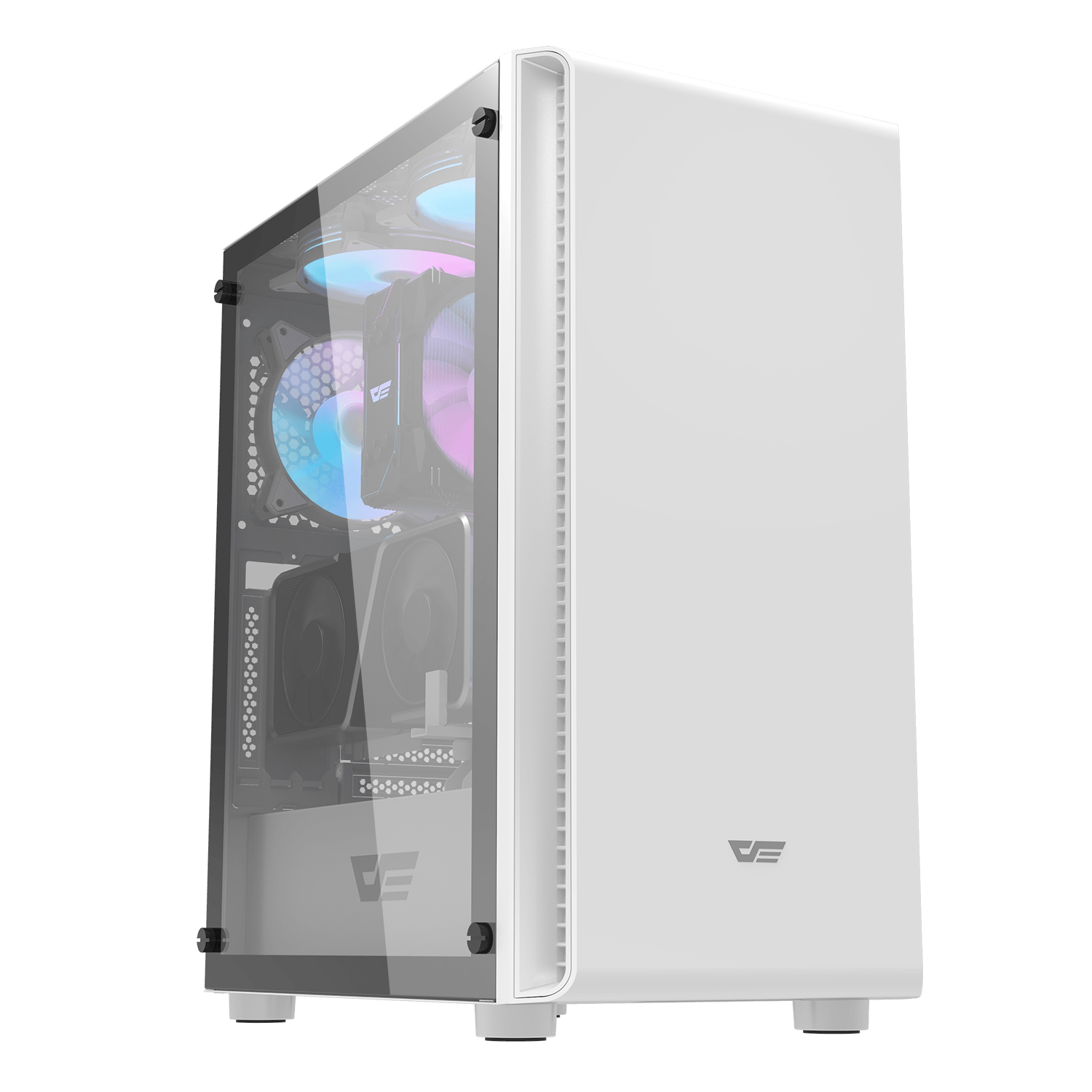

DK230 ATX PC Case

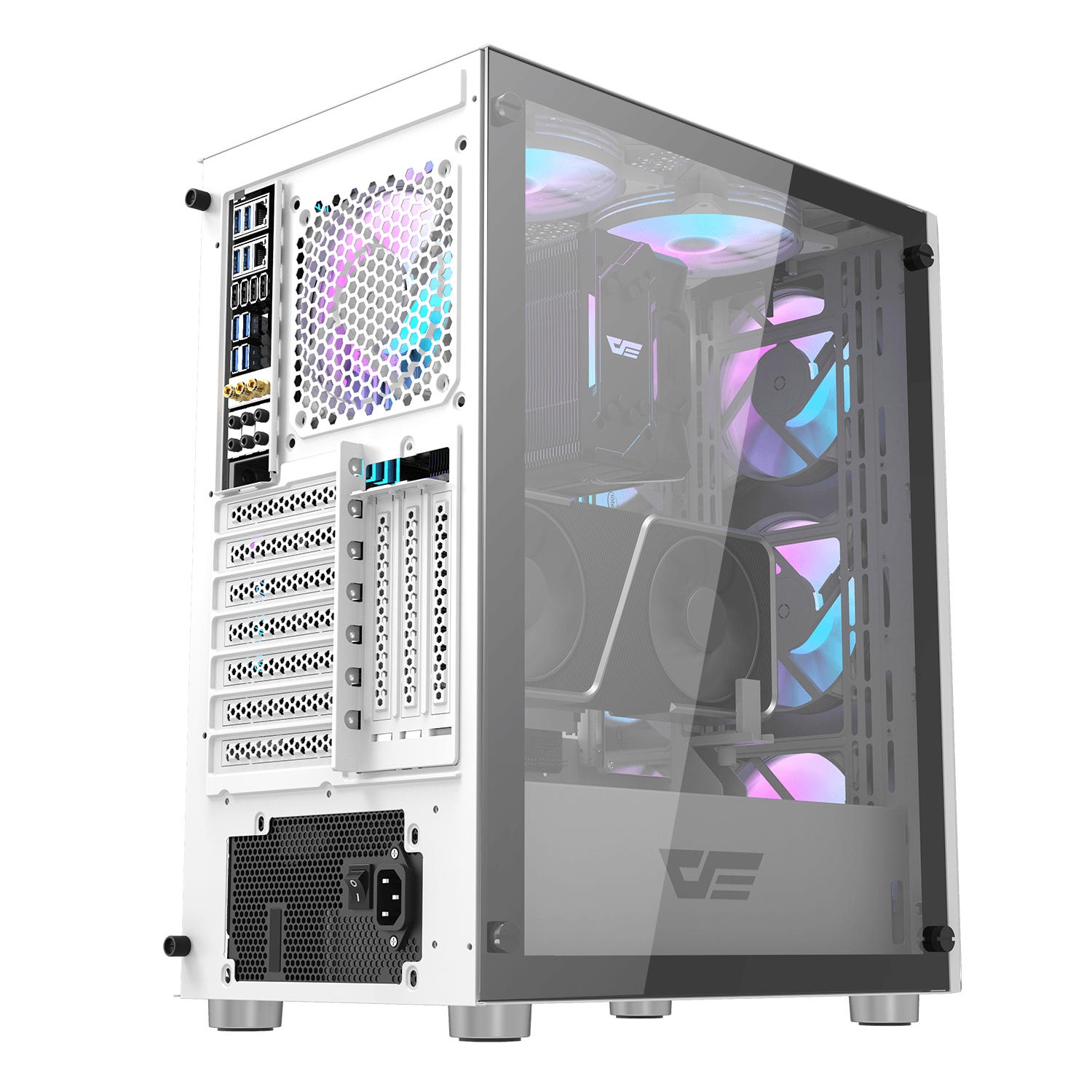

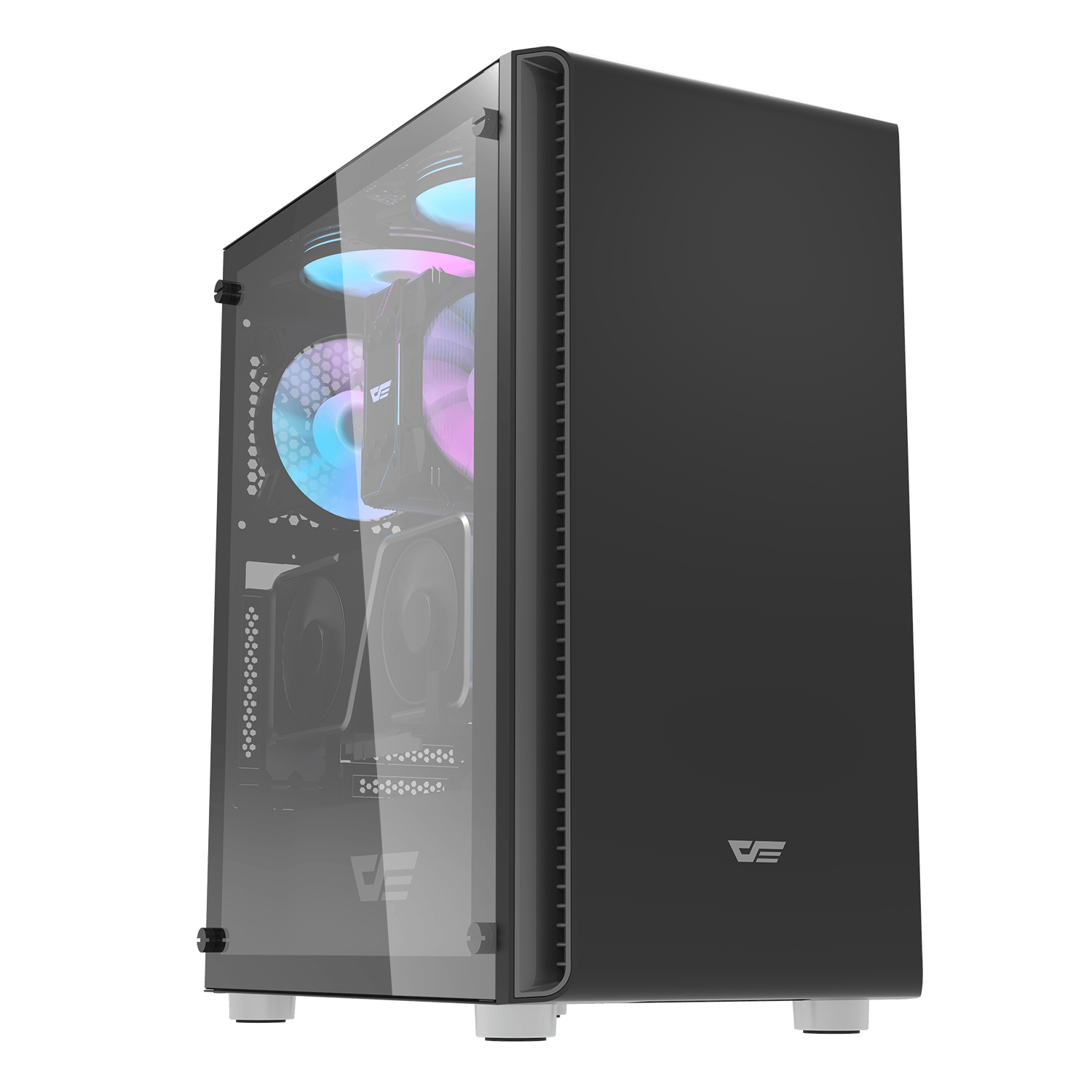

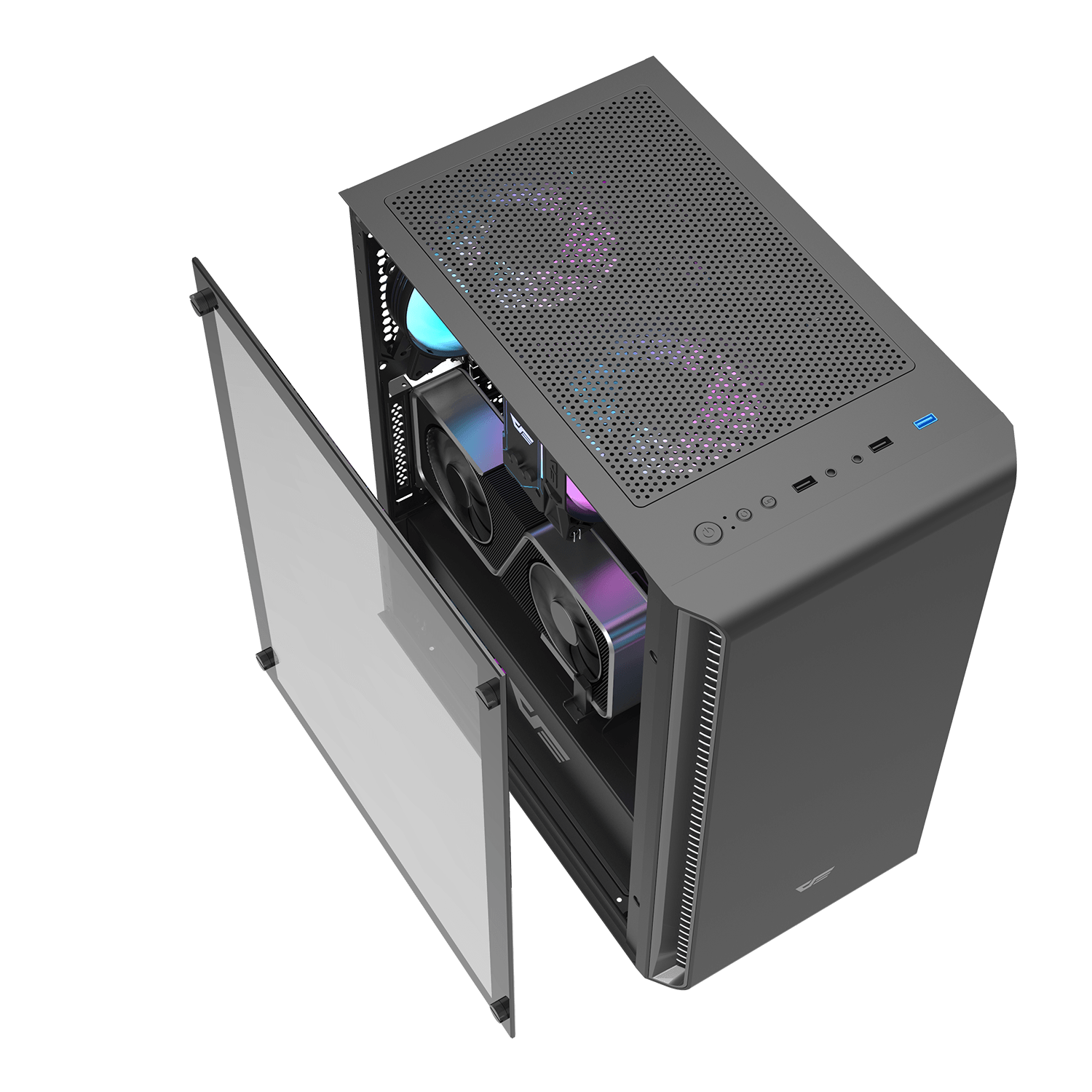

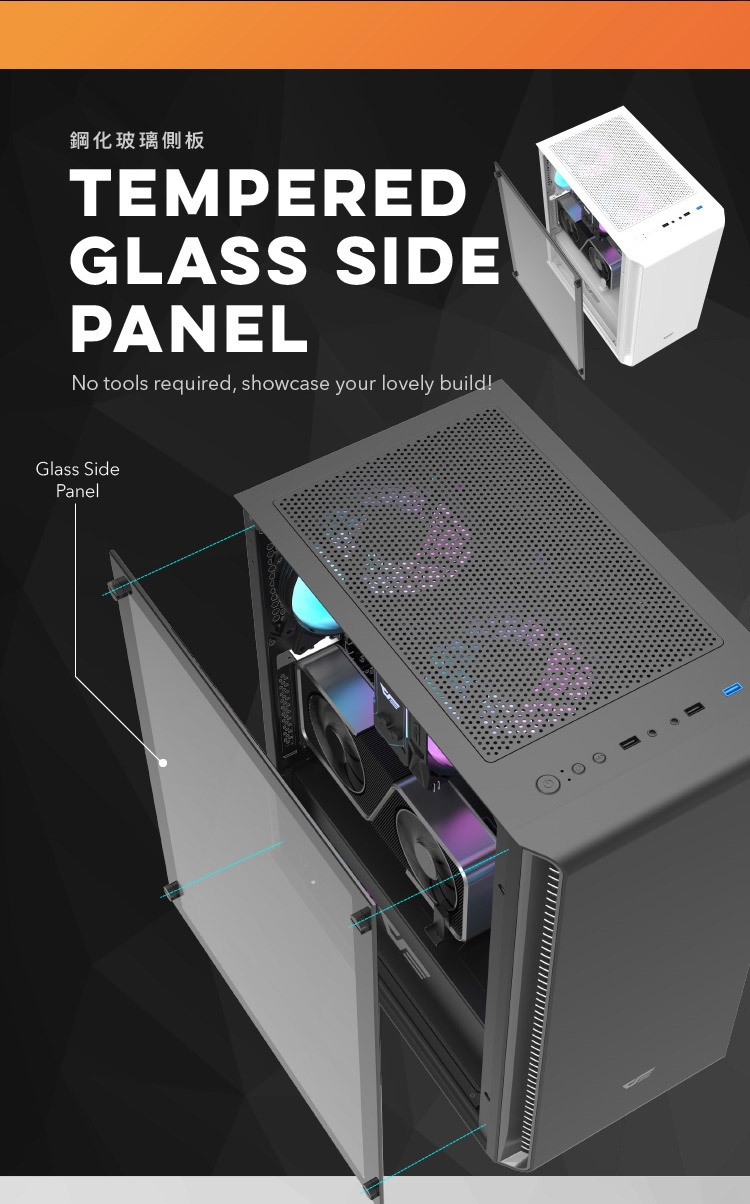

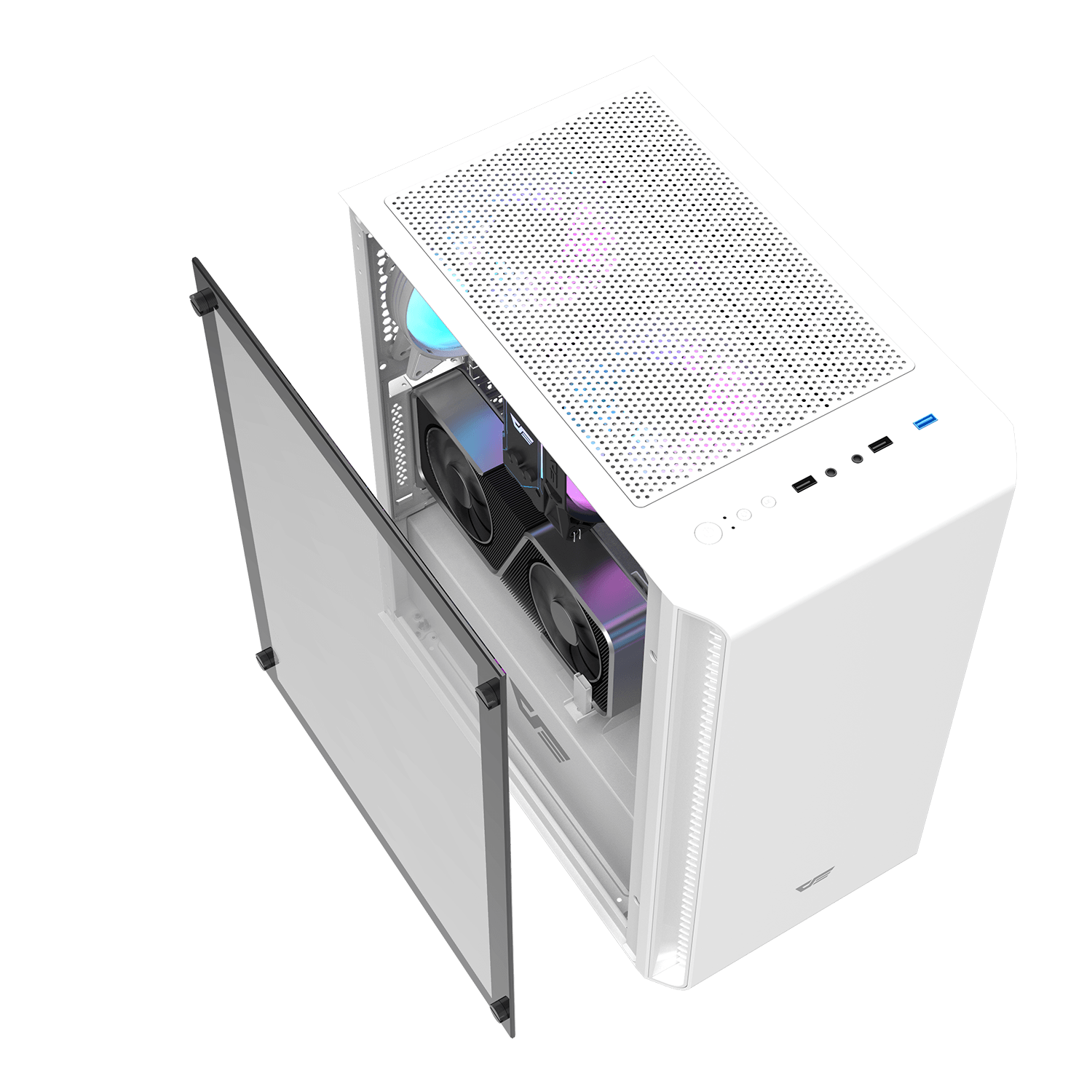

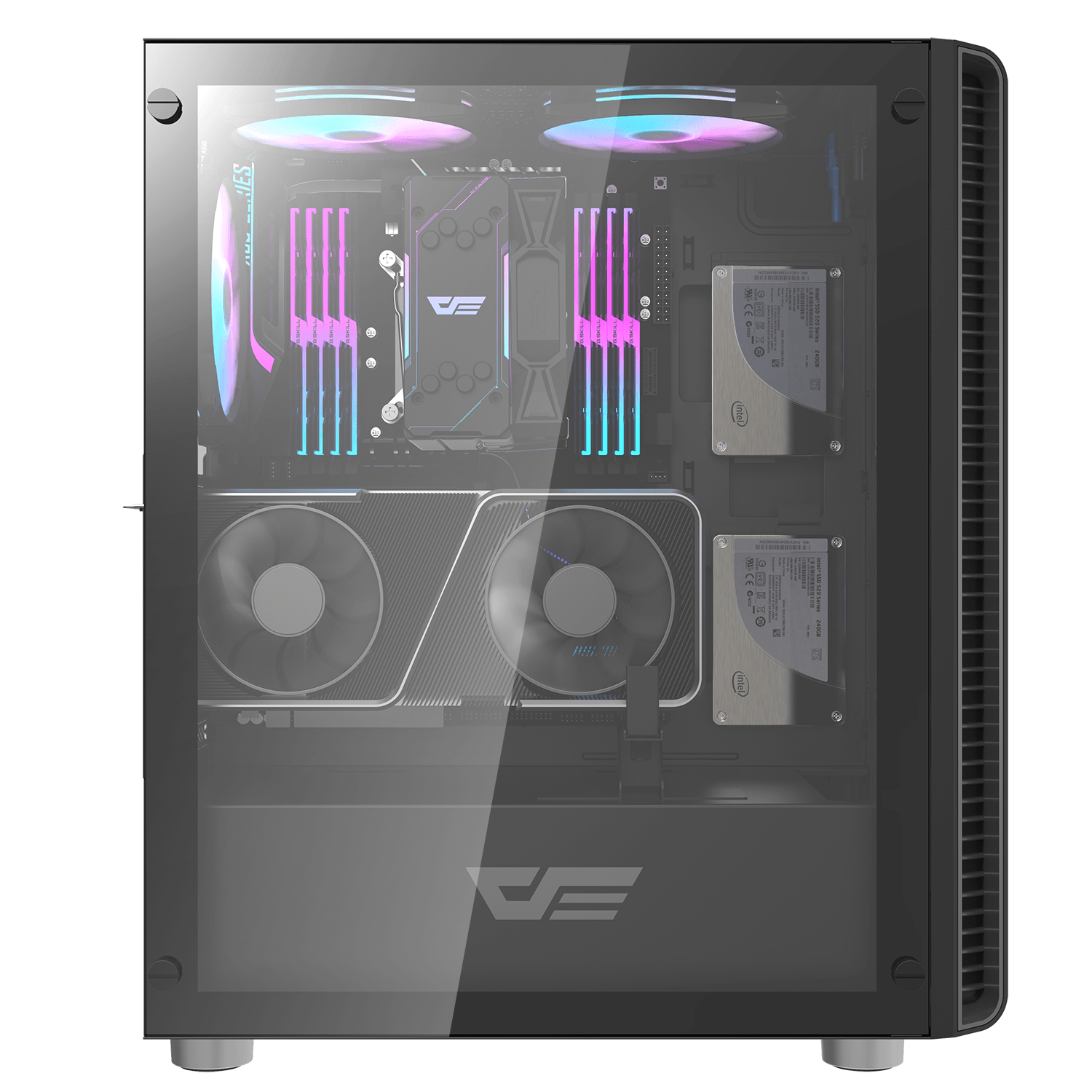

- Tempered glass side panel fastened by thumbscrews.

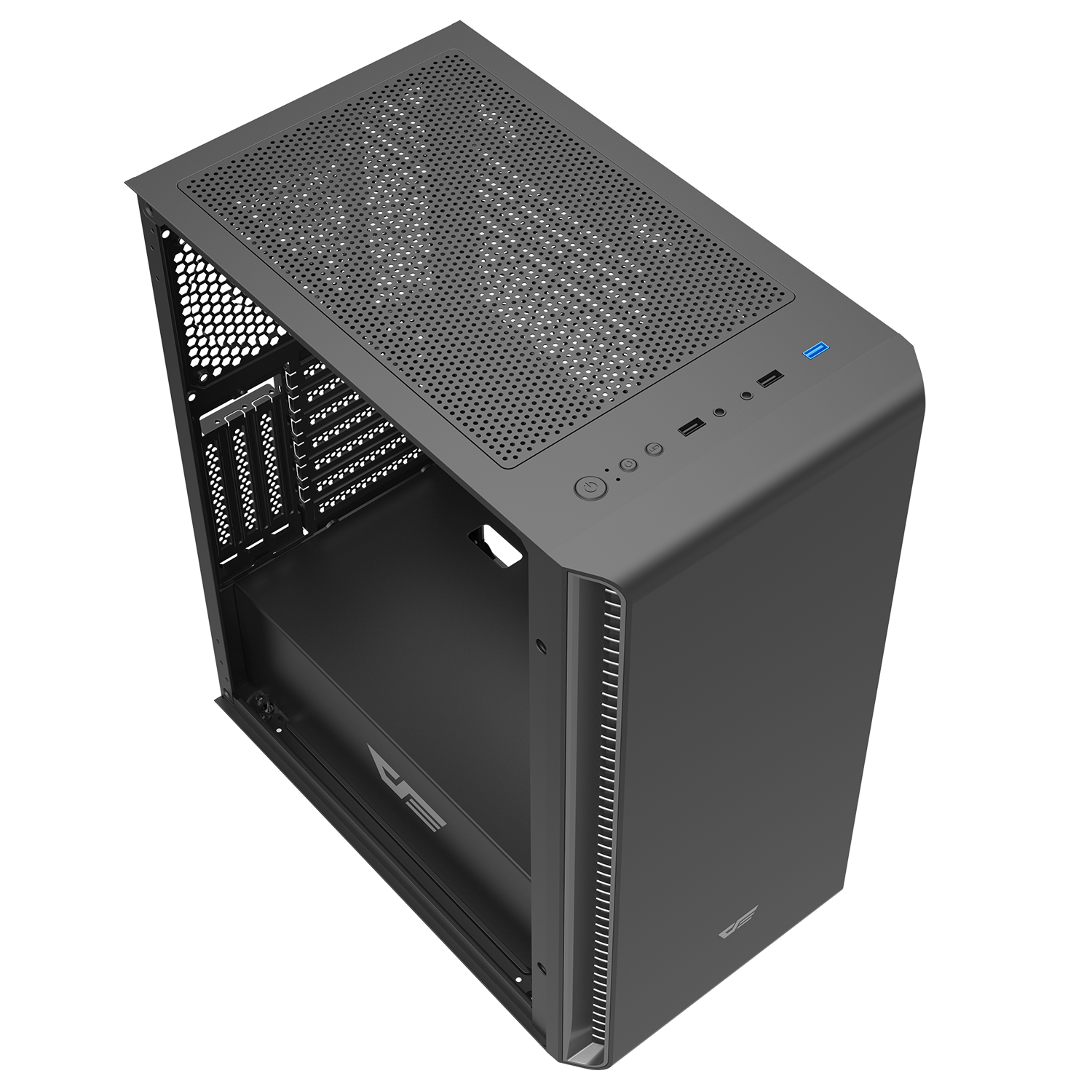

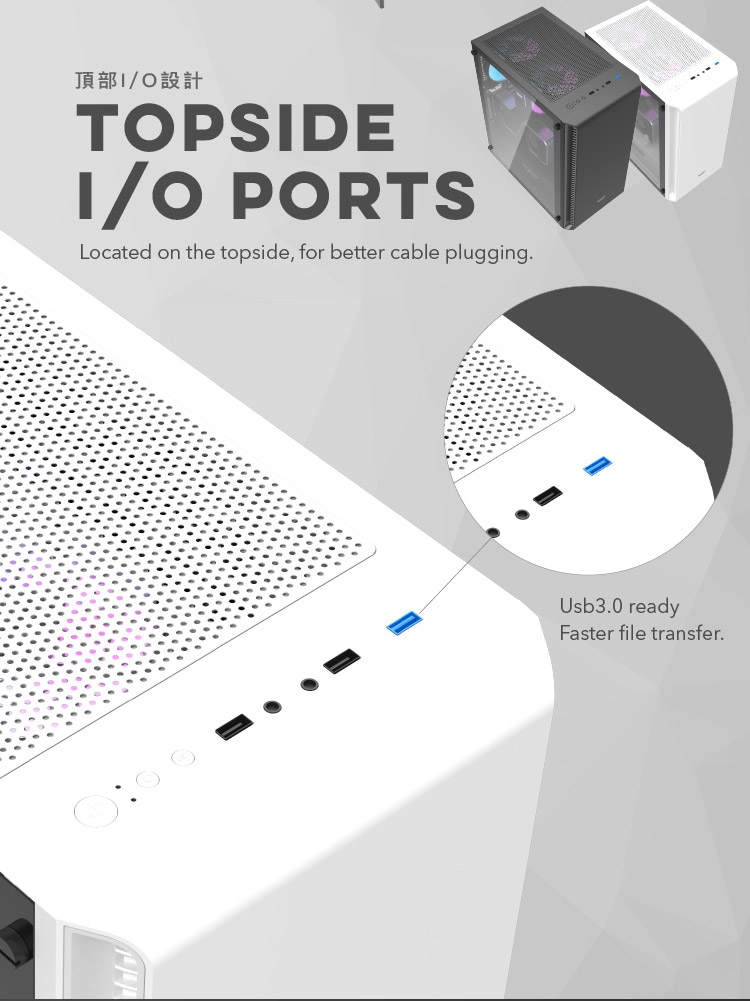

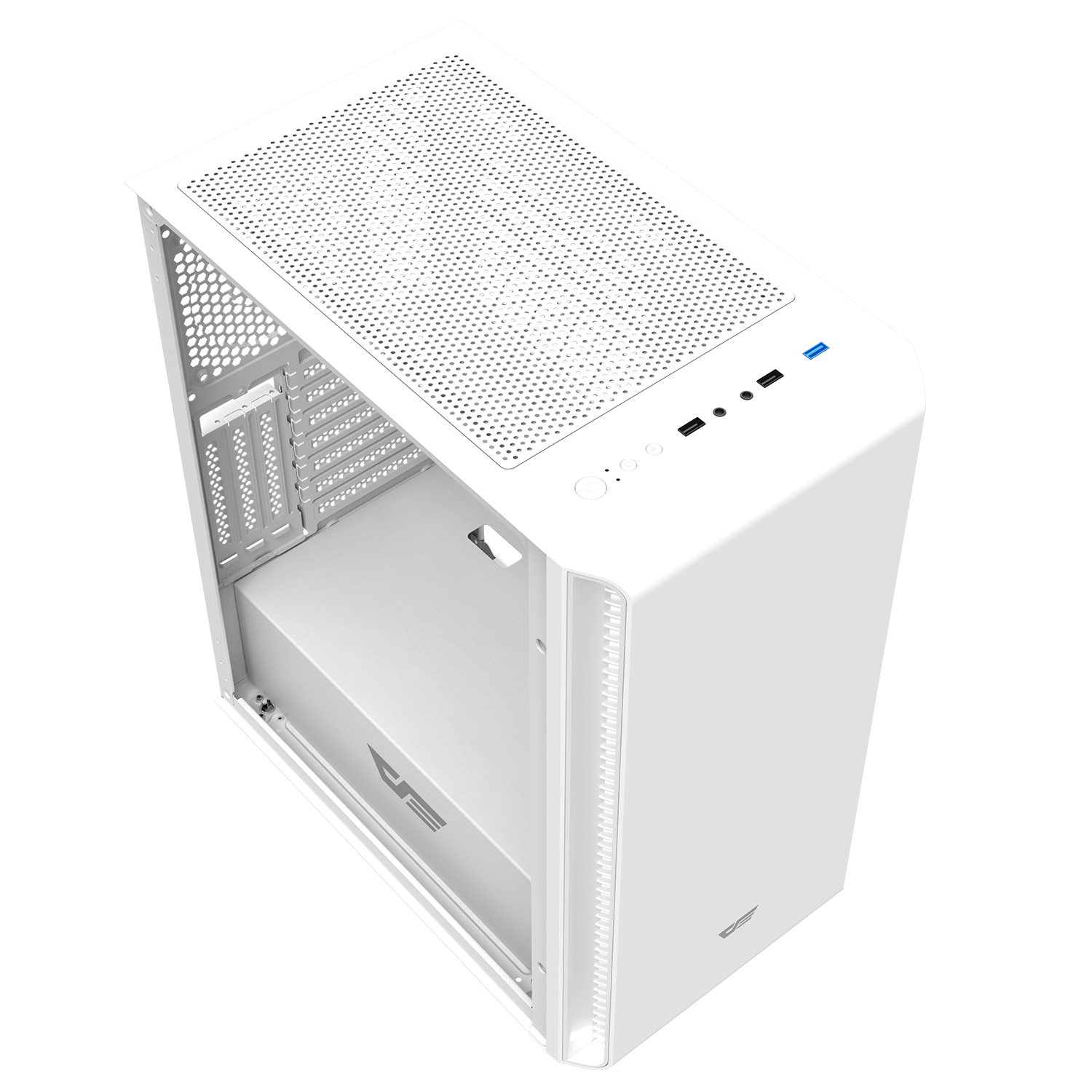

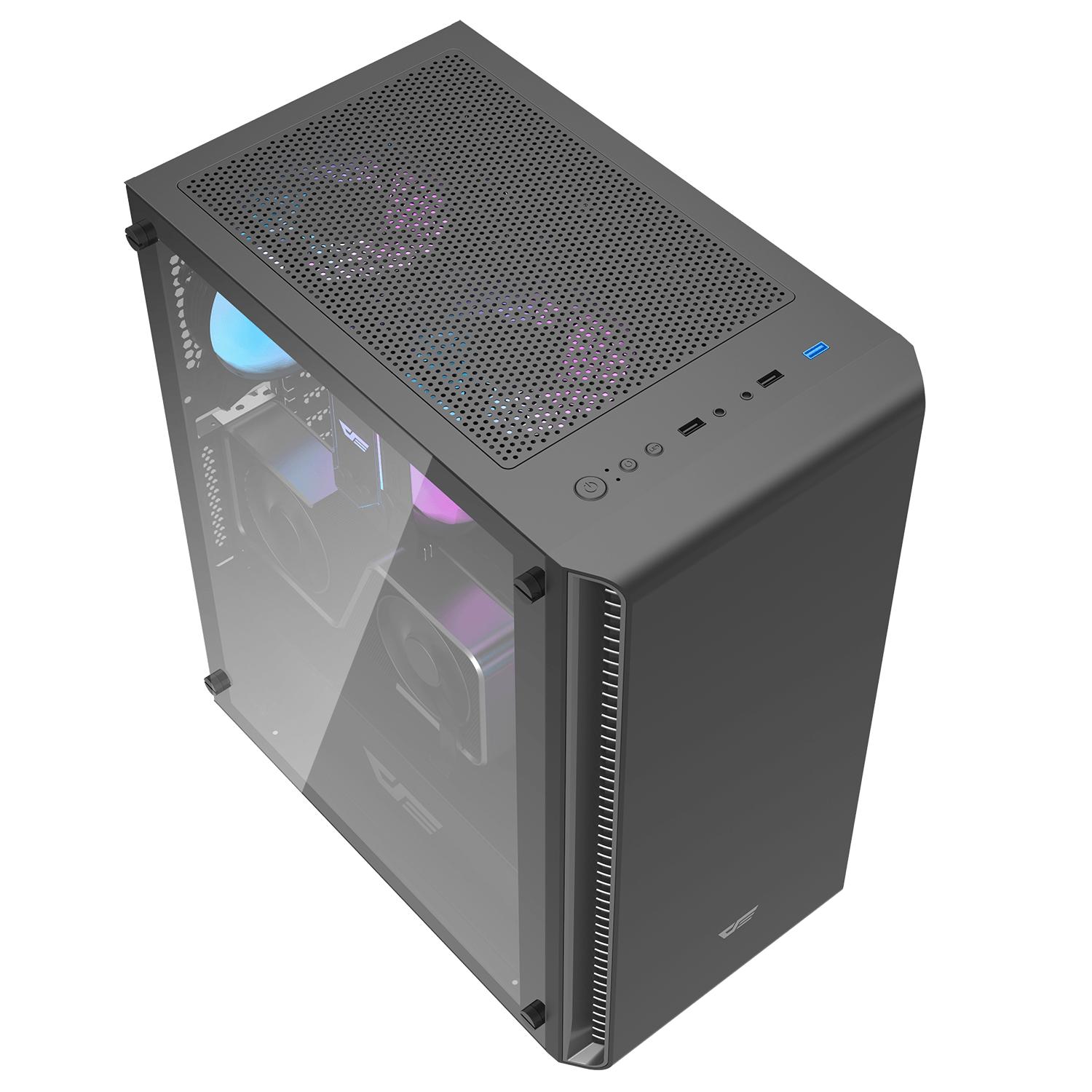

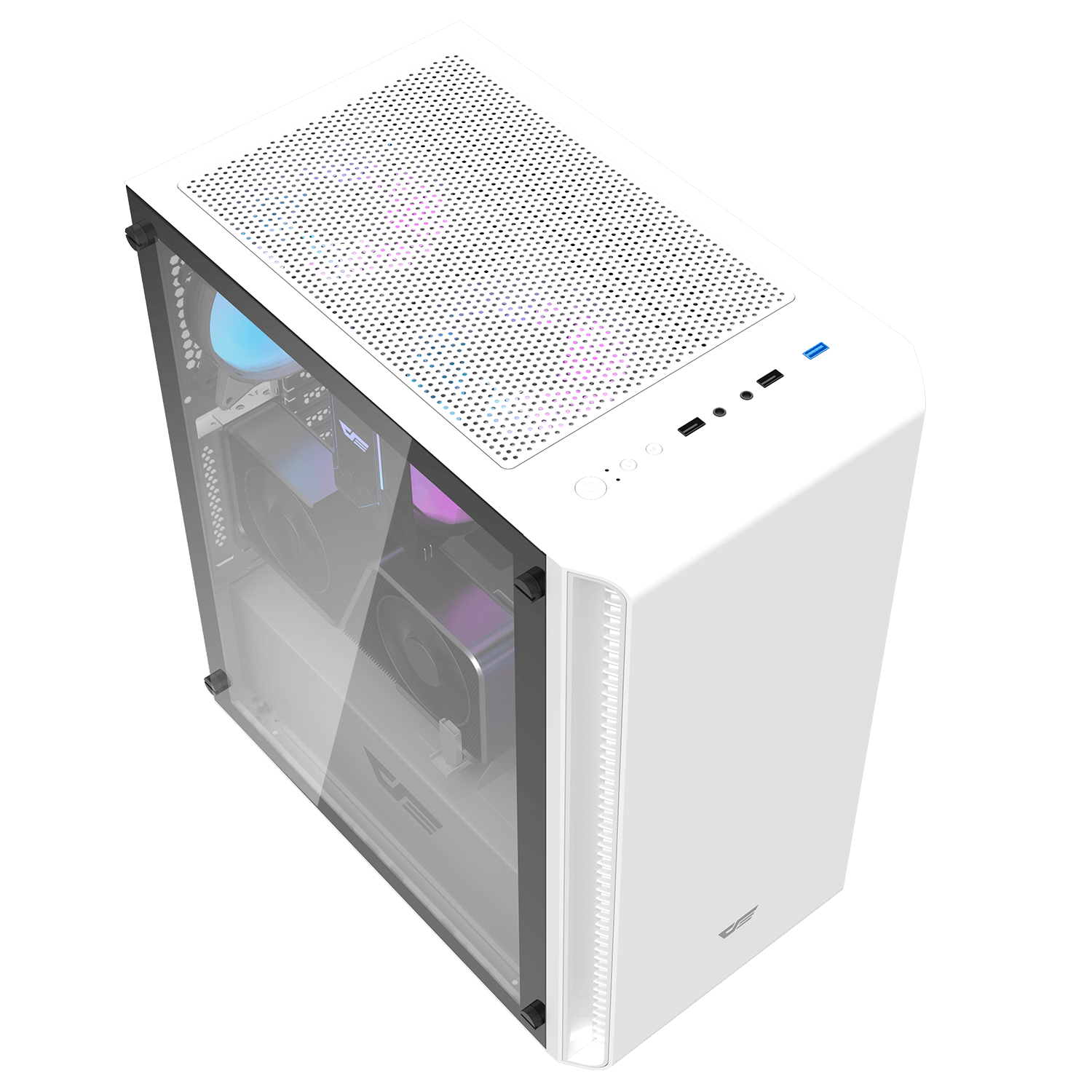

- Topside I/O port for easy cable routing.

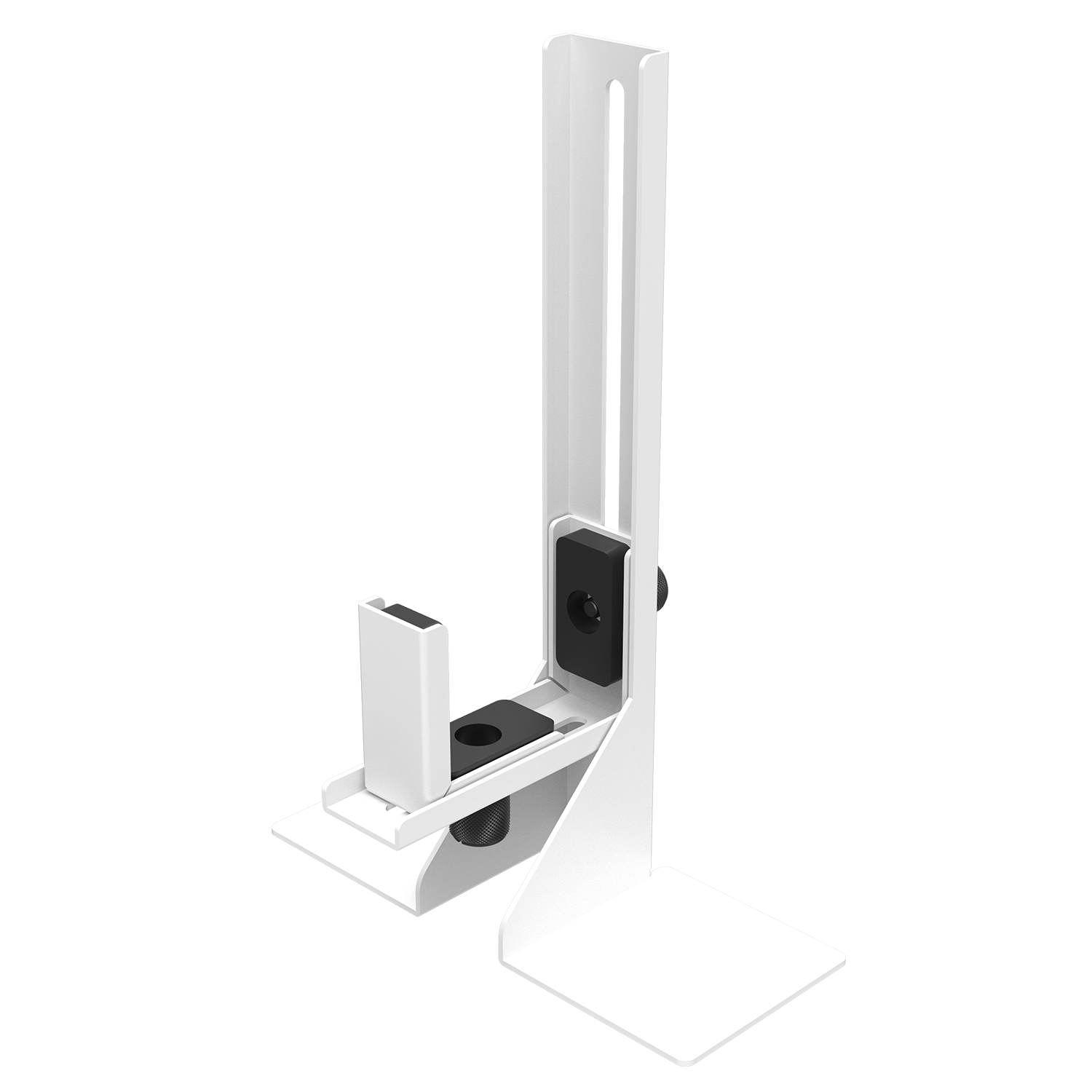

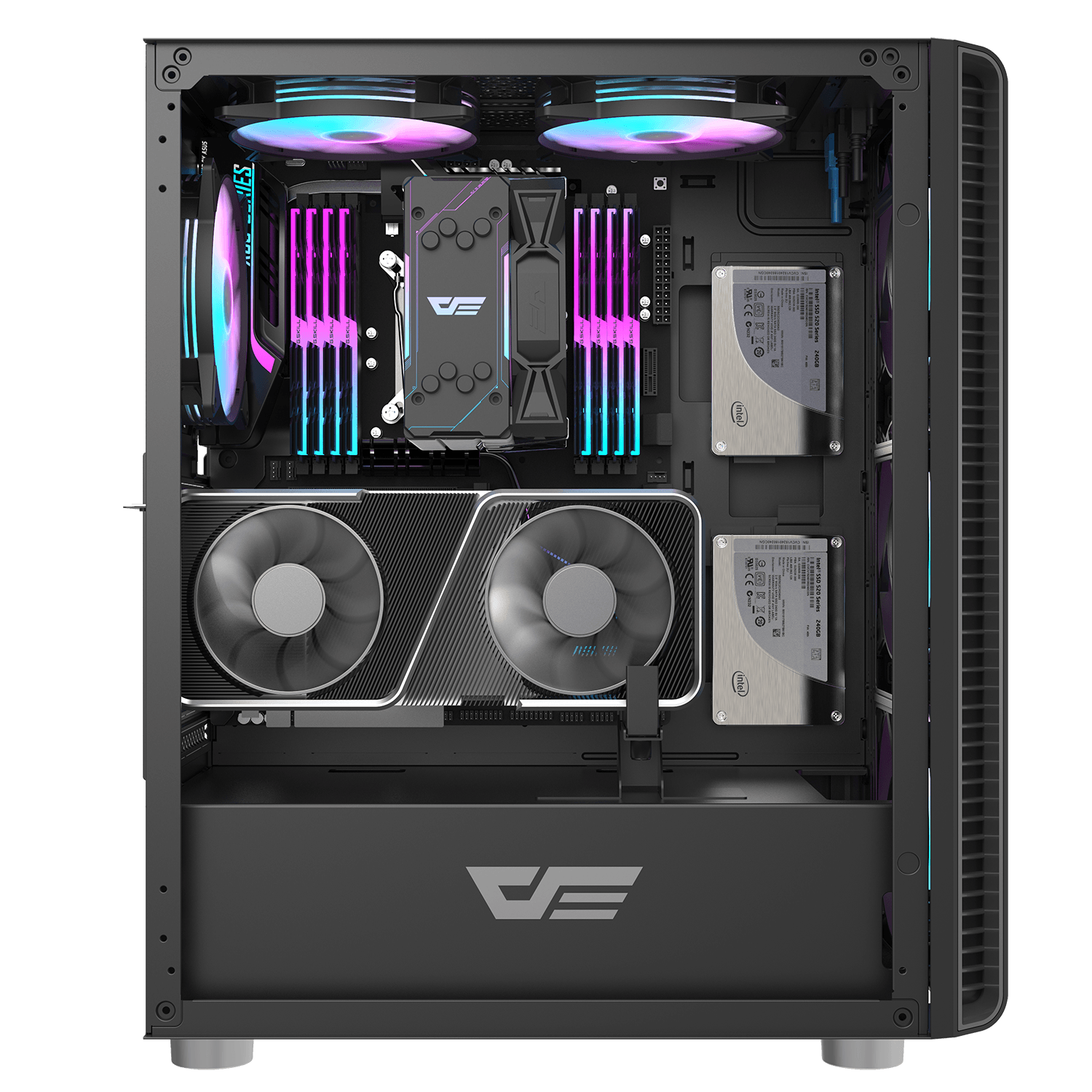

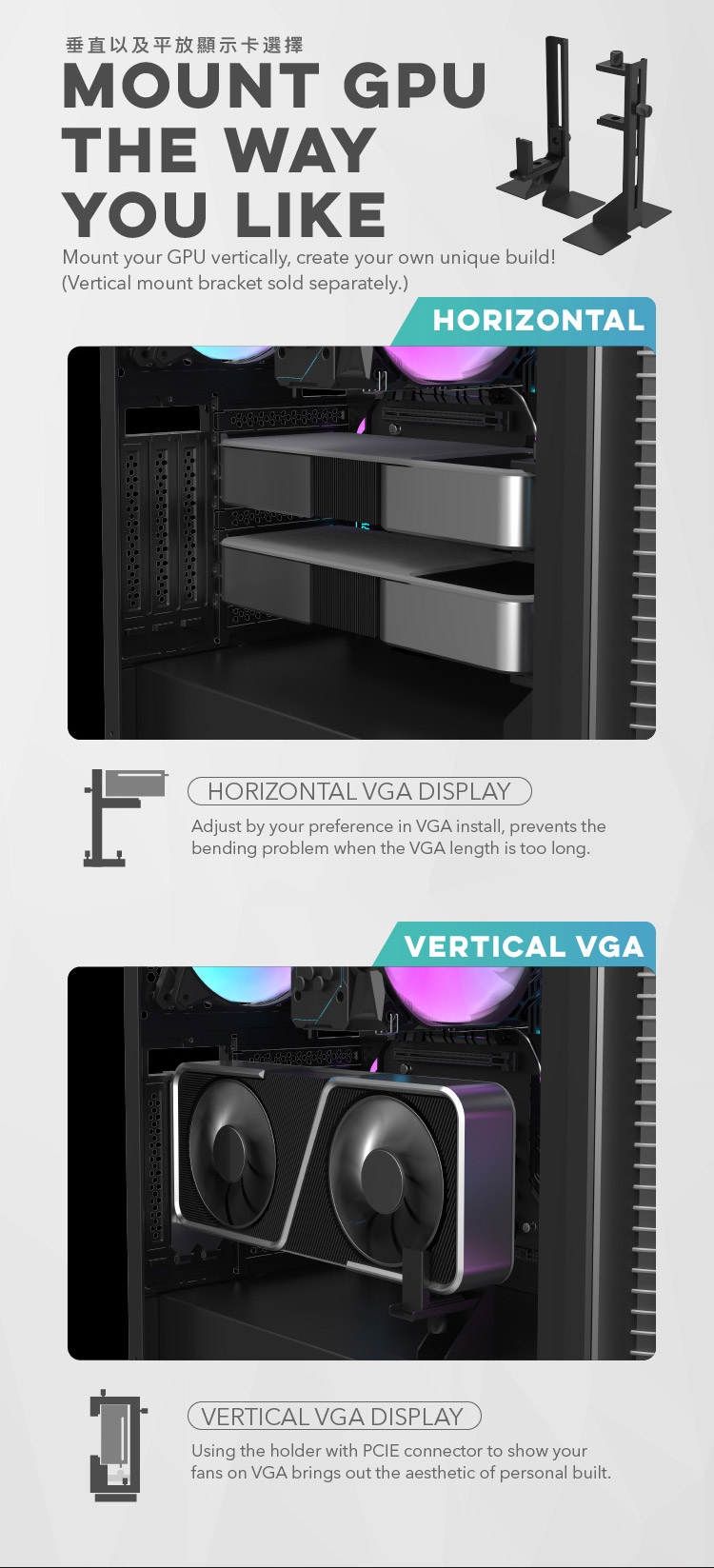

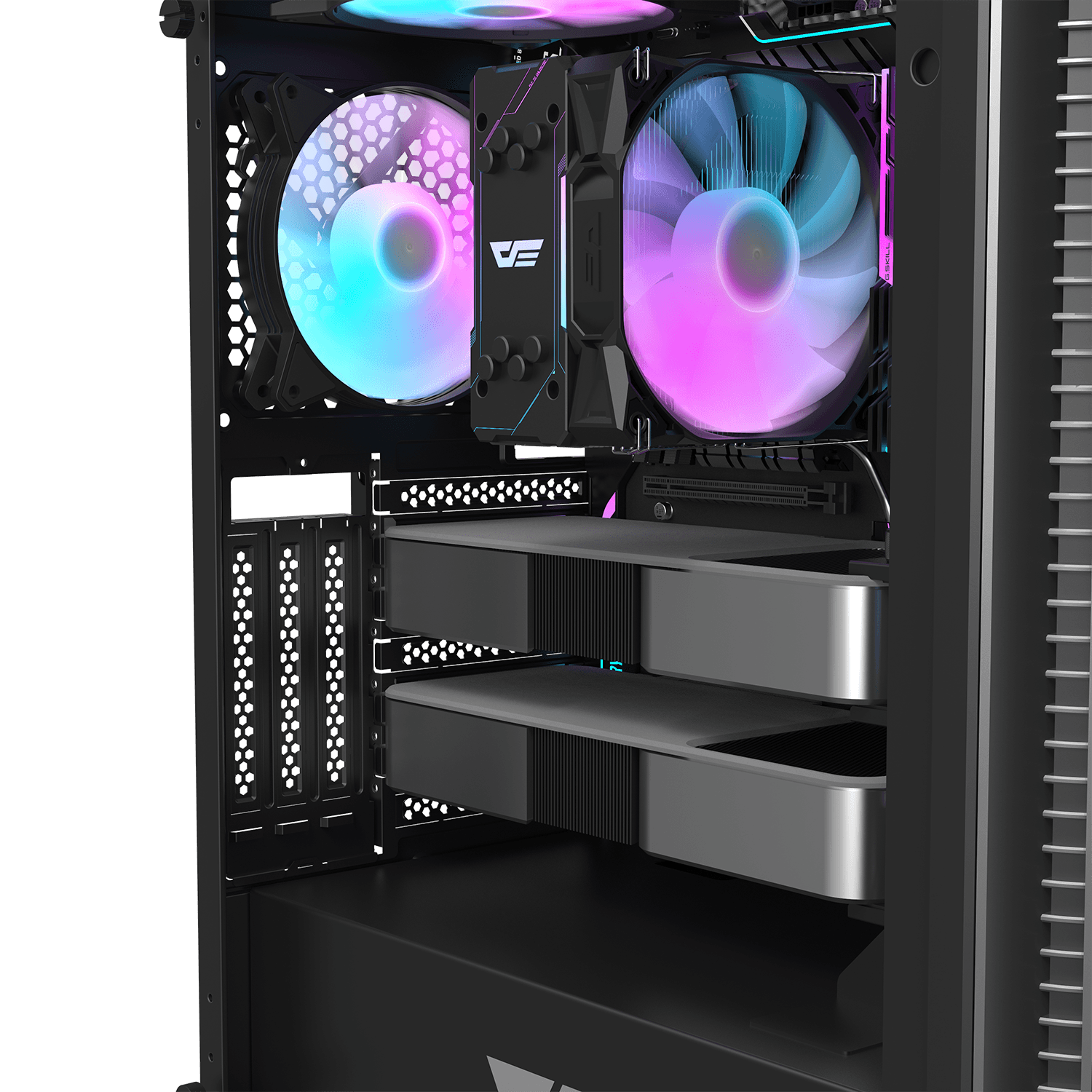

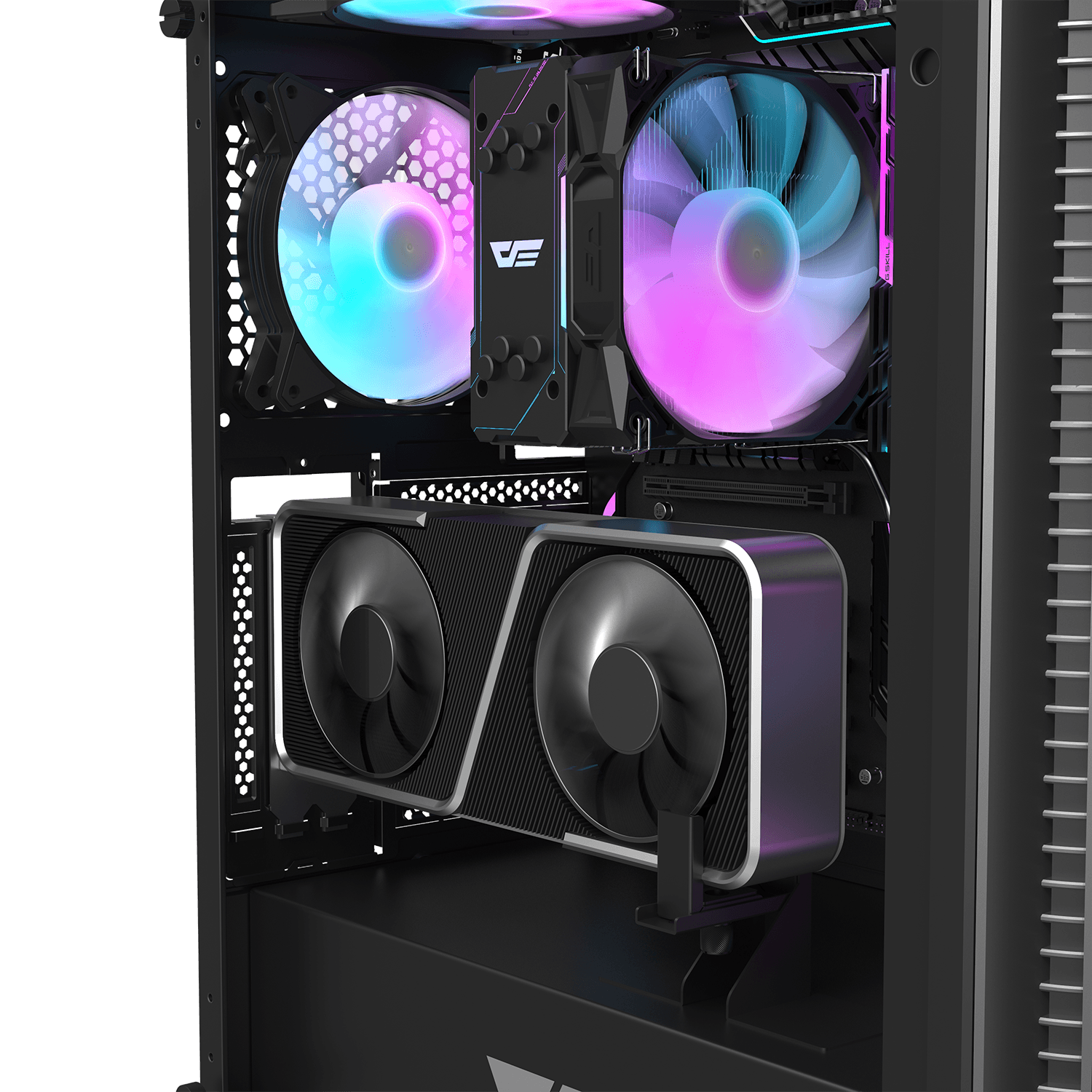

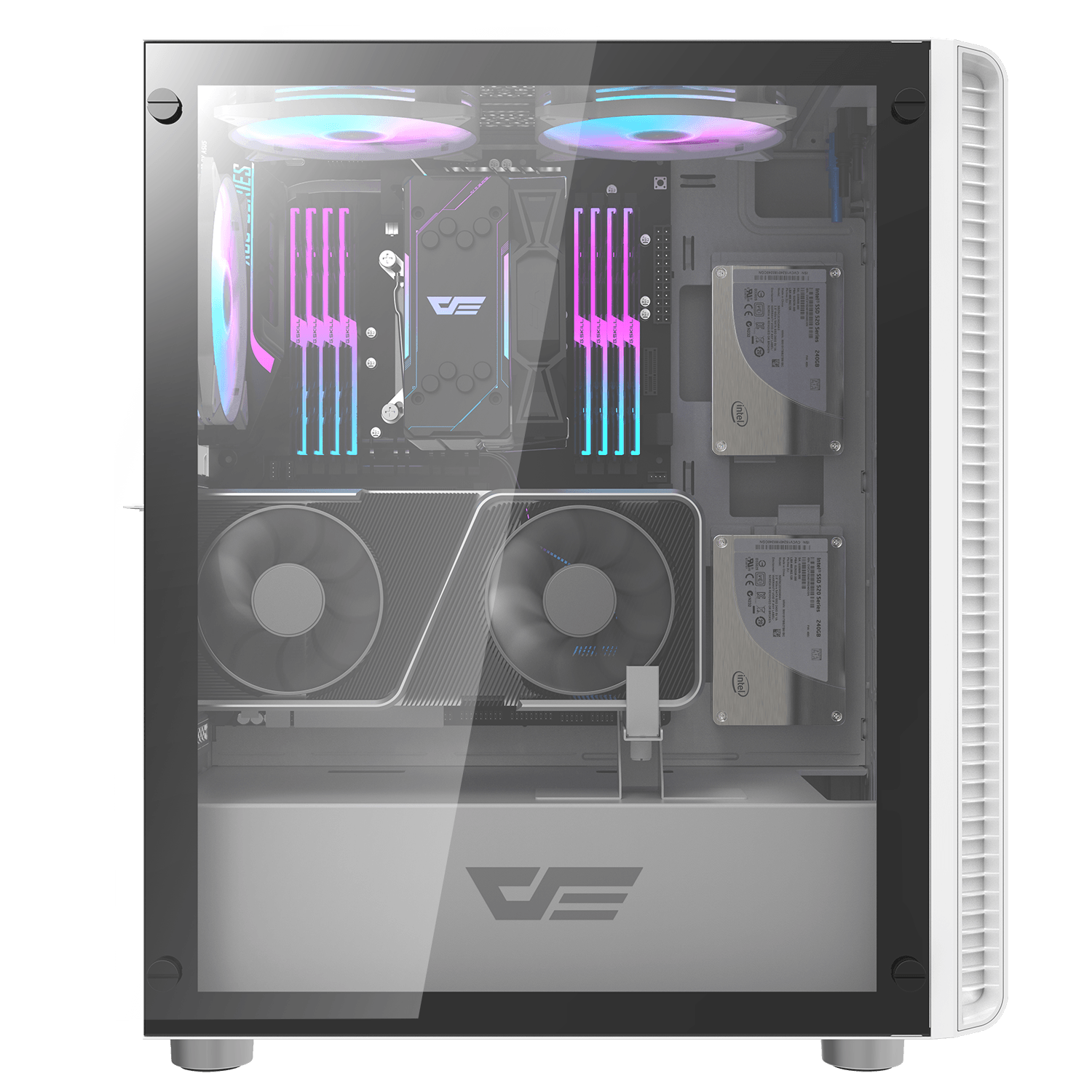

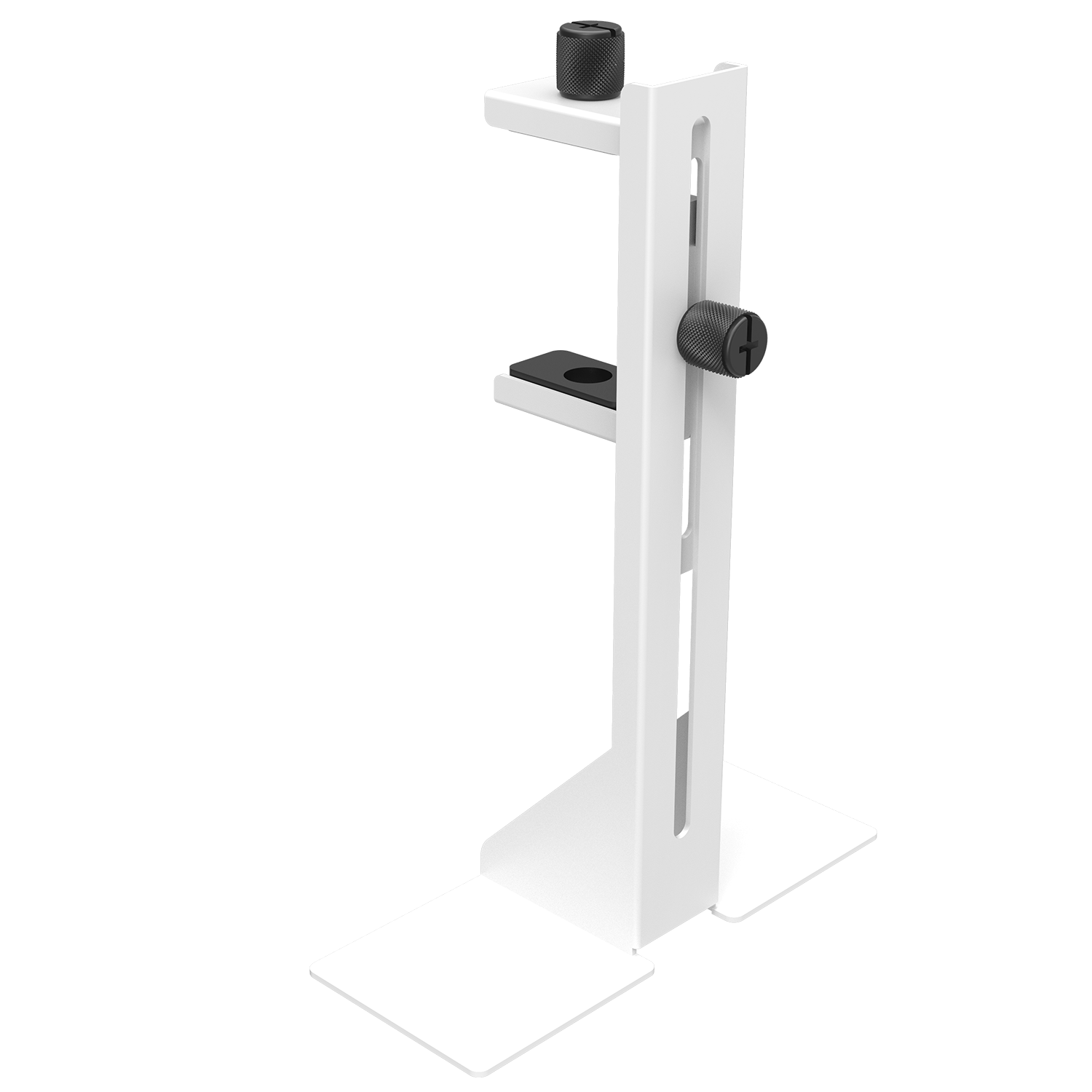

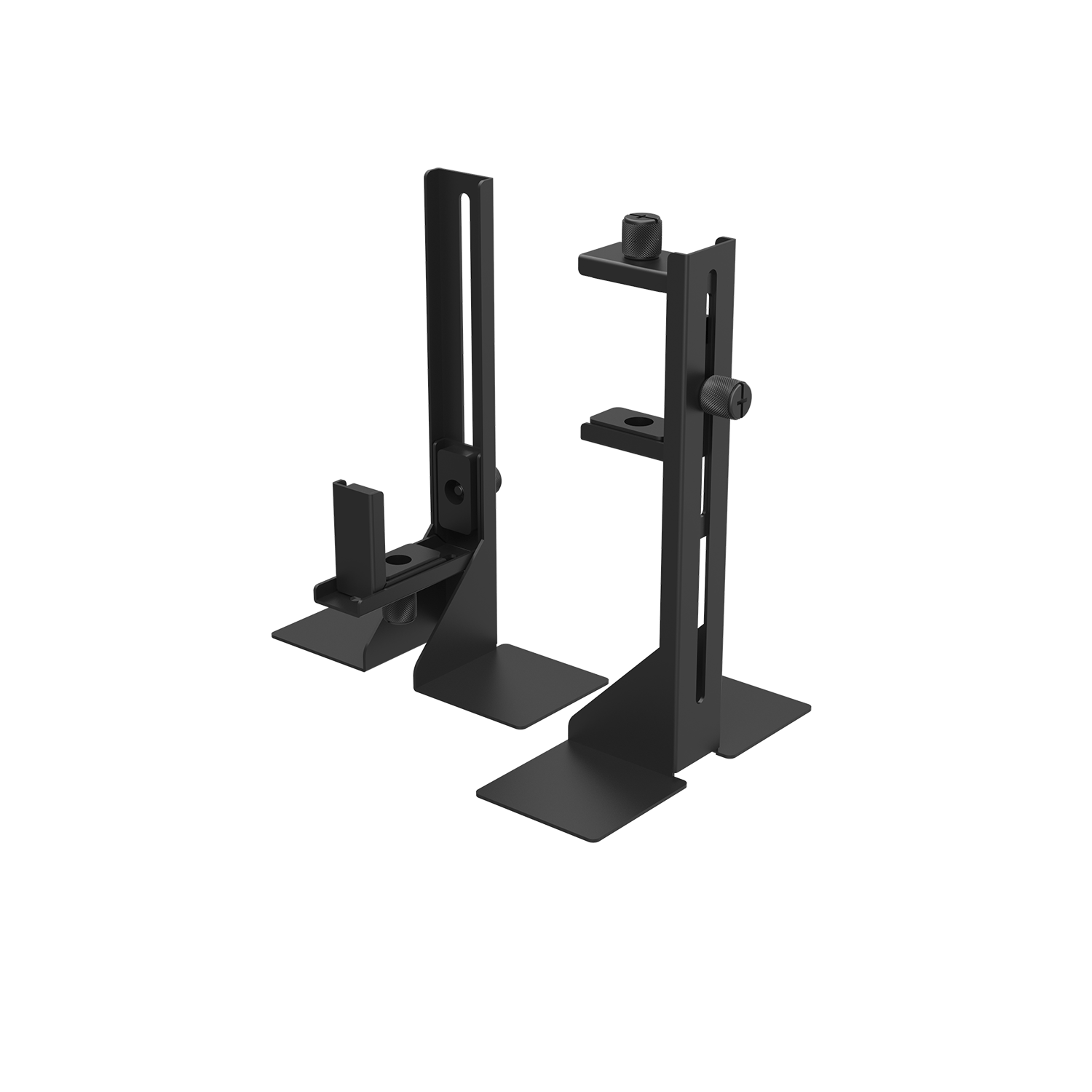

- Pre-installed GPU stand prevents graphics cards from sagging.

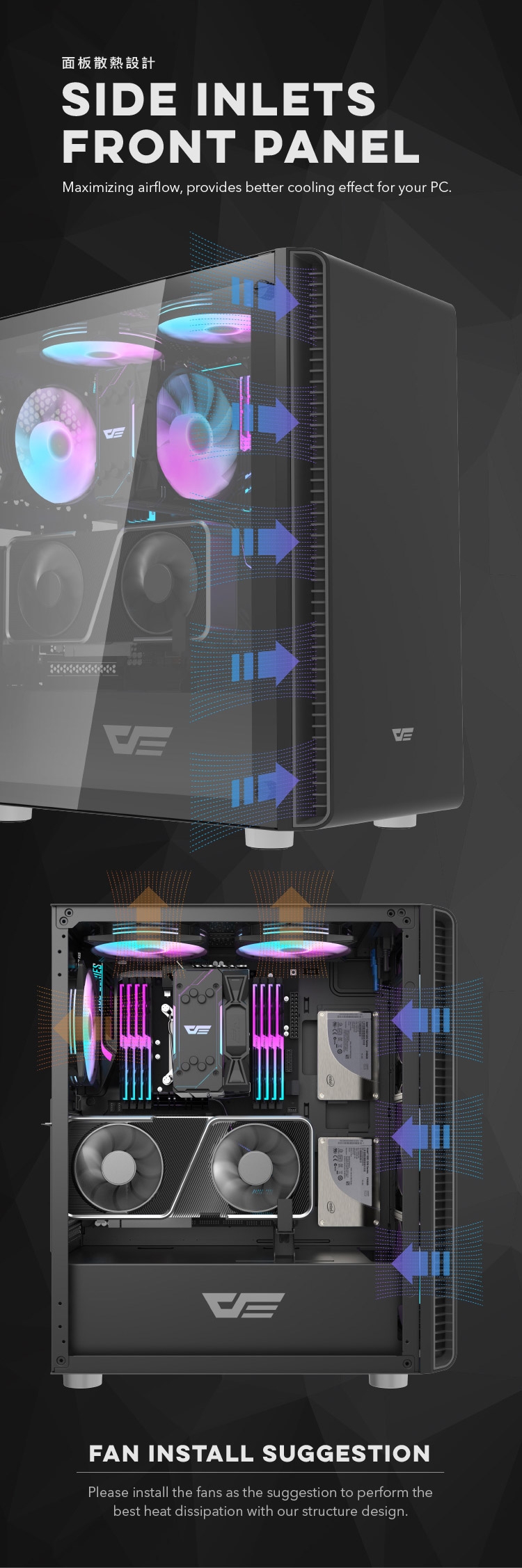

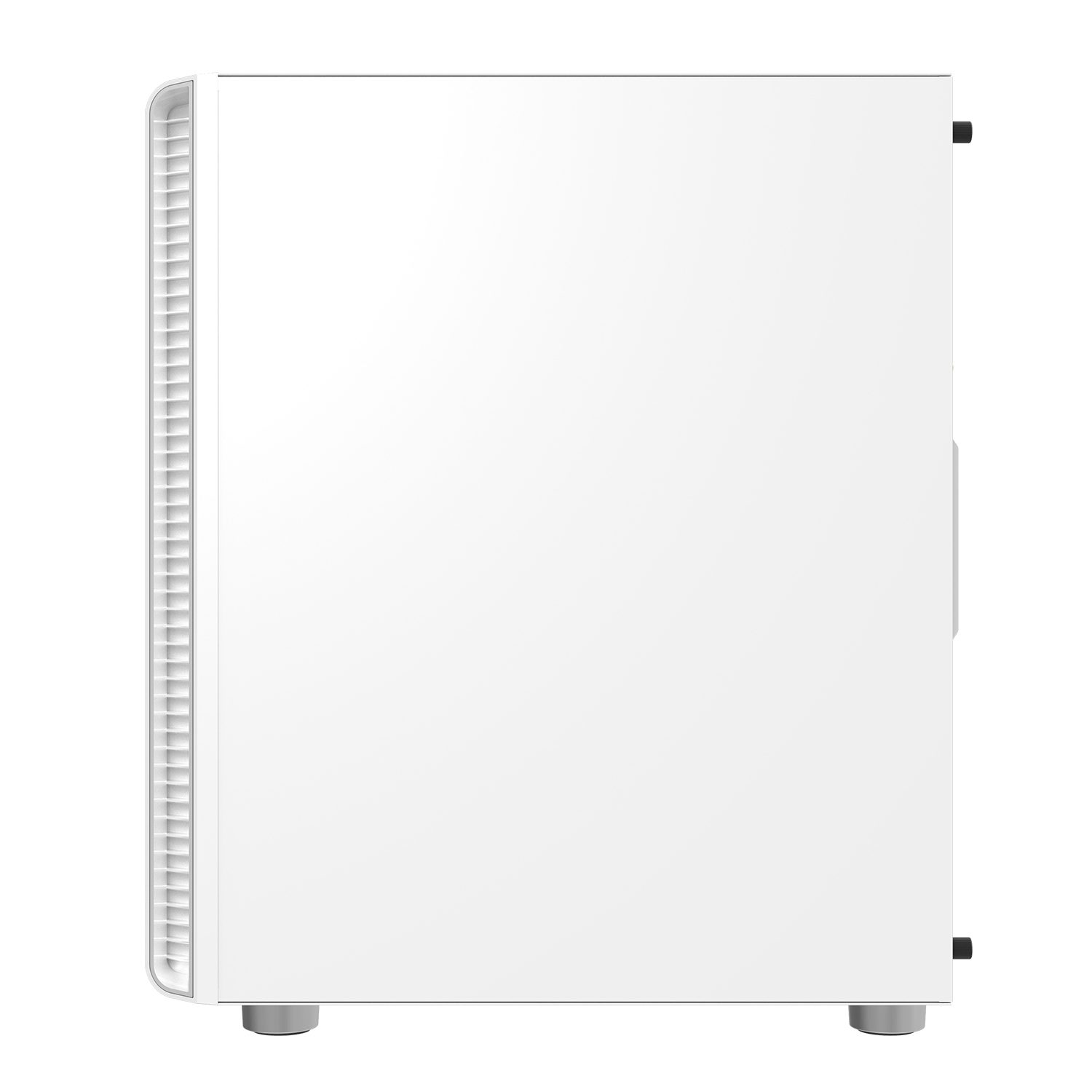

- Air inlets on both sides of front panel, enhancing performance.
Colors - Black
Spec
- Key Specs
- Motherboard Support：ATXM-ATX ITX
- Case Material：PlasticTempered Glass

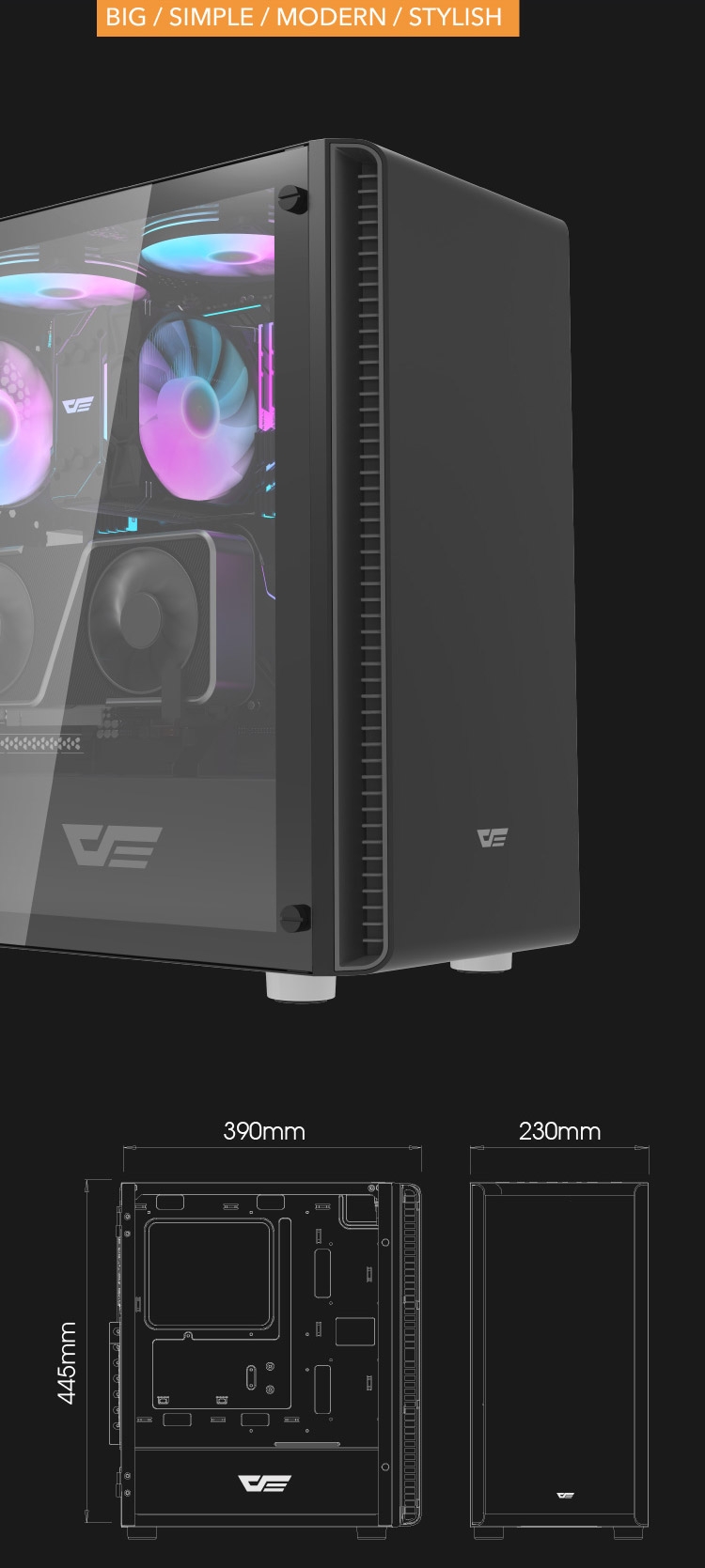

- Dimensions
- Height：445mm
- Width：230mm
- Depth：390mm
- Compatibility & Clearance
- Max GPU Clearance：340mm

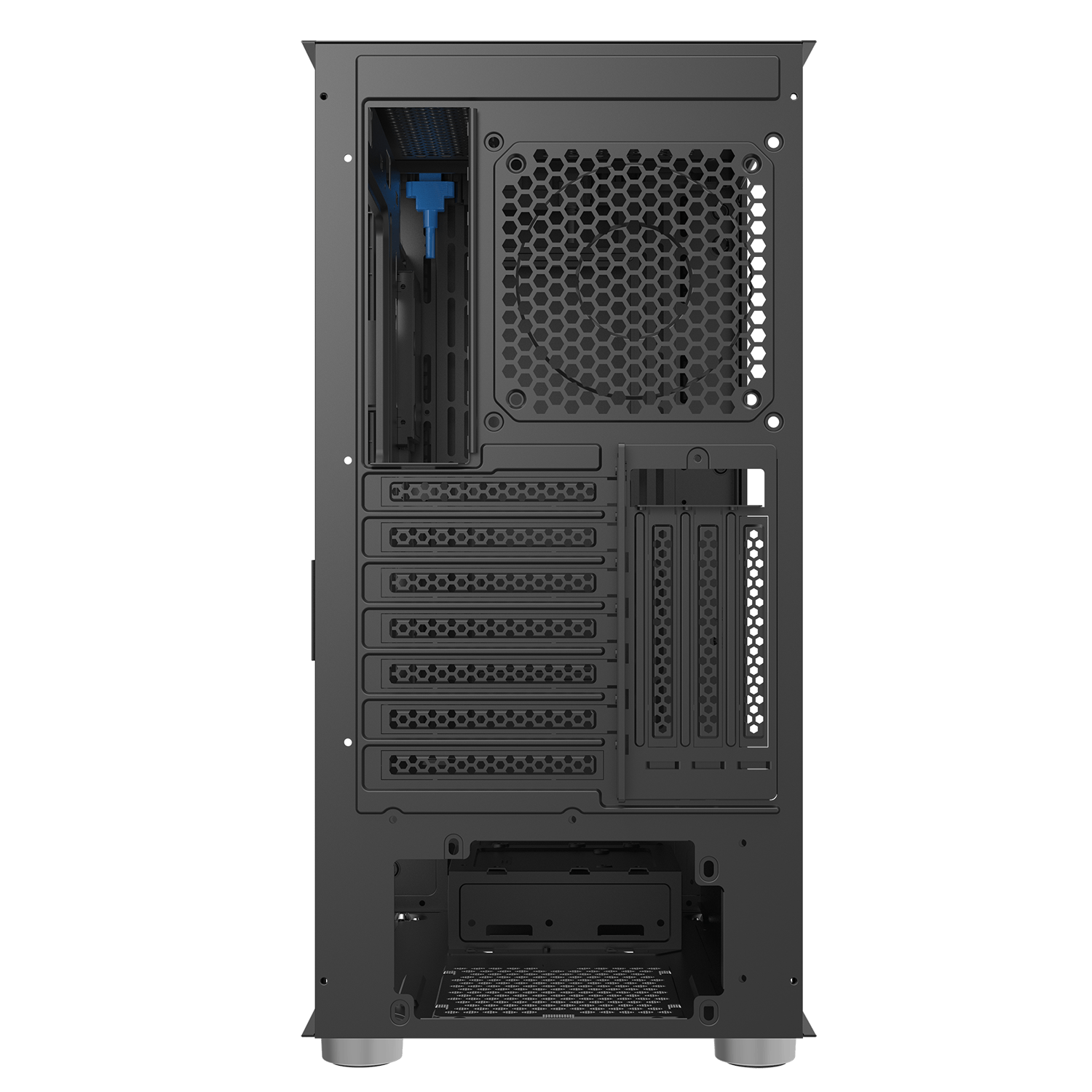

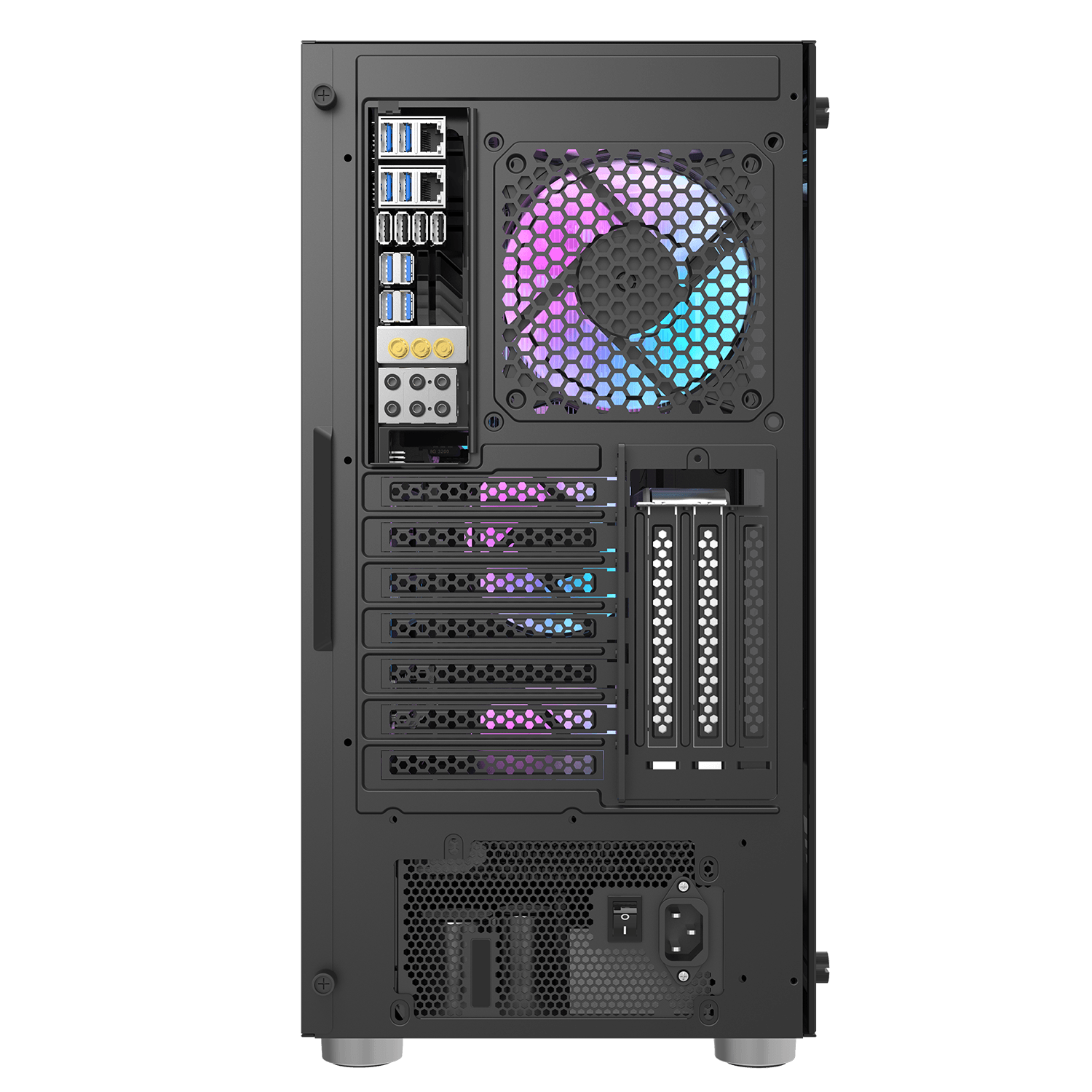

- PCIE Slot：7
- Max CPU Cooler Clearance：190mm

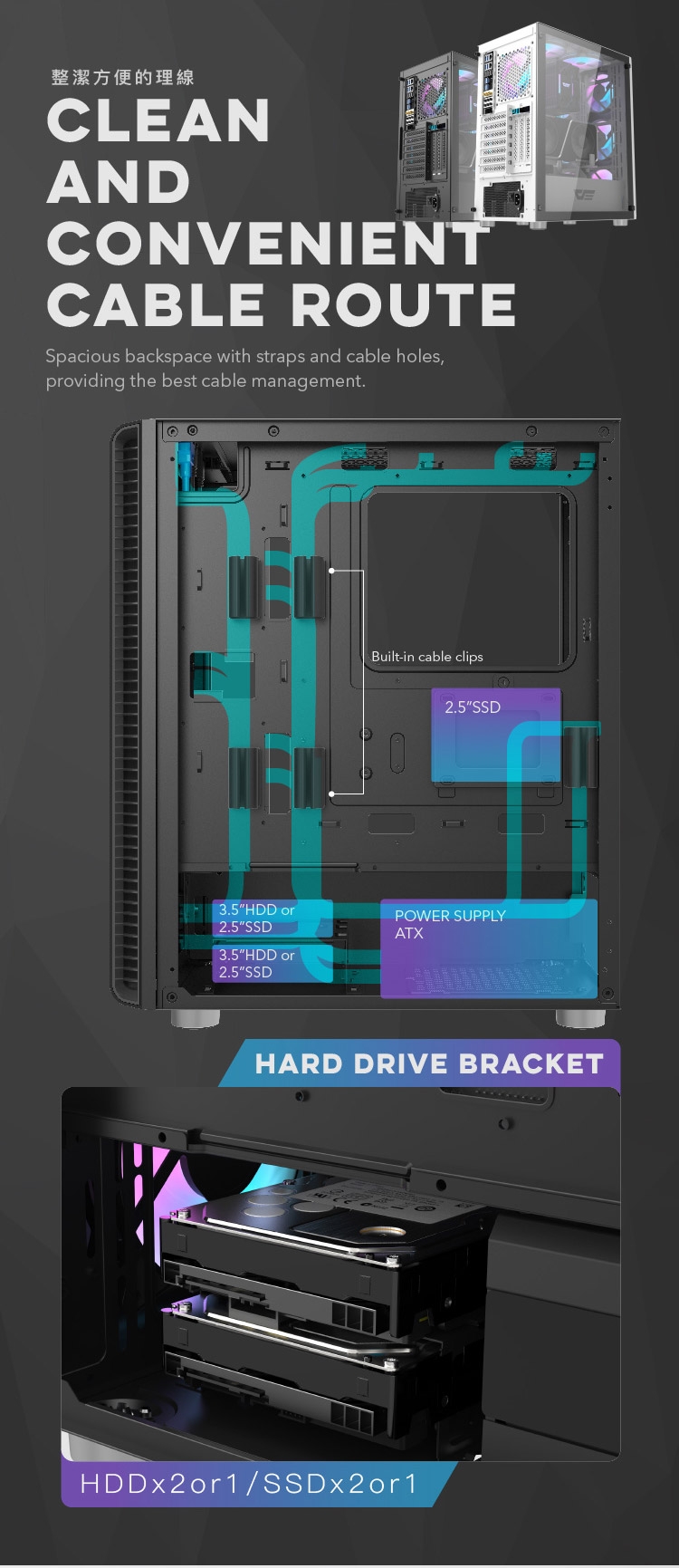

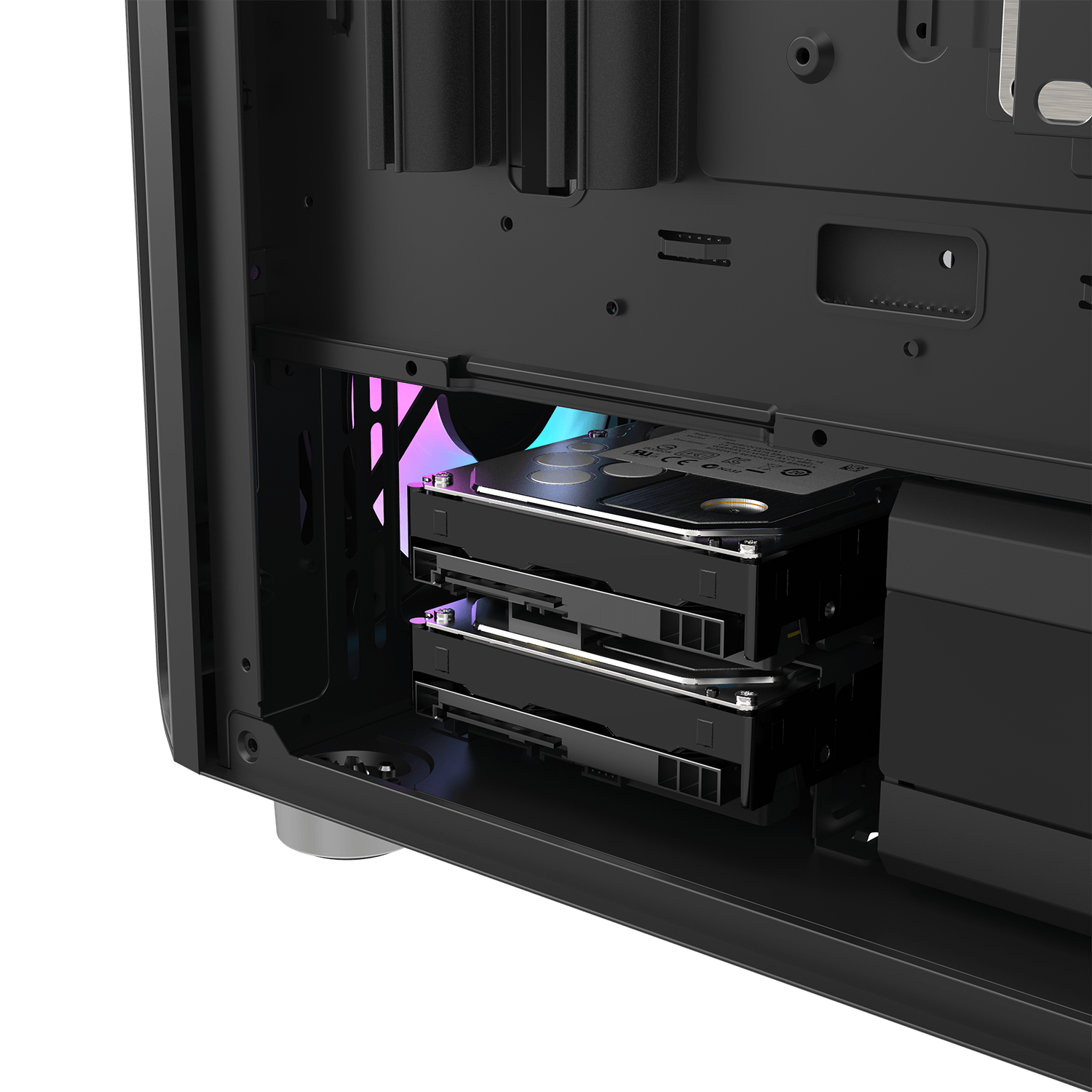

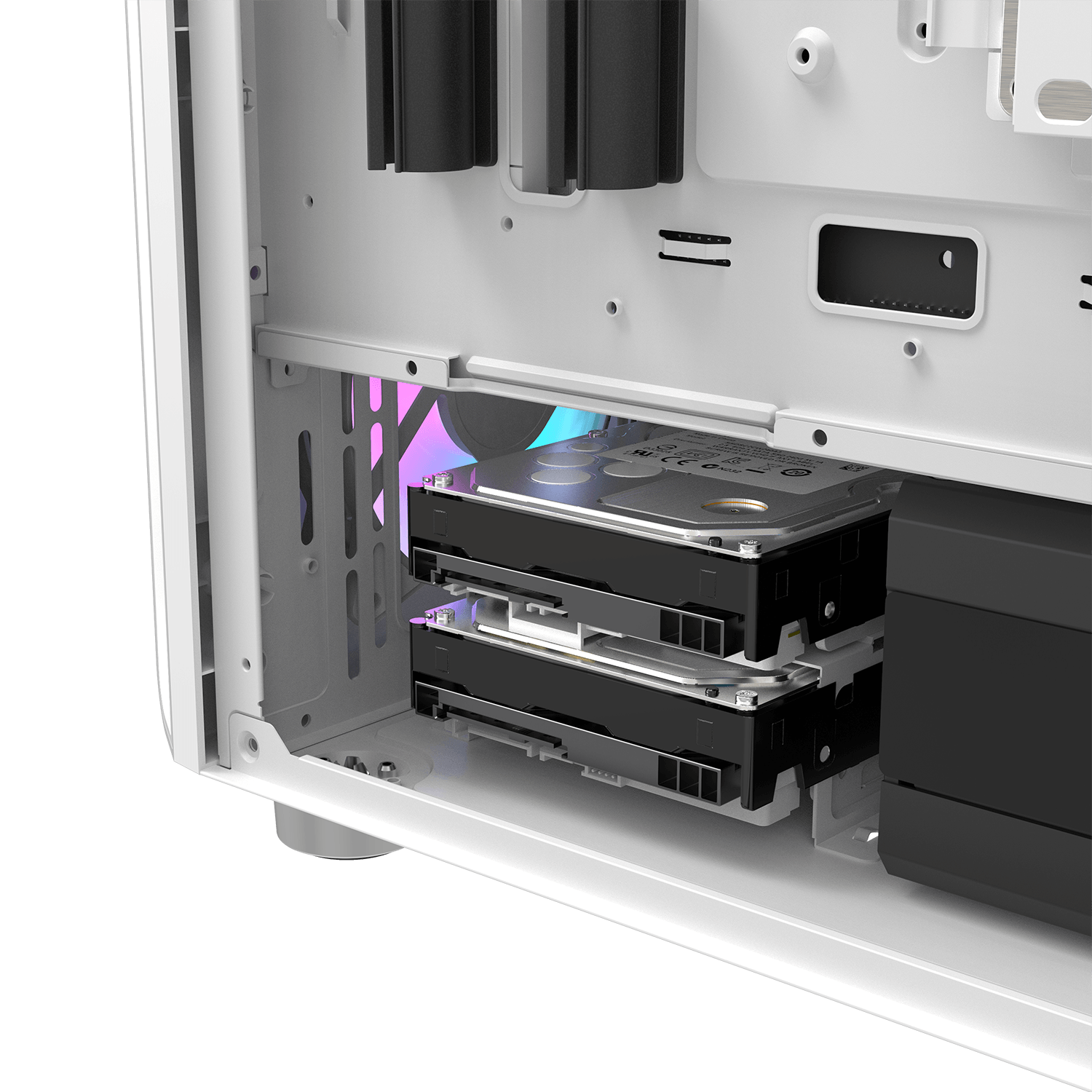

- Drive Bays
- SSD / HDD：2/11/2
- Fan Support
- Top：120mm*3140mm*2
- Front：120mm*3140mm*3200mm*2
- Rear：120mm*1140mm*1

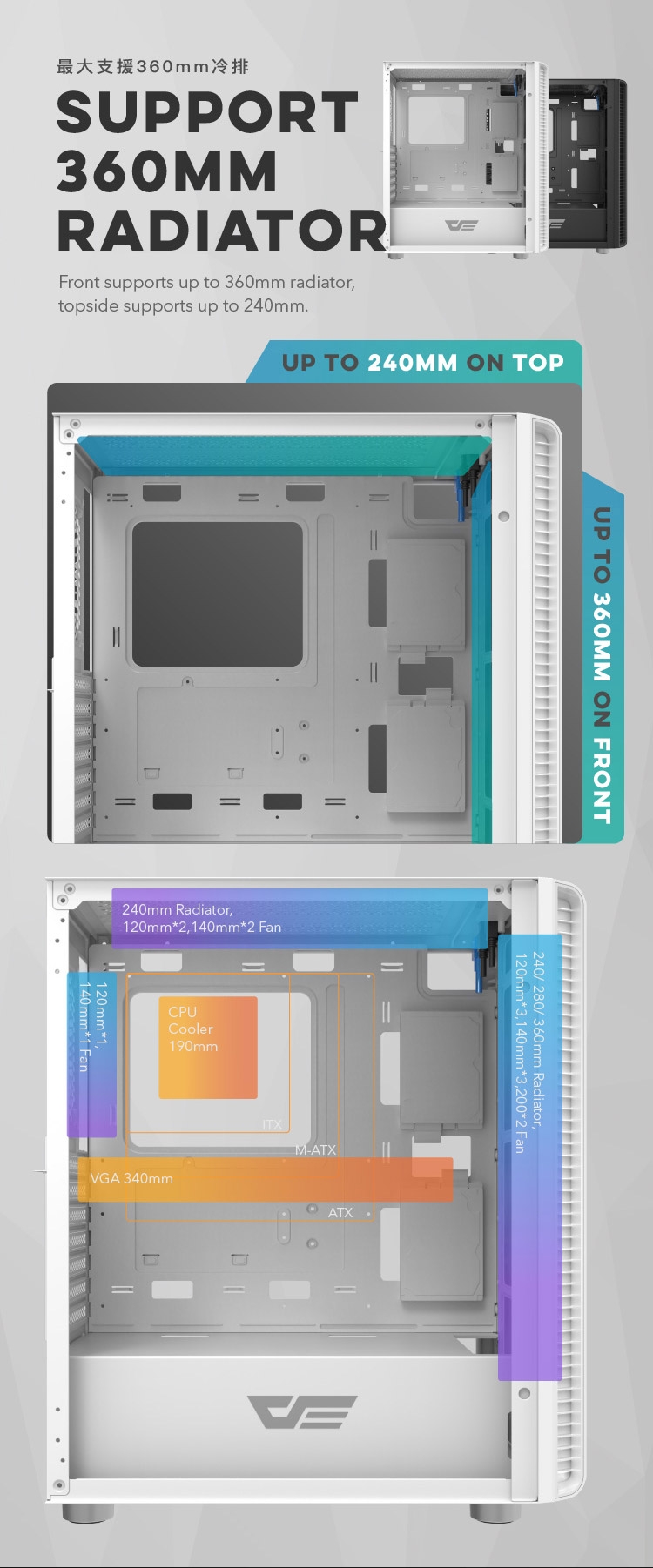

- Radiator Support
- Top：240mm
- Front：240mm280mm360mm
- I/O
- I/O：USB 3.0USB 2.0HD AudioResetPower
