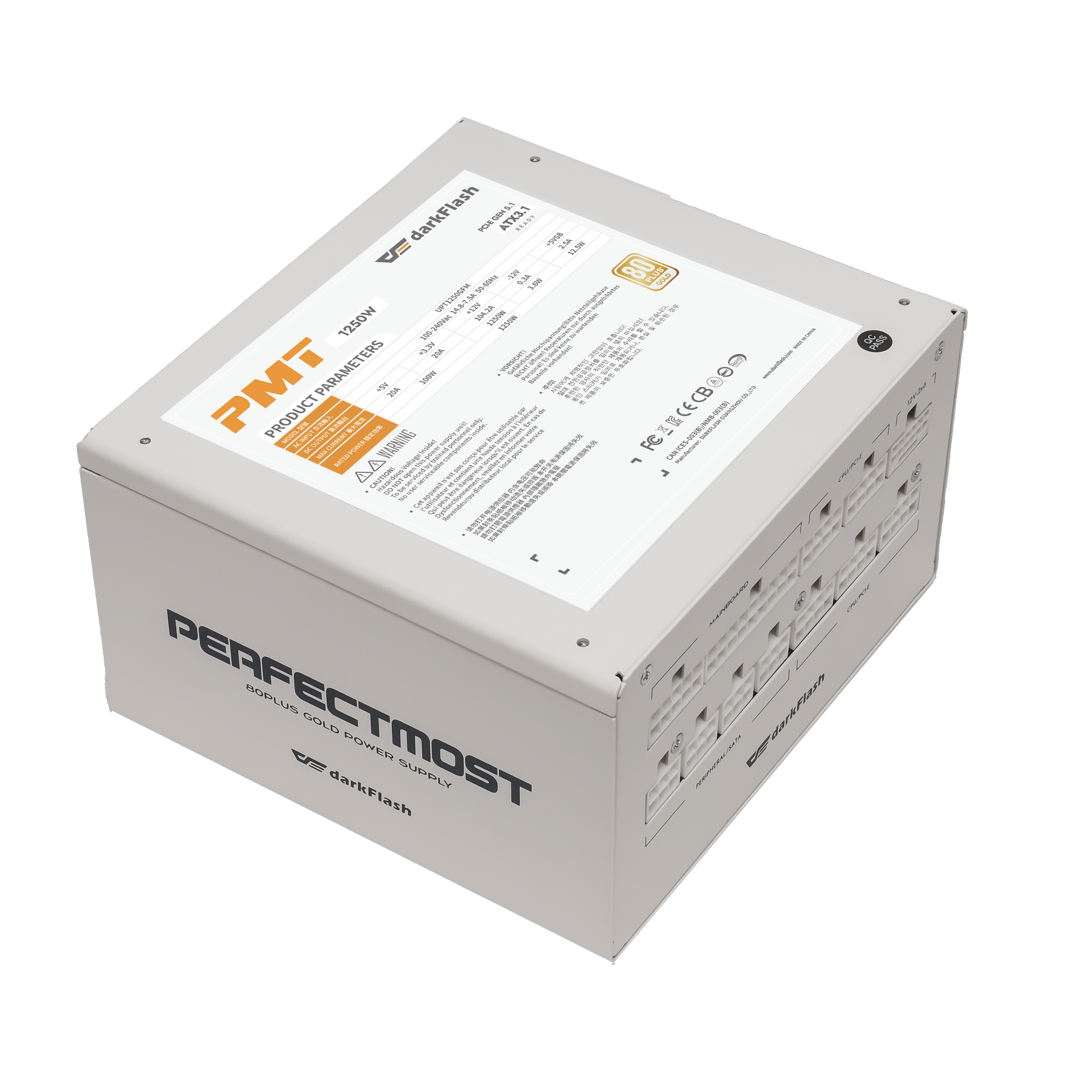

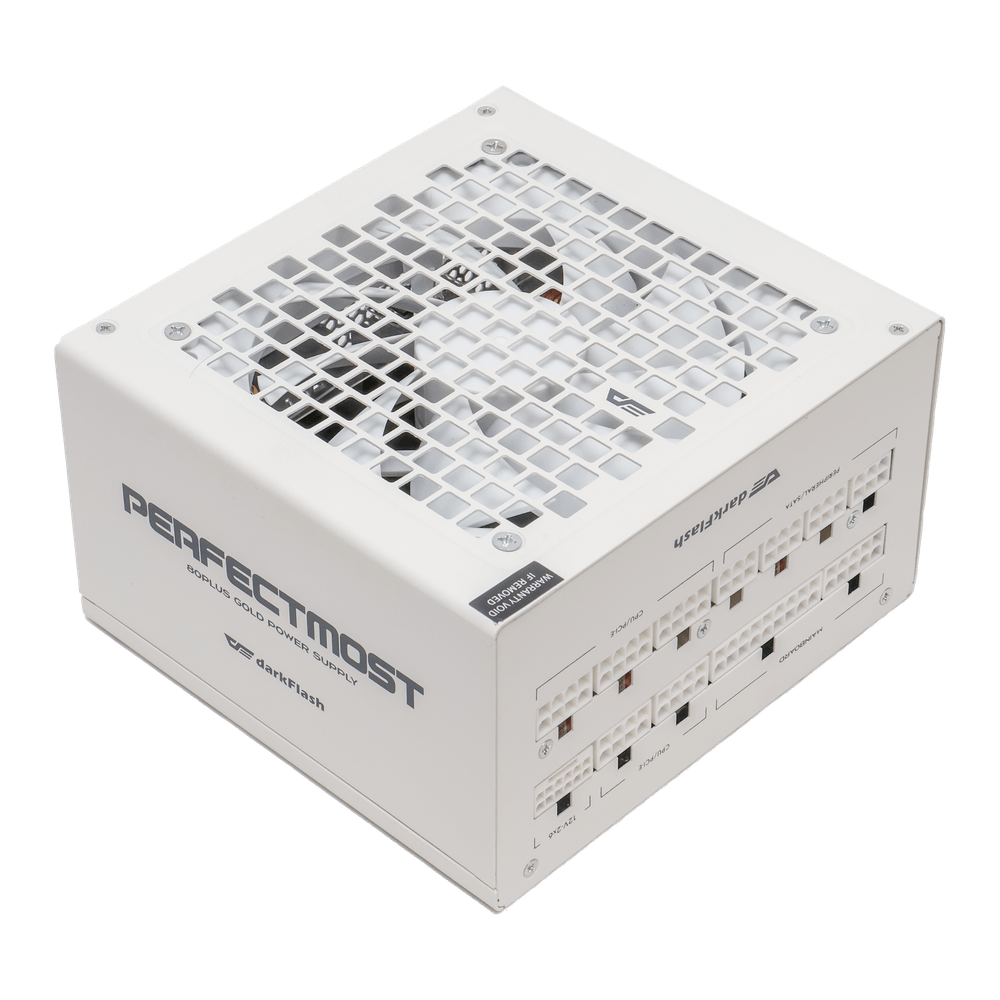

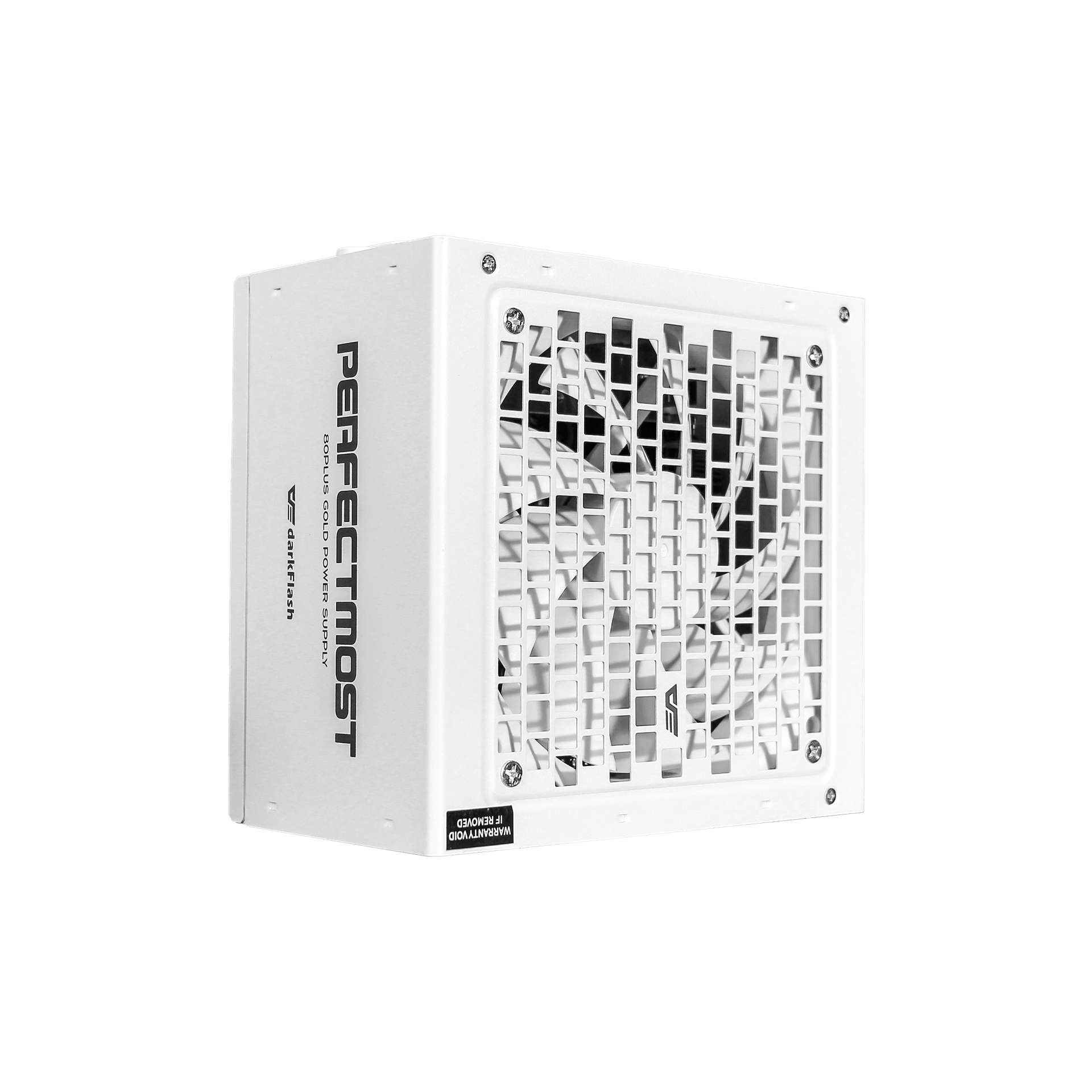

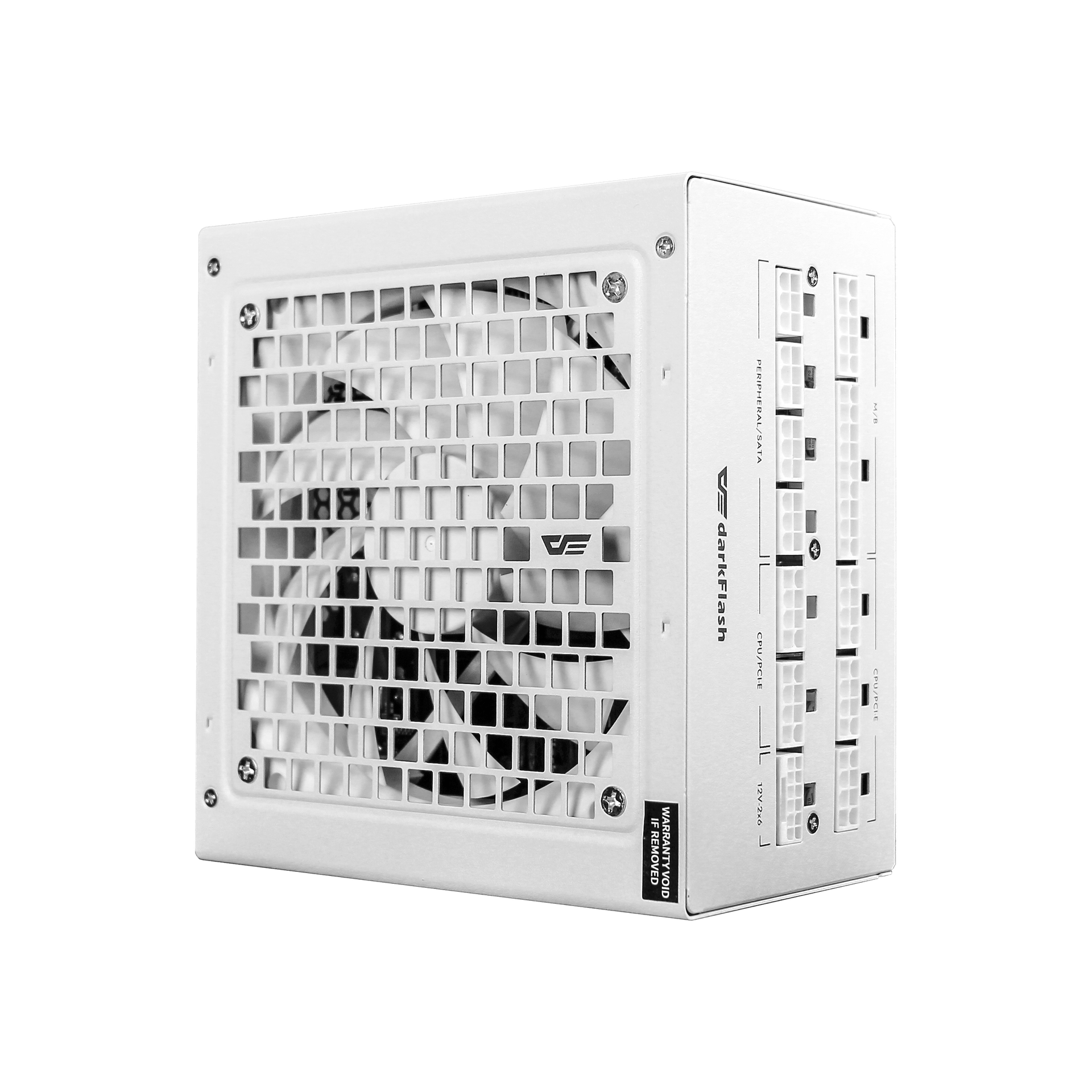

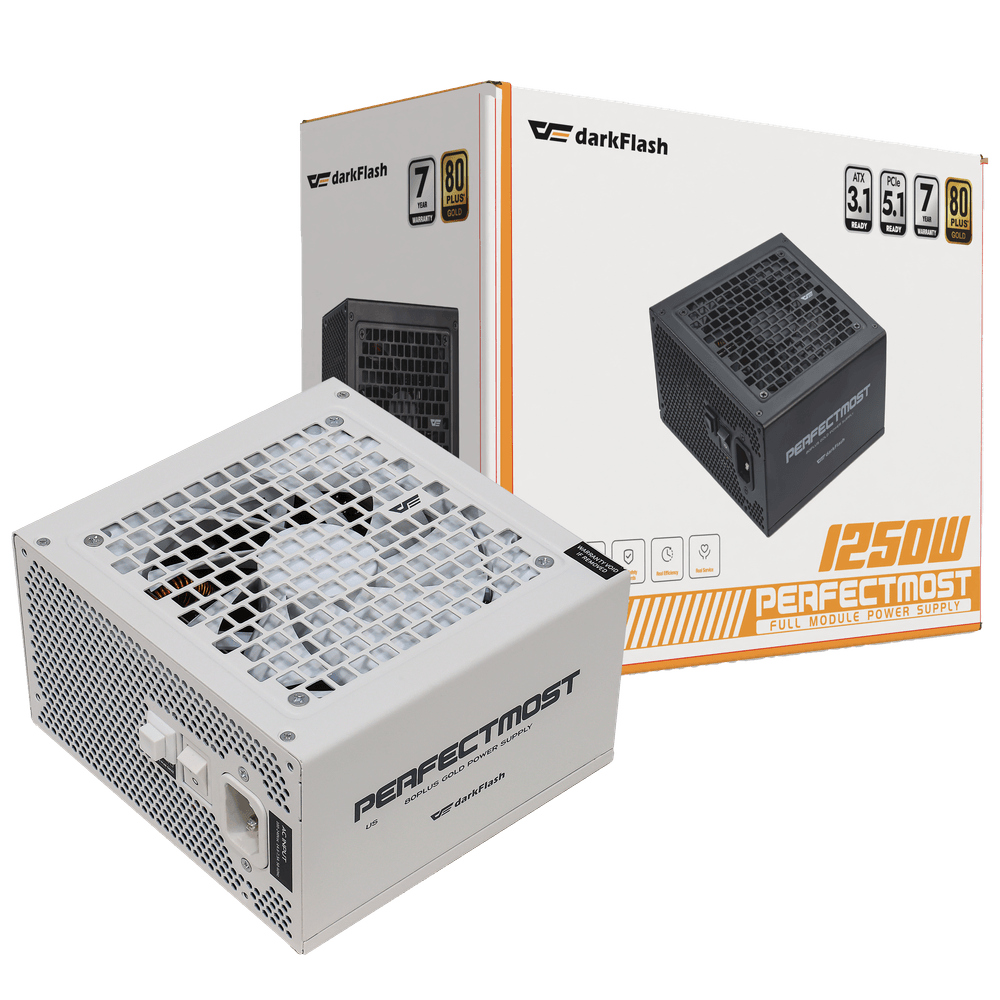

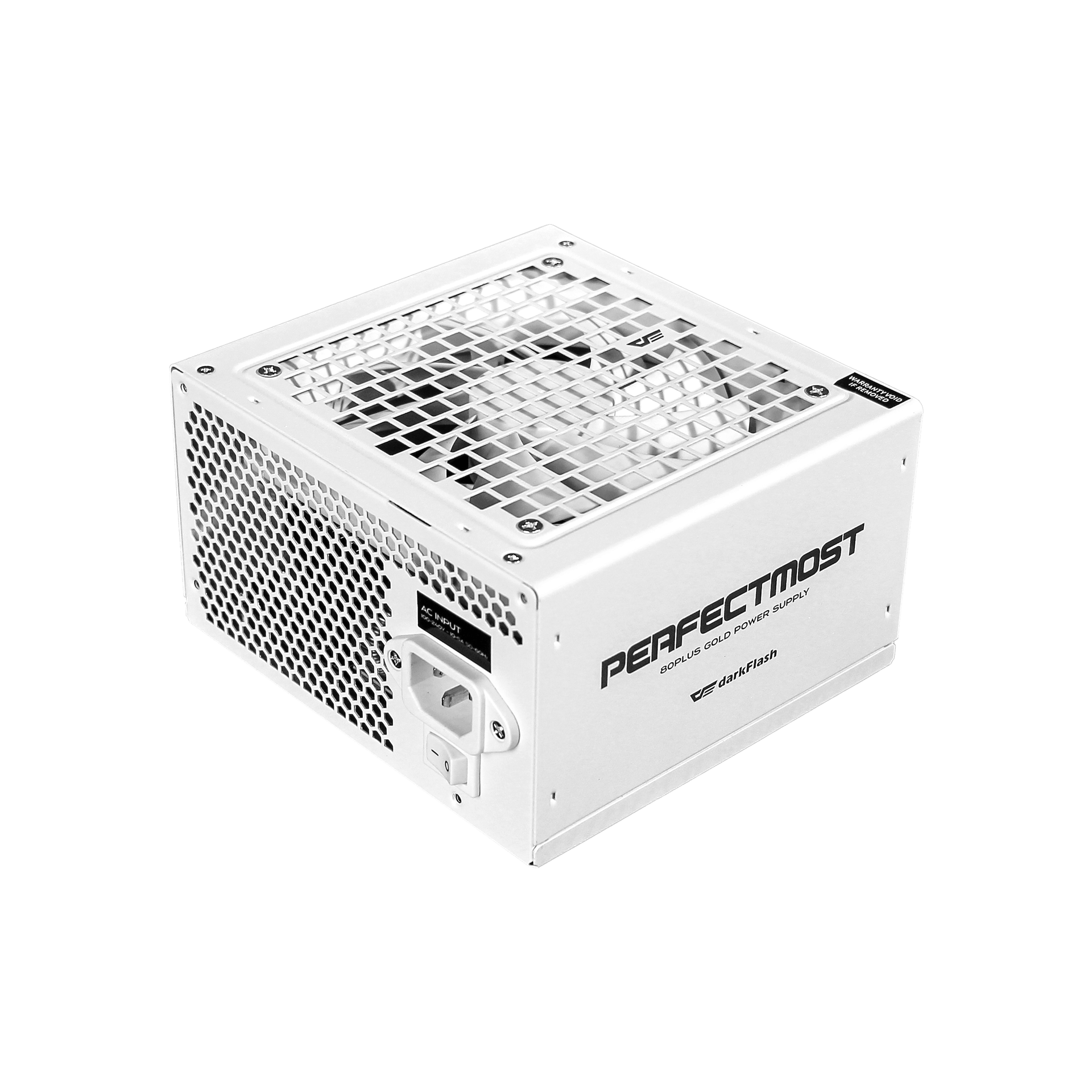

PMT Series - White Edition
- Application of ATX 3.1 specification
- Direct-connected 12VHPWR, high-quality 16-pin (300W)
- 80 PLUS Gold certification, up to 90.5% and above

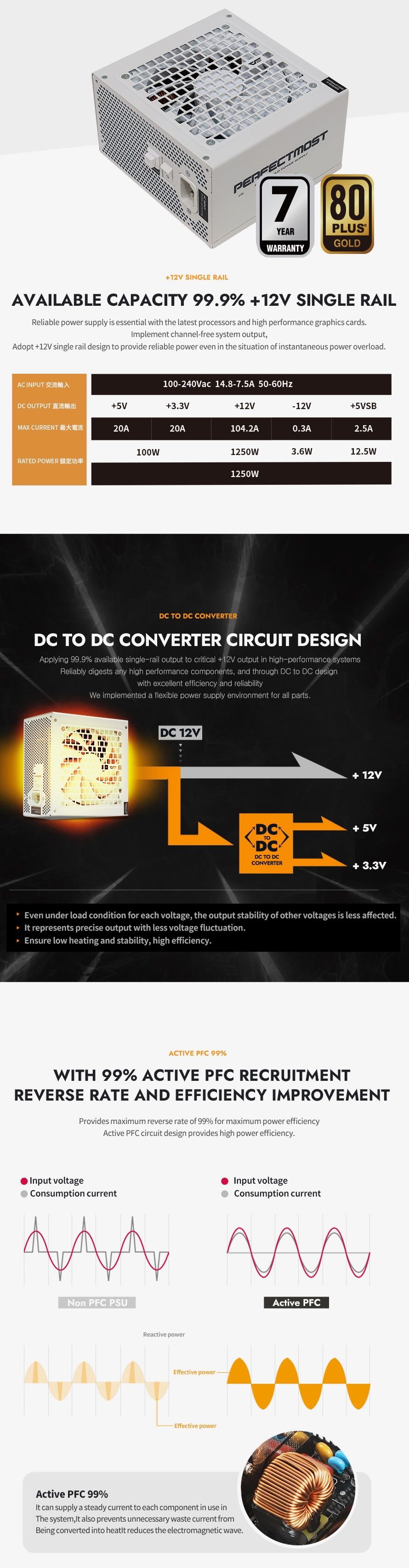

- Available capacity 99.9% +12V single rail

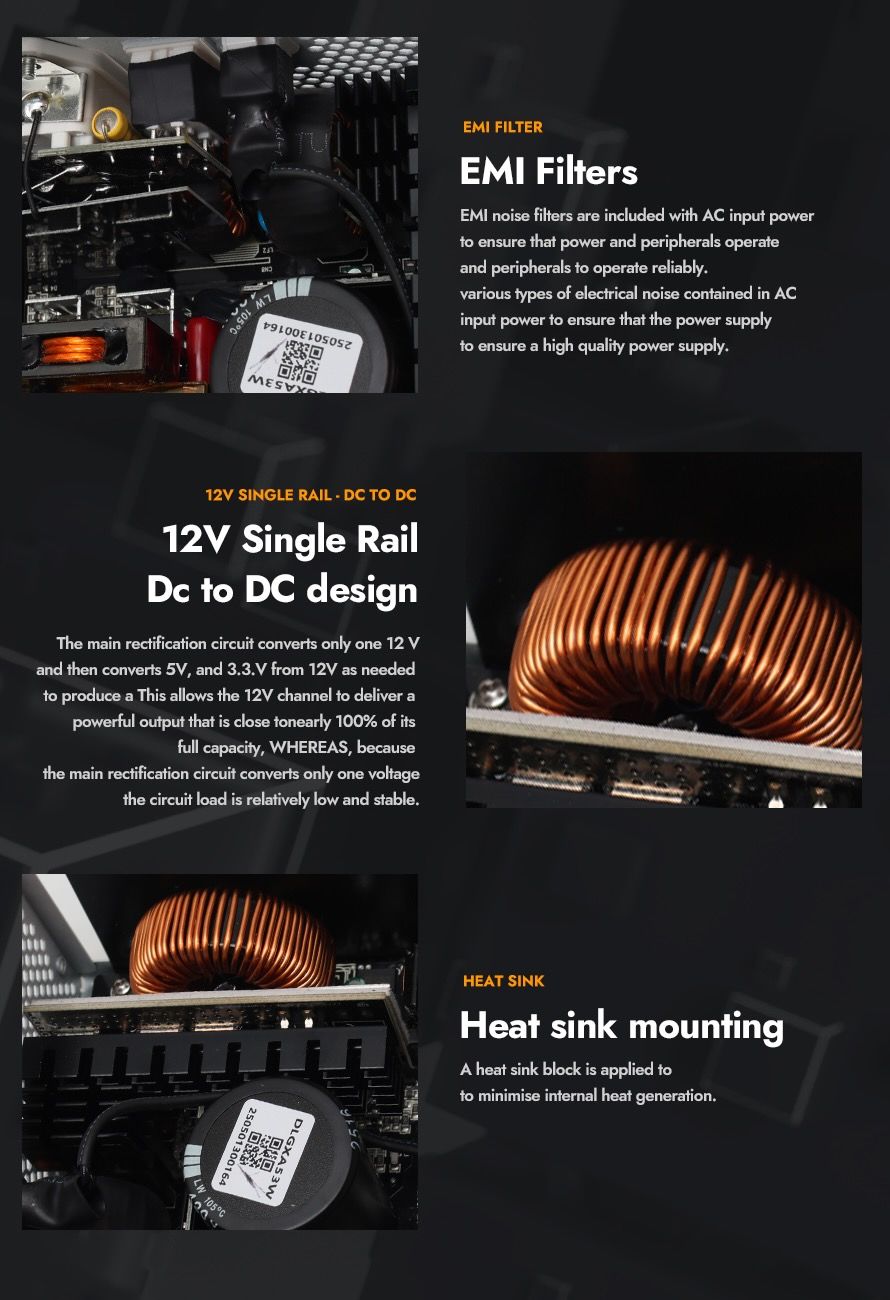

- DC-to-DC converter circuit design
Colors - White
Wattage
1250W
1050W
850W
750W
650W
Spec
- Key Specs

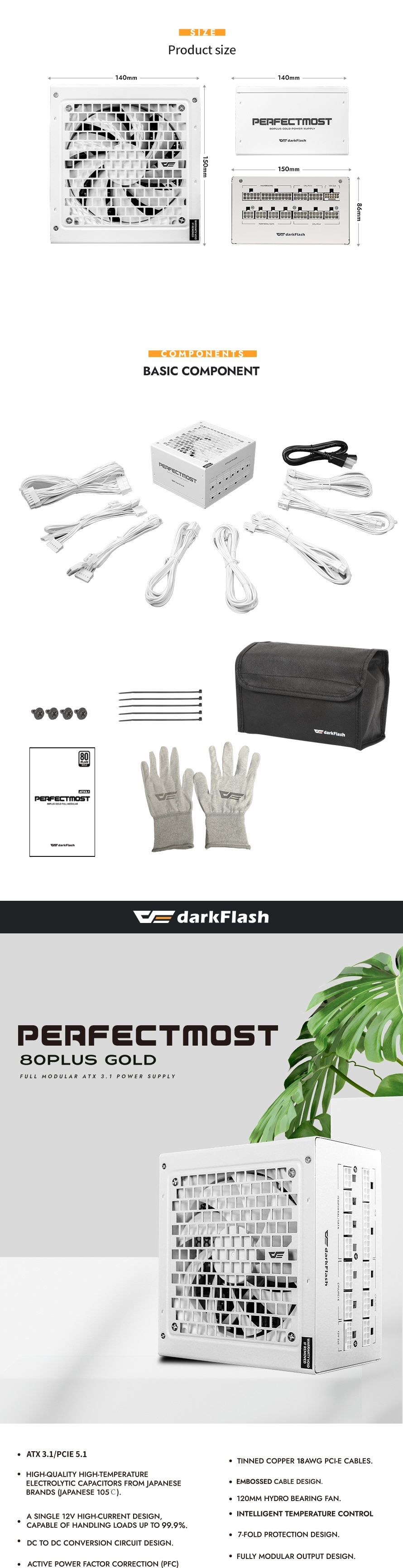

- PSU Size：140*150*86mm
- Efficiency certification：80 PLUS Gold

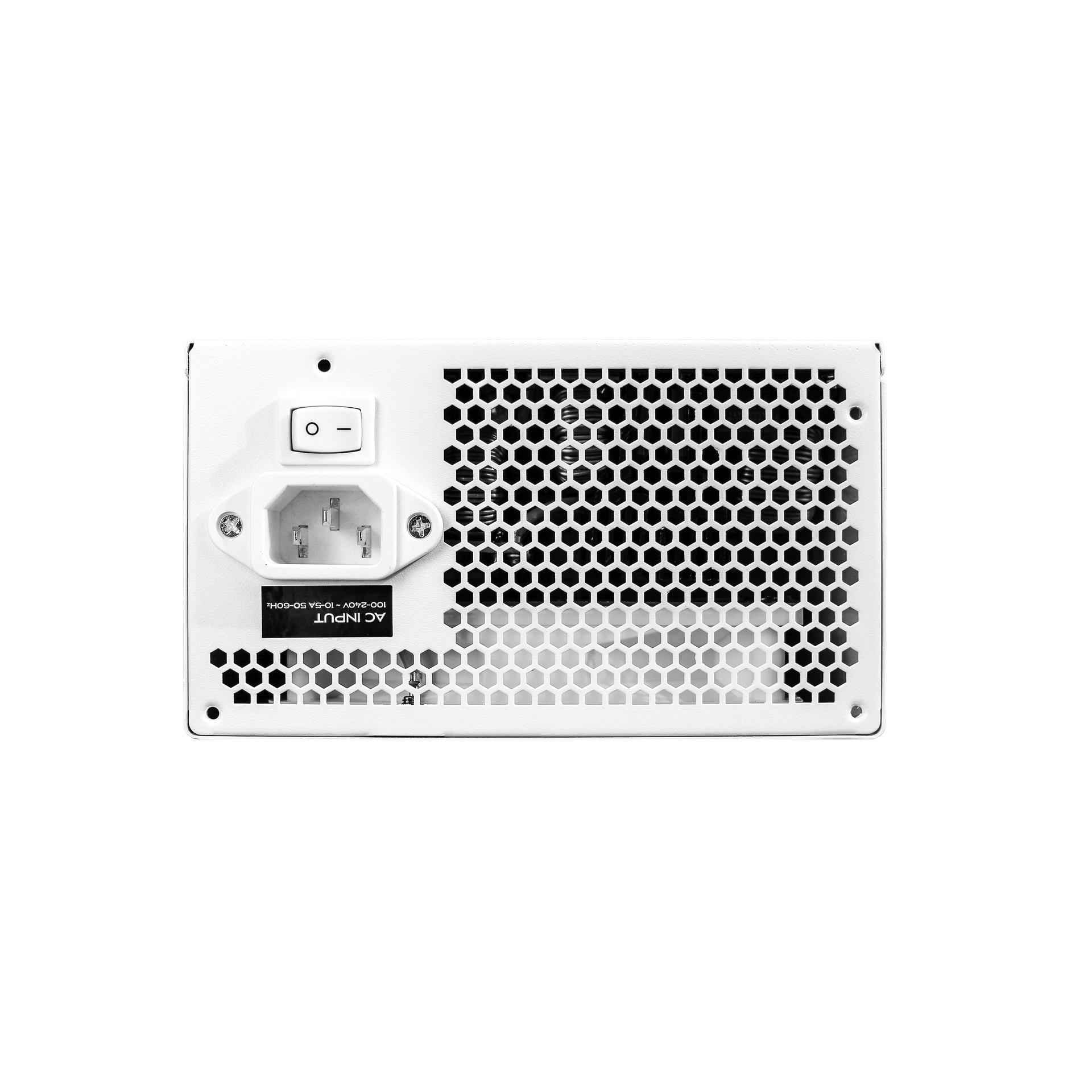

- Input Voltage：100-240V
- Input Frequency：50-60Hz
- Specs
- Topology：Active PFCHalf Bridge LLCSRCDC to DC
- Protection：Over voltage (OVP)Over current (OCP)Over load (OPP)Short circuit (SCP)Overheat (OTP)Under voltage (UVP)Zero load (NLP)
- Power Good Signal：100-250ms
- Hold Up Time：≥16ms@100% load
- Certification
- Warranty：5 years7 years for 1050W / 1250W

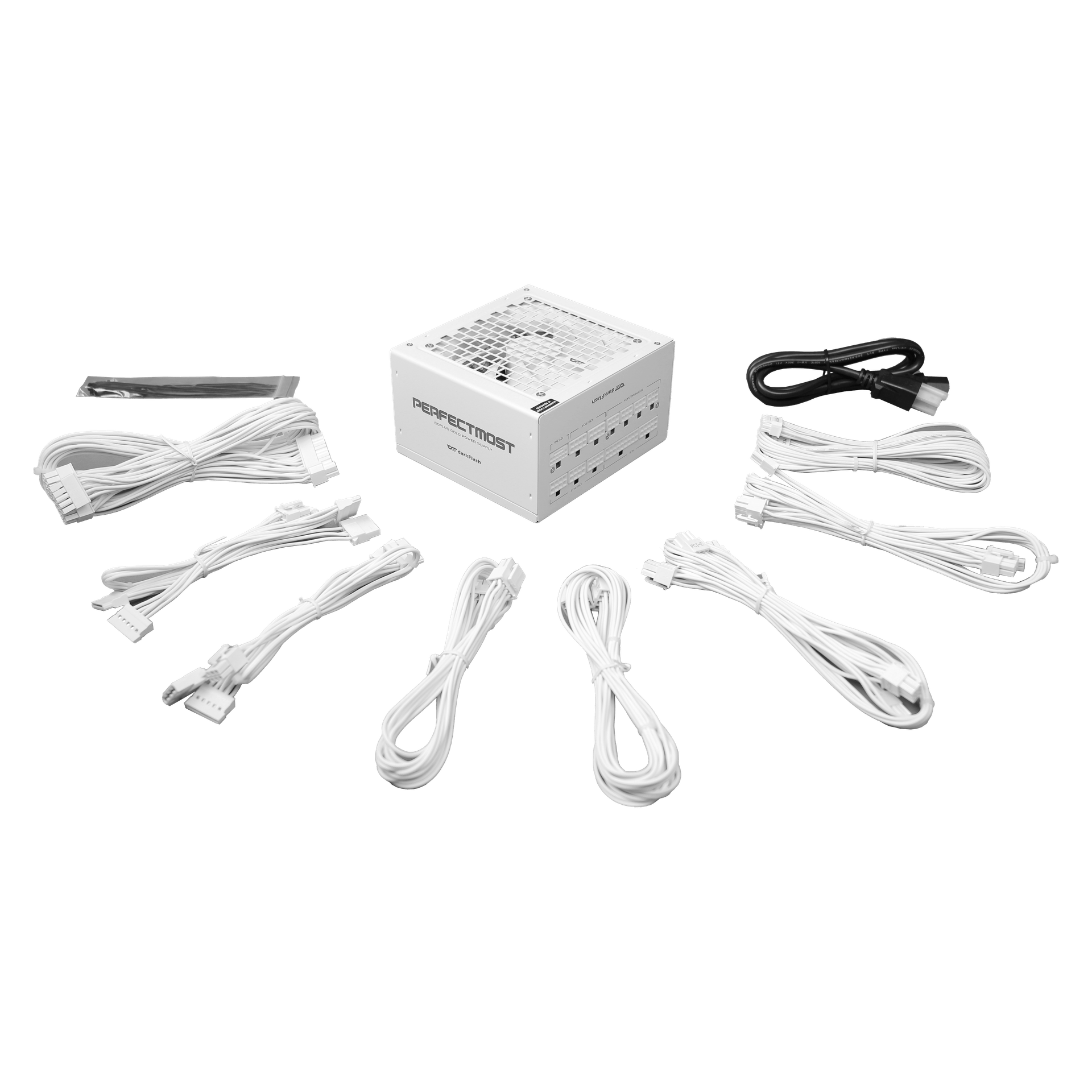

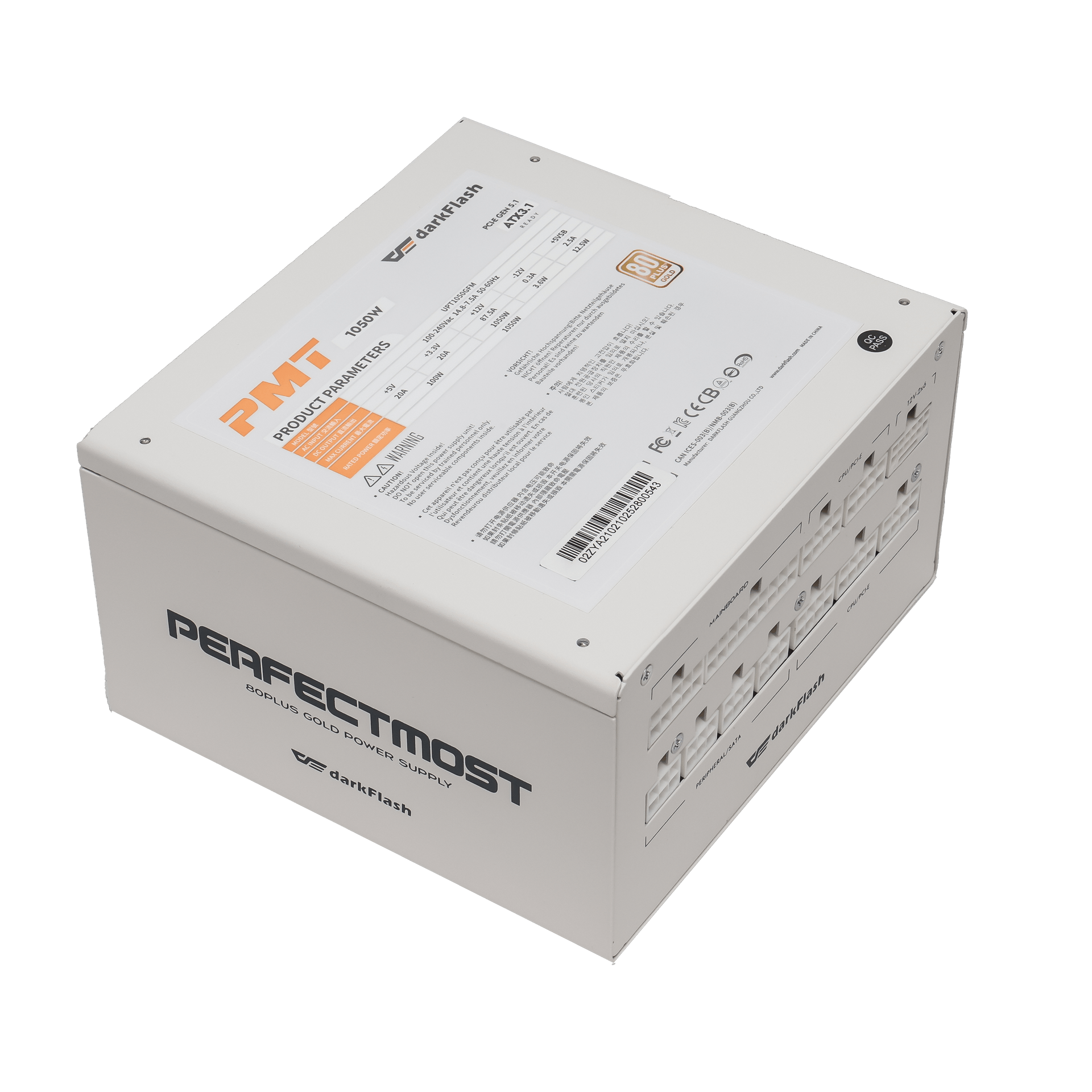

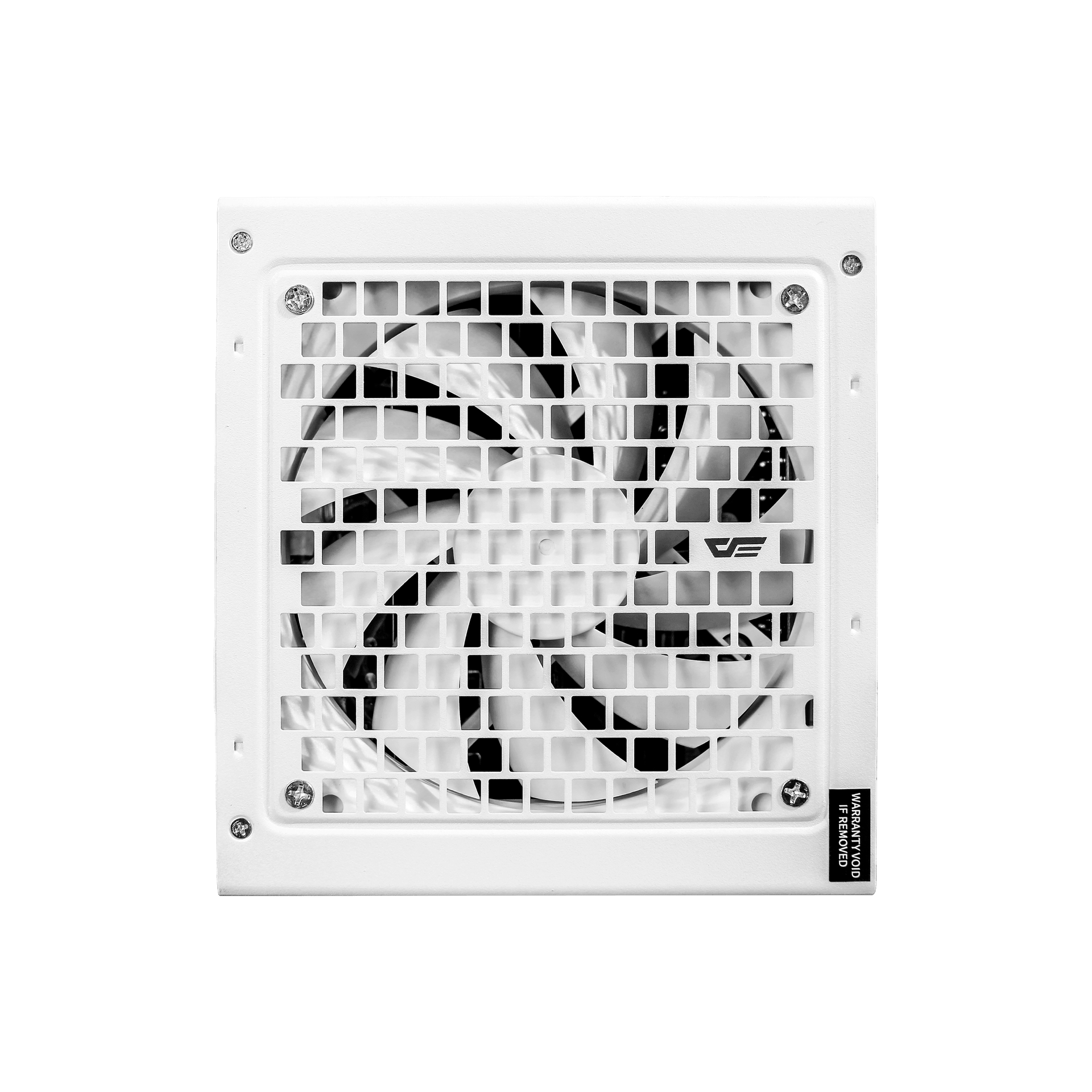

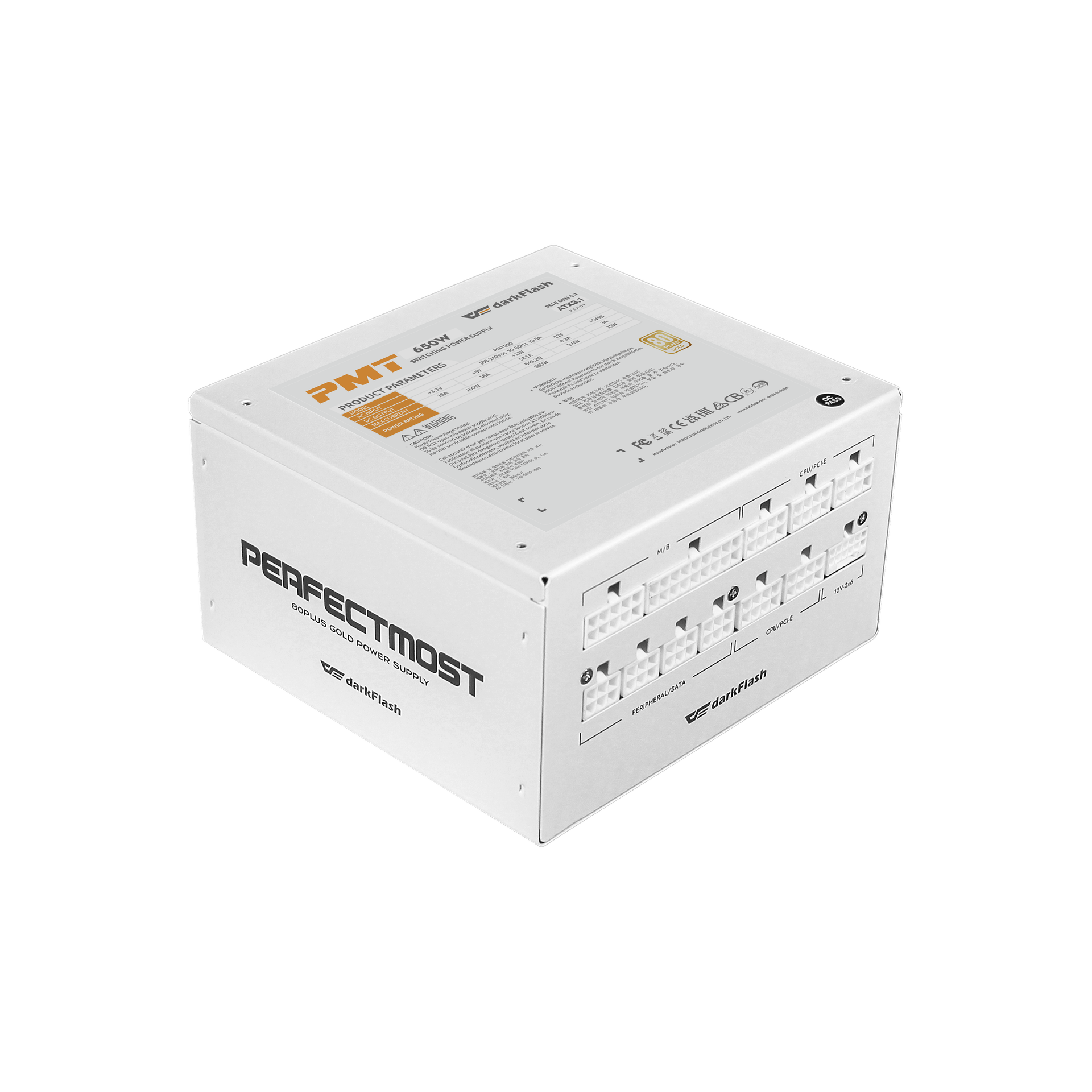

Product Galleries
