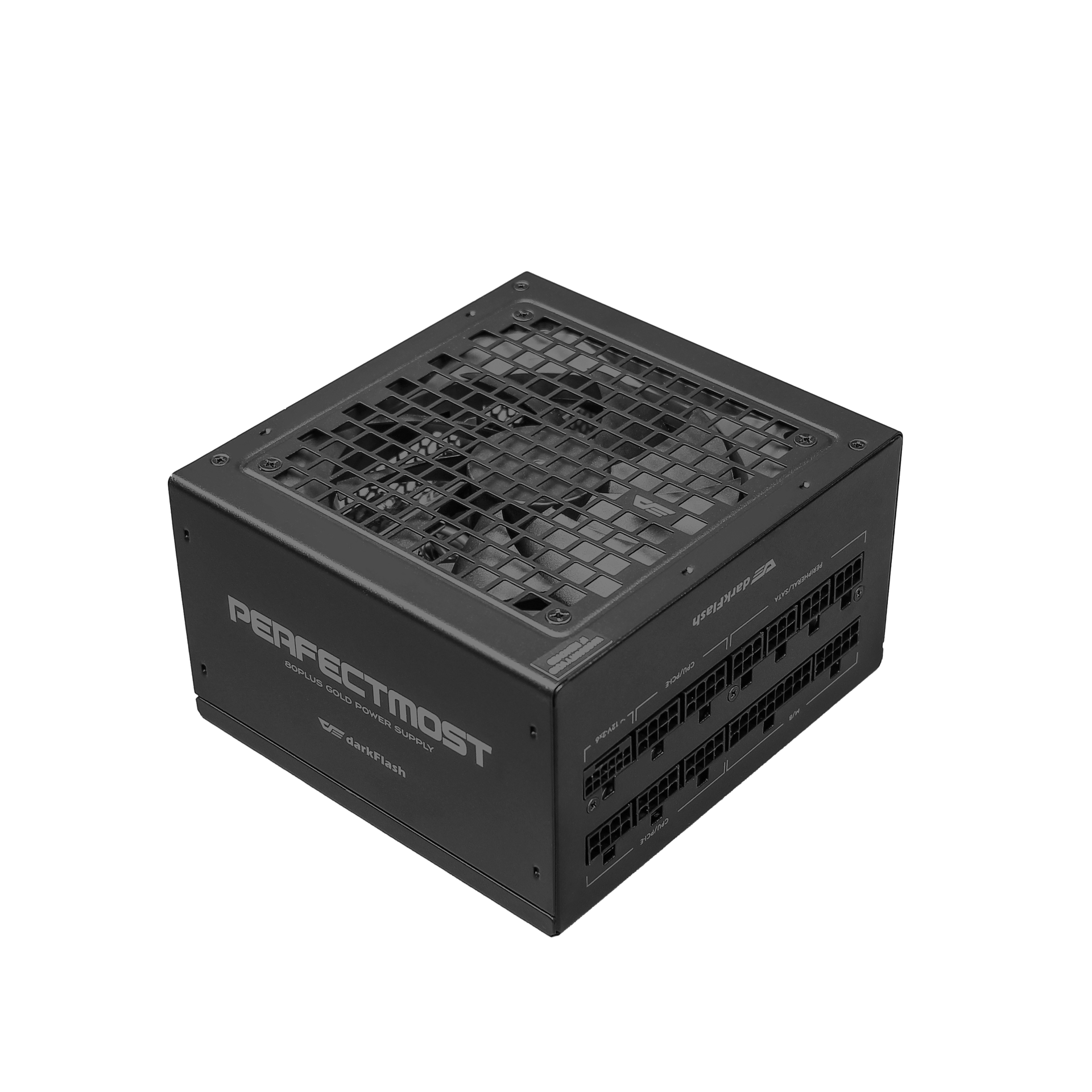

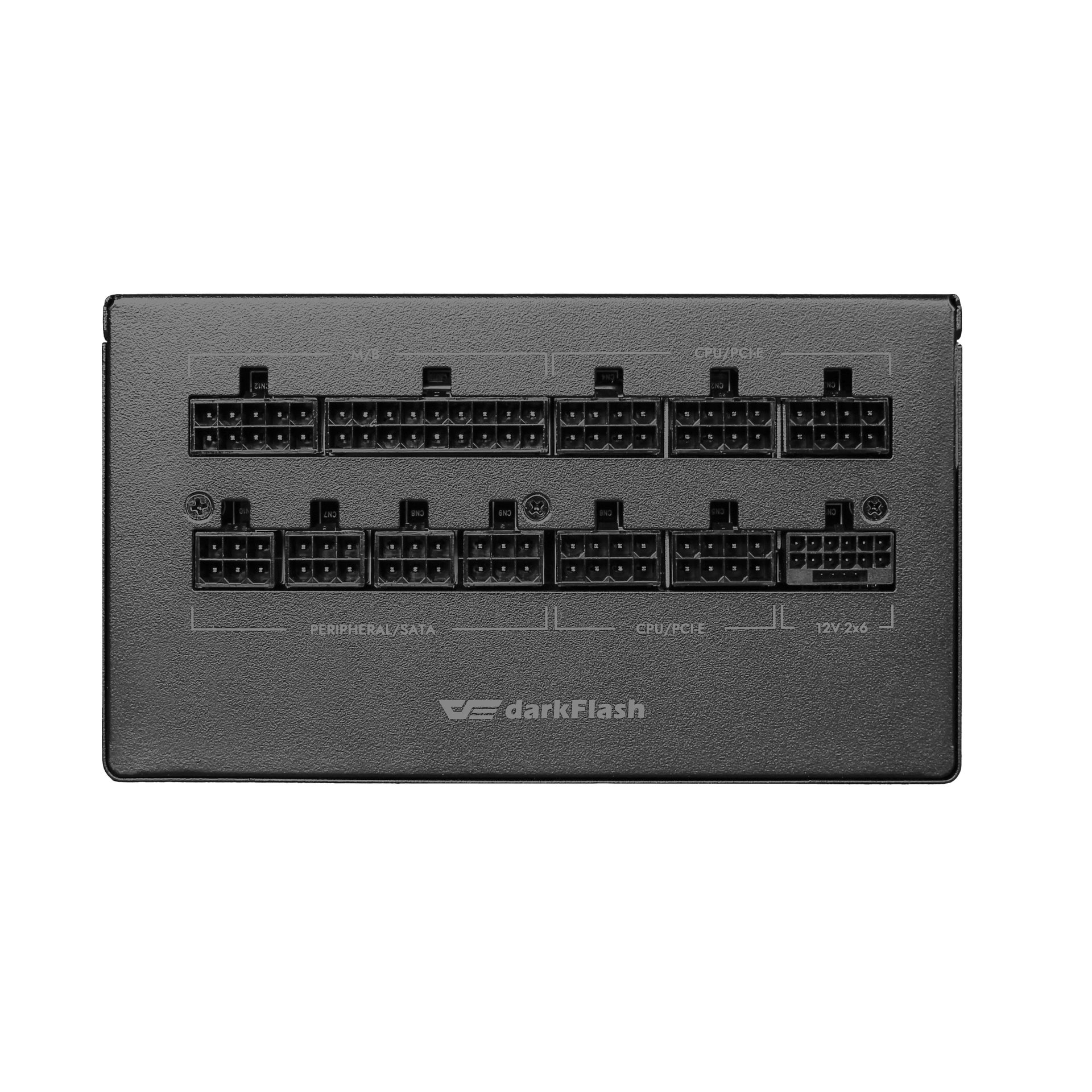

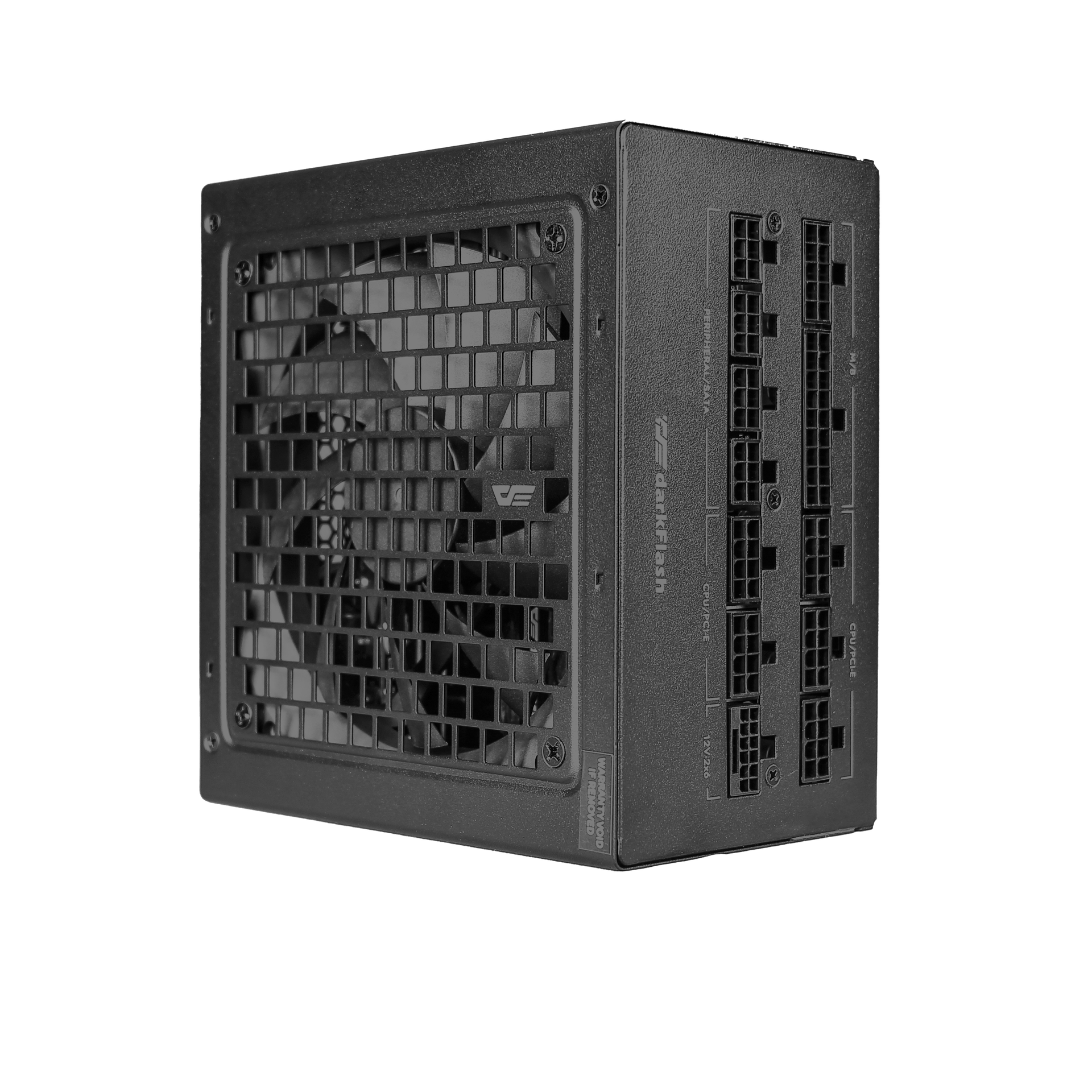

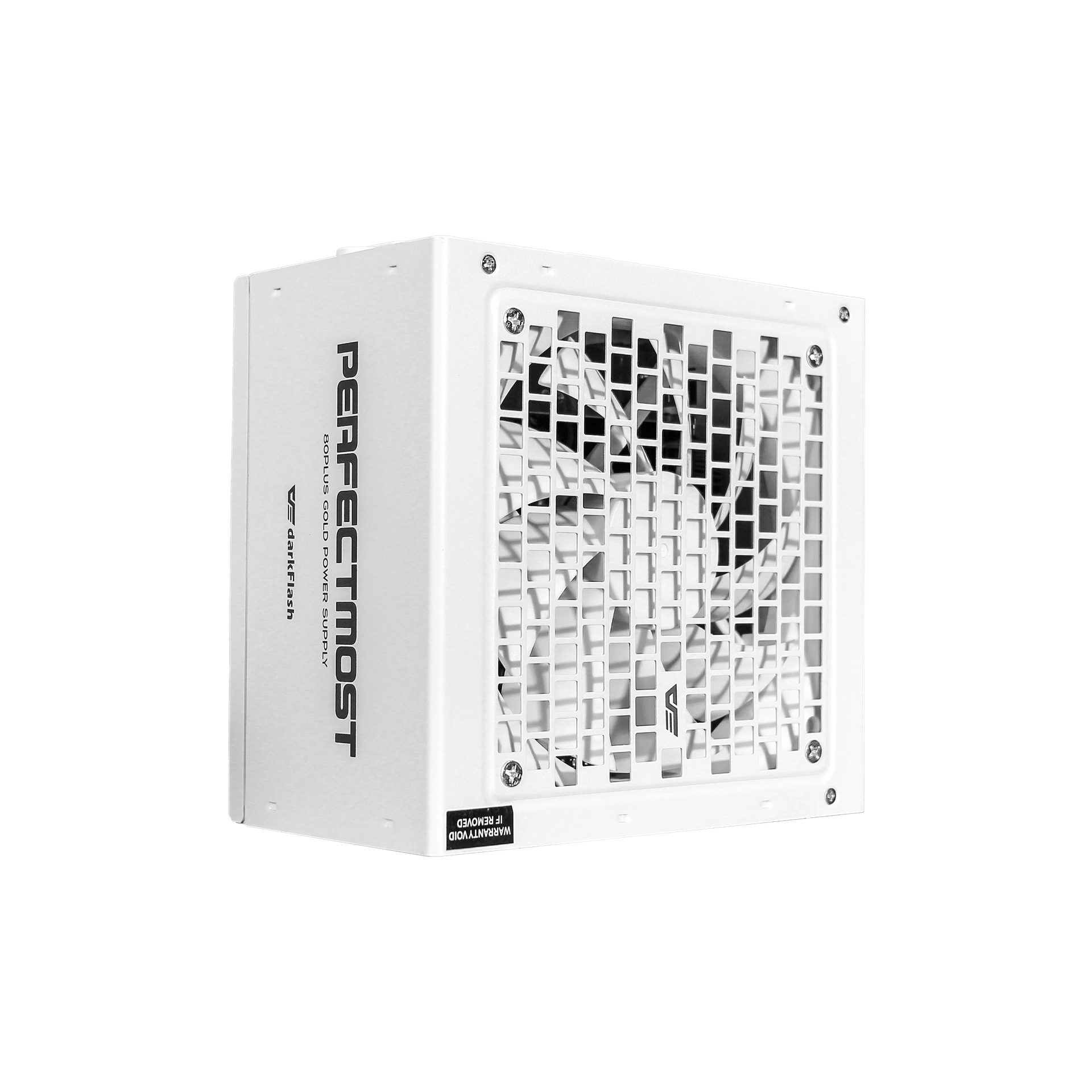

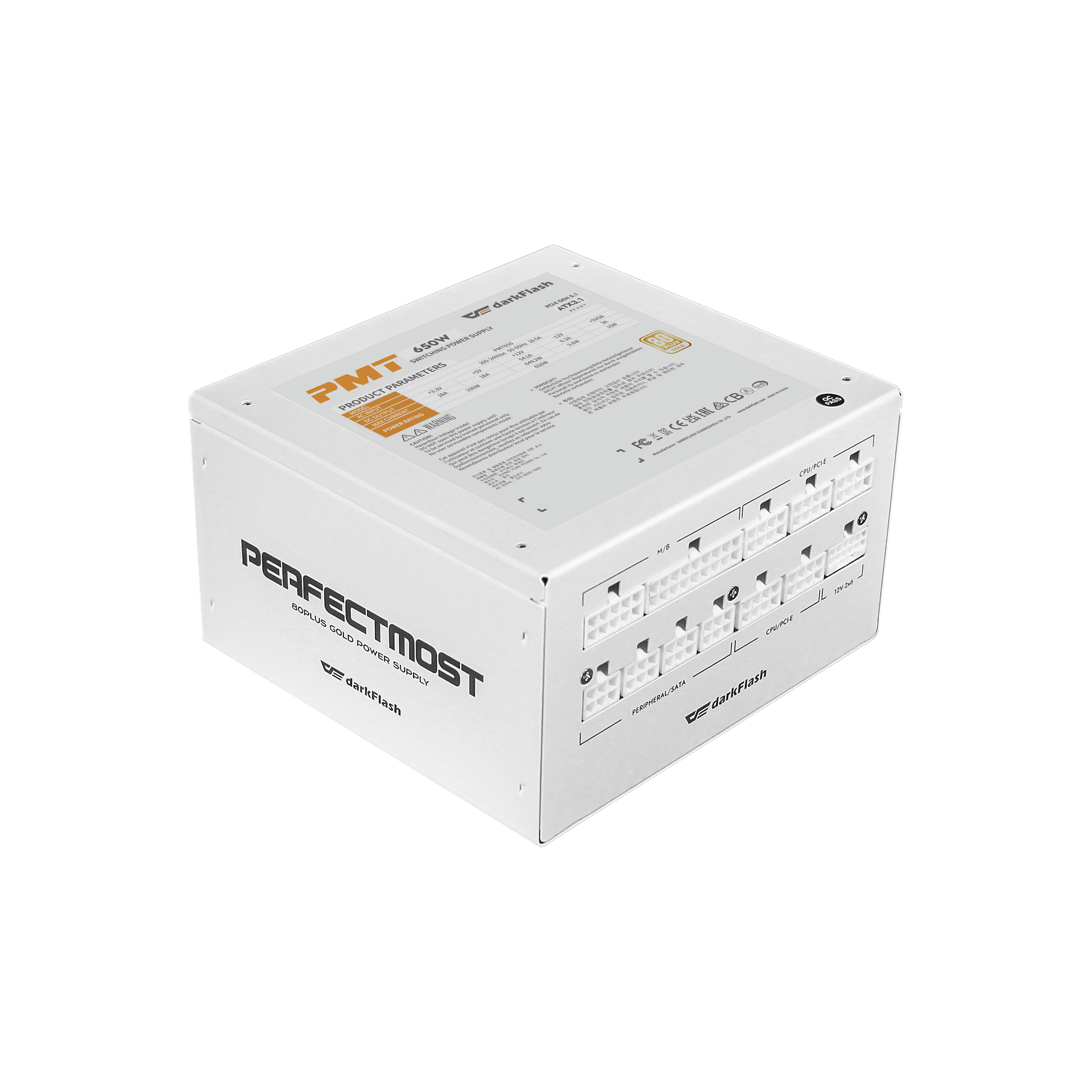

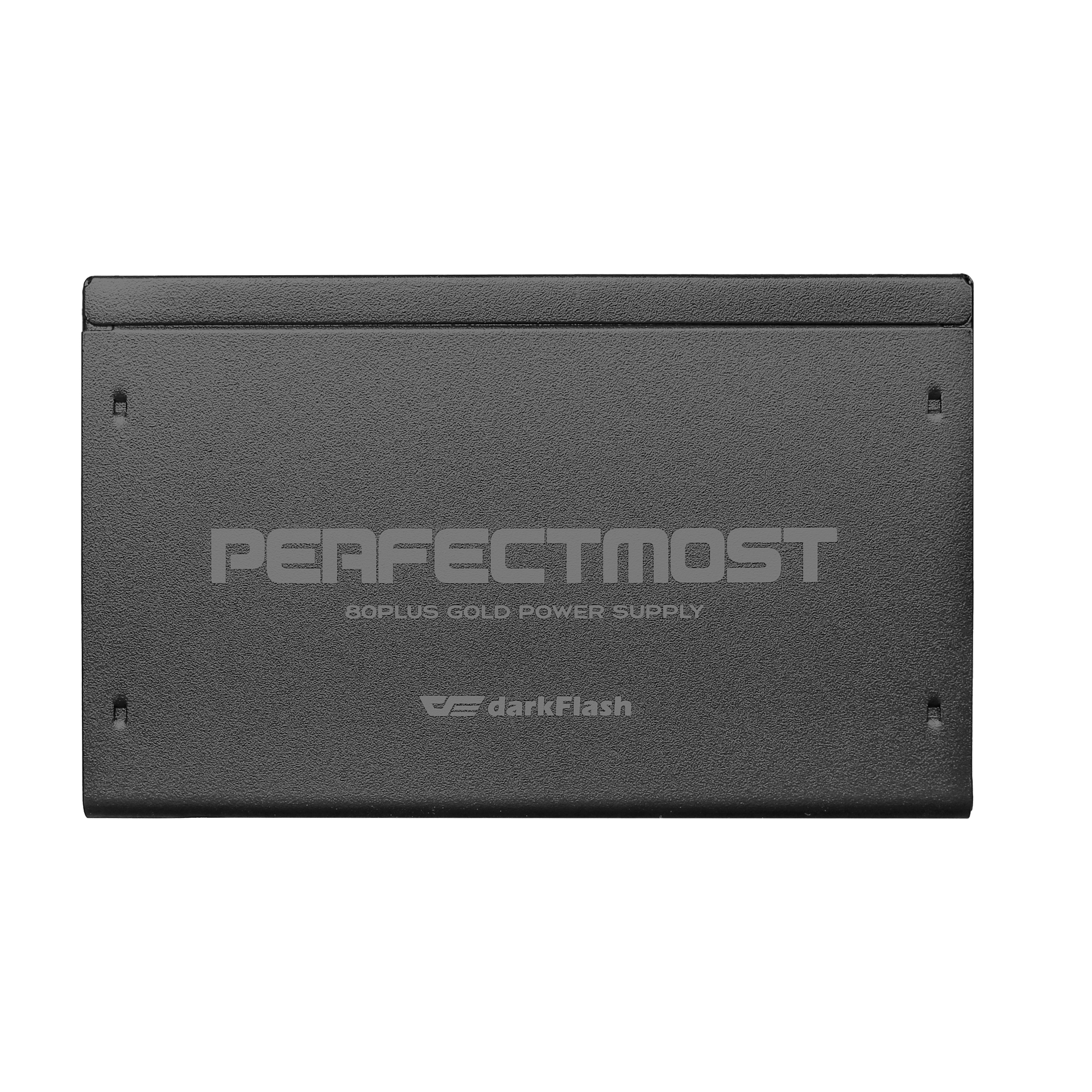

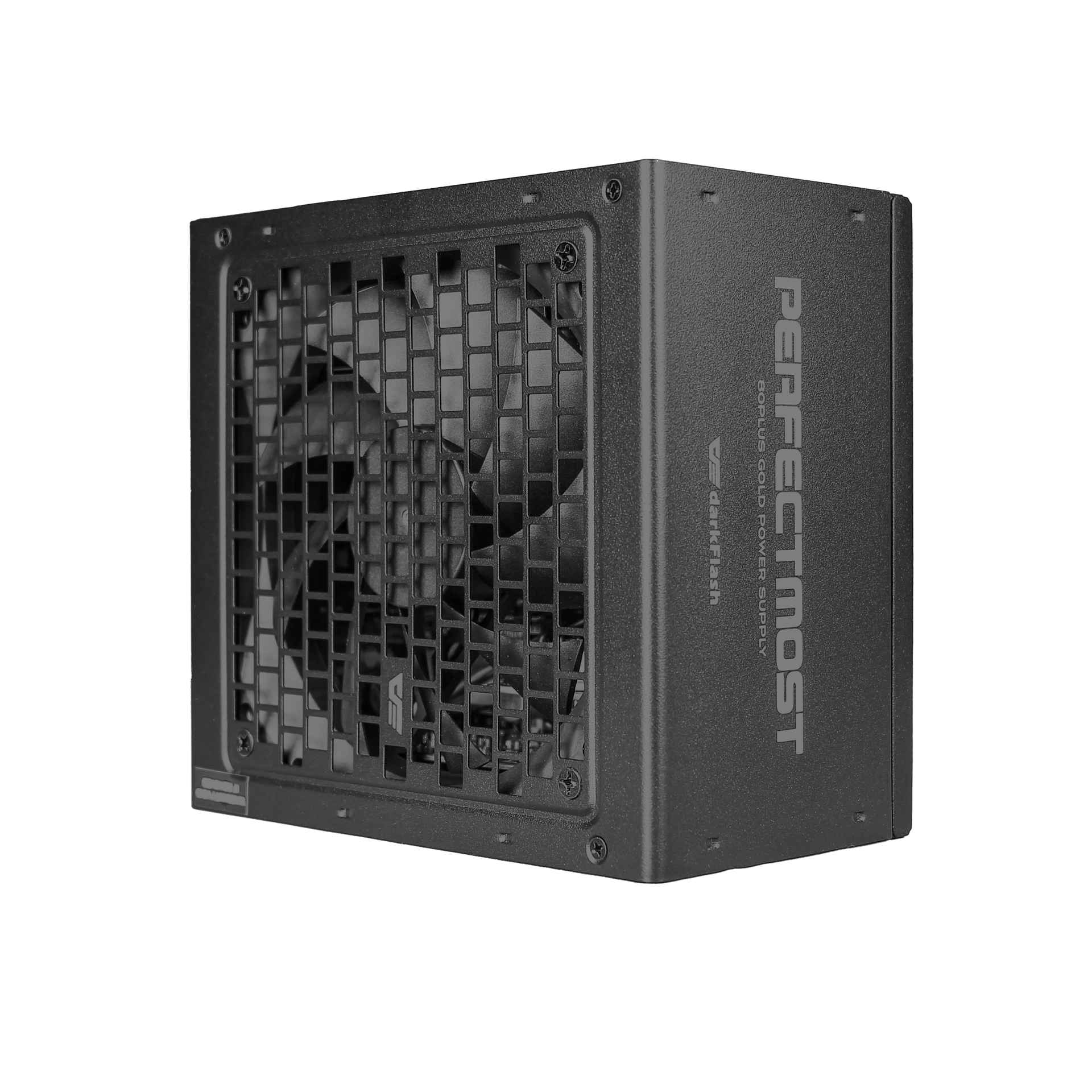

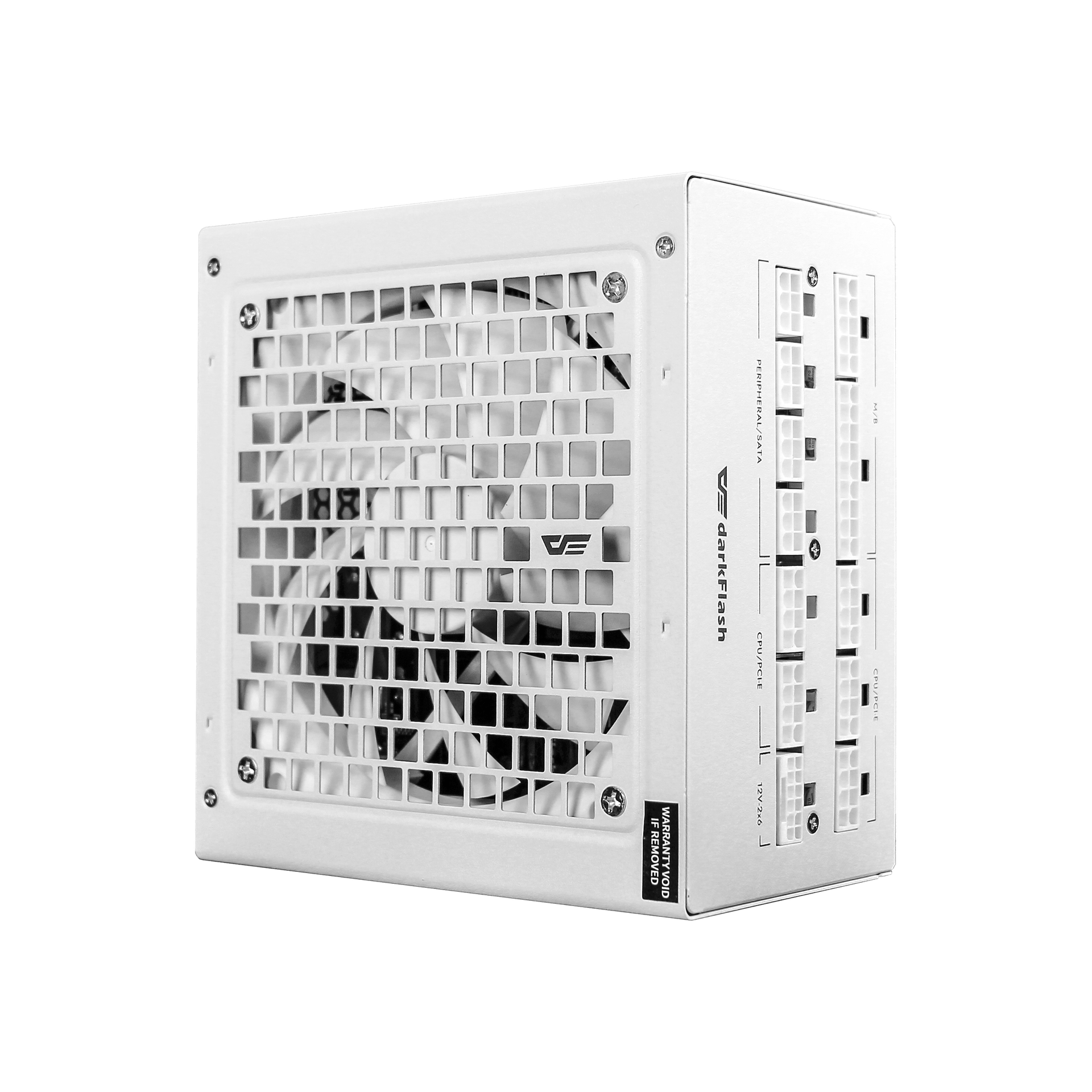

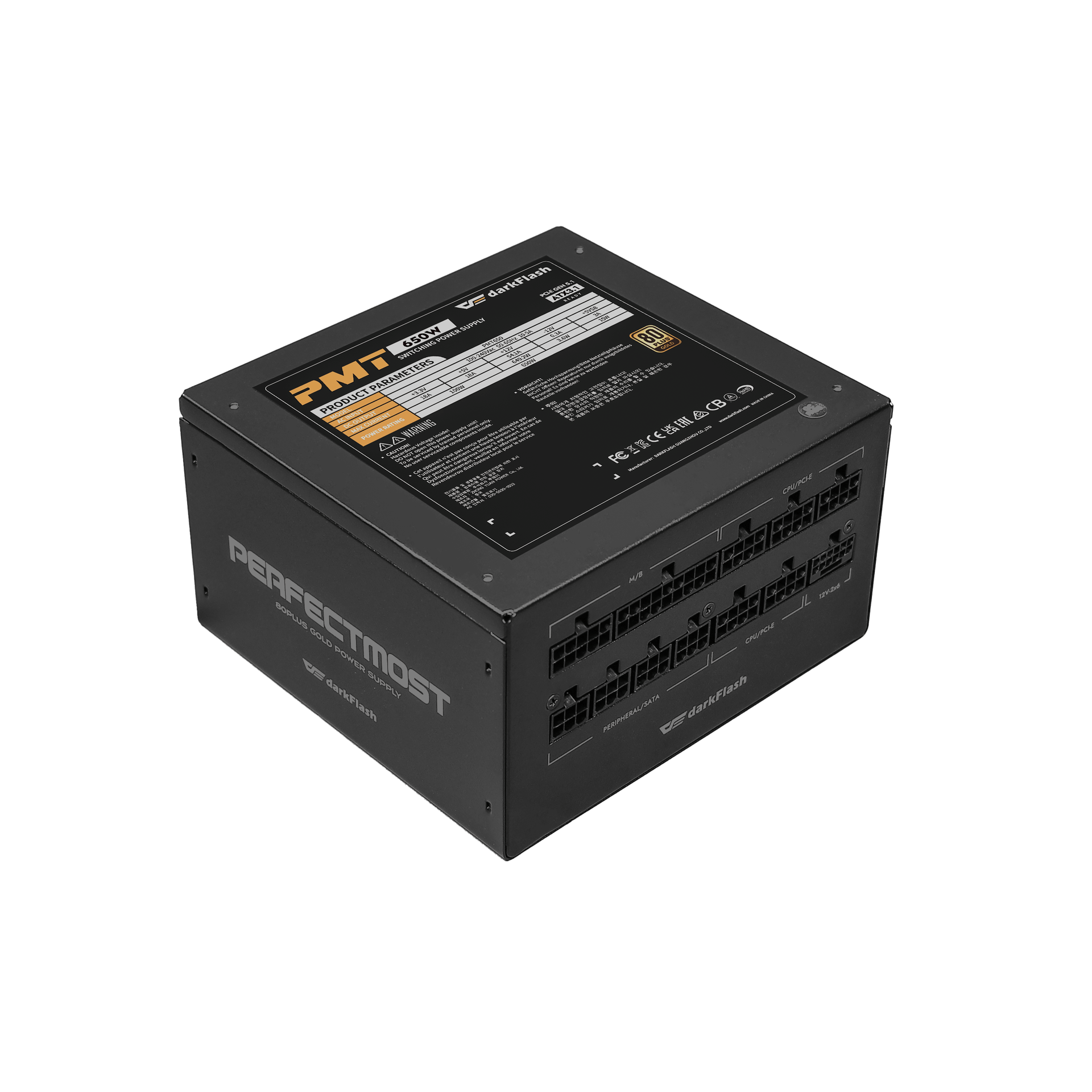

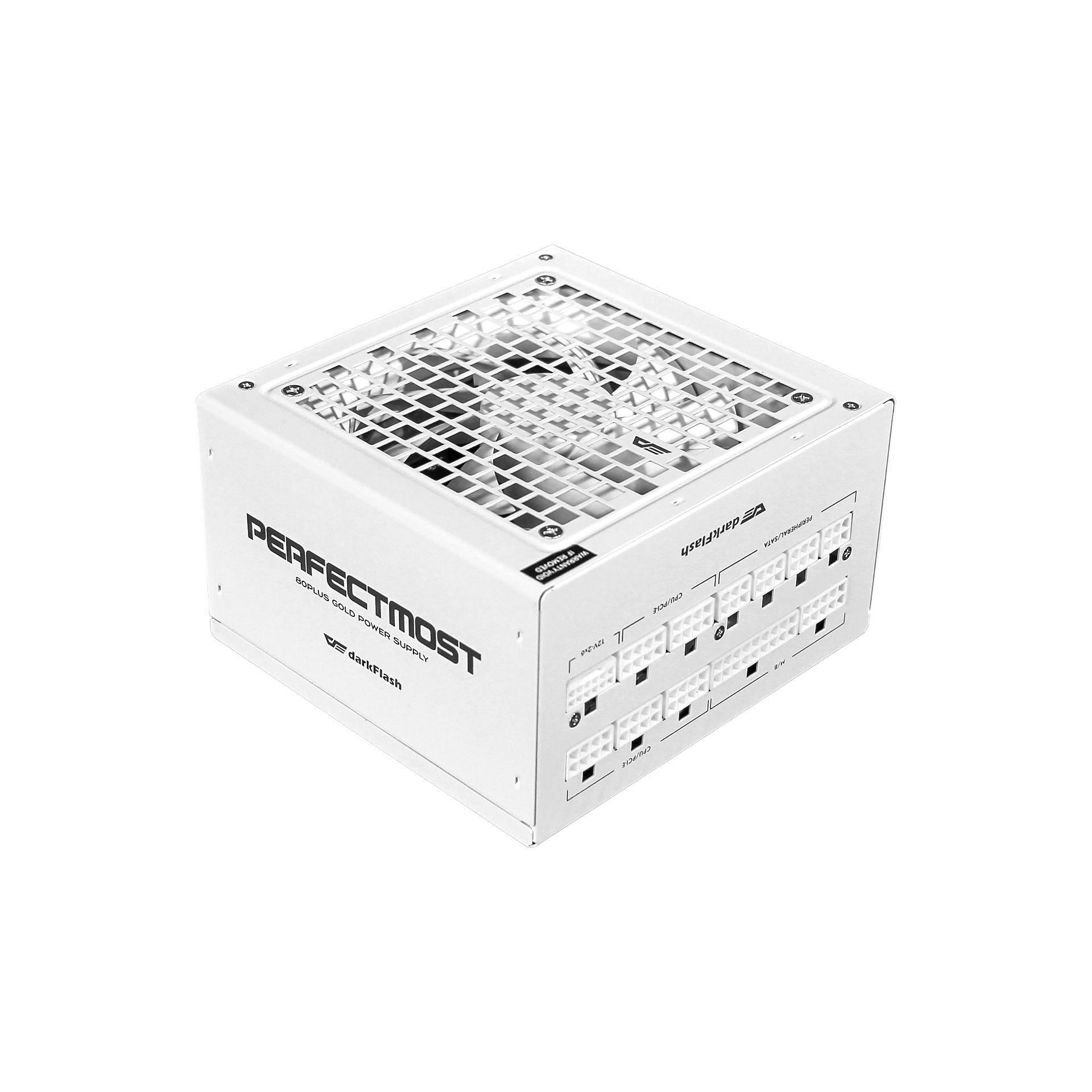

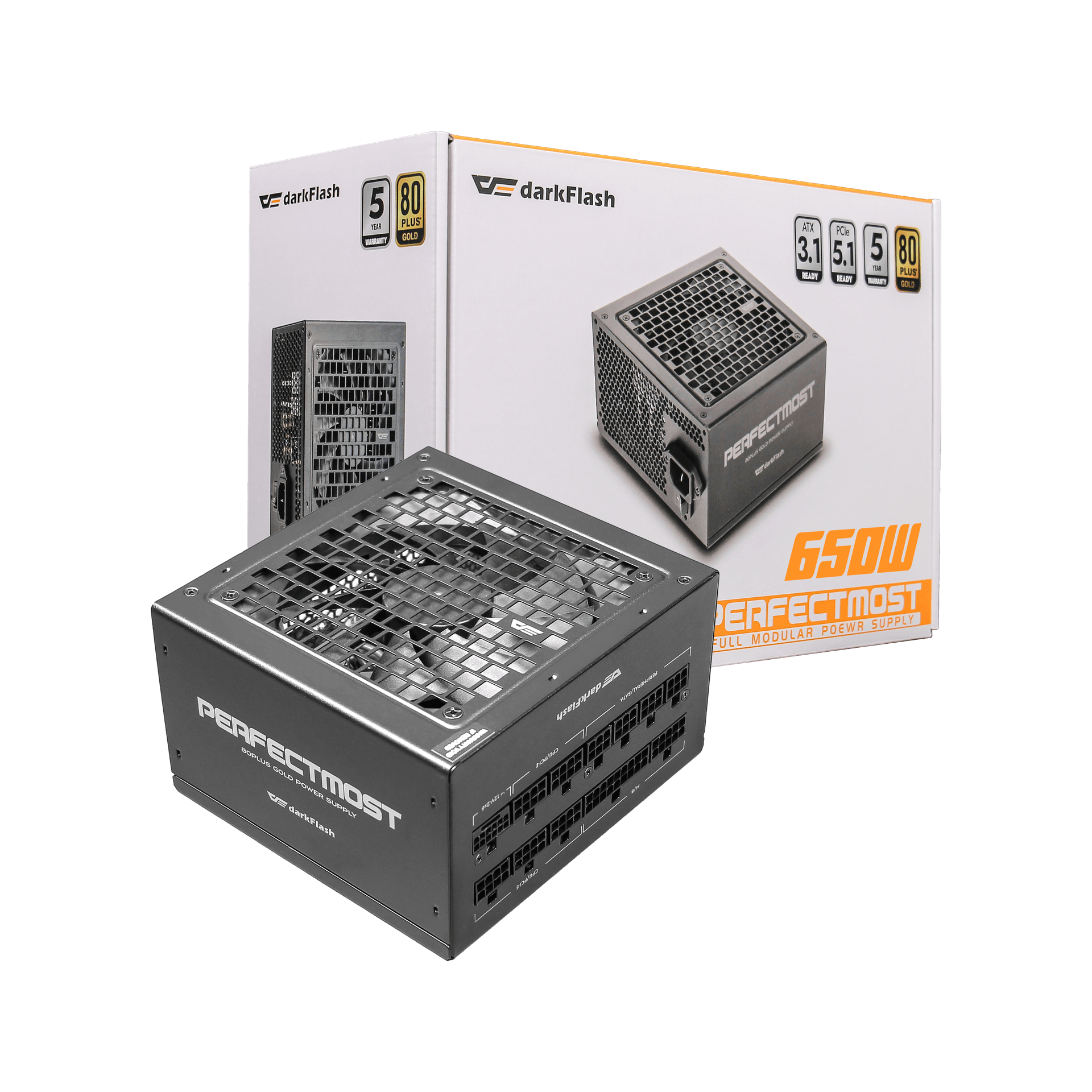

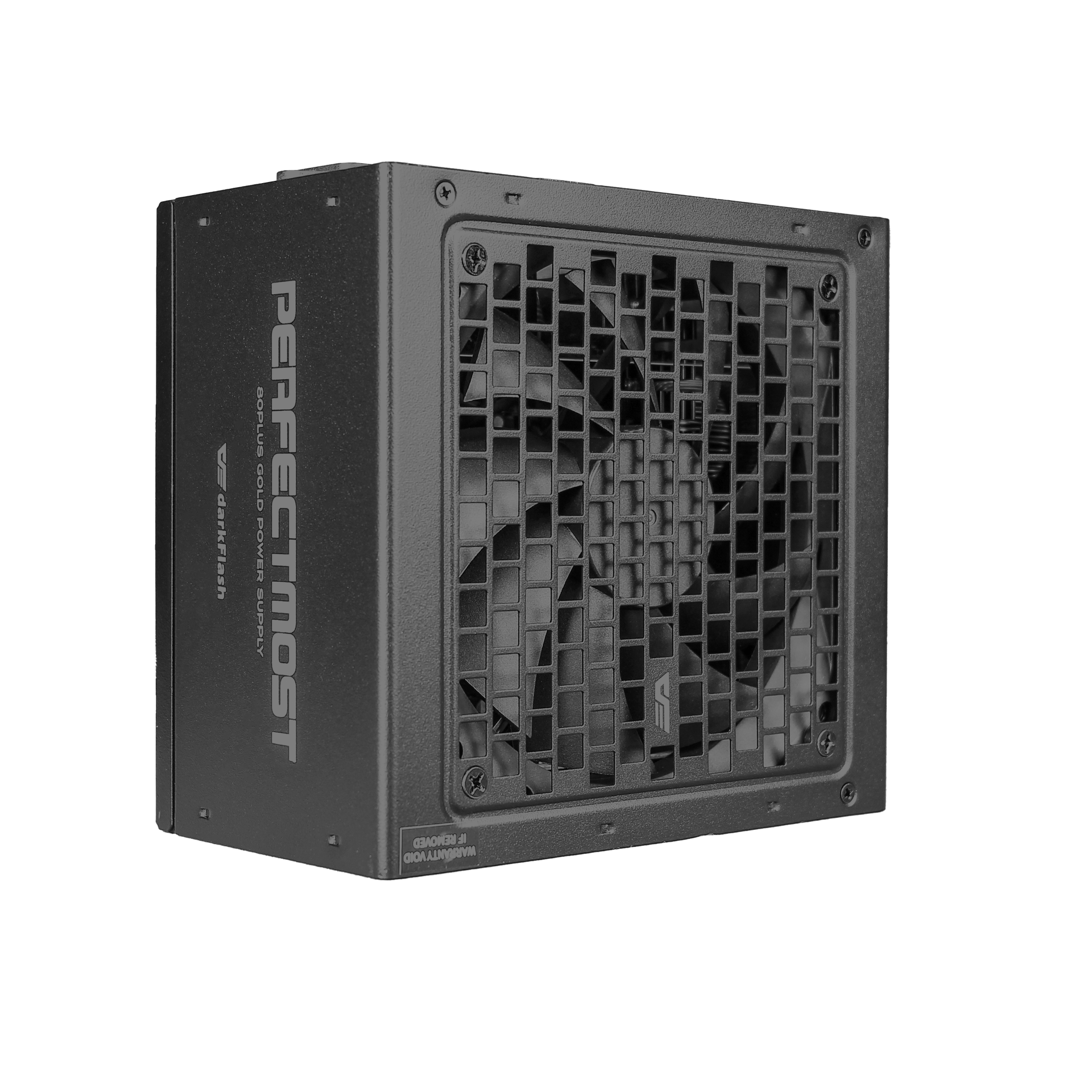

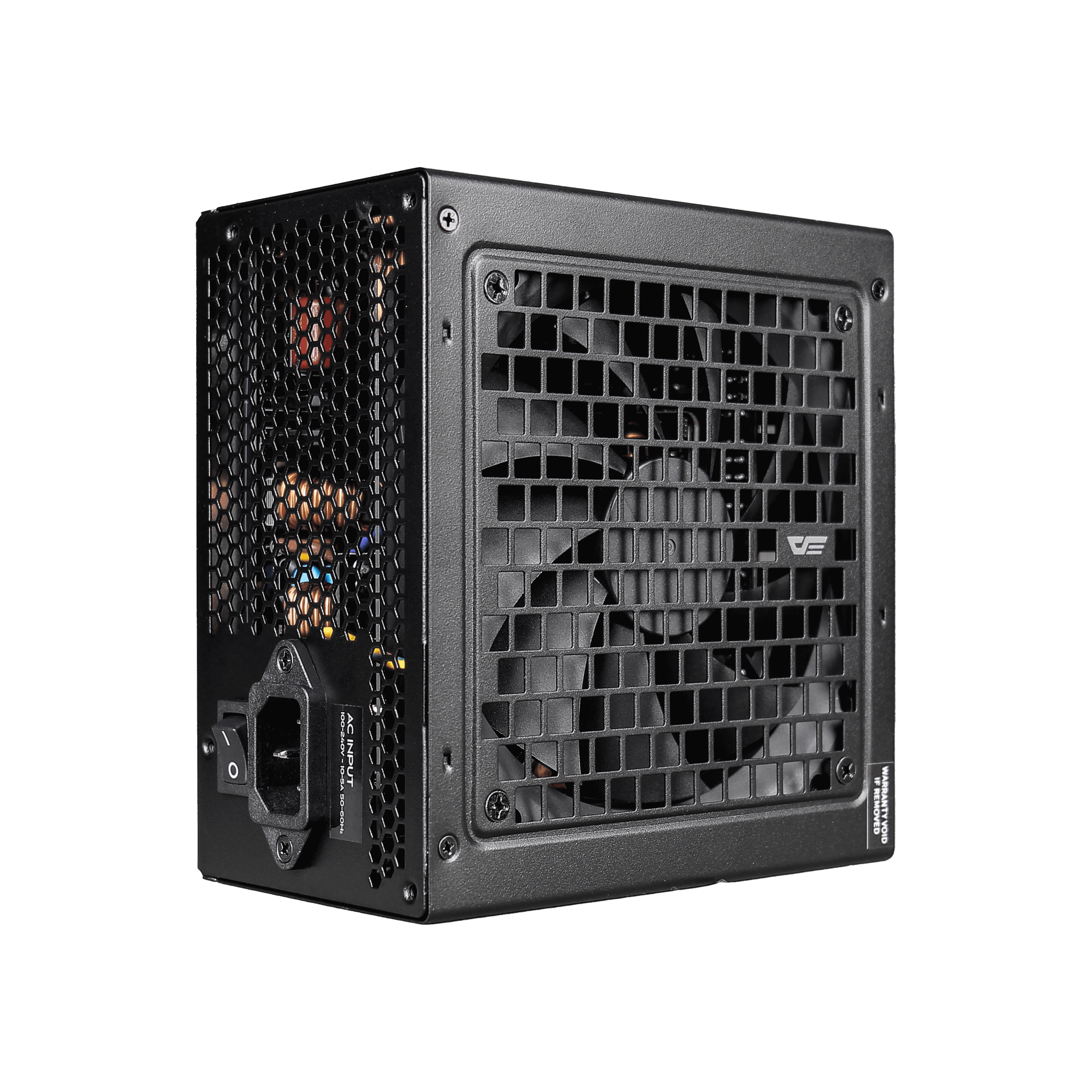

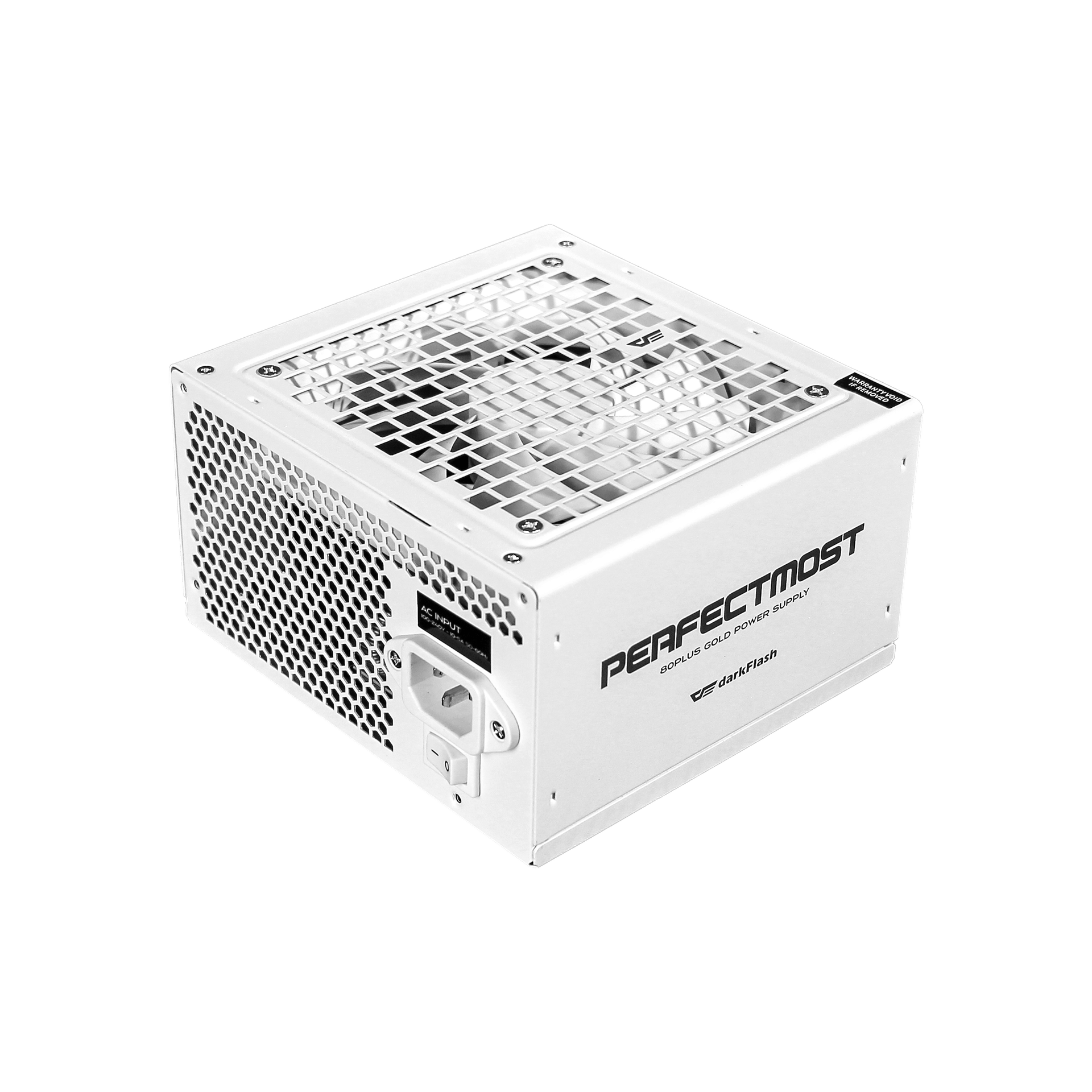

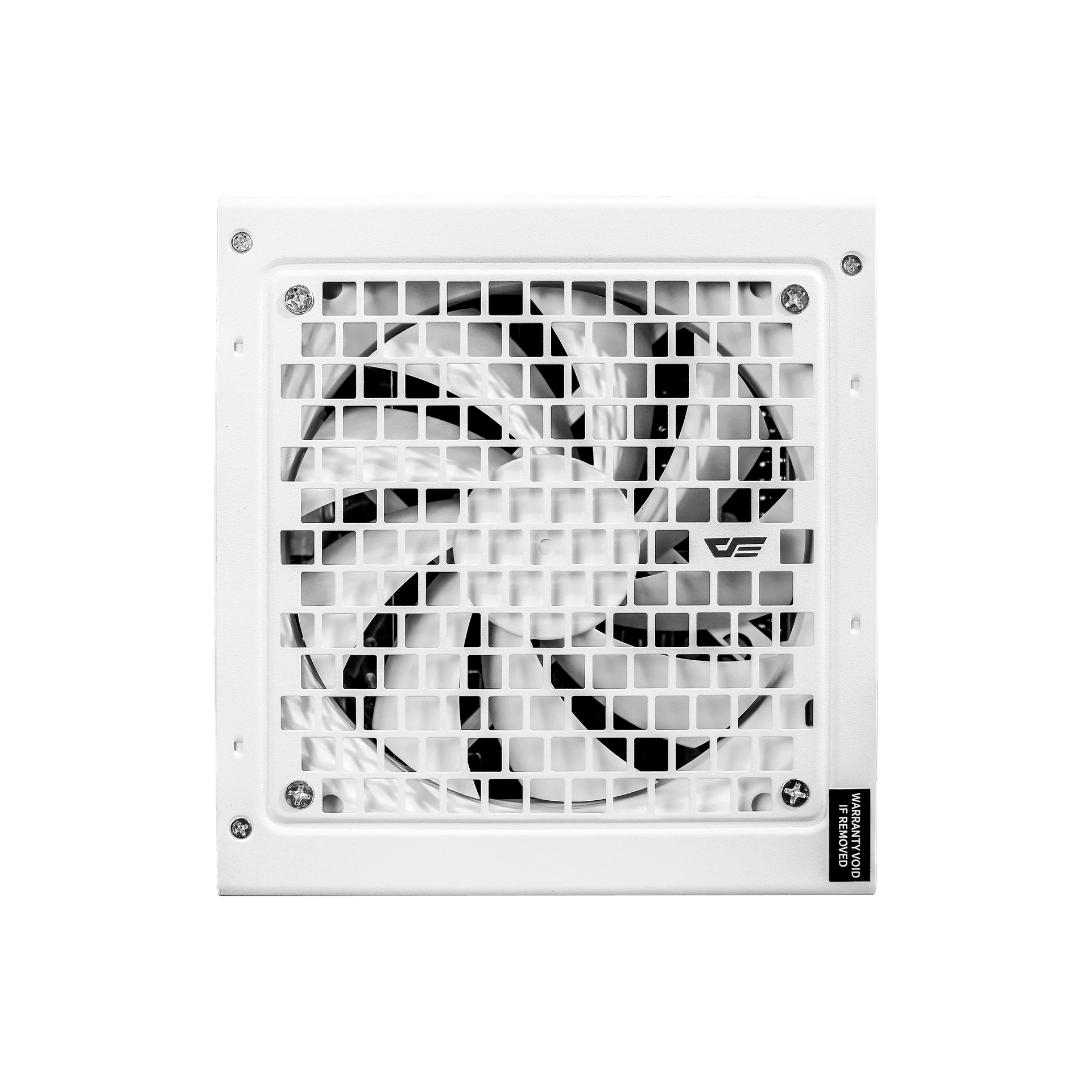

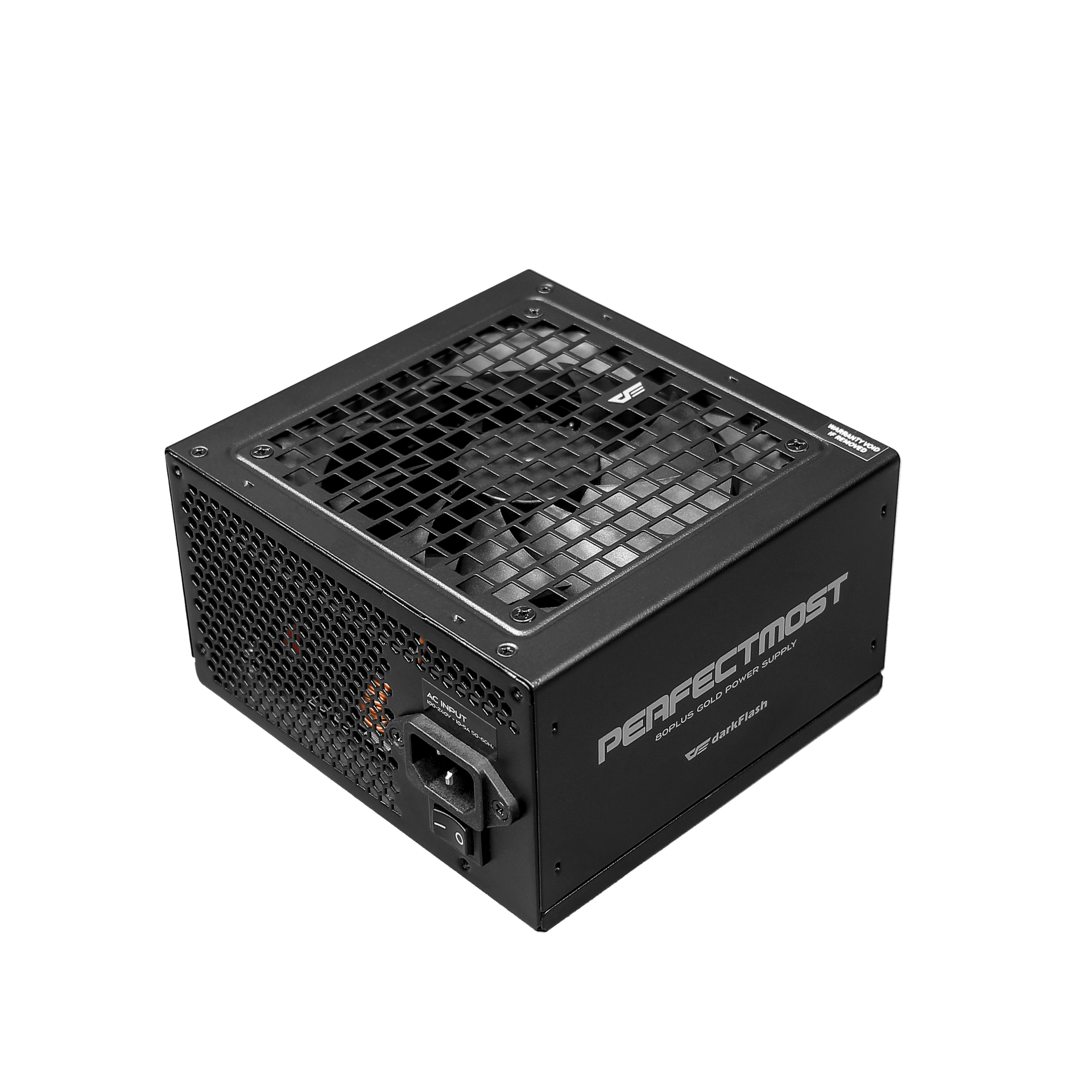

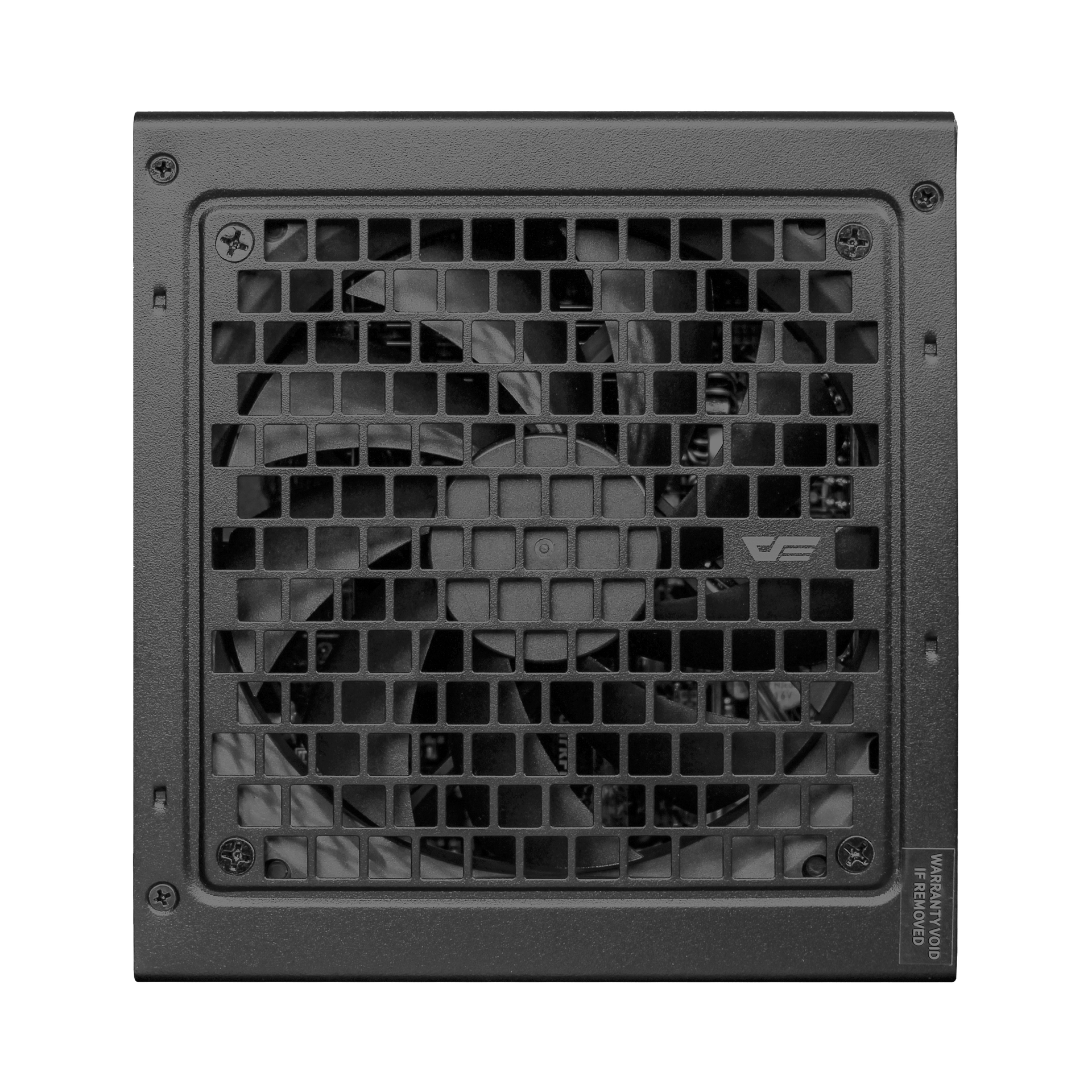

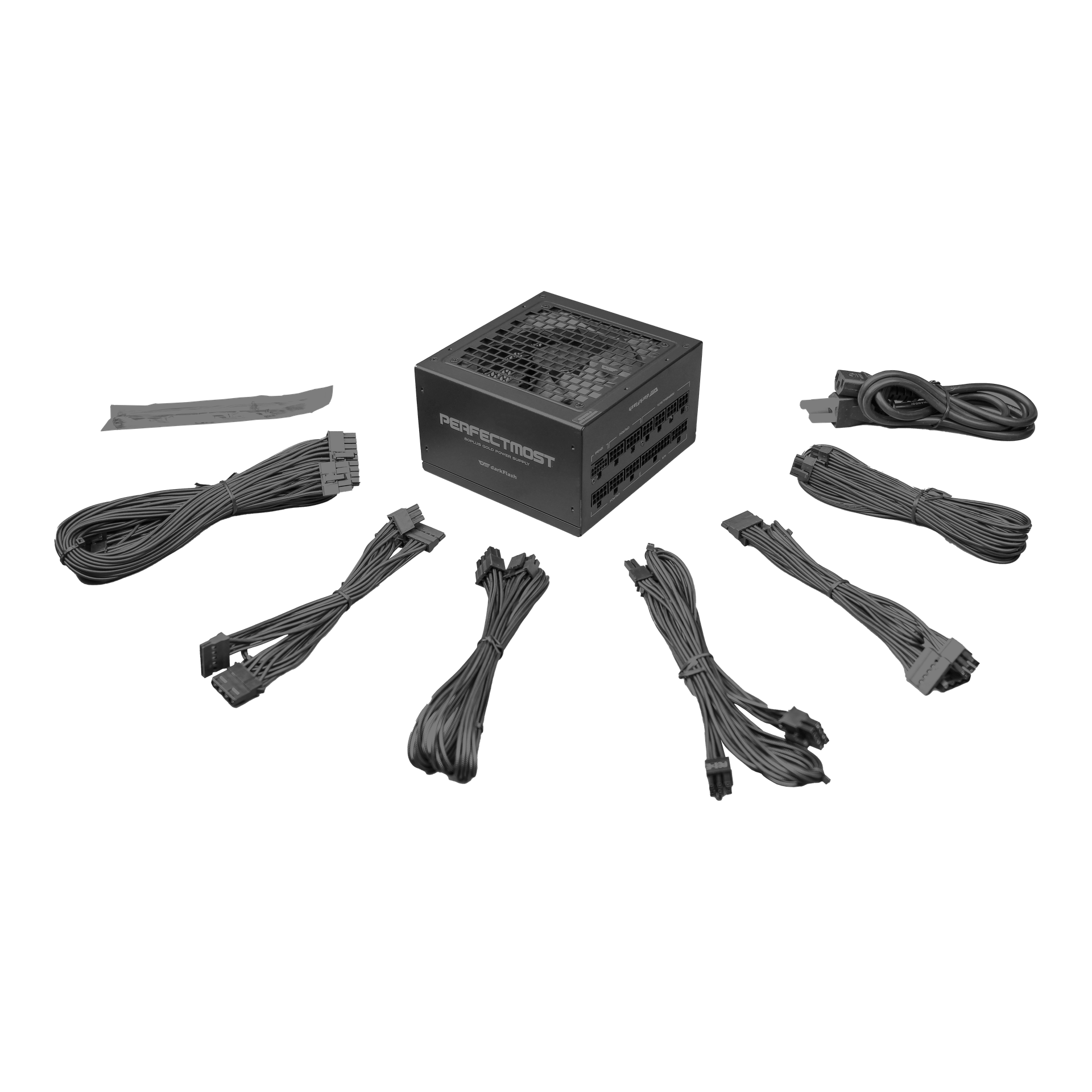

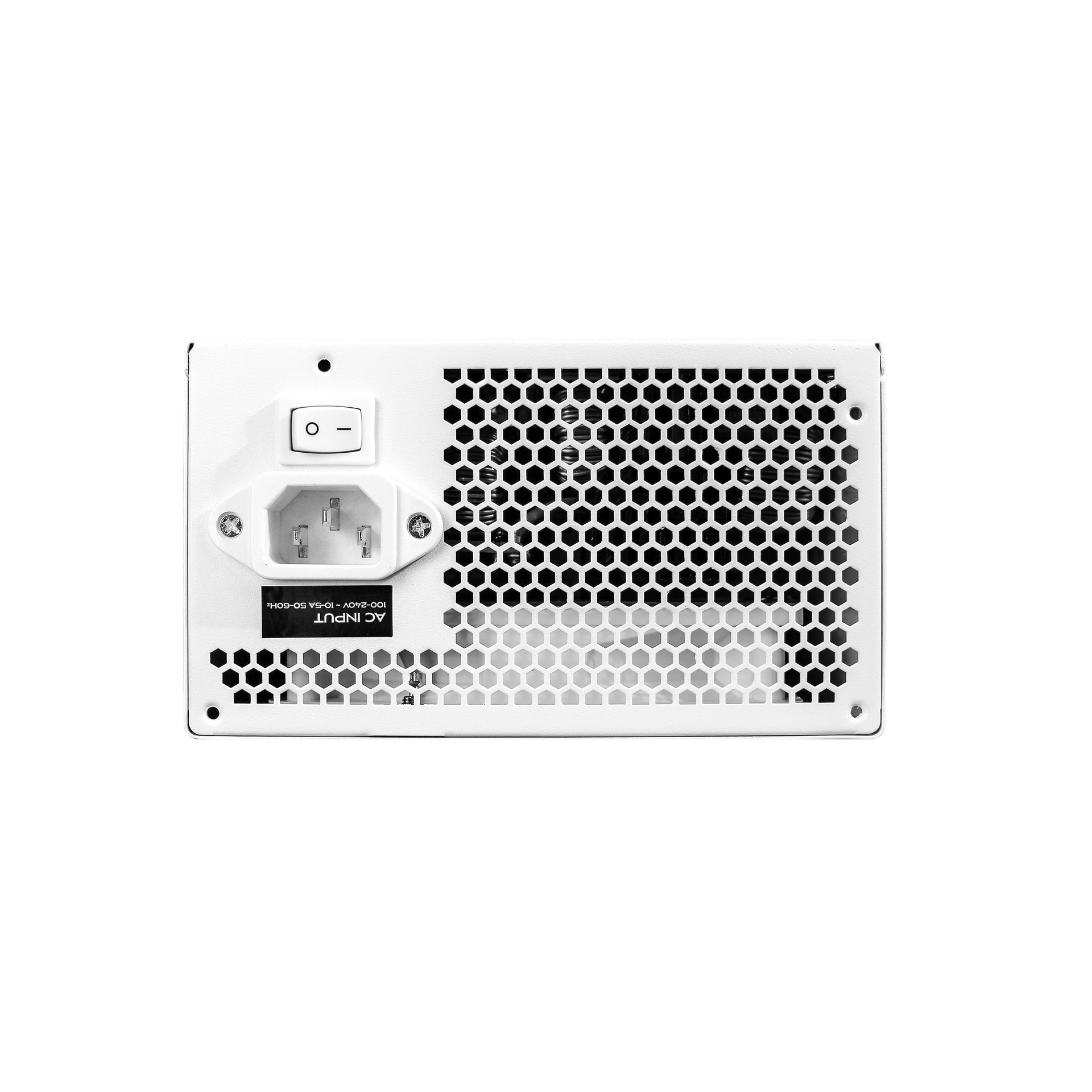

PMT 650 Gold Full Modular Power Supply

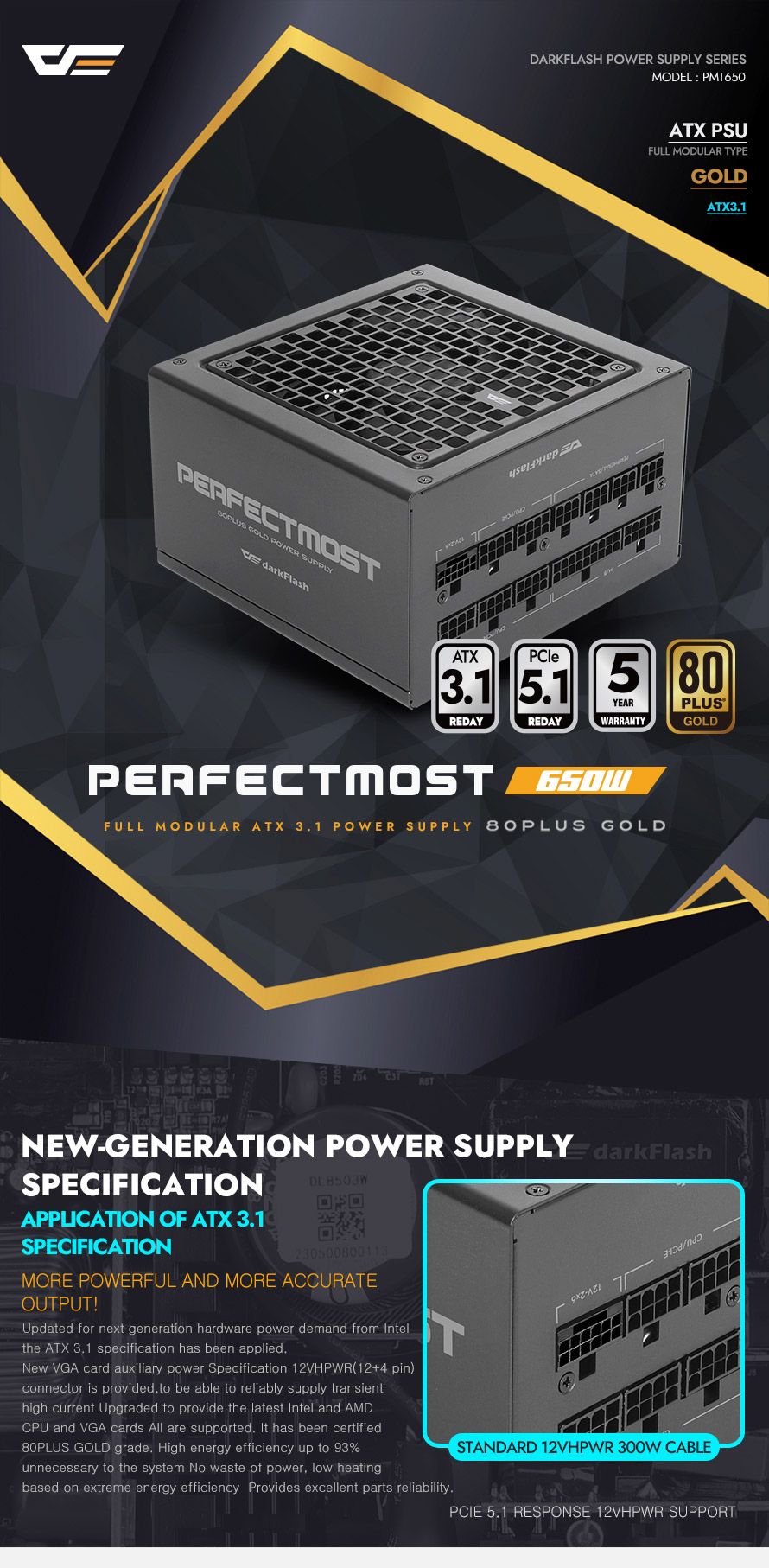

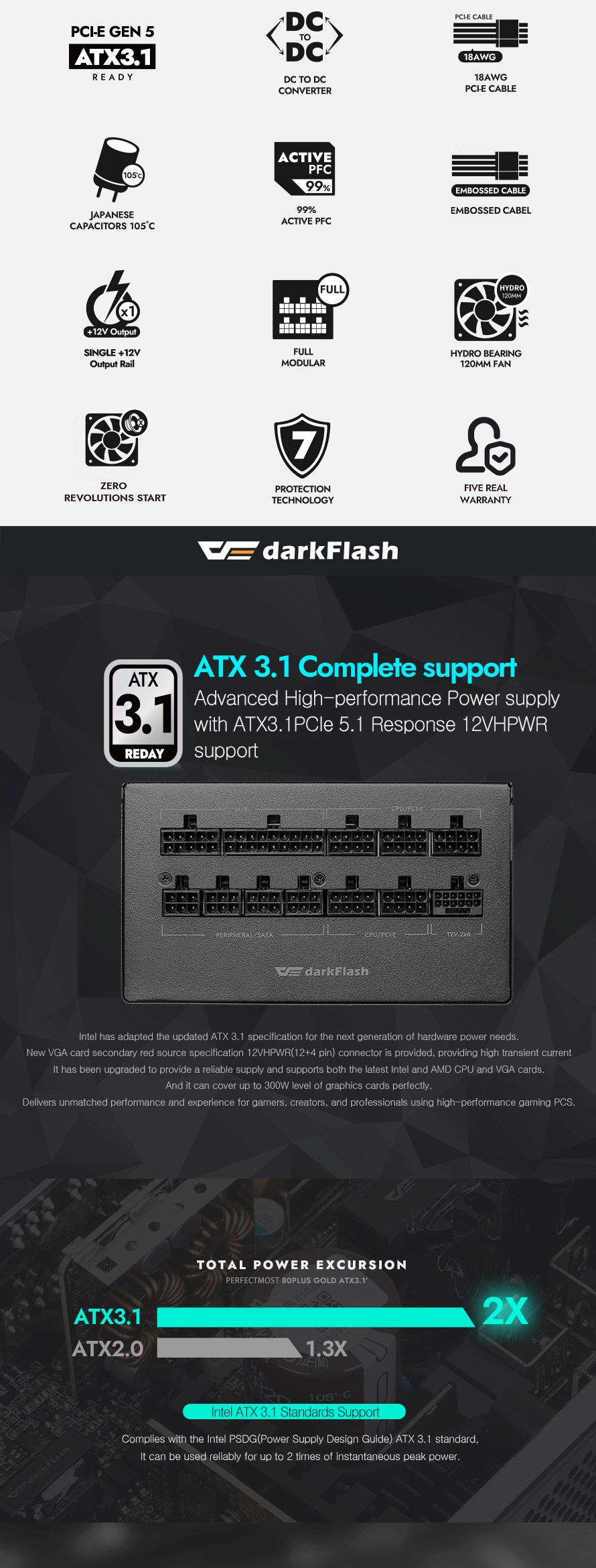

- APPLCATION OF ATX 3.1 SPECIFICATION

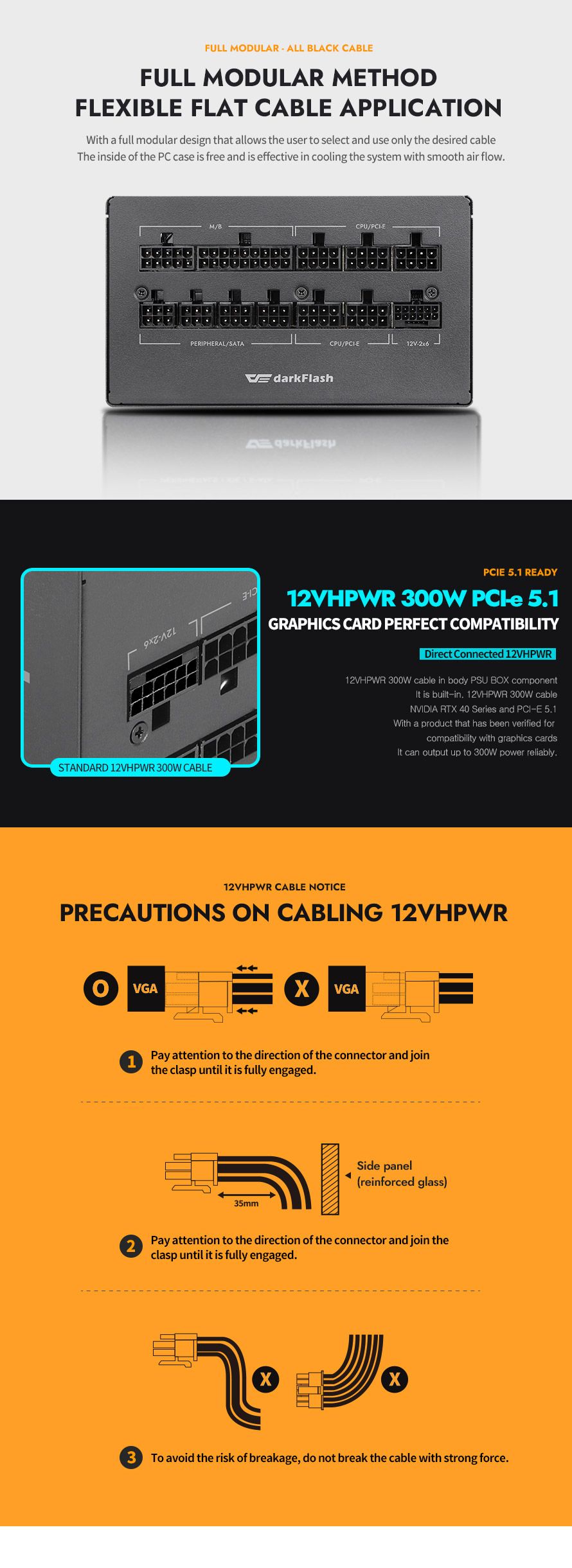

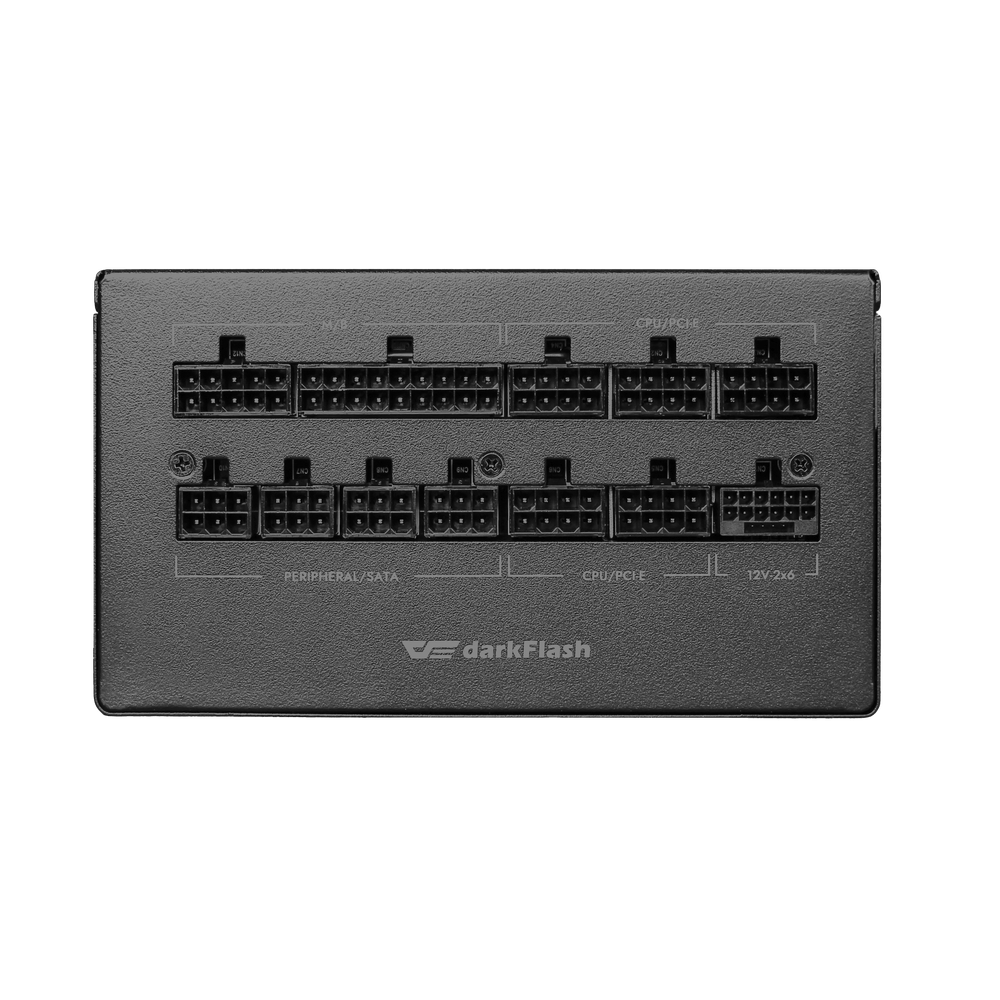

- Direct Connected 12VHPWR, High-quality 16-pin 300W
- 8OPLUS GOLD CERTIFICATION
- HIGH EFFICIENCY UP TO 9O.5% AND ABOVE

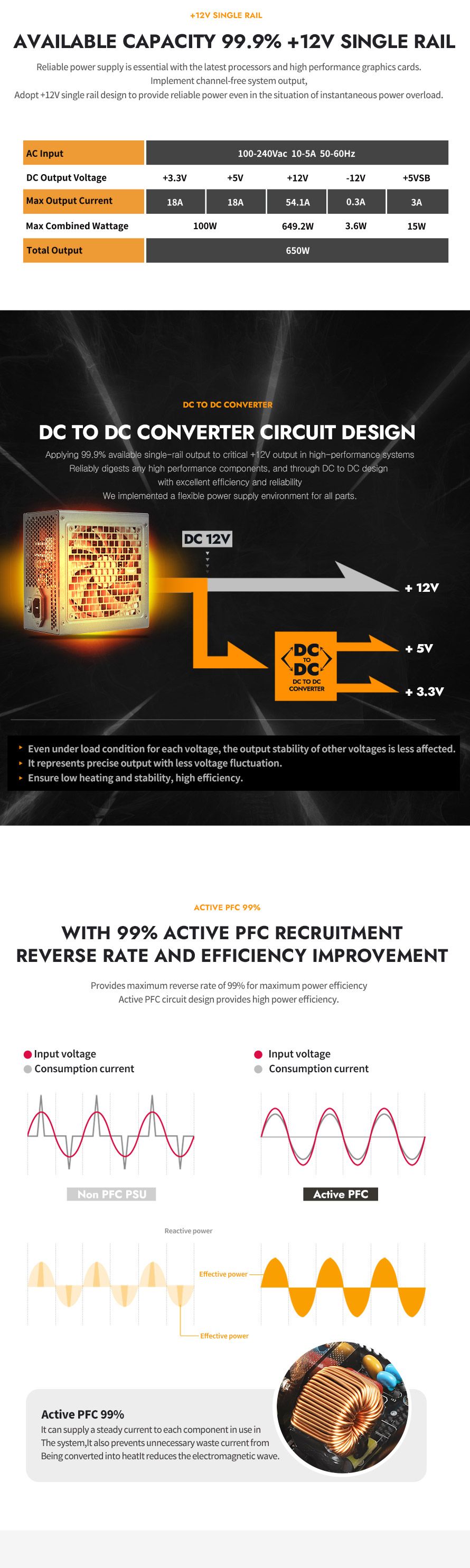

- AVAILABLE CAPACITY 99.9% +12V SINGLE RAIL
- DC TO DC CONVERTER CIRCUIT DESIGN
Colors - Black

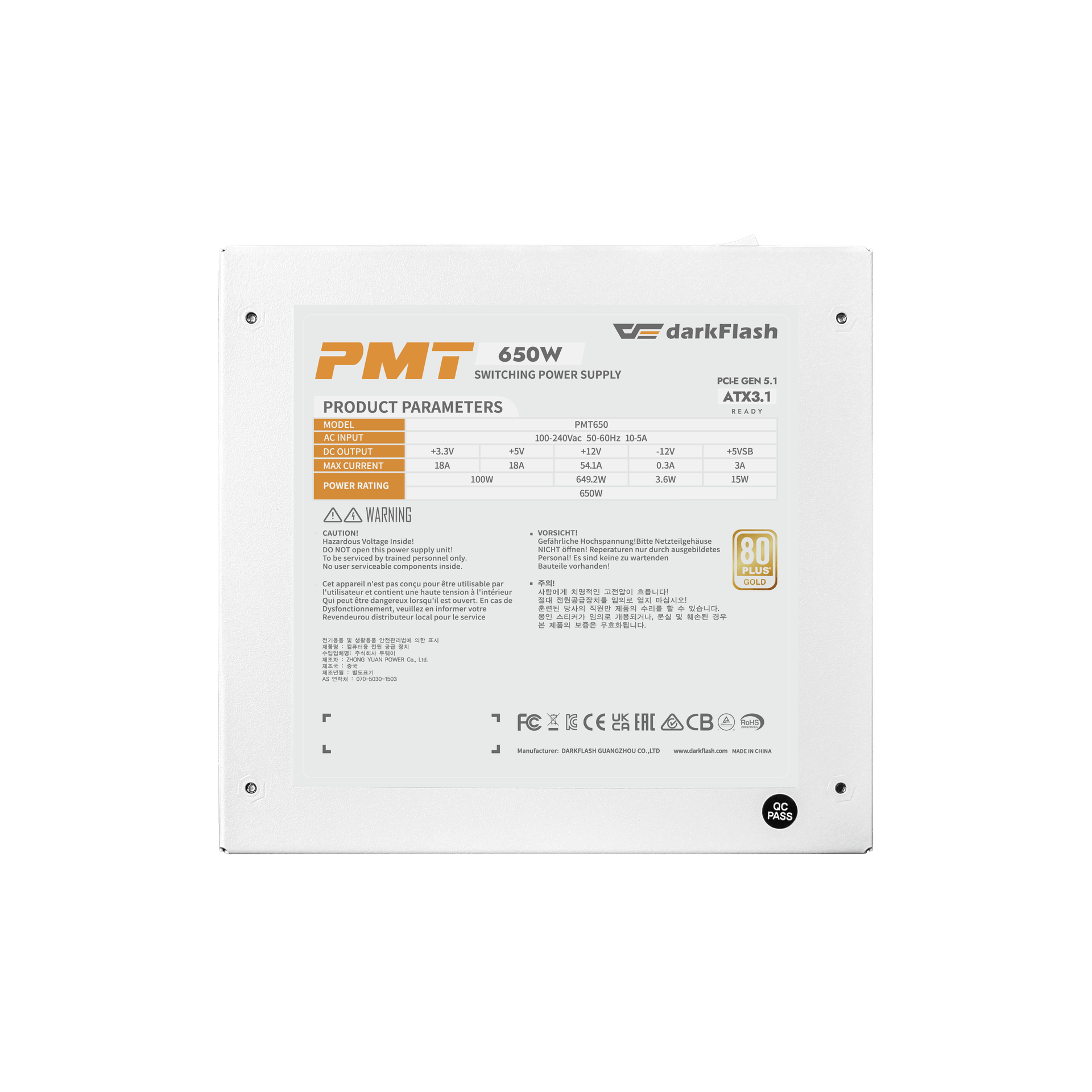

Spec
- Main Spec
- PSU Size：140 × 150 × 86mm
- Efficiency certification：80PLUS GOLD

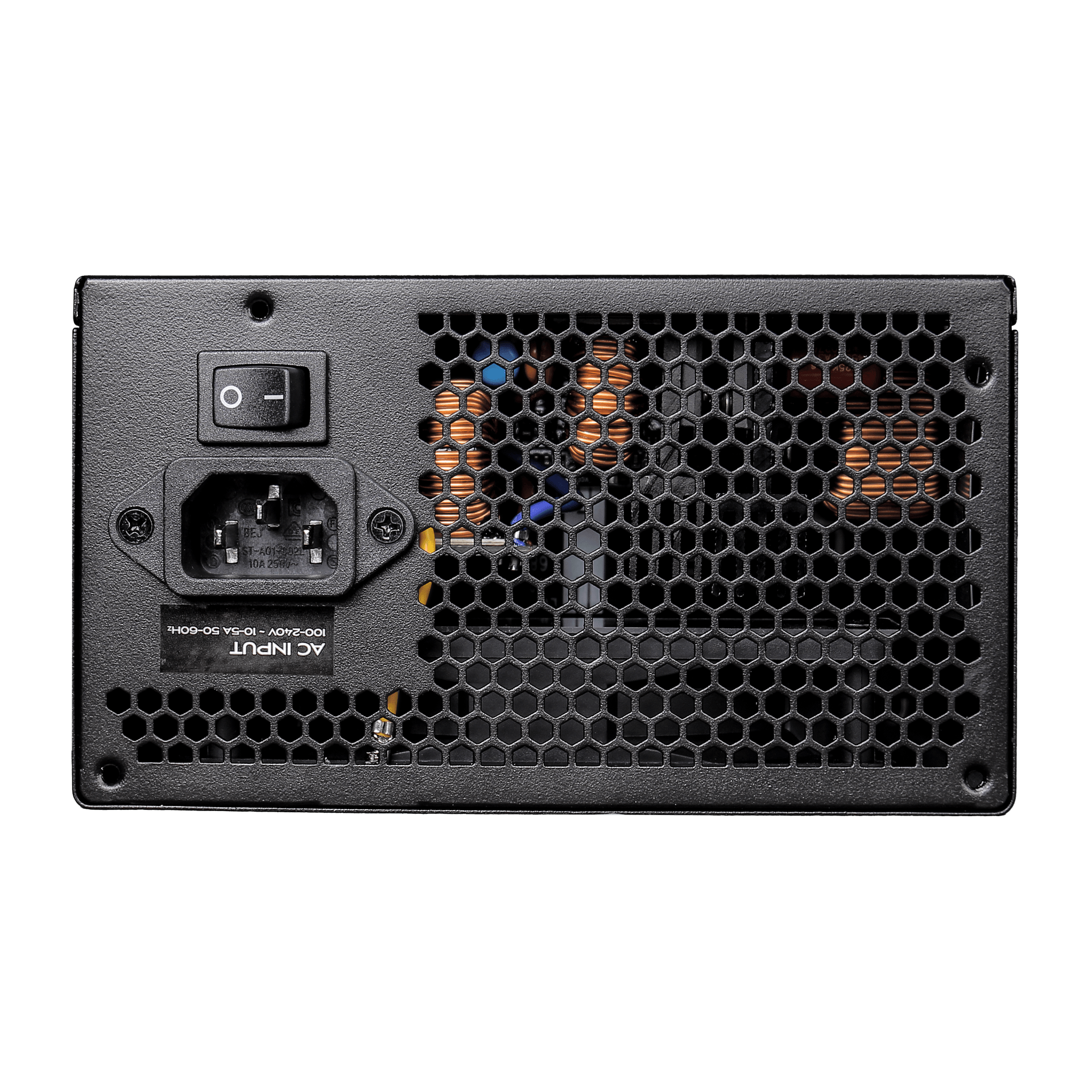

- Input Voltage：100-240V
- Input Frequency：50-60Hz
- Topology：Active PFCHalf Bridge LLCSRCDC to DC

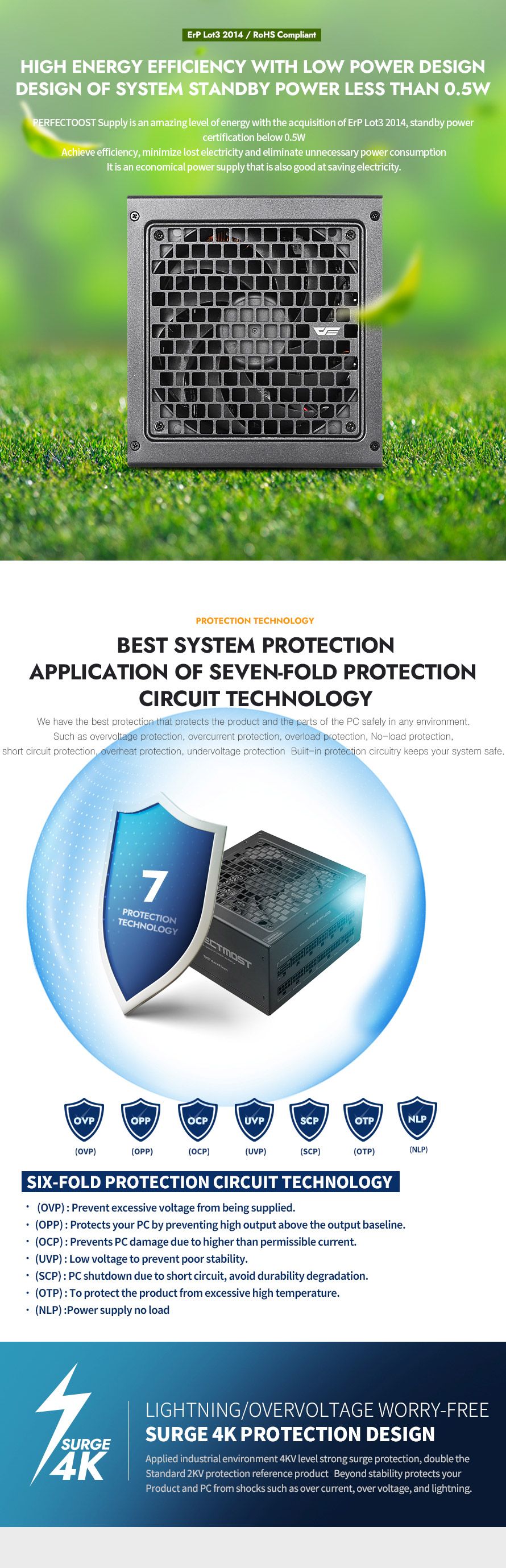

- Protection：Over voltage (OVP)over current (OCP)over load (OPP)Short Circuit (SCP)overheat (OTP)undervoltage (UVP)Zero load (NLP)
- Power Good Signal：100-250ms
- Hold Up Time：≥16ms@100% load
- Certification
- Warranty：5 years

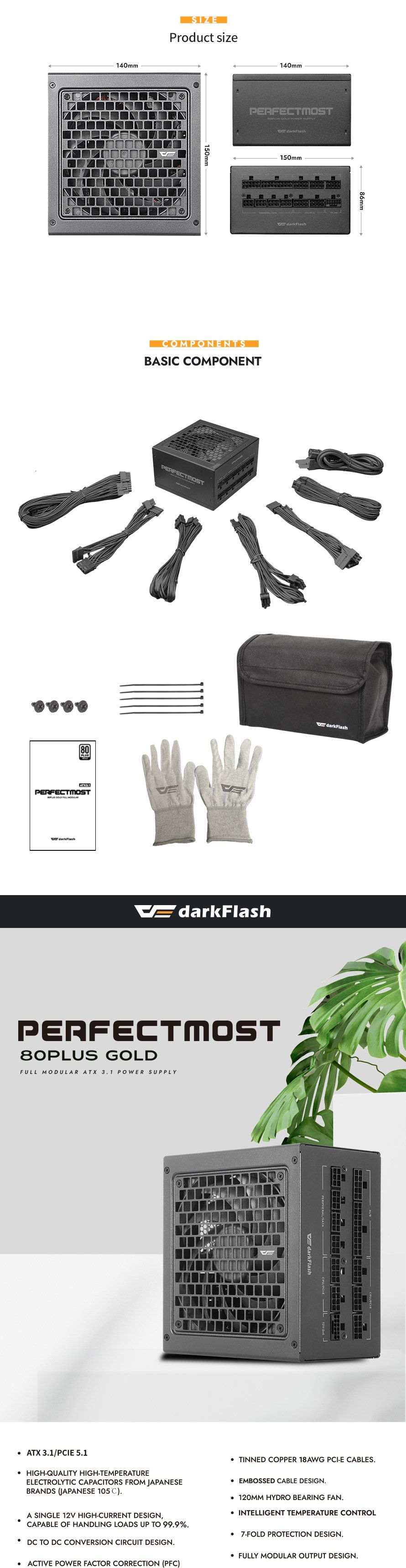

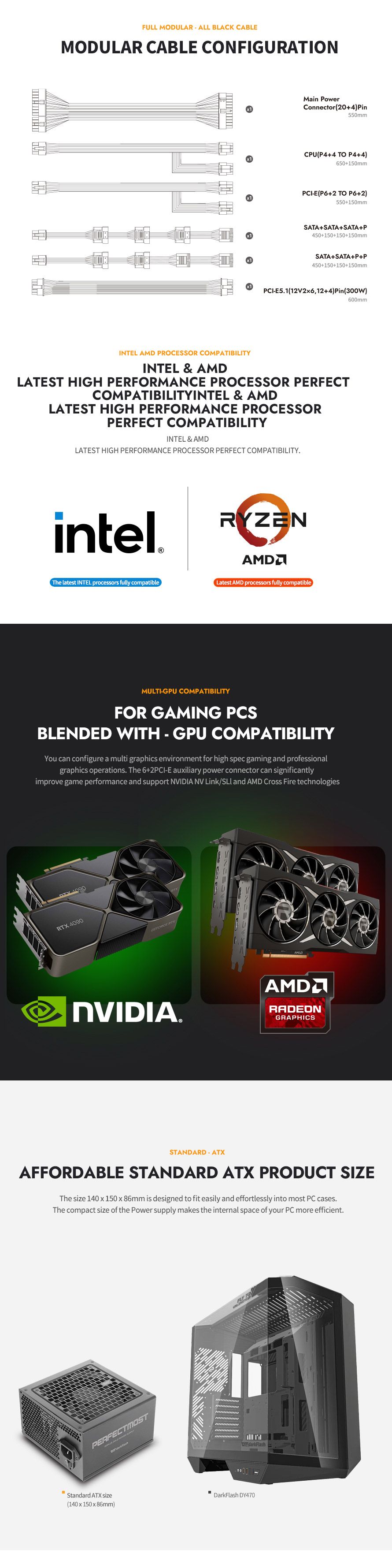

PMT 650 Gold Full Modular Power Supply Brochure Product Galleries
